Description
Take a trip into the great outdoors with all the comforts of home still at your fingertips. The Renogy RV Kit is perfect for any camper looking to power their favorite small electronics while on the road. Unlike traditional gas generators, the Renogy 200-Watt 12-Volt Solar RV Kit silently recharges your batteries, allowing you to enjoy nature without the noise. Solar panels also enable you to run limited low-wattage electrical equipment without needing a power hookup.

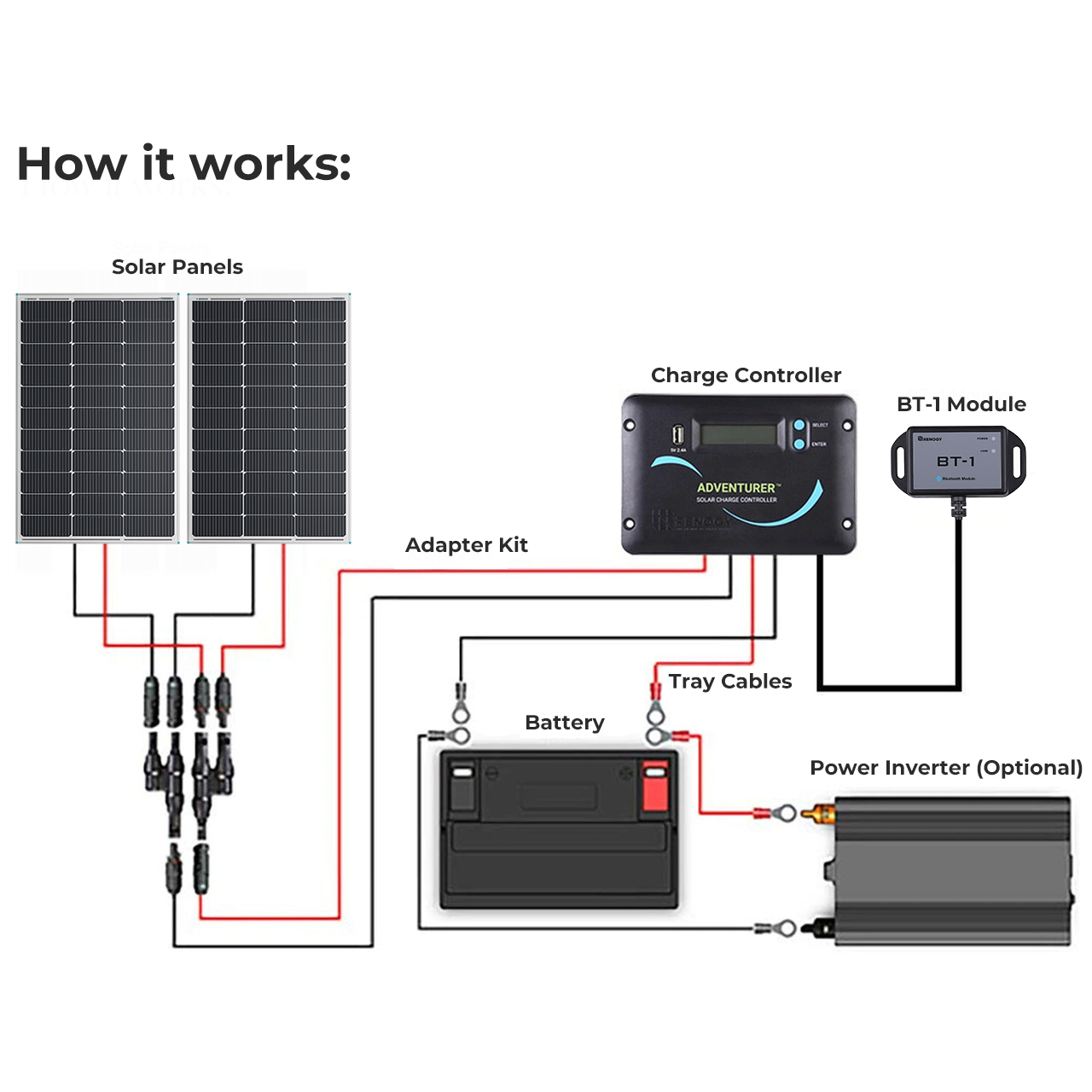

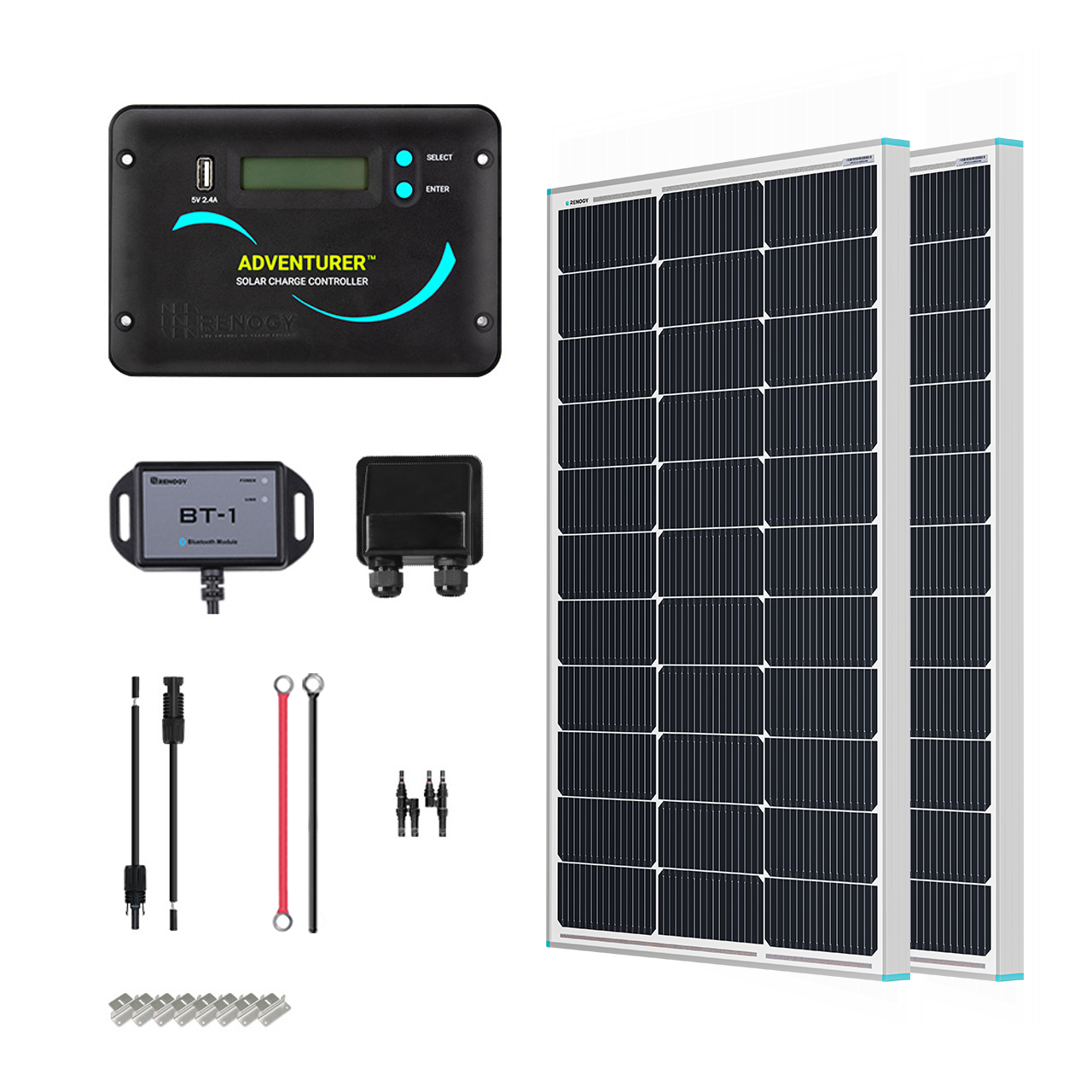

Renogy RV Kits are carefully arranged to meet your RV needs. This kit includes two 100W 12V Monocrystalline Solar Panels, one Adventurer 30A PWM Charge Controller, one 30ft 10AWG Solar Adaptor Kit, one 16ft 10AWG Tray Cable, one pair of Branch Connectors, a BT-1 Bluetooth Module and one Cable Entry Housing.

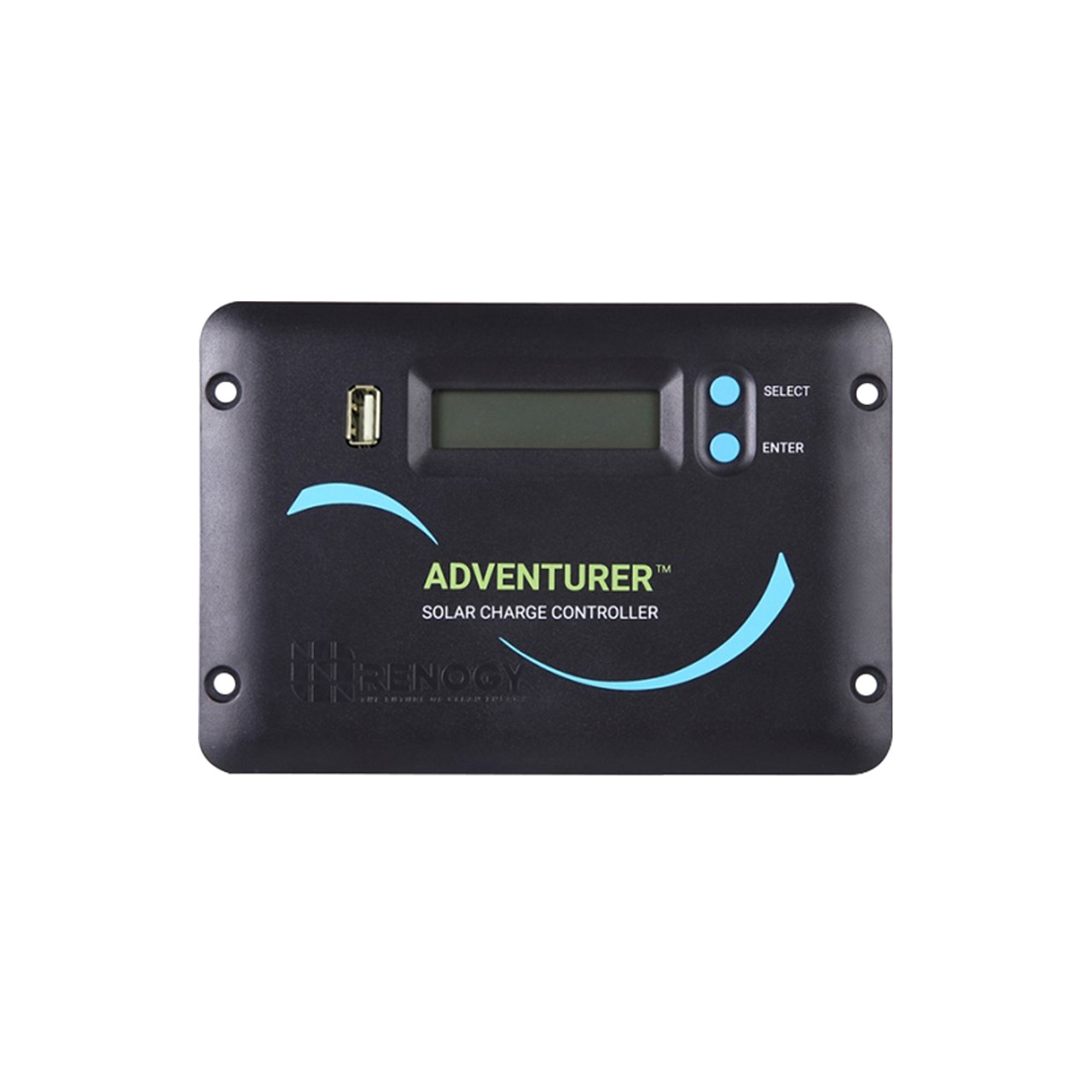

The Adventurer 30A PWM Charge Controller is specifically designed for RV applications as it allows for aesthetically clean flush mounting on walls and is negative-grounded for battery compatibility. It also features an LCD screen for displaying system operation information and data and allows for full control of parameter settings. The control is embedded with self-diagnostics and electronic protection functions that prevent damage from installation mistakes or system faults.

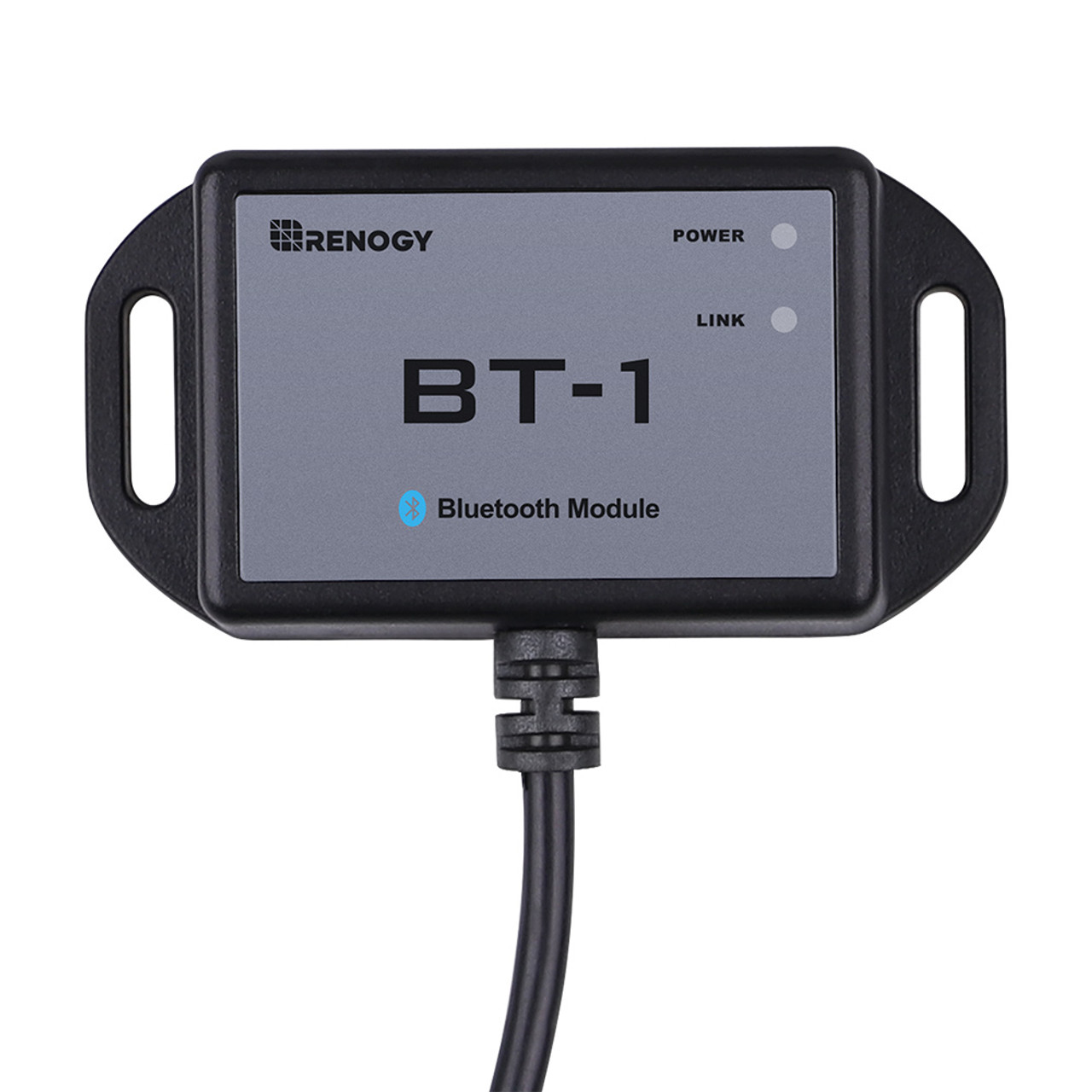

Newly added BT-1 Bluetooth Module enables user to pair the charge controller with our smartphone app DC Home. The APP allows you to view system performance in real time and make parameter changes right from your smartphone!
Work with Renogy ONE. Spend extra $89.99 get the Renogy ONE M1.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us.
Key Features
- High solar cell efficiency : Monocrystalline 21%
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
Reliable
- EL tested solar modules; no hot-spot heating guaranteed
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
- TPT back sheet ensures smooth performance over a long period of time
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
Intuitive
- Sealed, Gel and Flooded charging algorithim ready 4-Stage battery charging process for a rapid, efficient, and safe battery charging
- Remote monitoring and control via Bluetooth
Safe
- The Renogy Adventurer is equipped with multiple electronic protections: reverse current, overcharging, short-circuit and reversed polarity
- Pre-drilled holes on the back of the panel allow for fast and secure mounting
Expandable
- With the Renogy Adventurer 30A PWM Flush Mount Charge Controller, you can expand your system up to a maximum of 400W. The Renogy 100W Monocrystalline Expansion Kit is the perfect solution for future expansion
Package Includes
|
2 x |
Renogy Adventurer-30A PWM Charge Controller
1 x |
|
Renogy Solar Y Branch Connectors
1 x |
Renogy 30ft 10AWG Solar Adaptor Kit
1 x |
|
1 x |
3 x |
|
4 x |
1 x |
| RENOGY 100W MONOCRYSTALLINE SOLAR PANEL | RENOGY BT-1 BLUETOOTH MODULE |
|---|---|
| Maximum Power: 100W | Input Voltage: 5V-12V |
| Maximum System Voltage: 600V DC (UL) | Communication Range: ≤15m |
| Open-Circuit Voltage (Voc): 24.3V | Dimensions: 2.6 X 2.01 X 0.61 In |
| Short-Circuit Current (Isc): 5.21A | Weight: 120 g (4.2oz) |
| Optimum Operating Voltage (Vmp): 20.4V | |
| Optimum Operating Current (Imp): 4.91A | |
| Weight: 14.1lbs | |
| Dimensions: 41.8 x 20.9 x1.4 in | |
| Renogy 16ft 10AWG Tray Cables (A Pair) | Renogy Solar Y Branch Connectors |
| Length: 16ft | Withstanding Voltage: 1000V DC(TUV), 600V(UL) |
| AWG: 10 | Protection Degree: IP67, mated |
| Rating Voltage: 600V | Wiring Size Range: 10, 12, 14 AWG |
| Temperature: -40°F to +185°F | Temperature: -40°F to +194°F |
| Renogy Adventurer - 30A PWM Negative-Ground Charge Controller with LCD Display | Renogy Cable Entry Housing |
| Nominal Voltage: 12 VDC | Material: UV-resistant ABS Plastic; |
| Rated Charge Current: 30A | Weight (each component): 7.9 oz. |
| Max. PV Input Voltage: 25 VDC | Recommended Adhesive: Sikaflex 252 or alike; |
| Max. PV Input Power: 400W (12V) | Dimensions (l x w x h): 4.7 x 3.9 x 2.0 in |
| Cable Gland Diameter Range: 6mm – 12mm; | |

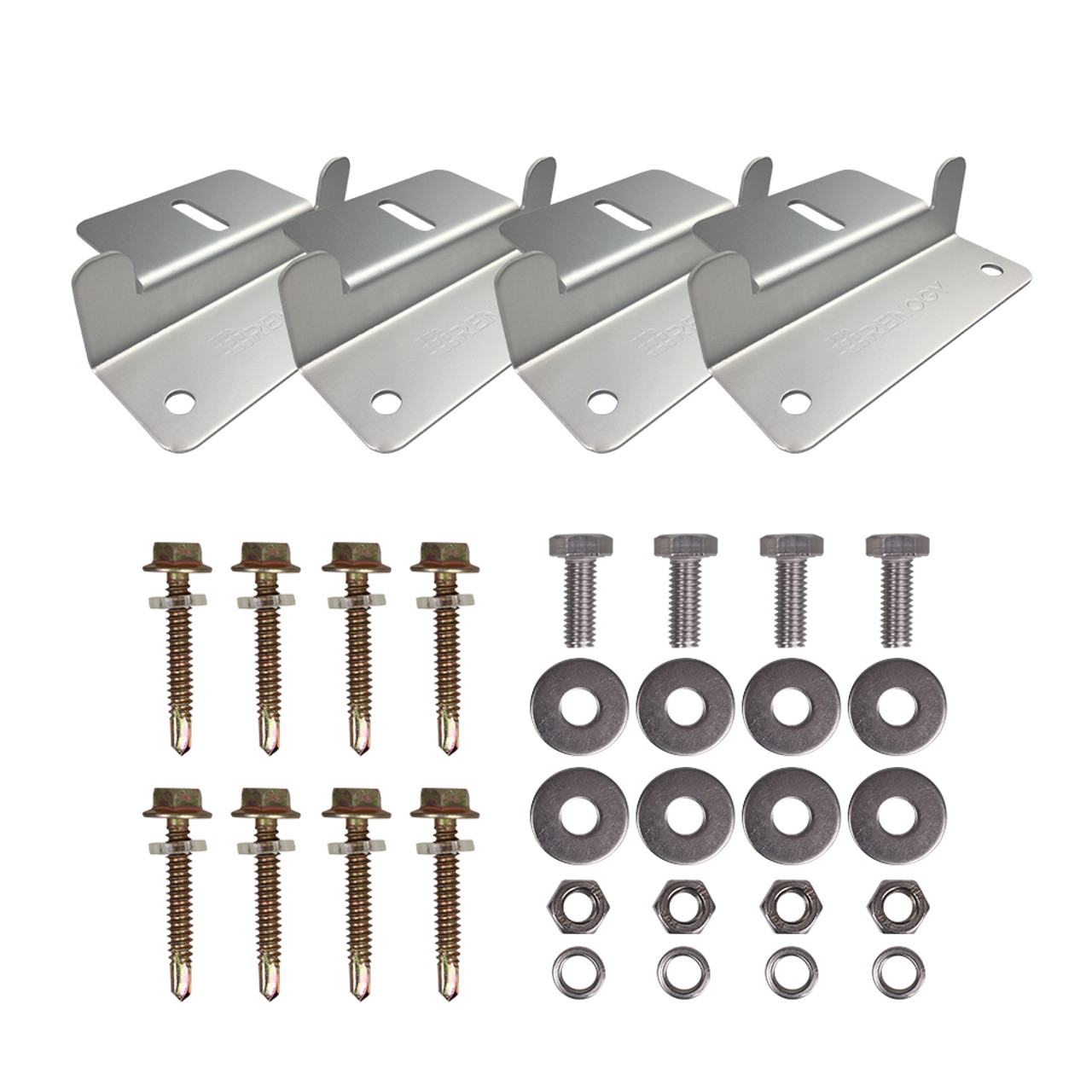

| Mounting Z Brackets (Set) | Renogy 30ft 10AWG Solar Adaptor Kit (A pair) |
| Eight Long Cap Bolts and Four Short Bolts; | Length: 30ft |
| Four Spring Washers and Four Washers; | AWG: 10 |
| Four Z Shape Solar Panel Brackets | Rating Voltage: 600/1000V |
| Four Nuts | Temperature: -40°F to +185°F |
 |
|||
 |
|||
| Please click the links below to download the manuals: | |||
| 30A PWM Adventurer Charge Controller | |||
| BT-1 Bluetooth Module | |||
| Mounting Z Brackets | |||
| Brand | Renogy |
| Vendor | Renogy |
| Model | 200-watt-12-volt-solar-rv-kit |
For warranty and technical support, visit renogy.com/support or call 1-909-287-7111.
