Description

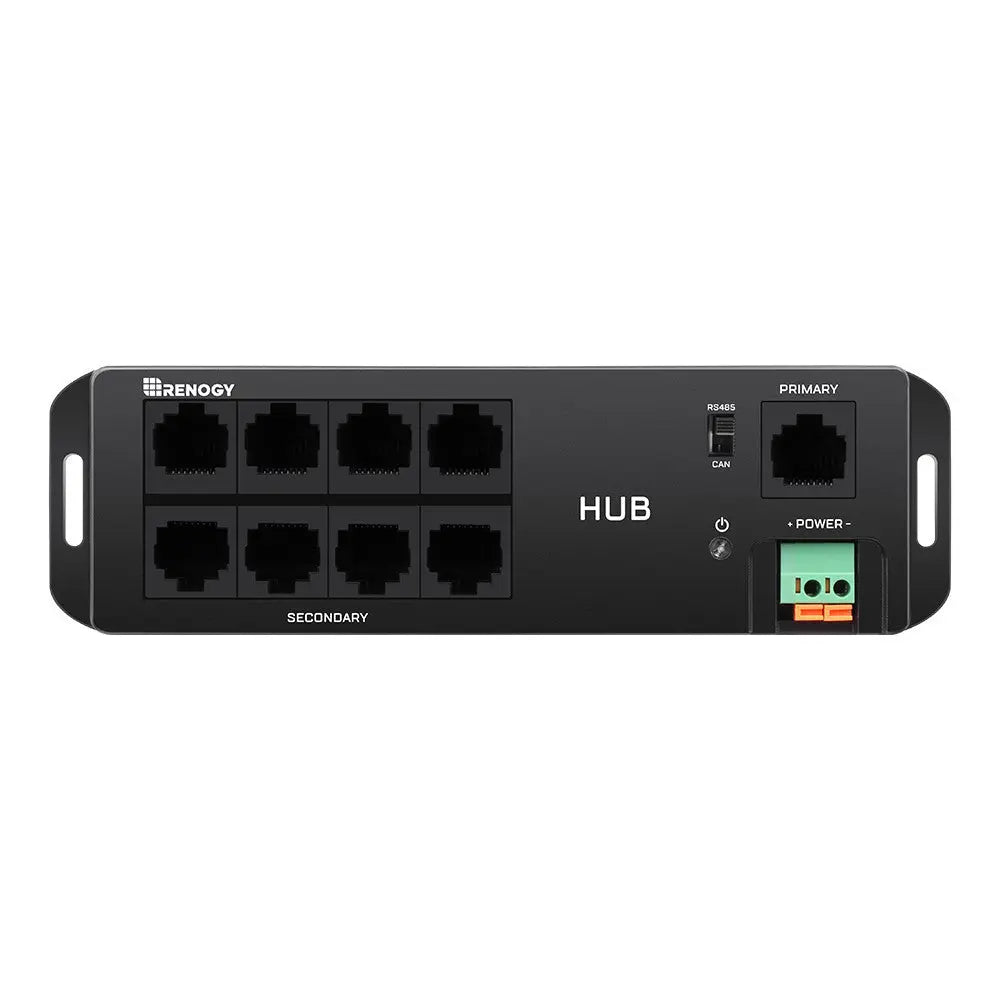

The Renogy Communication Hub allows you to connect multiple Renogy appliances with an RJ45 port and RS485 communication protocol to just one BT-2 Bluetooth module. Now you can use your phone to monitor multiple devices at the same time! The Renogy Communication Hub also supports both RS485 and CAN communication protocols – giving you a wider selection of compatible devices.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us.
Key Features

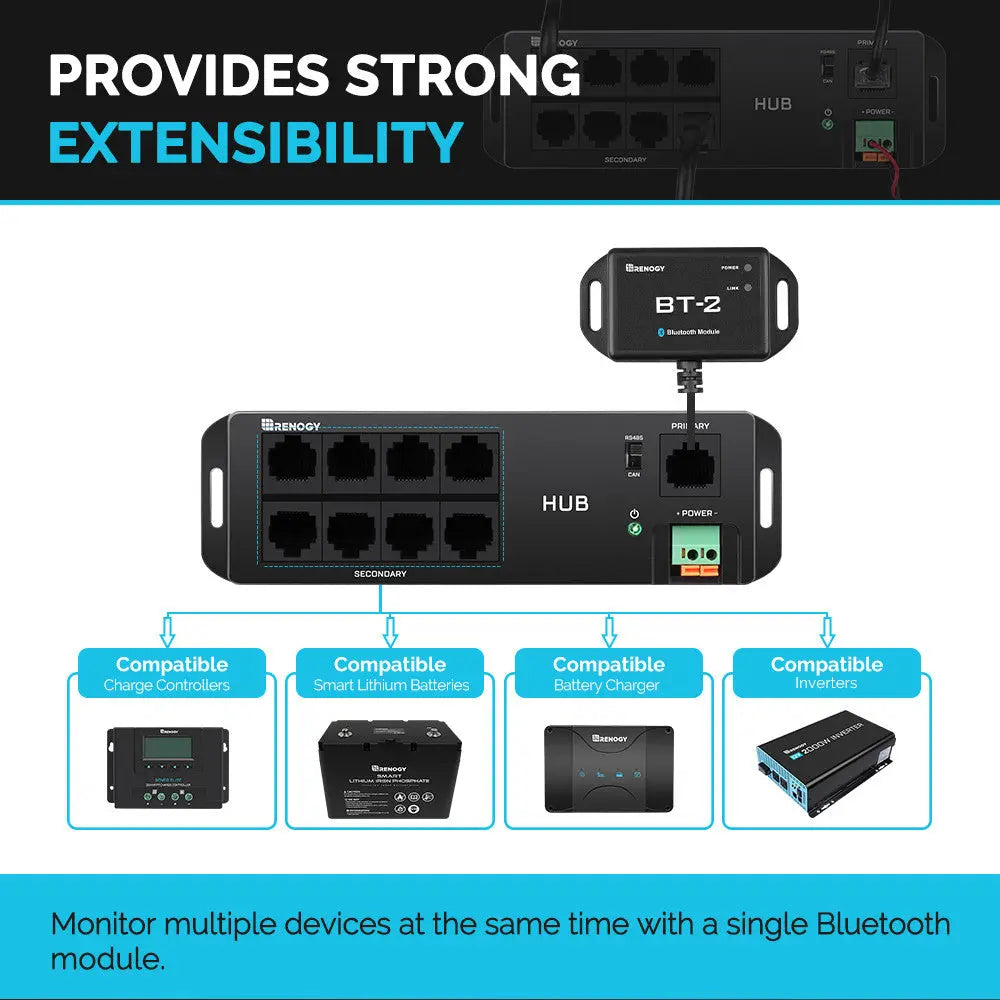

- Monitor multiple devices at the same time with a single Bluetooth module.

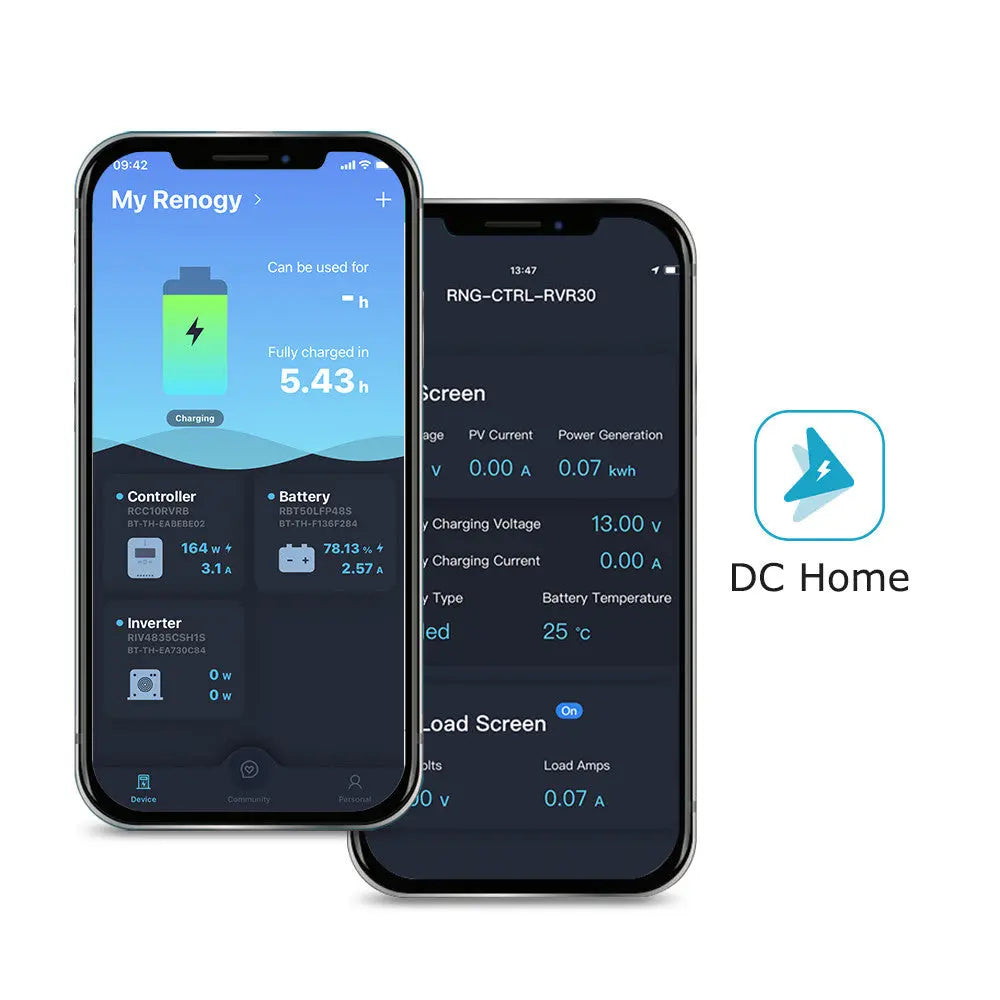

- Connect to our user-friendly smart phone App, Renogy DC Home, to keep track of your system.

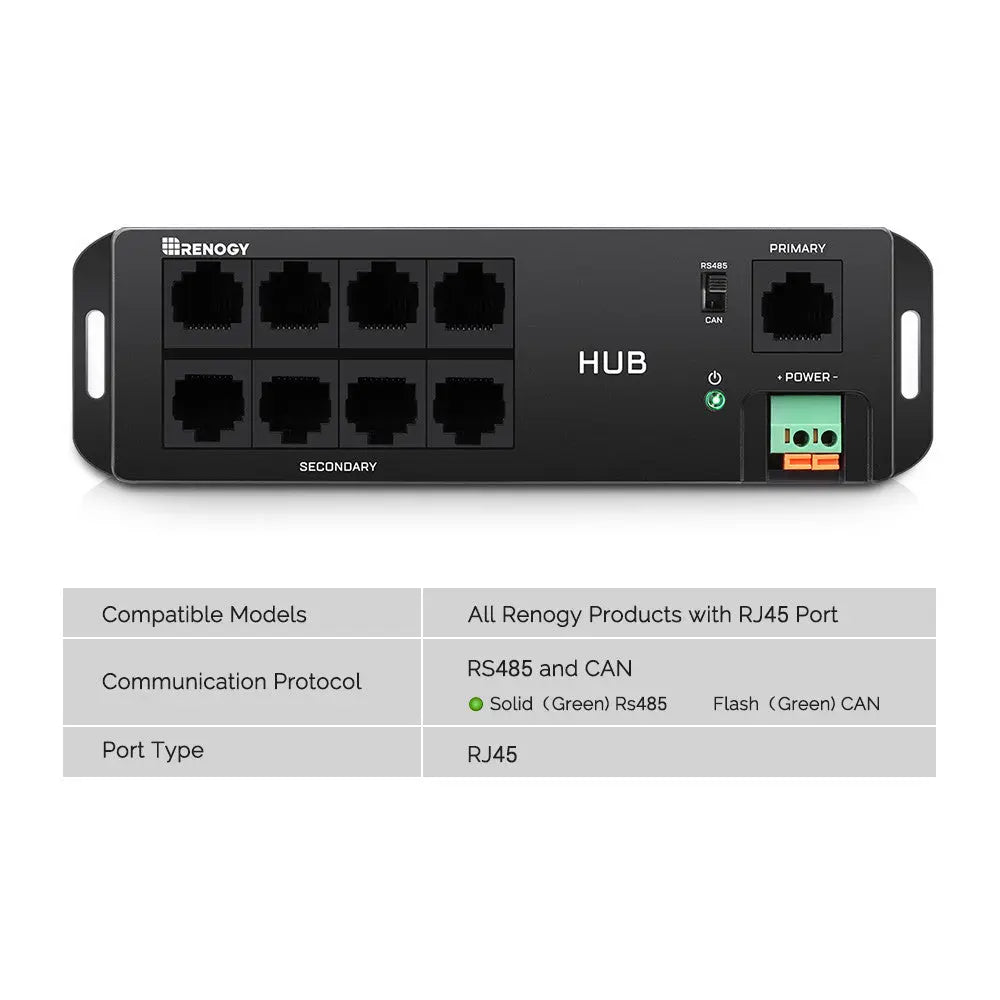

- Supports both RS485 and CAN communication protocol.

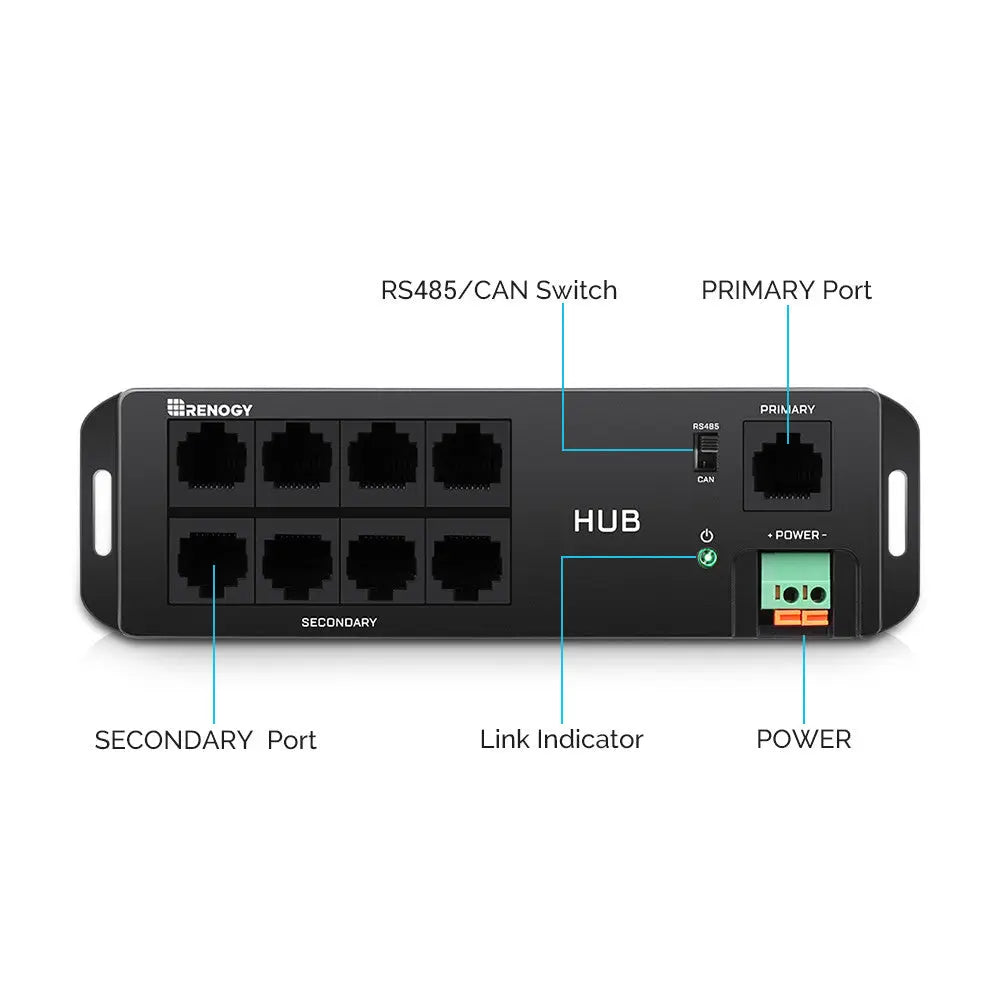

- Green LED lights indicate which communication protocol is currently on.
Package Includes
|
Renogy Bluetooth Hub
1 x
|
Power Cable
1 x
|
| Specifications | |
|---|---|
| Input Voltage: 9V - 60V | Port Type: RJ45 |
| Standby Power Consumption: 0.324W | Cable Length: 5.00m (16.4ft) |

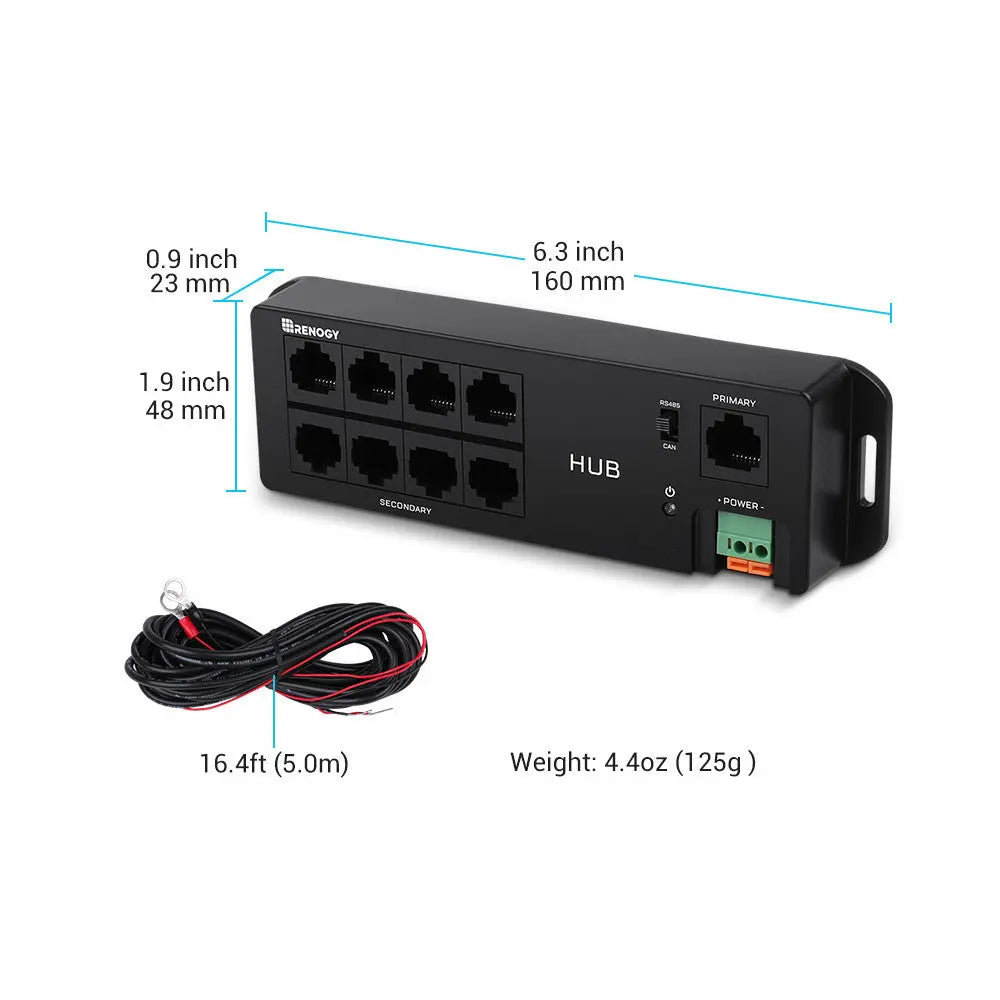

| Operating Power Consumption: <0.35W | Dimension: 6.29 X 1.89 X 0.91in (160 x 48 X 23mm) |
| Communication Range: ≤82ft | Installation Dimension: 151.4 φ3.5mm (5.96 φ 0.14in) |
| Serial Baud Rate: RS485-9600 bps CAN-500 kbps | Operation Temperature: -20°C~85°C;(-4°F to 185°F) |
| Communication Protocol: RS485 CAN | Weight:125g (4.41oz) |
Warranty Information
| Accessories | 1-year material and workmanship warranty |
 |
 |
| Brand | Renogy |
| Category | Solar & Power |
| SKU | RCM-HUB-US |
| Weight | 0.04 kg |
