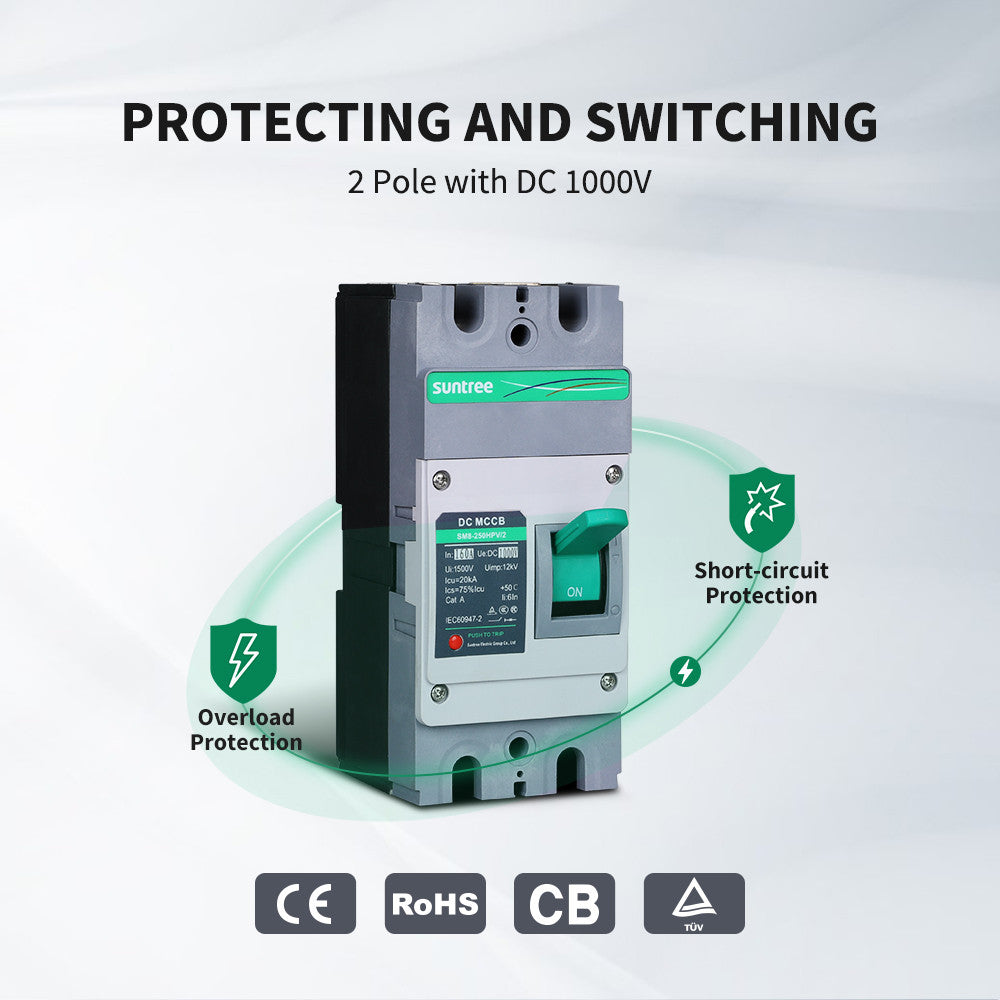

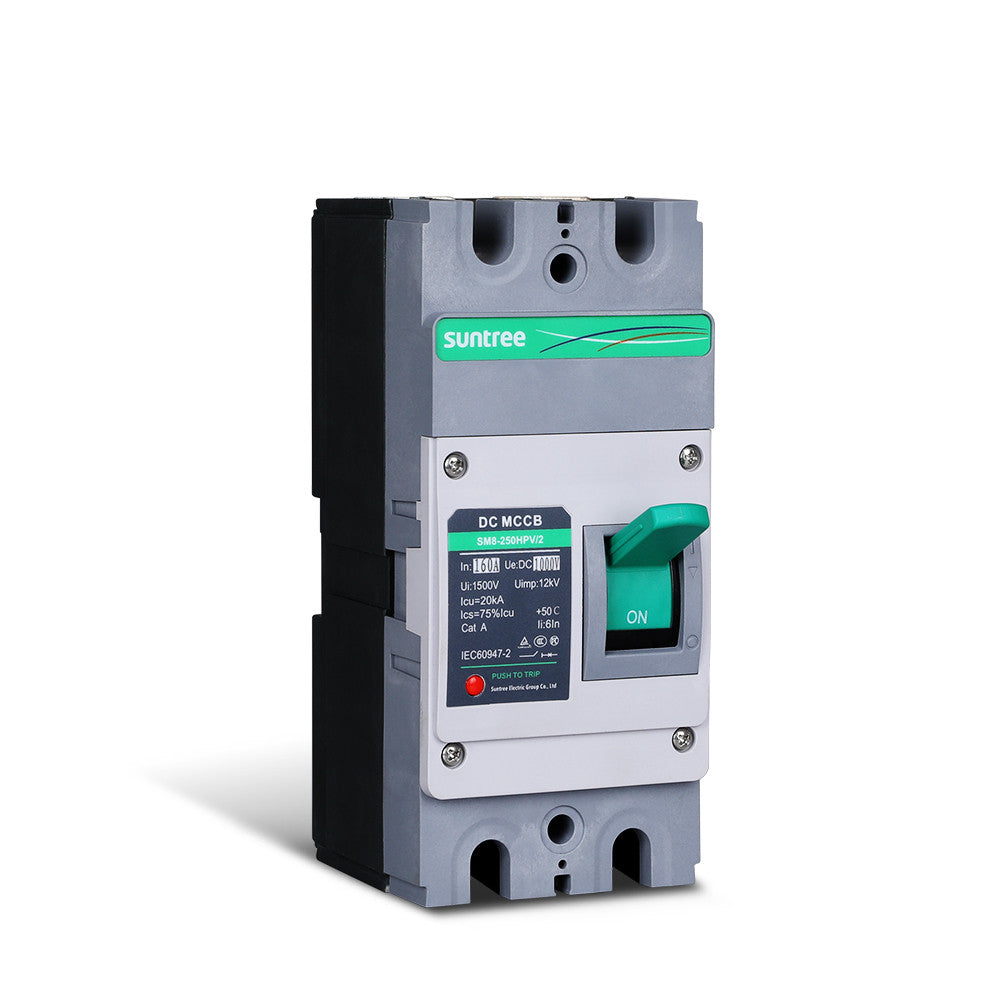

The Suntree DC Molded Case Circuit Breaker is designed to protect DC electrical installations against overloads and short circuits with both the thermal and magnetic tripping mechanism equipped. Once a fault is detected, the circuit breaker automatically switches off the electrical circuit to prevent damage to wires and avoid the risk of fire. The circuit breaker can also be manually opened under the full rated load without any damage when electrical maintenance needs to be performed. Engineered for reversible connection, the circuit breaker is allowed to be wired in either direction and functions under bidirectional current. The markings on the handle help identify the contact position of the circuit breaker at a glance. The special design enables easy installation on both the standard DIN rail and the vertical surface.

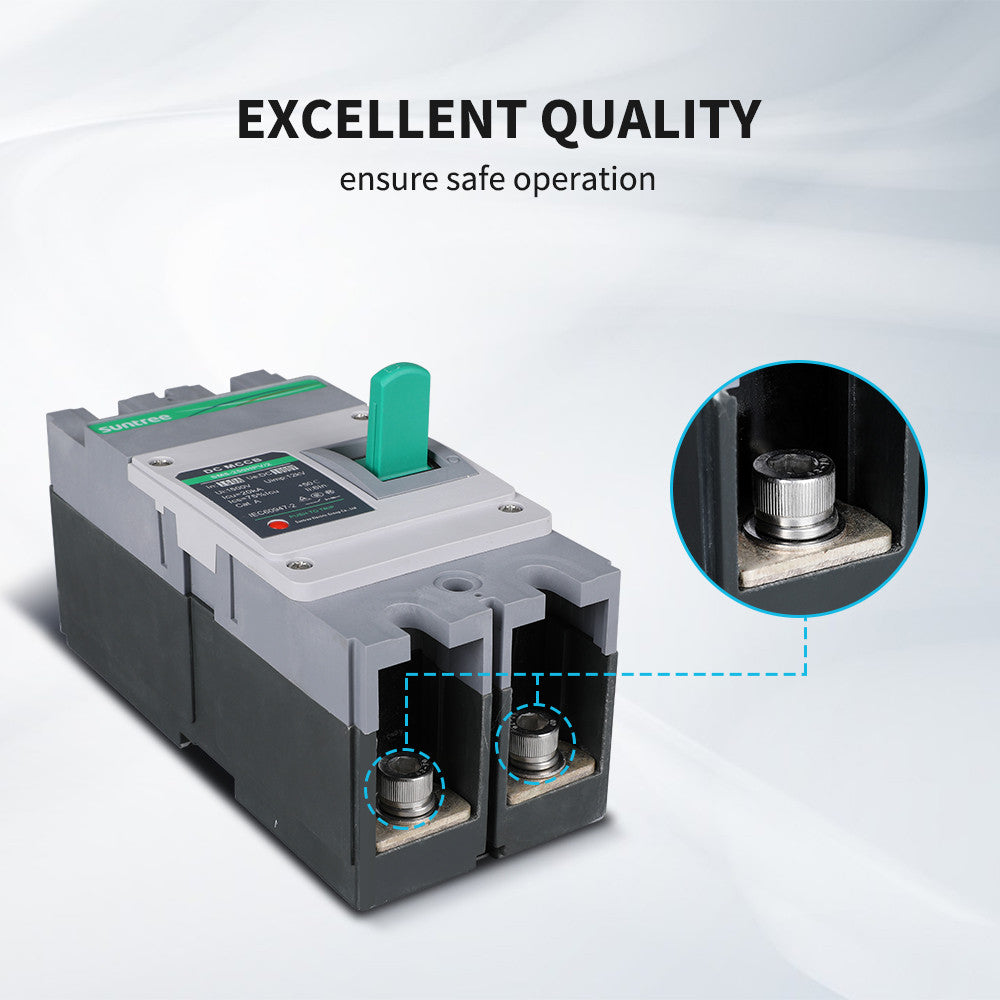

Equipped with both the thermal and magnetic tripping mechanism for reliability and safety, along with the certification of CE, RoHS, CB, TUV.
Excellent product quality and strong service life. Material and workmanship warranty for 1.5 years.
Advice of choosing suitable circuit breaker for different situations.

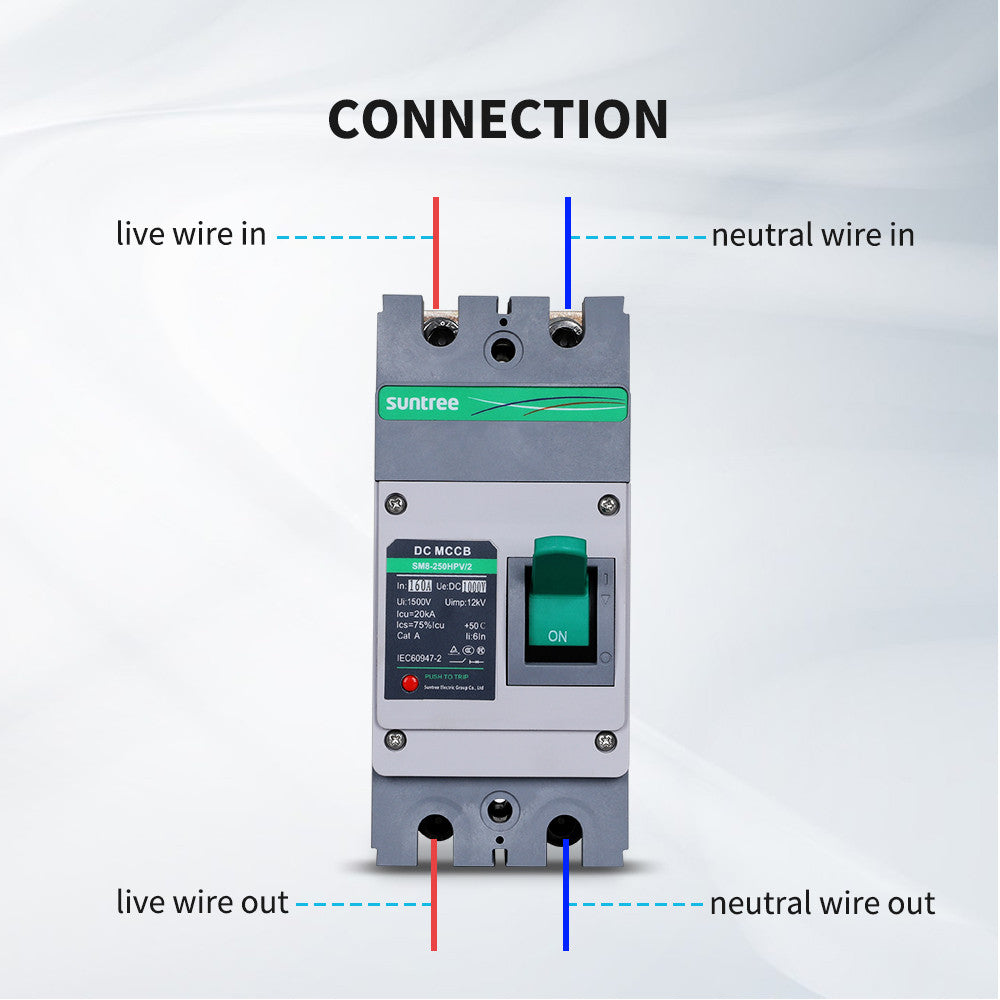

Connected on positive and negative.
Built-in indicator window helps identify the contact position.
Offers DIN rail installation and panel installation. Remember to install the insulation barriers before operation to ensure safety.
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!

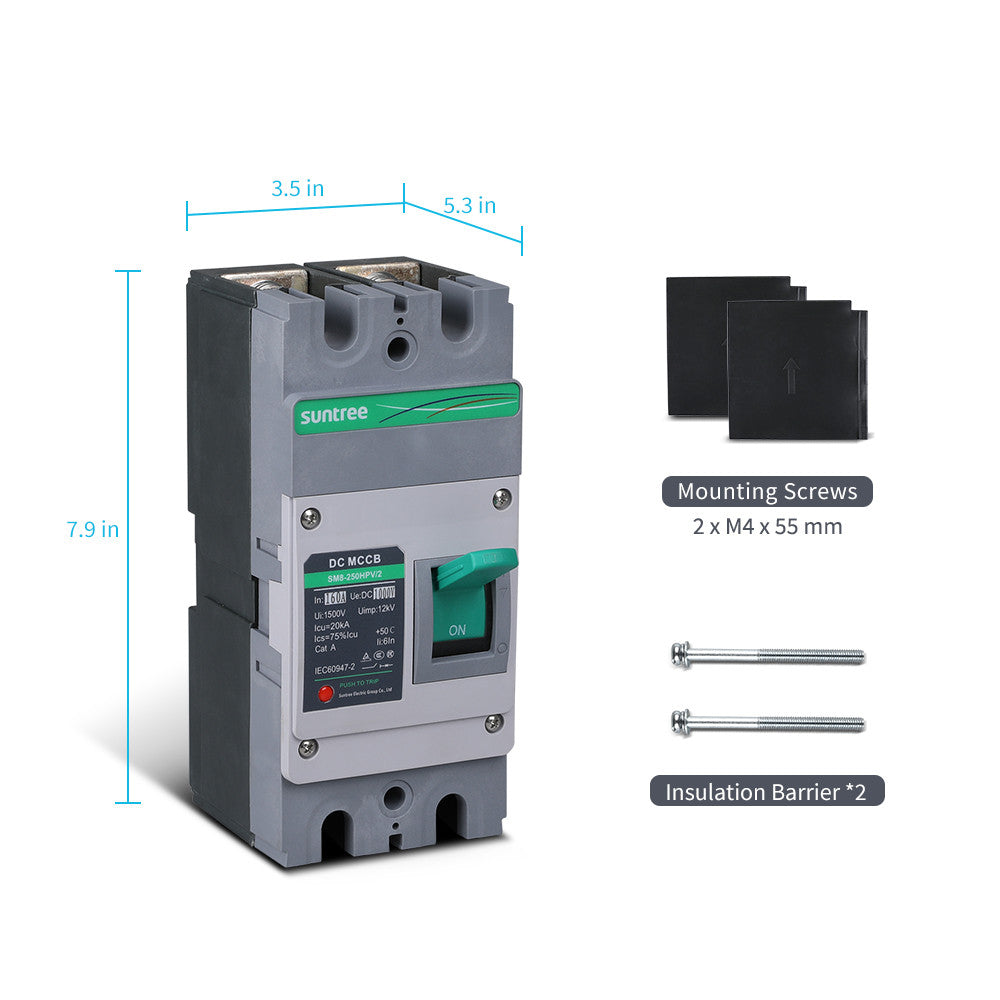

Package Includes
|
160A 2P DC Molded Case Circuit Breaker
1 x
|
Mounting Screws
2 x M4 x 55 mm
|
Insulation Barrier
2 x
|
| 160A 2P DC Molded Case Circuit Breaker | |||
|---|---|---|---|
| Rated Insulation Voltage | 1500V | Operating Temperature Range | -40℉~167℉ (-40℃~75℃) |
| Rated Operating Voltage | 1000V | Storage Temperature Range | -40℉~167℉ (-40℃~75℃) |
| Rated Frame Current | 250A | Protection Rating | IP20 |
| Rated Current | 160A | Operating Relative Humidity | ≤95% |
| Number of Poles | 2 | Rated Non-Tripping Current | 168A (≥2h) |
| Operating Short-Circuit Breaking Capacity | 15KA | Rated Tripping Current | 208A (<2h) |
| Ultimate Short-Circuit Breaking Capacity | 20KA | Rated Instantaneous Tripping Current | 1000A (<0.1s) |
| Rated Impulse Withstand Voltage | 12KV | Accessories | |

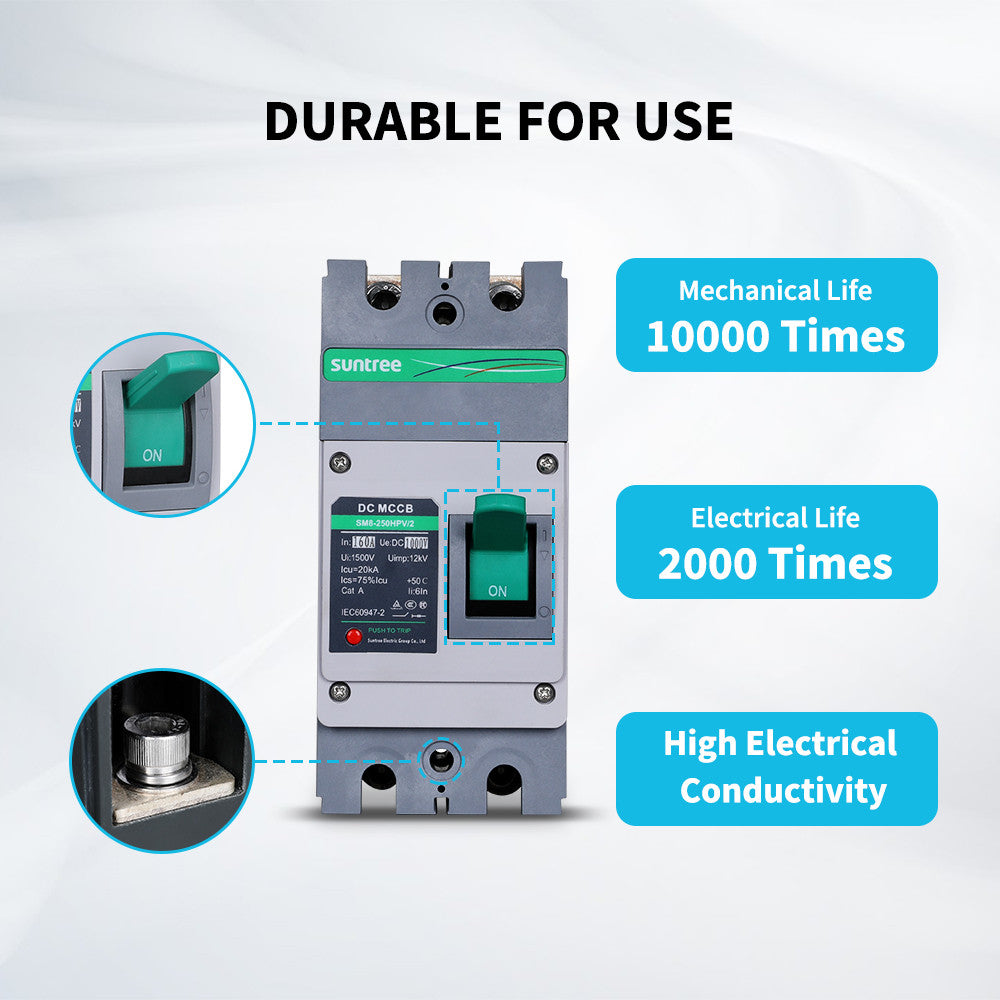

| Mechanical Life | 10000 Times | Mounting Screw (2) | M4 x 55 mm |
| Electrical Life | 2000 Times | Insulation Barrier | |
| Trip Mechanism | Thermal-Magnetic | Certifications | |
| Damp Heat Resistance | N/A | CE | YES |
| Mechanical Specifications | RoHS | YES | |
| Dimensions | 7.9 x 3.5 x 5.3 in (200 x 90 x 135 mm) | CB | YES |
| Weight | 4.67 lb | TUV | YES |
| Recommended Terminal Torque | 44.3 inch·lbs (5 N·m) | Warranty | |
| Conductor Size | 4 AWG-4/0 AWG | Material and workmanship warranty | 1 Year |
For controller/inverter/DCdevice
1. Determine the maximum continuous operating current=watt/voltage
2. Maximum current = 1.25 x maximum continuous operating current
3. Select the circuit breaker whose rated current is greater than and closest to the maximum current
For solar panel
1. Determine short-circuit current
2. Maximum current = Short-circuit current x 1.25 x 1.25
3. Select the circuit breaker whose rated current is greater than and closest to the maximum current
1P connects on the live wire only.
2P connects on both live wire and neutral wire, so it can cuts them at the same time.
Normally, 2P can afford greater rated current and working voltage than 1P.
Circut breaker:
Functions: overload/short circuit protection and active disconnection can be realized
Breaking time: small current delay trip, large current instant trip
Rated operating voltage: 250V/1000V
Replacement: after disconnecting, only reset is required, don't need to replace it
Fuse:
Function: overload/short circuit protection only
Breaking time: high current also has delay
Rated operating voltage: 72V
Replacement: Replacement is required immediately after breaking
 |
