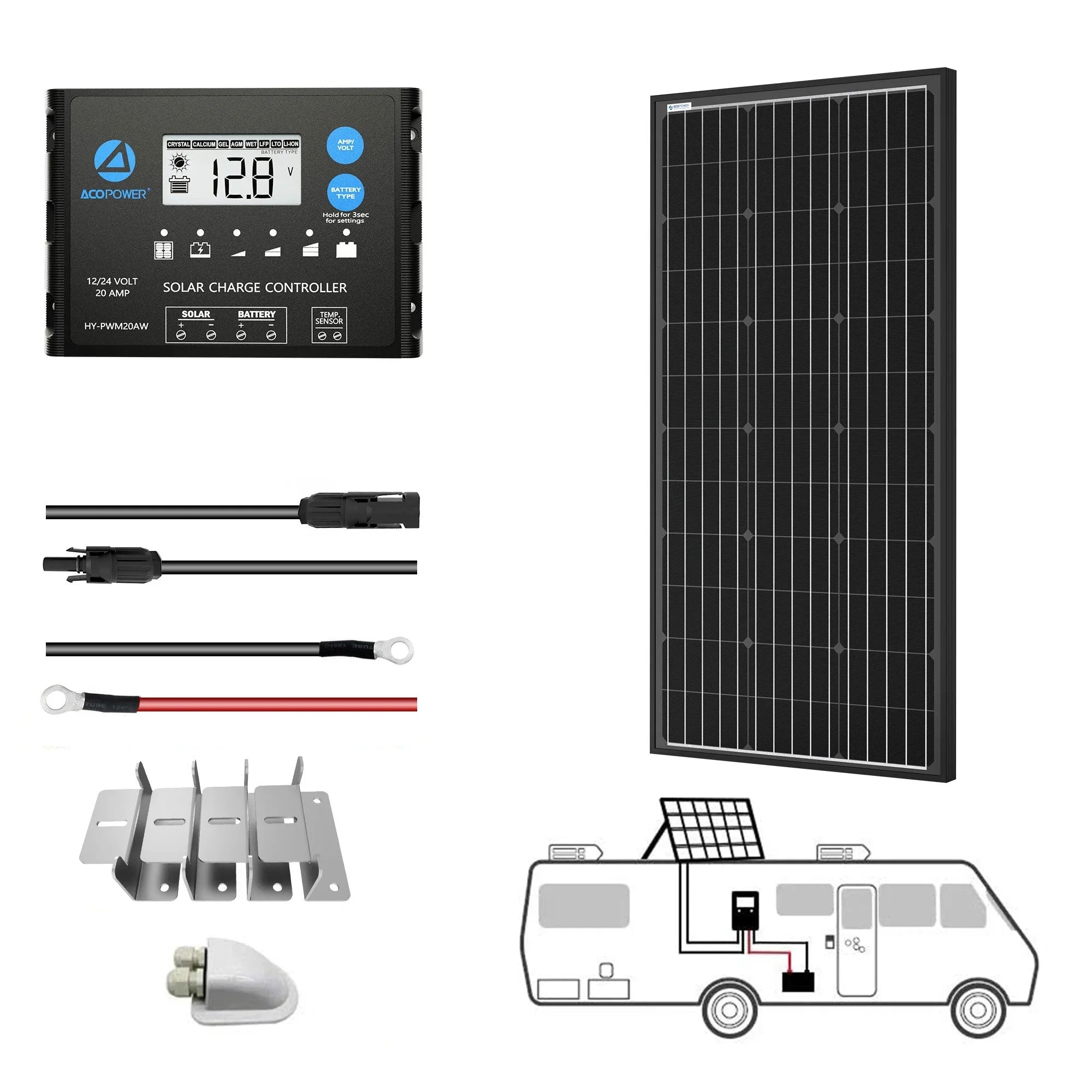

ACOPOWER 200W Mono Solar RV Kits + MPPT / PWM Charge Controller
$298.00 USD
/
Los gastos de envío se calculan en la pantalla de pago.









ACOPOWER 200W Mono Solar RV Kits + MPPT / PWM Charge Controller
$298.00 USD
/
Los gastos de envío se calculan en la pantalla de pago.
5 en stock
products.product.pickup_availability.unavailable
Pago y seguridad
Su información de pago se procesa de forma segura. No almacenamos los datos de su tarjeta de crédito ni tenemos acceso a ella.
Generalmente se envía en un plazo de 3 a 5 días y se entrega en un plazo de 10 días hábiles.
ACOPOWER 100W Mono Solar RV Kits + MPPT / PWM Charge Controller - 100W PWM20A

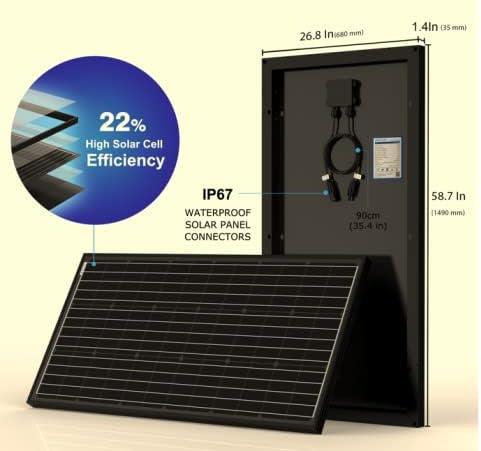

- Peak Power (Pmax):200W
- Max Power Voltage(Vmp):20.4V
- Max Power Current(Imp):9.8A
- Weight:26.5 lb/12kg
- Peak Circuit Voltage(Voc):24.3V
- Short Circuit Current(Isc): 10.2A
- Wind resistance:2400pa
- Dimension: 54.72 x 27.56x 1.3 Inch
- Maximum Power at STC (Pmax): 100W
- Maximum Operating Voltage (Vmp): 17.48V
- Maximum Operating Current (Imp): 5.71A
- Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
- Open-Circuit Voltage (Voc): 22V
- Short-Circuit Current (Isc): 6.14A
- Operating Temperature: -40ºC to 85ºC
- Weight: 9.5kg / 20.9 lbs
- Nominal System Voltage: 12v/24v/36v/48v DC auto work
- Rated Charge Current: 60A
- Max. PV Open Circuit Voltage: 150V/138V
- Max. PV input power: 1125W/12V, 2250W/24V, 2812.5W/36V ,4500W/48V
- MPPT Voltage Range: (Battery Voltage+2V) ~72V
- Dimension:261*216*119mm
- Grounding: Common negative
- Battery Input Voltage Range: 8V~32V
- MPP voltage range:V(BAT)+2V~108V
- Rated Charge Power : 750W/12V, 1500W/24V, 2250W/36V ,3000W/48V
- RS485 Interface: 5VDC/200mA(RJ45)
- Installion Notes:First connect the battery;Then connect the load; Finally connect the solar panel.
- ACOPOWER 50A MPPT SOLAR CHARGE CONTROLLER
- Nominal System Voltage: 12v/24v/36v/48v DC Auto
- Rated Charge Current: 50A
- Max. PV Open Circuit Voltage: 150V/138V
- MPP Voltage Range: V(BAT)+2V~108V
- Working temperature: -25℃~+50℃
- RS485 Interface: RS485(RJ45)
- Dimension: 261*216*119mm
- Grounding: Common negative Design
- Battery Input Voltage Range: 8V~68V
- Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
- Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
- Storage temperature: -20℃~+70℃
- Enclosure: IP33
- Terminals: 16mm2/6AWG
- ACOPOWER MIDAS 40A MPPT SOLAR CHARGE CONTROLLER
- Nominal System Voltage: 12/24VDC Auto
- Rated Charge Current: 40A
- Max. PV Open Circuit Voltage: 100V (1) 92V (2)
- MPPT Voltage Range: (Battery Voltage+2V) ~72V
- Working temperature: -25℃~+50℃
- Terminals: Up to 6 AWG
- Dimension: 10x7.28x2.67 in / 255×185×67.8mm
- Grounding: Common negative
- Battery Input Voltage Range: 8V~32V
- Rated charge Power: 520W/12V 1040W/24V
- RS485 Interface: 5VDC/200mA(RJ45)
- Storage temperature: -20℃~+70℃
- Enclosure: IP33
- Weight: 3.75lbs / 1.7kg
- ACOPOWER 30A MPPT SOLAR CHARGE CONTROLLER
- Nominal system voltage: 12/24VDC Auto
- Battery input voltage range: 8V~32V
- Max.PV input power: 12V/390W, 24V/780W
- Working environment temperature: -25℃~+50℃
- Grounding: Common negative
- Power Terminals: 6AWG(16mm2)
- Dimensions: 228x164x55mm
- Rated charge current: 30A
- Max.PV open circuit voltage: 100VDC
- MPP voltage range: V(BAT+2V)~72V
- Storage temperature range: -35℃~+80℃
- Communication: RS485
- Enclosure: IP30
- Weight: 1.2kg

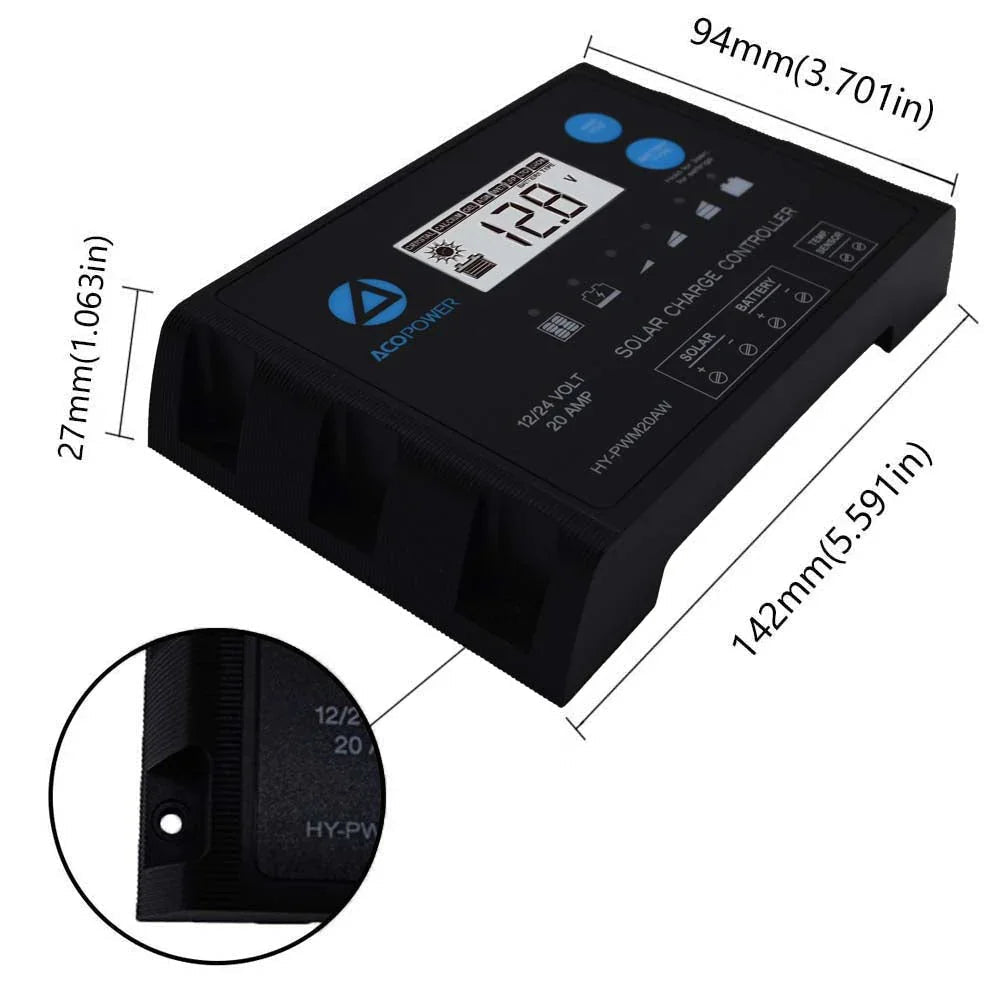

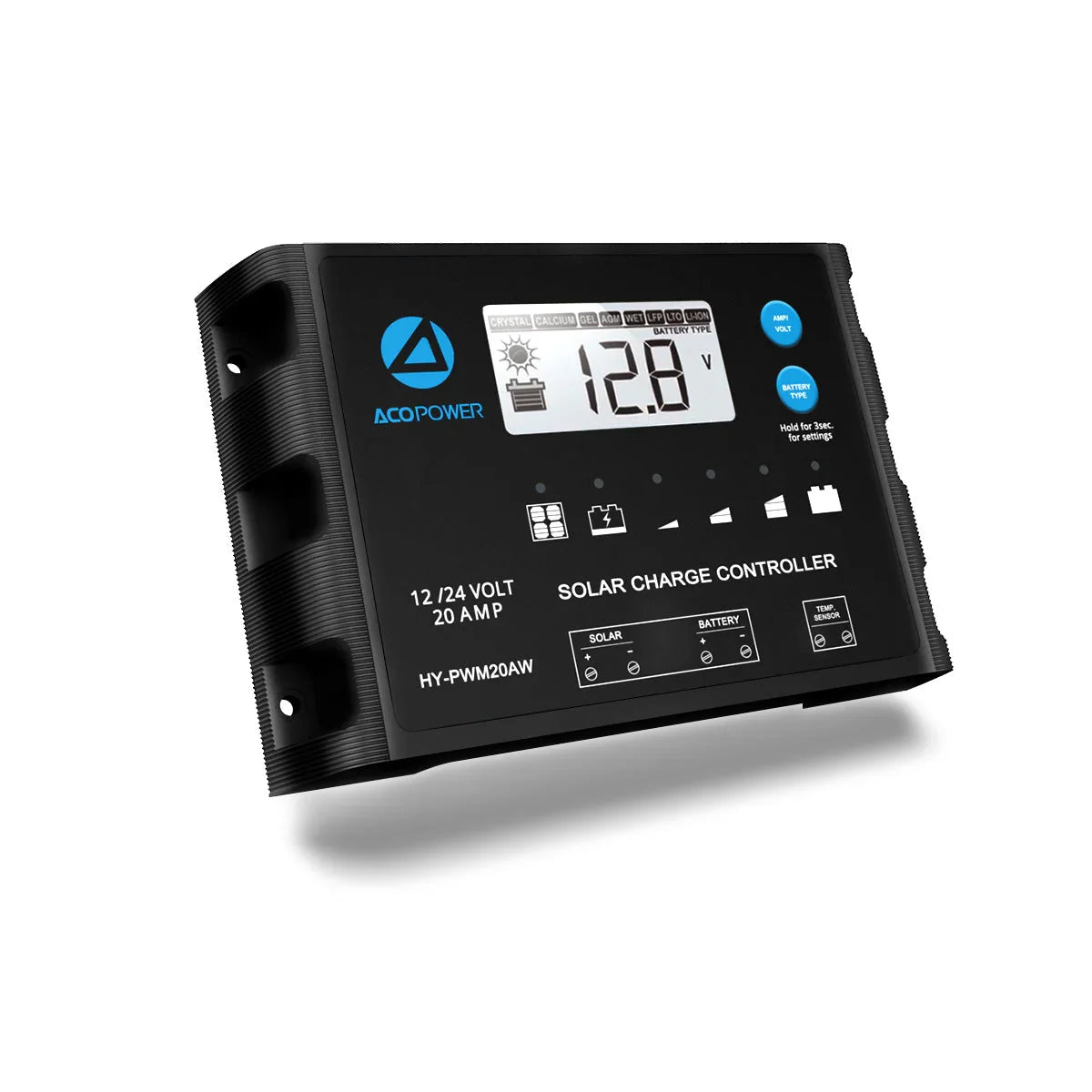

- Nominal Voltage: 12V/24V DC
- Rated Charge Current: 20A
- Battery Start Charging Voltage: 3V
- Operating Temperature: -40°F to 140°F
- Terminals: Up to 10 AWG
- Dimensions: 5.59x 3.7x 1.06 inches
- Grounding: Common Negative
- Max. PV Input Voltage: 50V
- Temperature Compensation Coefficient: -24mV/°C
- Storage Temperature: -40°F to 185°F
- Enclosure: IP65
- Weight: 1.1 lbs
