Checkpoint SL 7 AXS M Dark Red/Carbon Red Smoke Splatter
Checkpoint SL 7 AXS M Dark Red/Carbon Red Smoke Splatter
Su información de pago se procesa de forma segura. No almacenamos los datos de su tarjeta de crédito ni tenemos acceso a ella.
Generalmente se envía en un plazo de 3 a 5 días y se entrega en un plazo de 10 días hábiles.

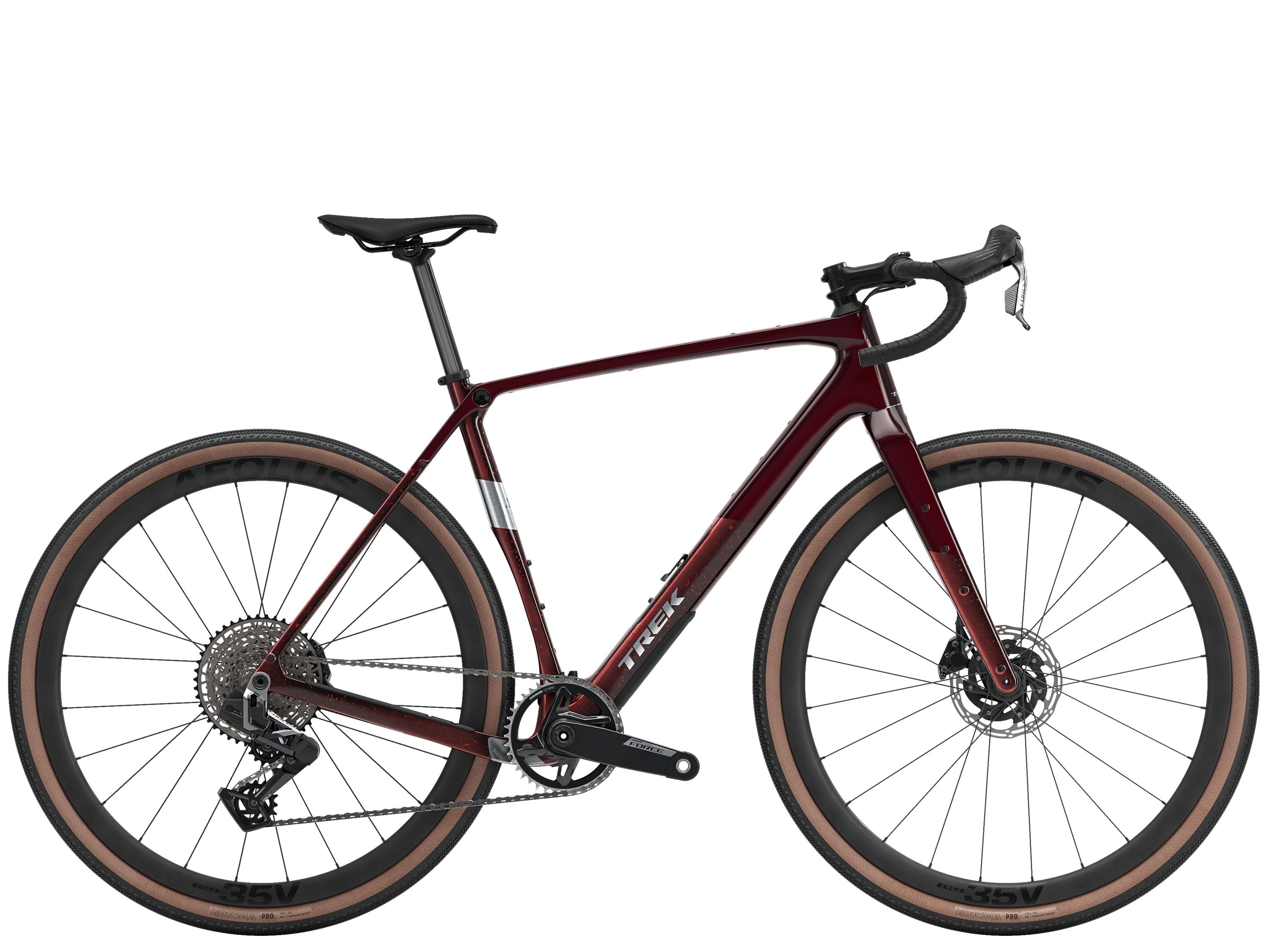

Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike built to explore the beyond. Its lightweight carbon frame is designed with a Gravel Endurance geometry, tons of mounts, and clearance for up to 50mm tires (as measured). Plus, IsoSpeed comfort tech helps soak up jarring vibrations so you can float over chatter and potholes. It's decked out with upgrades where you want them most, like carbon wheels and seat post, and a wireless SRAM Force AXS XPLR E1 drivetrain.
- Checkpoint's Gravel Endurance geometry lets you sit higher up and features a shorter reach to keep you comfortable on all-day gravel adventures, light singletrack, bikepacking trips, and more
- Road-smoothing IsoSpeed comfort tech soaks up vibration from rough surfaces to keep you feeling fresher longer
- You get upgrades that matter – like the carbon Bontrager Aeolus Elite 35V wheels and SRAM Force AXS E1 wireless electronic 13-speed drivetrain
- Clearance for 50mm tires (as measured) means you can add extra traction and cushion for rowdy roads and stretches of singletrack
- You can haul it all with large internal frame storage and mounts galore on the frame and fork for hydration, front and rear racks, fenders, and Adventure Bags that were designed to perfectly fit Checkpoint
IsoSpeed comfort tech
IsoSpeed comfort tech smooths potholes and fatiguing bumps in the road so you can ride stronger longer.
New Gravel Endurance geometry
A new confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position so you can stay comfortable on even your most epic adventures.
Big ’ol tire clearance
Roll over the rough stuff with room to fit gravel tires up to 50mm wide (as measured).
Bigger in-frame storage
More internal frame storage and a bigger storage door lets you fit all your flat tools inside your bike so you're always ready for whatever the gravel road throws at you.
Bigger in-frame storage
More internal frame storage and a bigger storage door lets you fit all your flat tools inside your bike so you're always ready for whatever the gravel road throws at you.
Mounts galore
The new Checkpoint SL is equipped to carry everything you need with mounts on the frame and fork for front and rear racks, fenders, and Adventure Top Tube, Frame, and Triangle Bags. Plus, the new frame was optimized to fit extra hydration in addition to all your bags.
| Frame | 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle |
| Fork | Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Wheel Front | Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle |
| Wheel Rear | Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle |
| Tire | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| Tire Part | Bontrager TLR sealant, 6oz |
| Rim Strip | Bontrager TLR |
| Skewer Front | Bontrager Switch chamfered thru axle |
| Skewer Rear | Bontrager Switch chamfered thru axle, removable lever |
| Shifter | SRAM Force AXS E1 // SRAM Force AXS E1 |
| Rear Derailleur | SRAM Force XPLR AXS, 46T max cog |
| Crank | SRAM Force XPLR, 40T, DUB Wide, 170mm length |
| Bottom Bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette | SRAM Force XPLR XG-1371, 10-46, 13 speed |
| Chain | SRAM Force E1, 12/13 speed |
| Brake | SRAM Force AXS hydraulic disc, flat mount |
| Brake Rotor | SRAM CenterLine X, centerlock, round edge, 160mm // SRAM Paceline X, rounded, centerlock, 160mm |
| Saddle | Verse Short Elite, hollow magnesium rails, 145mm width |
| Seatpost | Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
| Handlebar | Bontrager Pro Gravel, 42cm width |
| Stem | Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length |
| Battery | SRAM AXS battery pack (with charger) |
Geometry Chart
| B B Drop | 7.6 |
| Chainstay Length | 43 |
| Eff Seat Tube Angle | 72.8° |
| Eff Top Tube | 56.6 |
| Frame Reach | 39.1 |
| Frame Size Letter | M |
| Frame Stack | 57.9 |
| Head Angle | 71.6° |
| Head Tube Length | 13 |
| Offset | 4.9 |
| Seat Tube | 50.5 |
| Seat Tube Angle | 73.3° |
| Standover | 79.9 |
| Trail | 6.8 |
| Wheelbase | 103.4 |
| Wheel Size | 700c |
