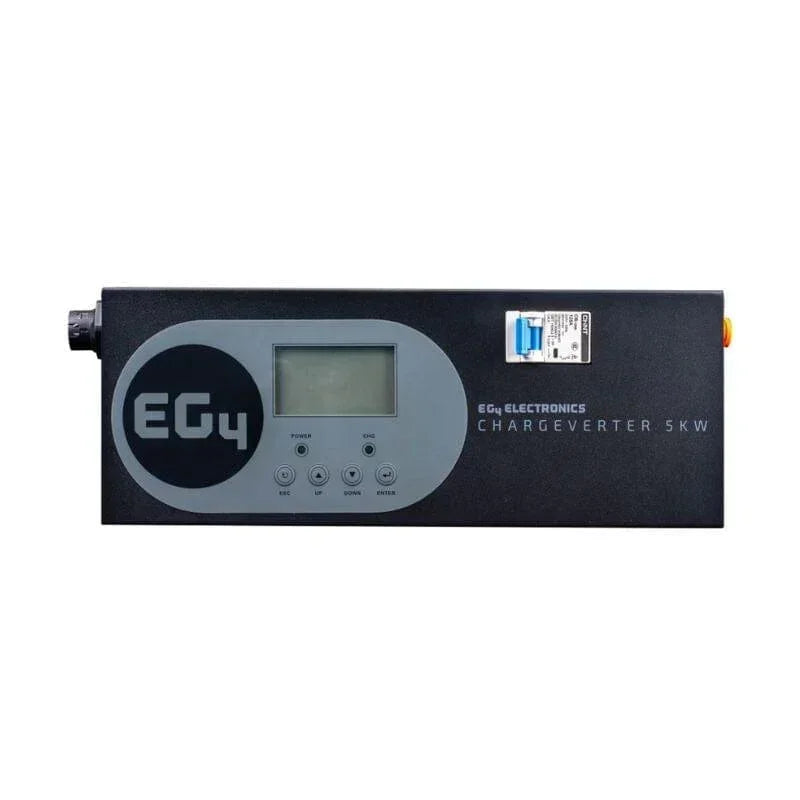

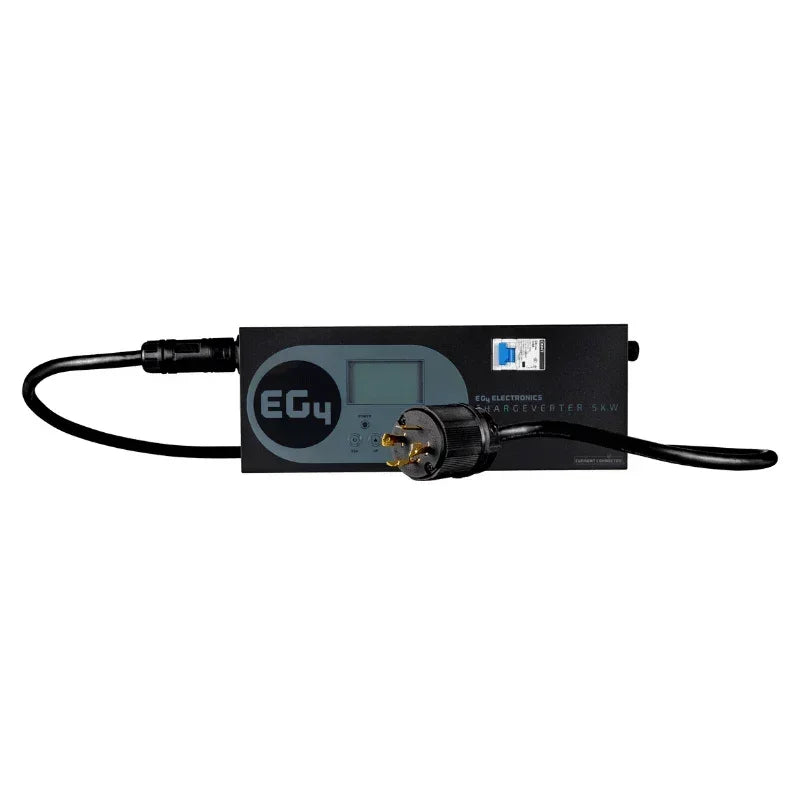

48V EG4 Chargeverter | 100A Battery Charger | 5,120W Output | 240/120V Input
Why this product is a must-have: The EG4 Chargeverter is your go-to solution for reliable and efficient battery charging, designed to perform in any weather condition. With its high capacity and advanced features, it offers peace of mind for all your power needs.
Standout Qualities:
- High Performance: 48V capacity and 100A output ensure rapid and efficient charging, delivering up to 5,120W.
- Bad Weather Resilience: Charge batteries even in low-light conditions by connecting to a generator (up to 100A).
- Protection from "Dirty Power": Safeguards your system against unreliable sine waves, ensuring stable power supply.
- Compact Design: Fits a variety of setups with dual 240/120V input options.
What's Included:
-
1 x Chargeverter
-
5 x Mounting Screws (M4-0.7 x 7)
-
2 x Mounting Brackets
-
5 x Mounting Screws (M3)
-
RS485 Communication cable (RJ45 Plug to RJ45 Plug)
-
RS485 to USB upgrade cable (RJ45 Plug to USB-A)
-
Dry contact cable
-
User Manuals & Any Related Certifications
-
Fast, Reliable Shipping
-
Lifetime Customer Support
Product Specifications:
| Specifications | |
|---|---|
| Battery Voltage | 48VDC nominal |
| Charge Current (adjustable) | 0-100A @240VAC, 0-45A @120VAC, 0-50A @208VAC |
| Charge Voltage (adjustable) | 43-57VDC (default 54VDC) |
| Max. Output | 5120W @240VAC, 3050W @120VAC |
| Max. Efficiency | 94% @240VAC, 92% @120VAC |
| AC Input Voltage Range | 90-264VAC |
| AC Frequency | 50-60Hz |
| Max. Input Current | 26A @240VAC, 28A @120VAC |
| Idle Consumption | ~10W |
| Operating Temperature Range | 14°F – 131°F (-10°C – 55°C) |
| Storage Temperature Range | 5°F – 140°F (-15°C – 60°C) |
| Humidity | 5% to 95% relative humidity (non-condensing) |
| Ingress Protection | IP21 |
| Operating Altitude | 0~4921 ft. (0~1500m) |
| Interface Connector | NO, NC, and C (RJ11 Jack) |
| Communication Port | RS485 (RJ45 Jack) |
| Dimensions H x W x D | 5” x 13.2” x 4.9” (127mm x 335mm x 124mm) |
| Net Weight | 13 lbs. (5.9 kg) |
| Warranty | 3 years (only when used indoors) |
Charger Output Specifications:
- Optimized for 240 VAC power supply.
- Nominal Battery Voltage: 48VDC.
- Adjustable Charge Current: 0-100A at 240VAC.
- Adjustable Charge Voltage: 43-57VDC (Default at 54VDC).
- Maximum Output Watts: 5120W at 240 VAC.
AC Input Specifications:
- Plug directly into a generator without concern for power issues.
- AC Input Voltage Range: 90-264VAC.
- Maximum Input Amps: 26A at 240VAC, 28A at 120VAC.
- Dry Contacts: Control generator start/stop based on Voltage or state of charge (SOC).
Compatibility with EG4 Batteries:
Closed loop communication with EG4 batteries allows for optimized charging based on battery state of charge (SOC), ensuring maximum efficiency and battery lifespan.
Product Warranty:
EG4 Electronics offers a 10-year Full Parts Replacement or Full Product Replacement Warranty, ensuring your investment is protected. Warranty registration must be completed within the first year of purchase.
Invest in the EG4 Chargeverter for reliable power, exceptional performance, and peace of mind in any charging environment.
