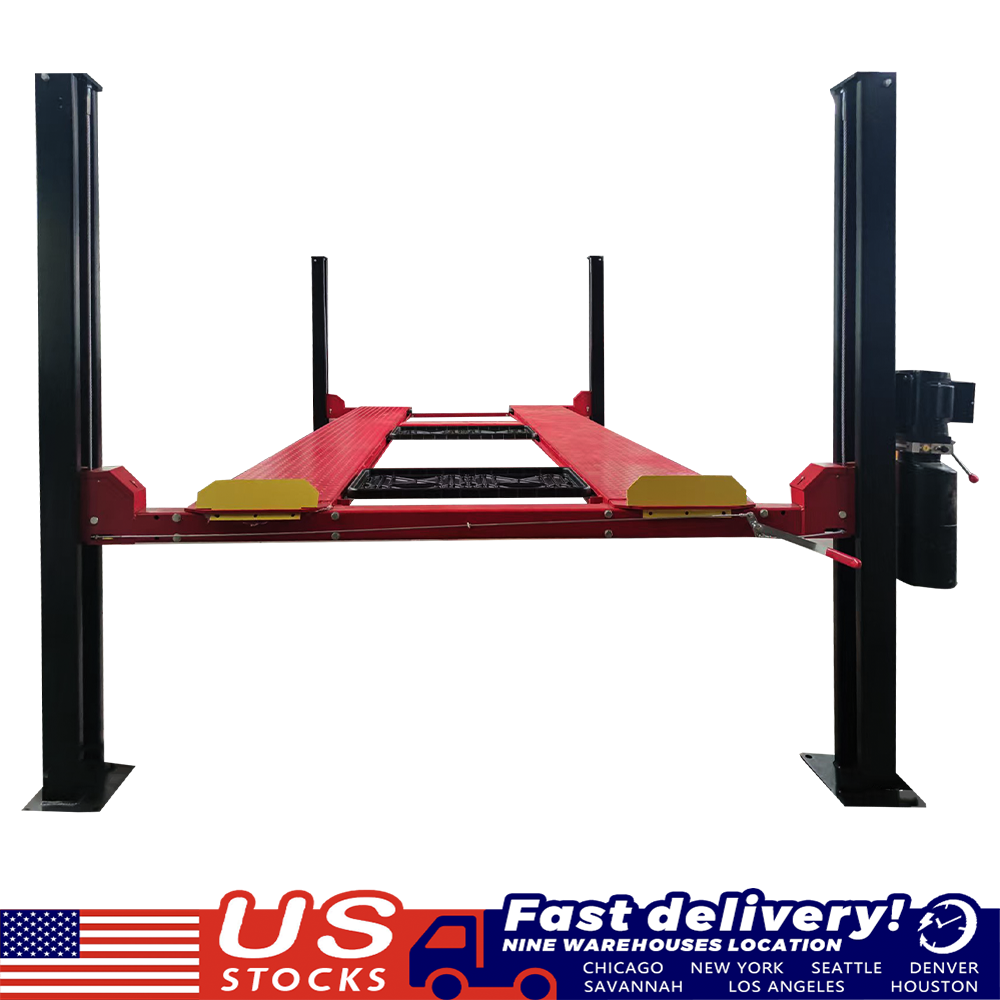

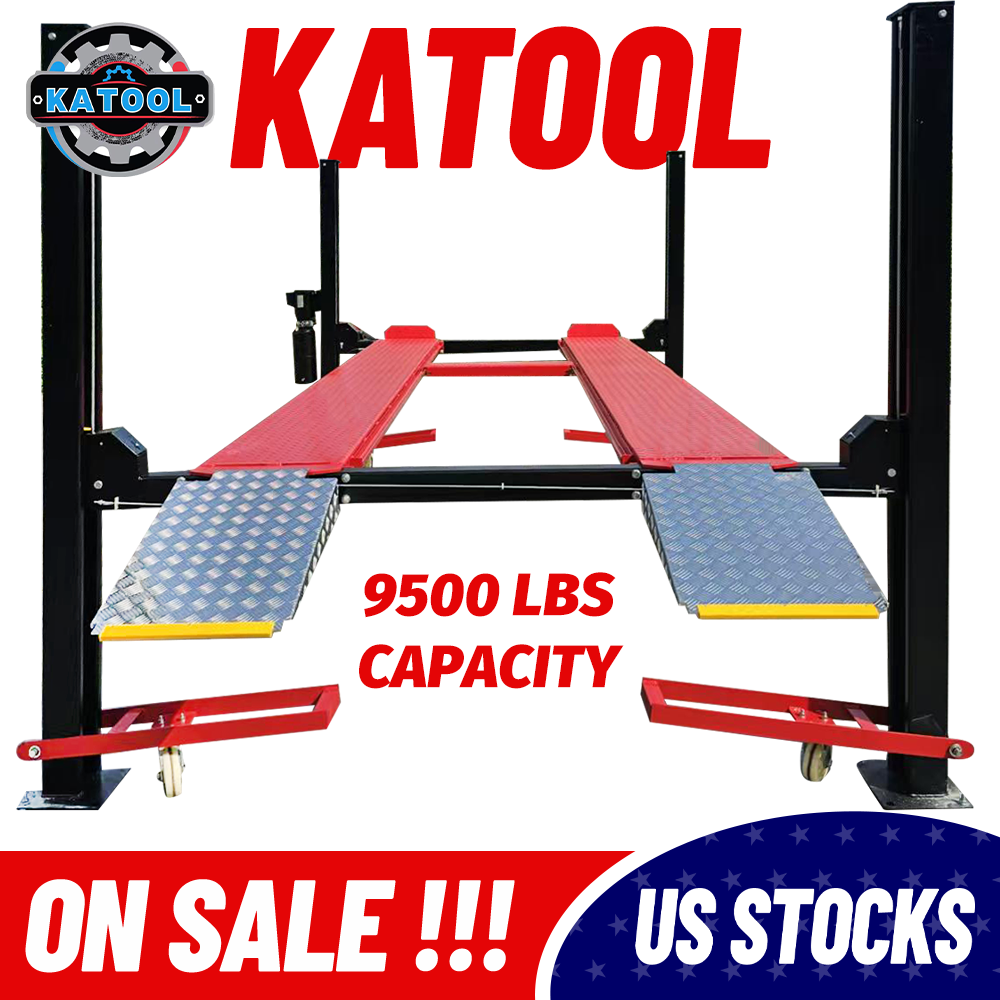

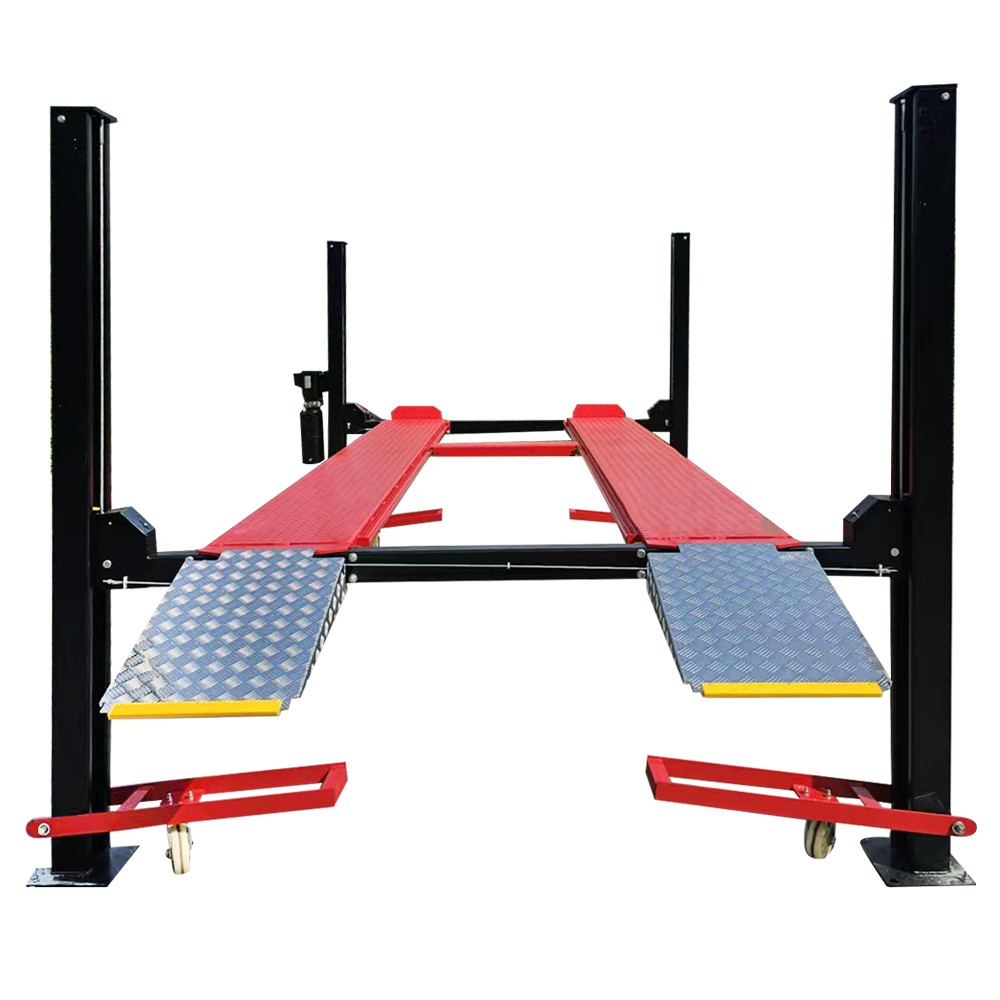

Katool KT-4H950 4-Post Car Lift
9,500 lb Heavy-Duty Storage & Service Lift
The KT-4H950 from Katool Automotive Equipment is a professional-grade 9,500 lb 4-post lift designed for vehicle storage, parking, and light service applications. Built with heavy-duty steel construction and a stable four-column design, the KT-4H950 is ideal for home garages, professional shops, dealerships, and fleet facilities that need safe, reliable lifting without permanent anchoring.
Key Features
-
9,500 lb Lifting Capacity – Easily handles cars, SUVs, trucks, and performance vehicles
-
4-Post Drive-On Design – Maximum stability and simple vehicle positioning
-

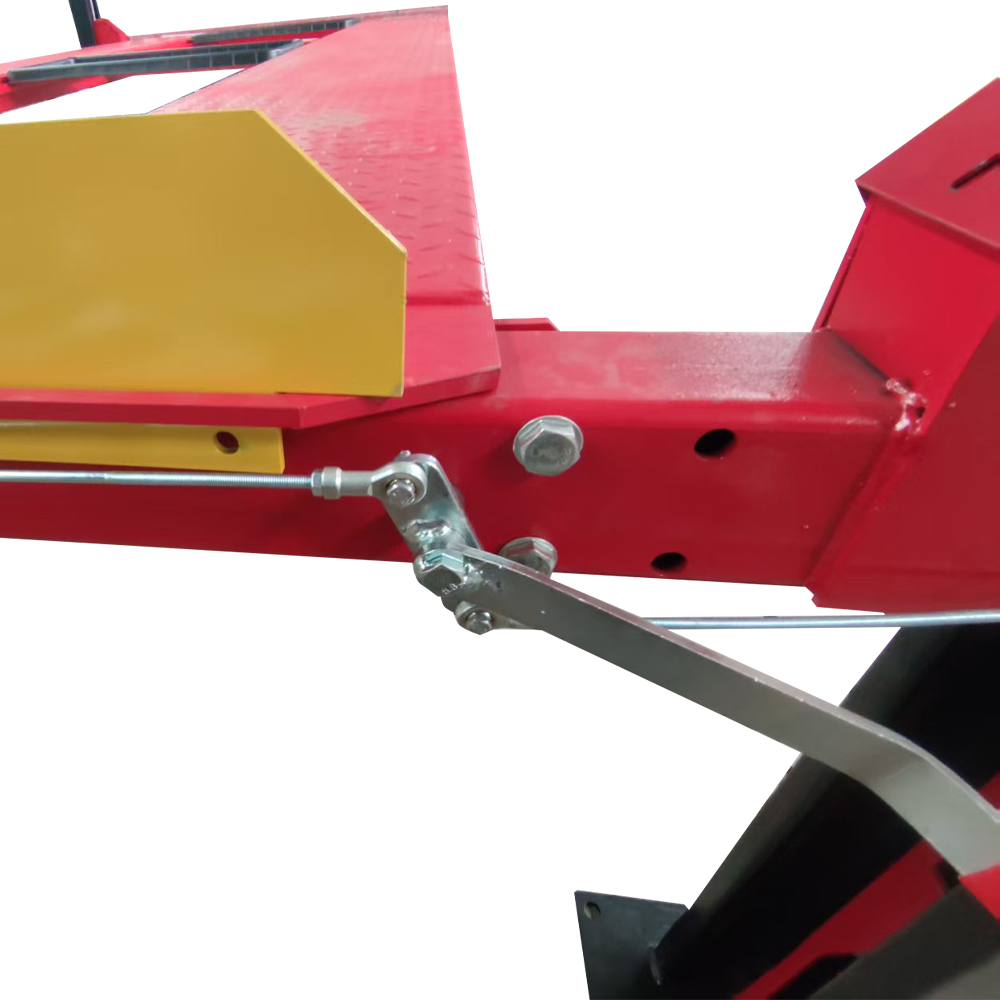

Mechanical Safety Lock System – Multiple lock positions for secure lifting and storage
-

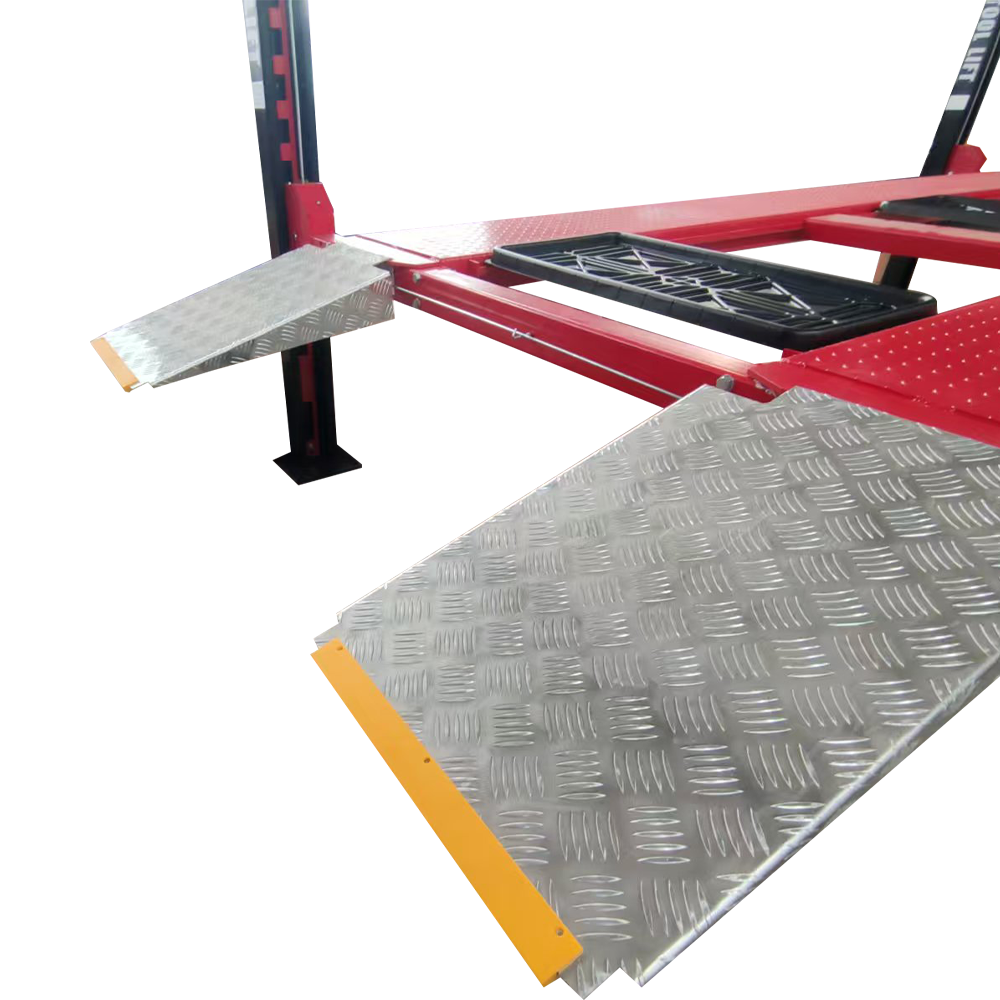

Diamond-Plate Runways – Durable, non-slip platforms for daily use
-
Single-Phase Power – Operates on standard shop electrical service
-
Smooth Hydraulic Operation – Consistent lifting and lowering with minimal vibration
Designed for Storage & Convenience

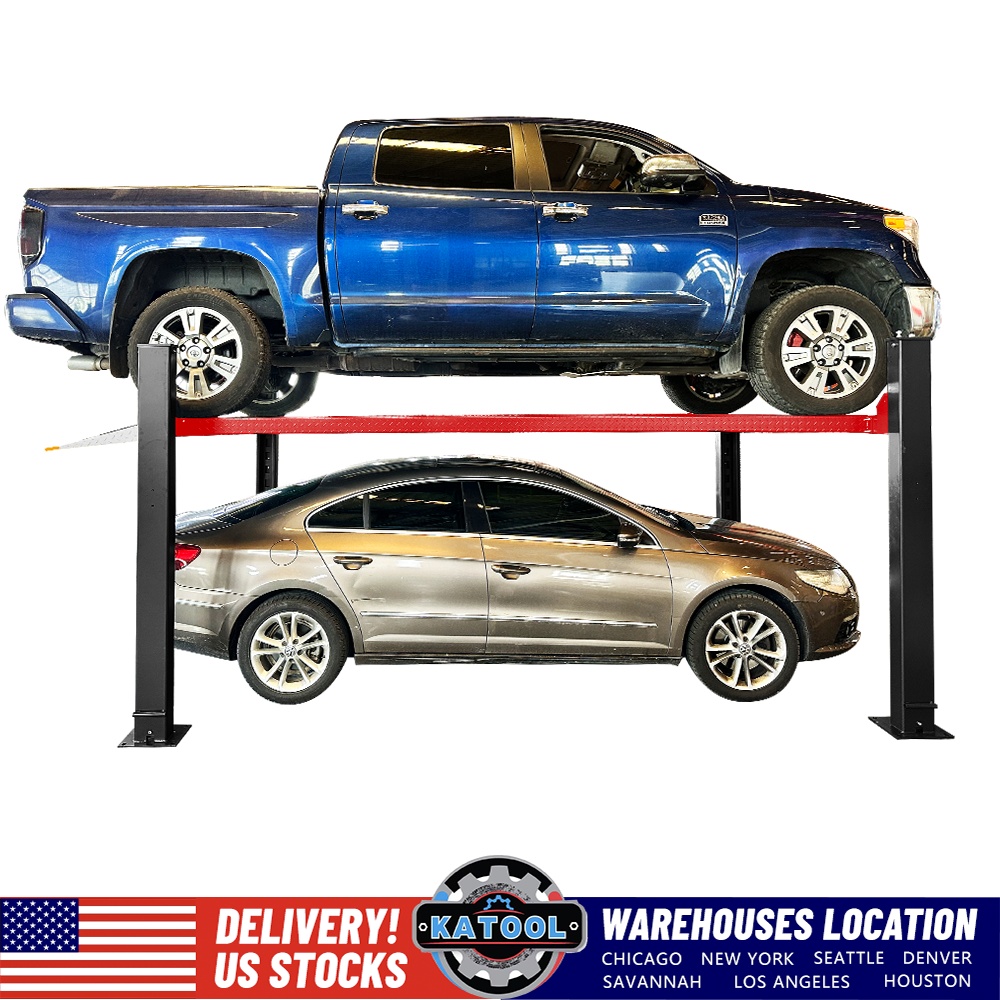

The KT-4H950 is a popular solution for vehicle storage and parking, allowing you to safely stack vehicles and maximize garage space. The included casters make it possible to reposition the lift when unloaded, making it an excellent option for garages where flexibility matters.
Ideal Applications
-
Home and enthusiast garages
-
Automotive repair and service shops
-
Dealerships and detail centers
-
Fleet and commercial vehicle storage
Built for Long-Term Reliability
Katool lifts are engineered with durability and safety in mind. The KT-4H950 combines a proven hydraulic system with robust structural components to deliver dependable performance day after day—whether you’re storing a collector car or servicing customer vehicles.
Why Choose the Katool KT-4H950?
If you’re looking for a high-capacity, space-saving 4-post lift that balances professional performance with excellent value, the KT-4H950 is a trusted choice used by shops and garages nationwide.
KT-4H950 Car Lift Specifications
| Specification | Details |
| Model | KT-4H950 |
| Lift Type | 4-Post Storage / Parking Lift |
| Lifting Capacity | 9,500 lbs (4.3 T) |
| Maximum Lifting Height | ~84.5″ (~79″ clearance) |
| Lifting Time | ~50 seconds to full height |
| Overall Length | 189″ (with baseplates) |
| Overall Width | 113″ |
| Width Between Columns | 99″ |
| Overall Height | ~97″ (varies by setup) |
| Motor | 110 V, 3.0 HP (30 A breaker) |
| Power Requirements | Standard single-phase outlet |
| Runway Surface | Diamond-plate non-skid platforms |
| Safety System | Multi-level mechanical locks |
| Included Accessories | Casters, aluminum ramps, jack tray, drip trays |
| Concrete Requirement | Minimum ~4″ thickness at 3000 PSI (recommended) |
| Warranty | 1-year limited (parts/defects) with extended structural options (varies by retailer) |
| Brand | KATOOL |
| Category | Vehicle Lifts |
| SKU | KATOOL-9004222808300-47550449352940 |
