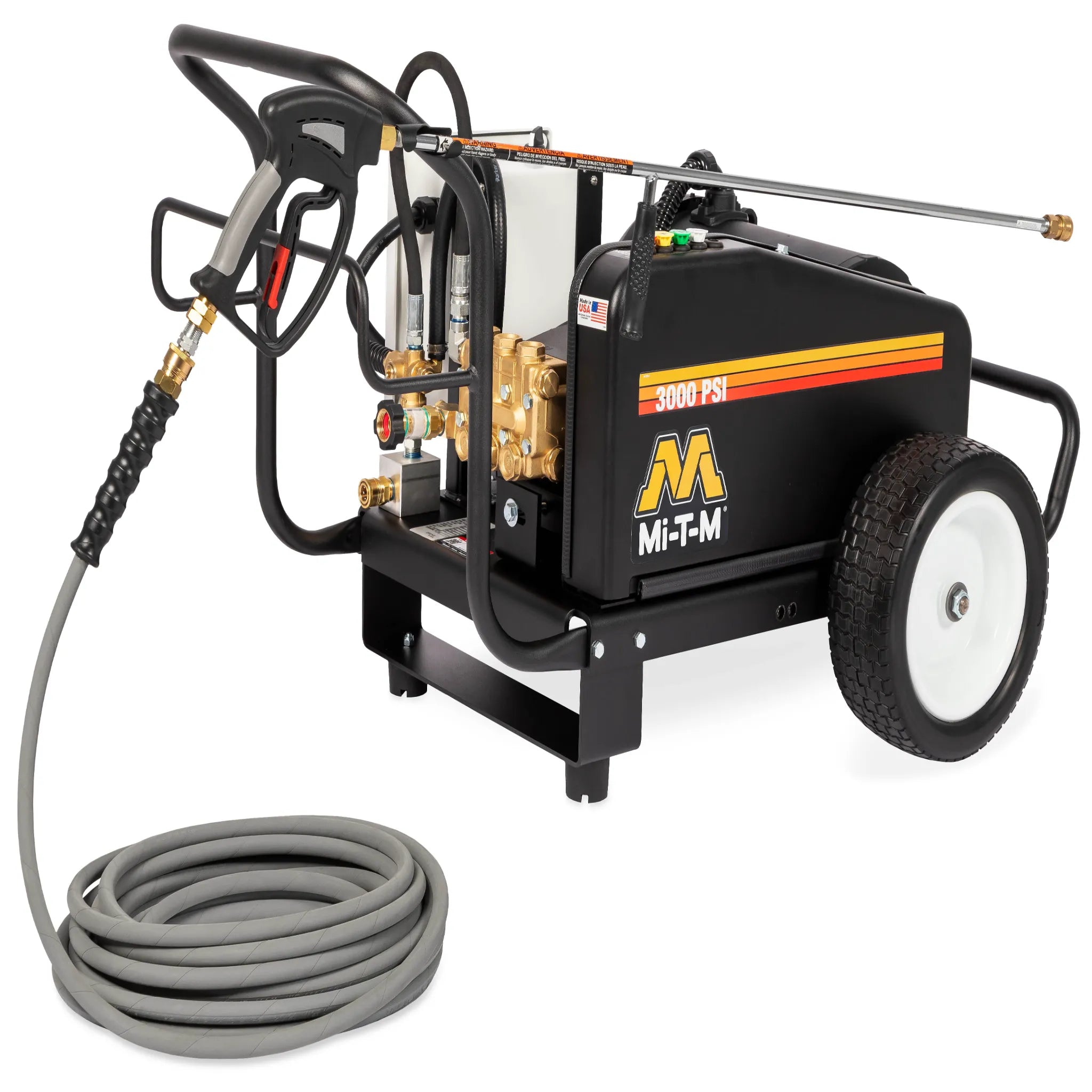

Mi-T-M CW-3004-5ME1 Electric Belt Drive Pressure Washer – 3000 PSI, 3.9 GPM

The Mi-T-M CW-3004-5ME1 combines 3000 PSI of pressure with belt drive durability, running an 8 HP, 230V single-phase motor through a totally enclosed belt system to a General triplex pump. At 3.9 GPM the machine delivers 11,700 cleaning units — the same output as the JP direct drive series but with lower pump RPM, longer pump life, and a fully enclosed drive system on a 322 lb commercial frame.

General Pump and Pressure Protection

• Pump brand: General triplex pump
• Manifold: Forged brass for sustained 3000 PSI operation
• Unloader: Factory preset Mi-T-M unloader for consistent starting pressure
• External bypass: Routes bypassed water away from pump head, preventing heat accumulation
• Thermal relief valve: Automatic thermal protection during extended bypass
• Water filter: Clear-sleeve inline filter — inspect without tools

High-Pressure Belt Drive for Commercial Operations

At 3000 PSI, the CW-3004-5ME1 handles concrete cleaning, degreasing, and heavy equipment wash-down where the extra pressure matters over the 2400 PSI CW-2405 variant. The belt drive system runs the General pump at roughly 60-70% of motor RPM, which is the key reason belt drive machines are specified for facilities running continuous shift operations. The totally enclosed belt guard protects against spray ingress and contact with drive components. The frame is powder-coated steel on 13-inch flat-free tires and fits through standard shop door openings at 46 × 32.5 inches footprint.

Cleaning Units and What Ships

3000 PSI × 3.9 GPM = 11,700 cleaning units. The CW-3004-5ME1 ships with a 50-ft × 3/8-inch non-marking hose, 36-inch insulated trigger gun with lance, and quick-connect nozzles in 0°, 15°, 25°, and 40° angles. The motor power cord is 10 ft — shorter than the JP Series 35 ft cord — so the machine is typically positioned near a panel rather than used as a portable unit. Choose between this 3000 PSI CW model and the 2400 PSI CW-2405-5ME1 based on whether you need higher pressure (CW-3004) or higher GPM (CW-2405 at 4.6 GPM).
