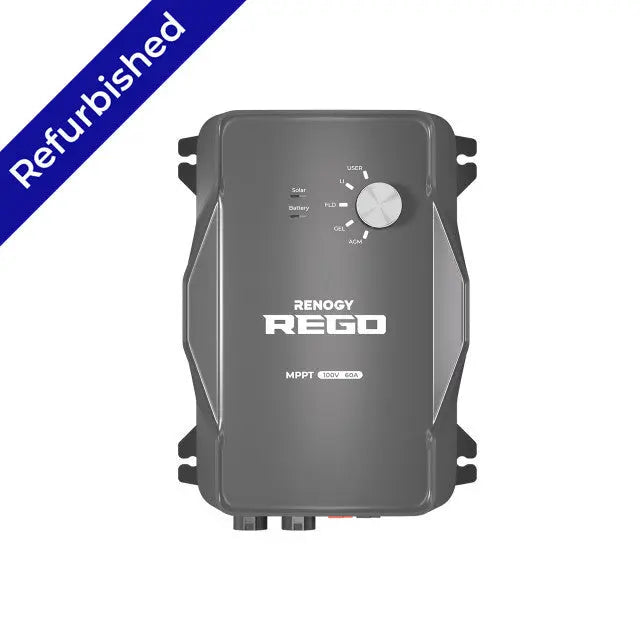

Refurbished REGO 12V 60A MPPT Solar Charge Controller
Refurbished REGO 12V 60A MPPT Solar Charge Controller
products.product.pickup_availability.unavailable
Su información de pago se procesa de forma segura. No almacenamos los datos de su tarjeta de crédito ni tenemos acceso a ella.
Generalmente se envía en un plazo de 3 a 5 días y se entrega en un plazo de 10 días hábiles.

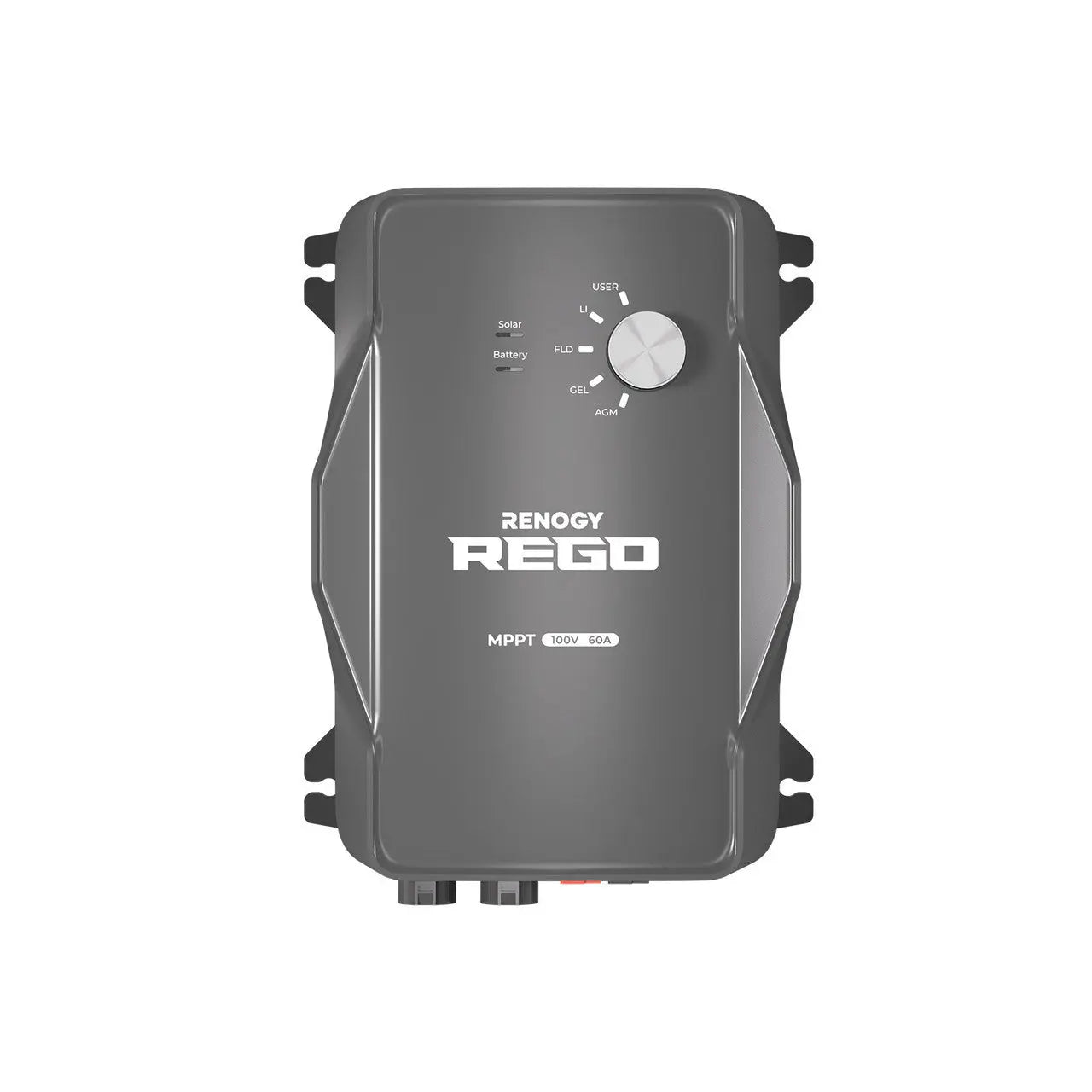

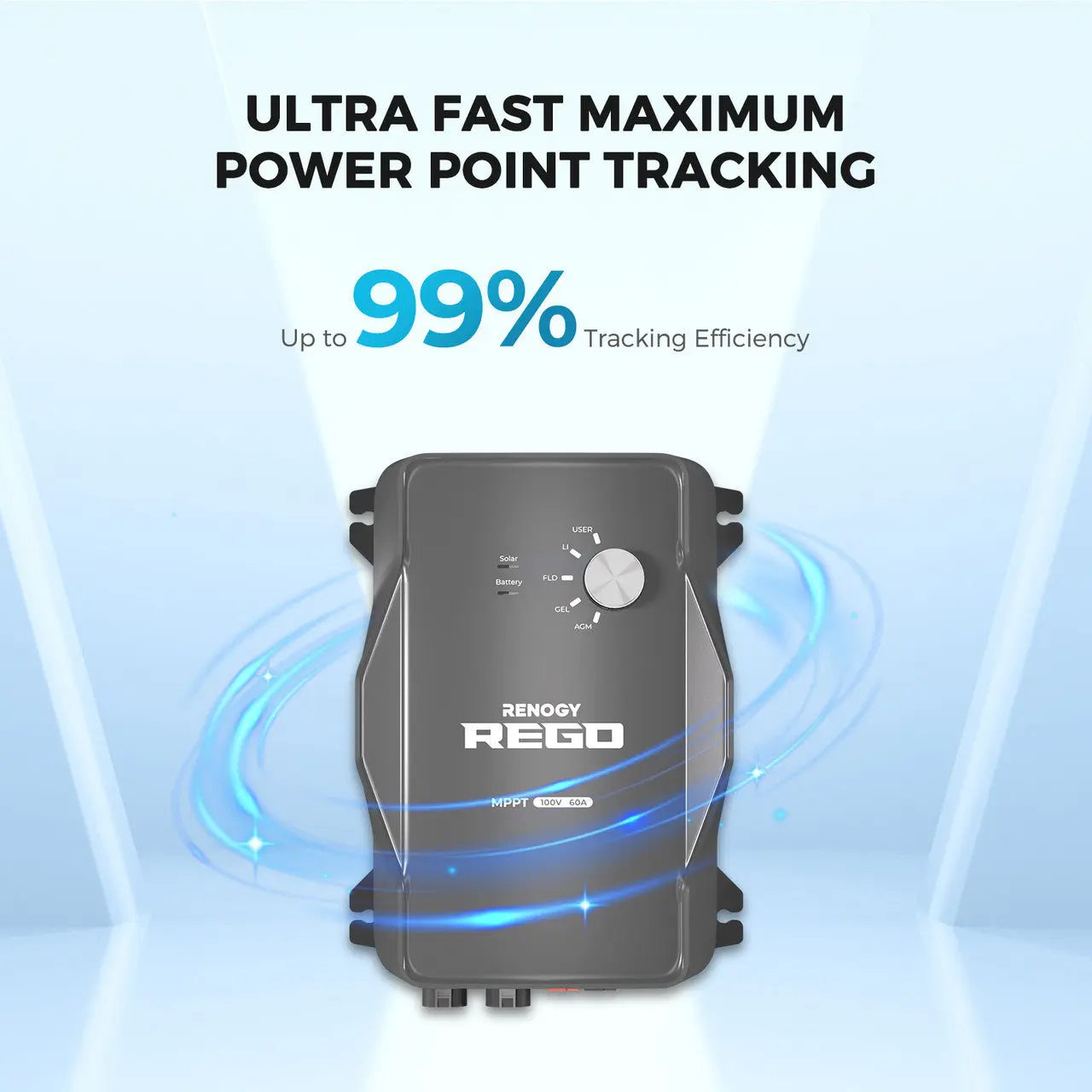

The REGO 12V 60A MPPT Solar Charge Controller focuses on the simplified installation and comprehensive protections for the whole solar system. Plug-and-play hookups for rapid connection, save on installation time than traditional controllers. The integrated high BPU (Battery Protect Unit) technology achieves the highest protection against battery cell damage and battery failure, safeguarding the entire system. With the most efficient MPPT technology with high tracking efficiency of up to 99%, maximum the power generated by solar panels to provide more power for your system. The compact and robust nature of the controller not only has a sense of technology and fashion but also saves on installation space relative to the competition. Add the REGO 12V 60A MPPT Solar Charge Controller, one of the most efficient and reliable controllers on the market yet to your system.
NOTE: All items that have been returned by a customer. There may be scratches on the surface or other cosmetic damage to the items, but this will not affect the performance of the products. All items listed have been thoroughly tested before being repackaged. Pictures may vary from the actual charge controllers received. Warranty 6-month. For non-quality issues, we do not accept returns and exchanges.

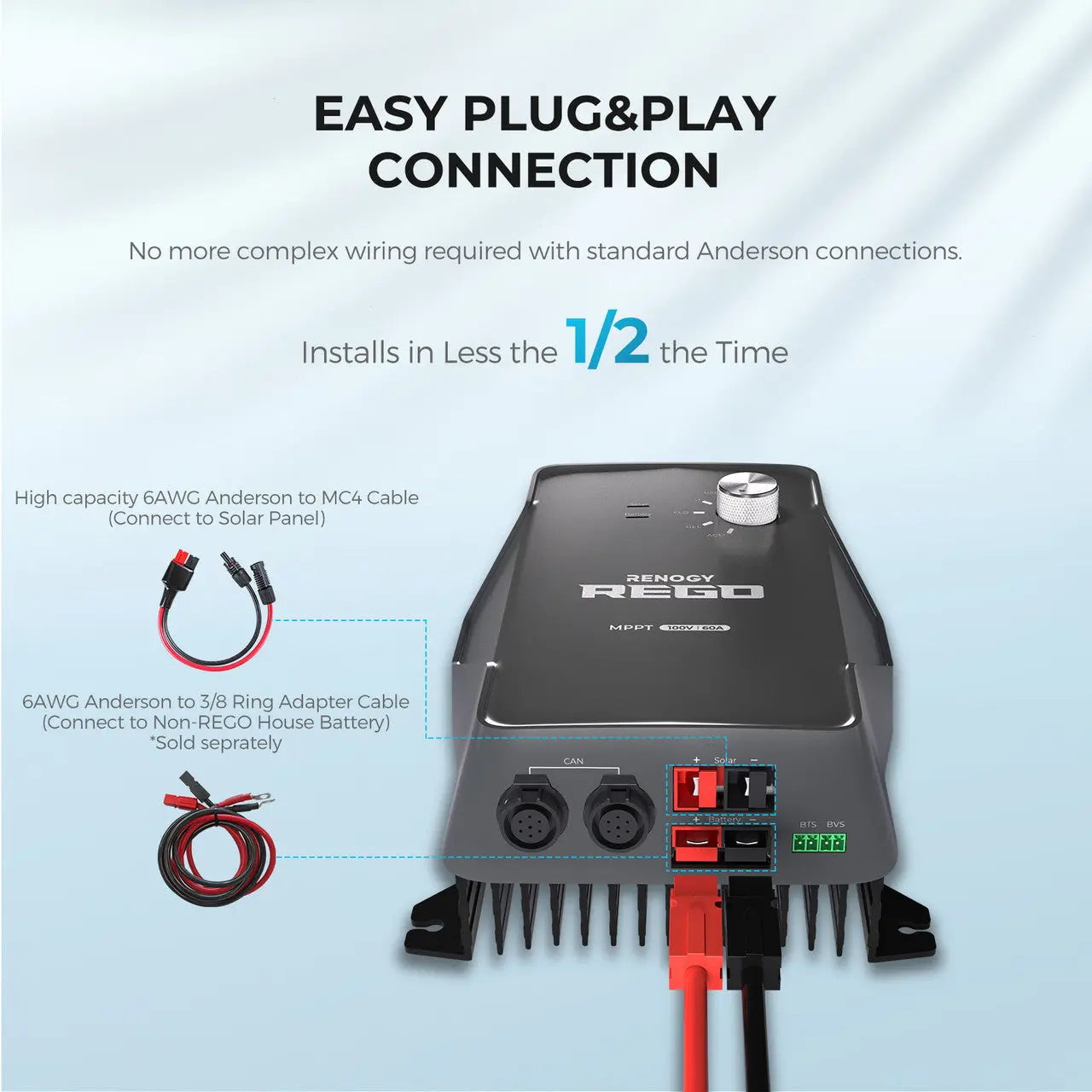

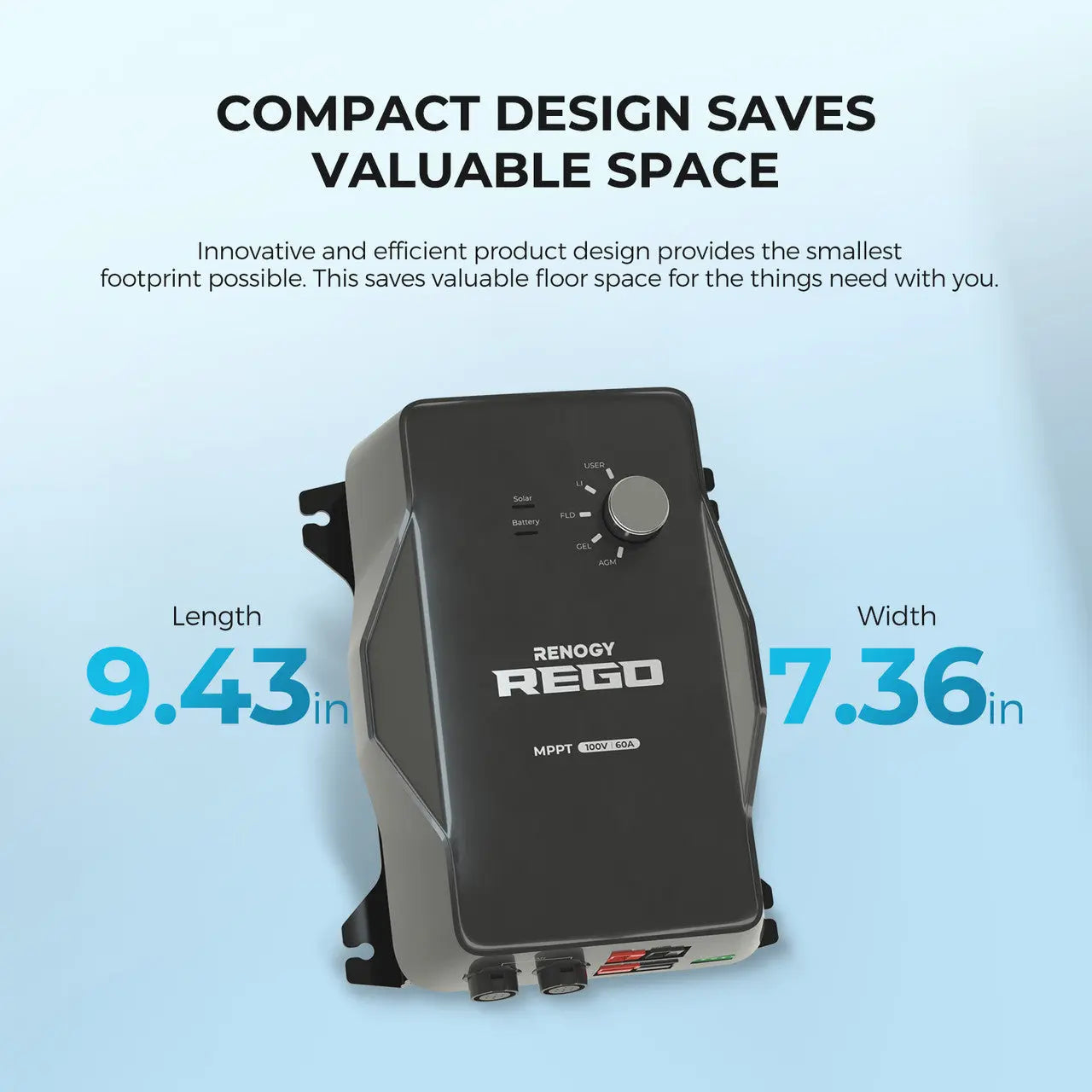

The REGO charge controller comes with a specially designed Anderson to MC4 adapter cable for a simple and easy way to connect the controller to your solar panels, cutting installation time by 60%! The compact and robust nature of the controller not only has a sense of technology and fashion but also minimized the size which saves on installation space relative to the competition.
*Please kindly notice that??? If you would like to connect this charge controller to a non-REGO house battery, the appropriate Anderson to Ring terminal cable will need to be purchased separately which is available in the Renogy Store.
The REGO charge controller adopts a three-four-stage charging???Bulk??? Boost??? Float??? EQU) design for Lead Acid Batteries and two-stage charging for Lithium batteries, ensuring high charging efficiency and optimizing the battery status for a longer lifespan.

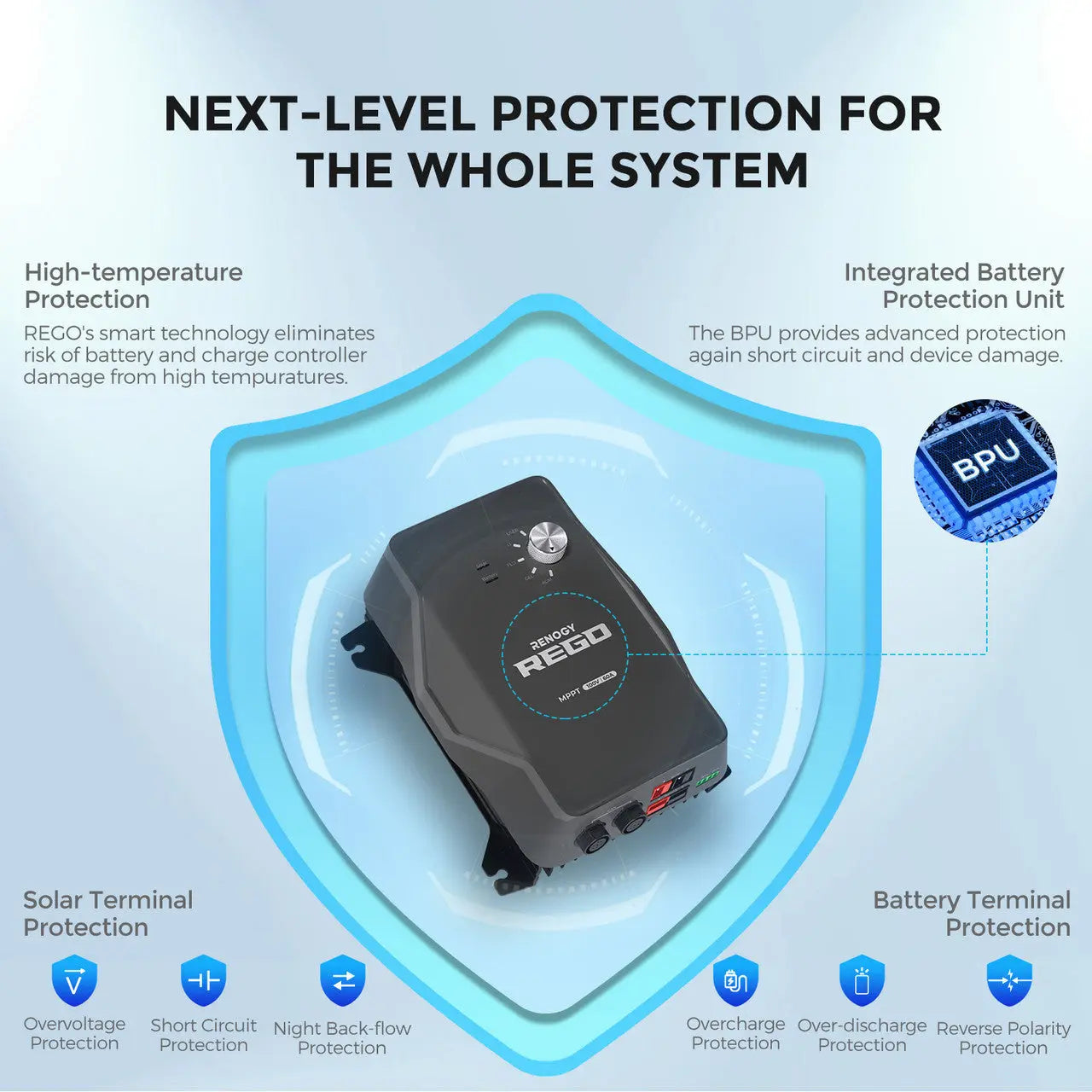

Comprehensive protections on both solar input and battery output terminals. Integrated High Battery Protect Unit (BPU) disconnects the battery from non-essential loads before it is completely discharged or before it has insufficient power left to crank the engine, safeguarding your entire system.

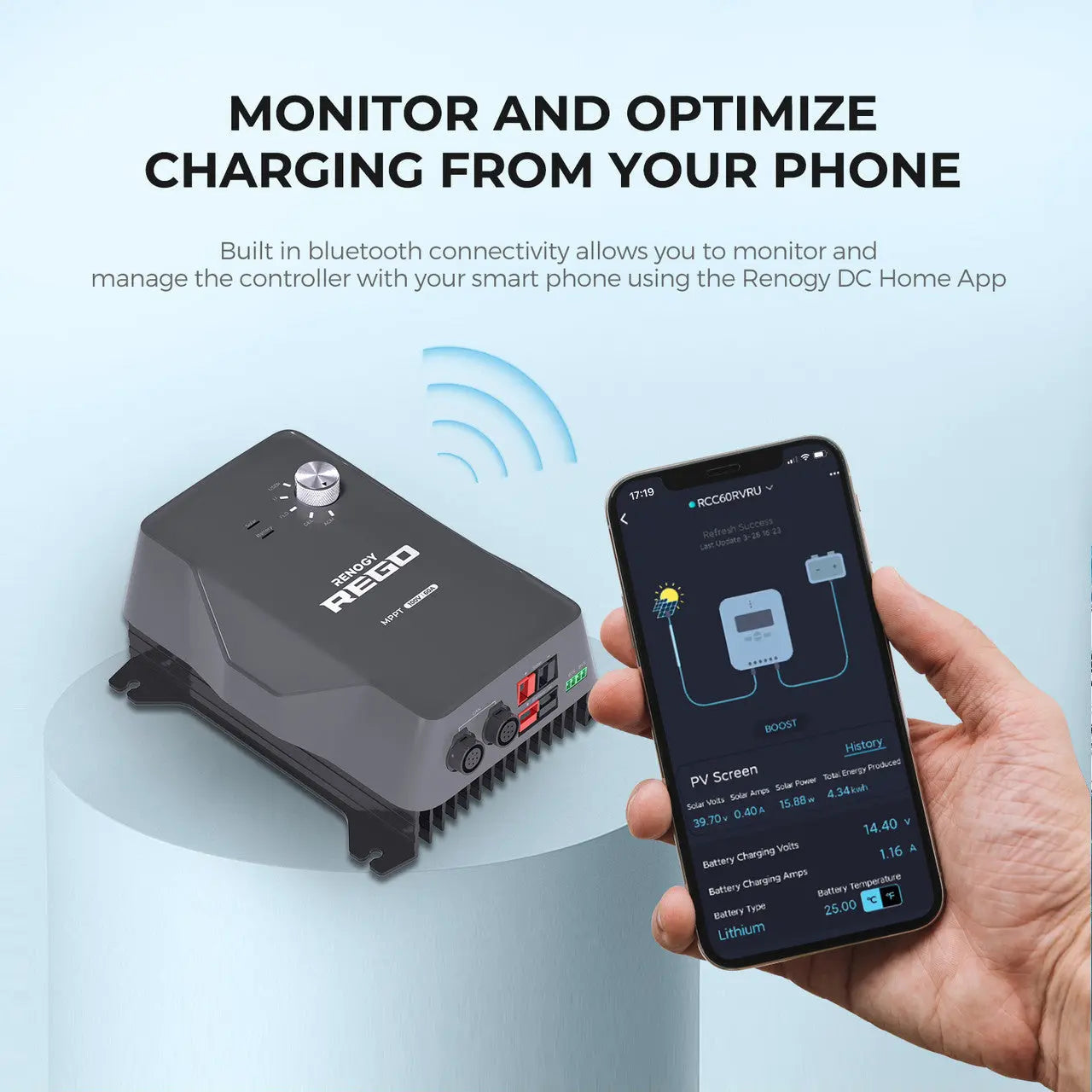

The built-in Bluetooth allows you to monitor the REGO charge controller on your smartphone with the Renogy DC Home App. With the app, you can customize multiple battery data such as the boost voltage, float voltage, and duration data.
The Die-cast aluminum heat sink thermal design maximizes the surface area in contact with the air surrounding the REGO charge controller, transfers and dissipated away the heat generated by the controller, and keeps the device's temperature at optimal levels. Excellent heat dissipation assures stable and constant charging.
The REGO charge controller with a wide operating temperature range from -4 °F to 140 °F. Comes with a fitted Temperature Sensor, which can measure battery temperature in real-time and use this data for very accurate temperature compensation(-3mV / ??? / 2V to Non-Lithium batteries; 0mV / ??? / 2V; no compensation to Lithium batteries), assuring the charging efficiency and stability.
The REGO charge controller is multi-icertified to UL1741, CAN/CSA-C22.2 No. 107.1/CB+IEC 62109/EMC,EN61000-3-1/-3; EN301489-1/17; RF,EN300328; and FCC, 47 CFR 15B. Built to meet and exceed the most rigorous quality and performance standards, maximize your system energy and provide comprehensive protections.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us with livechat for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
Package Includes
|
REGO 12V 60A MPPT Charge Controller
1 x
|
Renogy Temperature Sensor
1 x |
|
Solar Adapter Cable
1 X |
Mounting Screws
4 x |
|
Options 1 ???5FT 6AWG Anderson Adapter Cable
1 X |
Options 2 ???10FT 6AWG Anderson Adapter Cable
1 x |
| REGO 12V 60A MPPT Solar Charge Controller |
|---|
Electrical Parameters
|
Nominal System Voltage: 12 V |
Rated Charge Current: 60A |
|
Max. PV Input Power: 800W |
MPPT Voltage Range: 15 - 100 VDC /12V |
|
Solar Input Voltage Range (VOC): 100 V |
Max Input Current (short-circuit, Isc): 50A |
|
Power Limiting Protection: Up to 800W/12V |
Battery Operating Range: 10 -16V |
|
Power Consumption: ≤0.5 W |
Ground Type: Common Negative Lug |
|
Battery Types: AGM/Sealed, GEL, FLOODED, LFP, USER* |
Electronic Protections: Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection |
Environmental Data
| Operating Temperature Range: -20 ℃ - 60℃ | Storage Temperature Range: -25 ℃ - 65℃ |
| Operating / Storage Humidity: 0%-90% RH | Temperature Compensation: '-3mV / ℃ / 2V (Non-Lithium)；'0mV / ℃ / 2V; no compensation (Lithium) |
Environmental Data
| Operating Temperature Range: -20 ℃ - 60℃ | Storage Temperature Range: -25 ℃ - 65℃ |
| Operating / Storage Humidity: 0%-90% RH | Temperature Compensation: '-3mV / ℃ / 2V (Non-Lithium)；'0mV / ℃ / 2V; no compensation (Lithium) |
Mechanical Specifications
| Dimensions: 9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm |
Weight: 5.07 lbs/ 2.30kg |
|
Terminals Size: Anderson PP75 |
Optional Accessories
| Remote Monitor: Bluetooth Module BT-2 (RS485 / CAN bus signal) |
Certifications
| CE and RoHS compliant: YES |
FCC Class B Part 15 Compliant: YES |
Warranty
| Material and workmanship warranty: 6-month |
1. Ensure the controller is installed vertically with 150mm of clearance for proper heat dissipation.
2. Connect the controller to the battery first and solar panels second.
 |
 |
 |
 |
