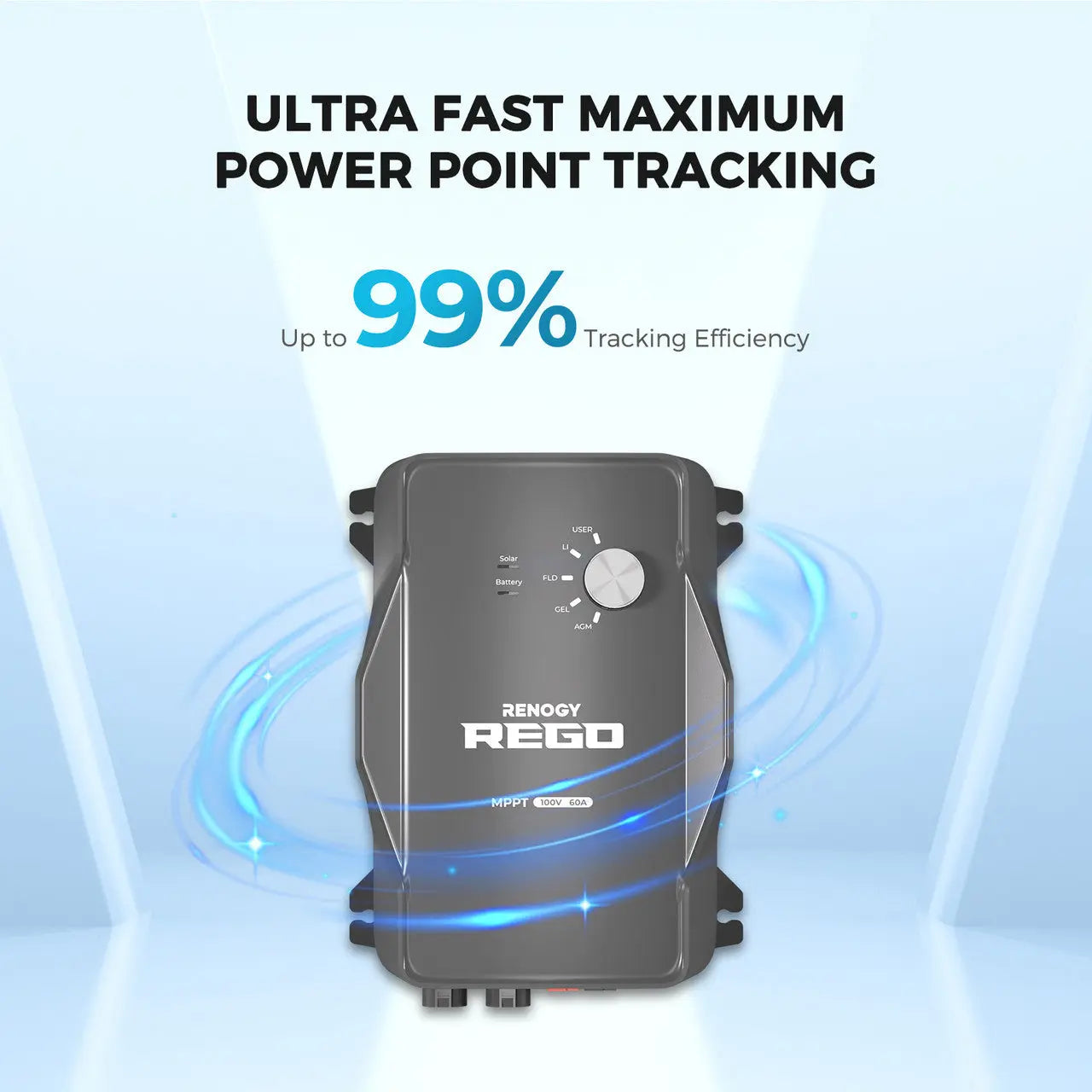

The REGO 12V 60A MPPT Solar Charge Controller is designed to install easily and protect your solar system completely. Its plug-and-play connections can save a lot of installation time compared with traditional controllers. With advanced BPU (Battery Protect Unit) technology, it provides excellent protection for the batteries from cell damage and failure, ensuring the whole system is safe. The MPPT technology here increases tracking efficiency to 99%, which significantly improves solar power output and thus increases more energy to your system. It is compact yet durable, combining high technology with pleasing aesthetics, saving space yet outperforming competitors in its class. The REGO 12V 60A MPPT Solar Charge Controller gives you unequal efficiency and reliability.

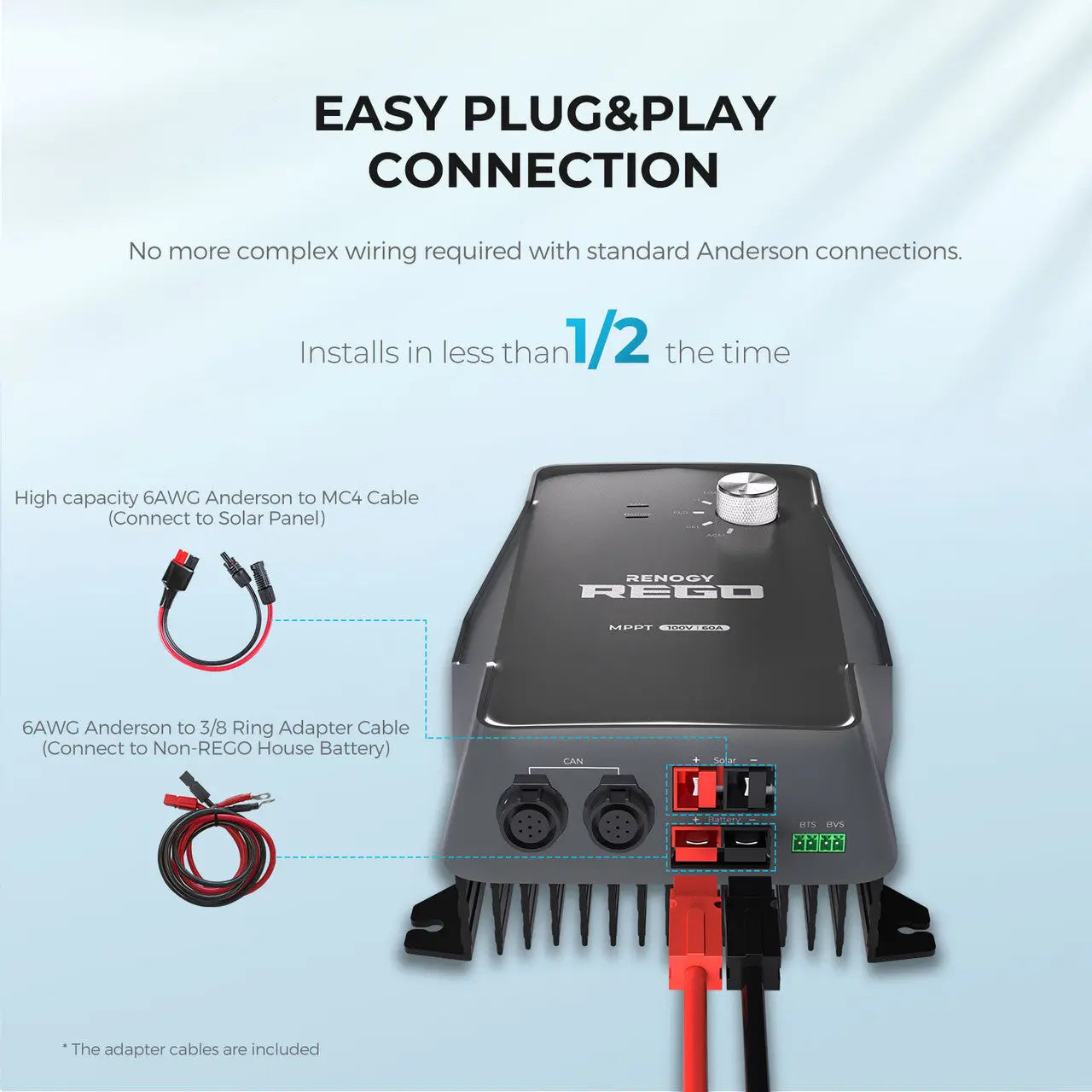

The REGO charge controller features a custom-designed Anderson to MC4 adapter cable, offering a quick and easy way to connect the controller to your solar panels—reducing installation time by 60%! Its compact and durable design blends advanced technology with style, while its minimized size saves installation space compared to other controllers.
Please note: If you wish to connect the charge controller to a non-REGO house battery, an Anderson to Ring terminal cable (sold separately in the Renogy Store) will be required.
The REGO charge controller features a three- to four-stage charging design (Bulk, Boost, Float, EQU) for lead-acid batteries and a two-stage design for lithium batteries, ensuring high charging efficiency while optimizing battery health for a longer lifespan. It offers comprehensive protection on both solar input and battery output terminals. The integrated High Battery Protect Unit (BPU) disconnects non-essential loads from the battery before it is fully discharged or when it lacks sufficient power to start the engine, providing complete system protection.

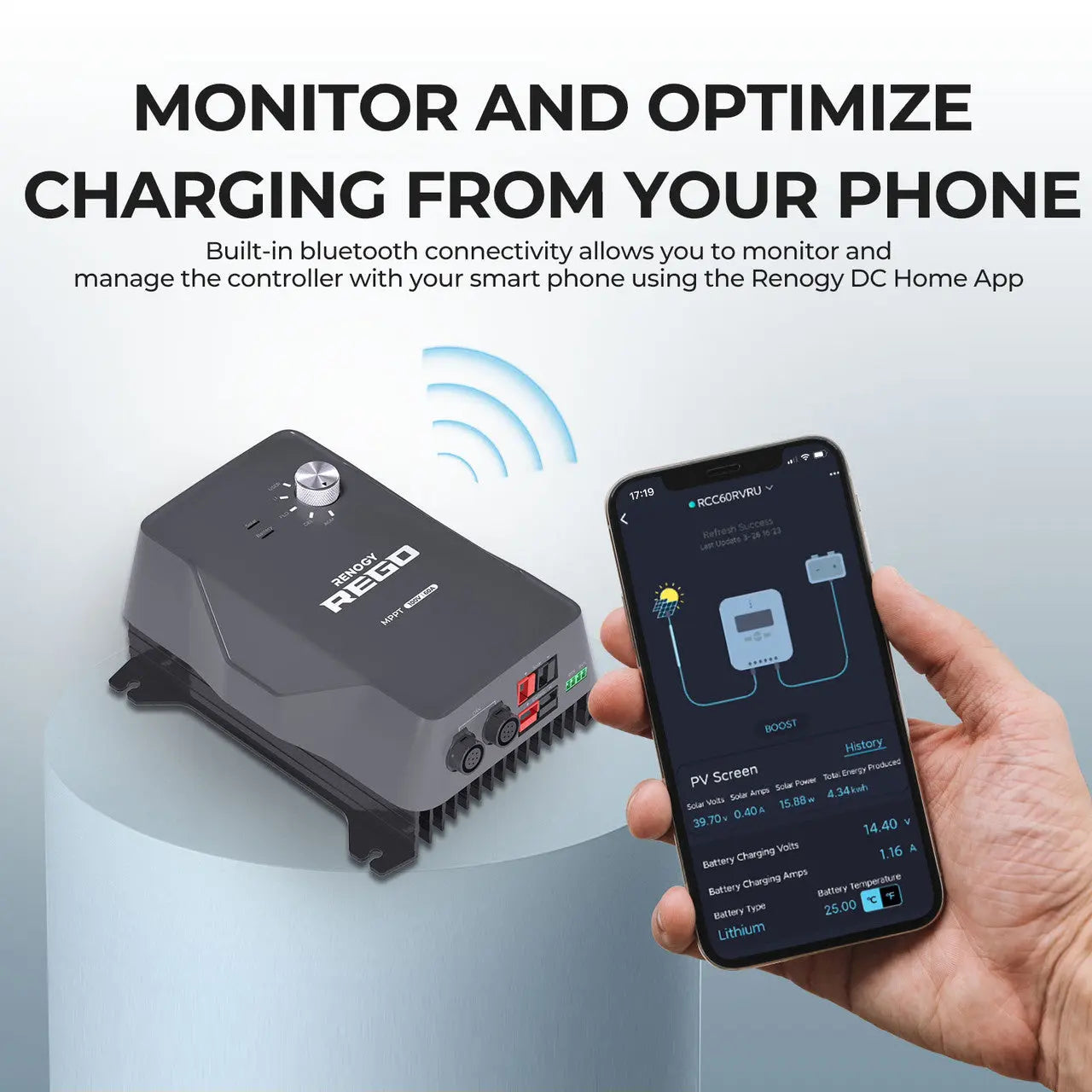

The built-in Bluetooth allows you to monitor the REGO charge controller on your smartphone with the Renogy DC Home App. With the app, you can customize multiple battery data such as the boost voltage, float voltage, and duration data.
The design of the die-cast aluminum heat sink provides maximum surface area exposed to ambient air, efficiently transferring and dissipating heat produced by the REGO charge controller. This keeps the device at optimal temperatures and provides excellent heat dissipation for stable, continuous charging.
The REGO charge controller operates within a wide temperature range from -4°F to 140°F. It includes a built-in temperature sensor that measures battery temperature in real time, using this data for precise temperature compensation (-3mV/°C/2V for non-lithium batteries; no compensation for lithium batteries), ensuring efficient and stable charging.
The REGO charge controller is multi-icertified to UL1741, CAN/CSA-C22.2 No. 107.1/CB+IEC 62109/EMC,EN61000-3-1/-3; EN301489-1/17; RF,EN300328; and FCC, 47 CFR 15B. Built to meet and exceed the most rigorous quality and performance standards, maximize your system energy and provide comprehensive protections.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us with livechat for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!

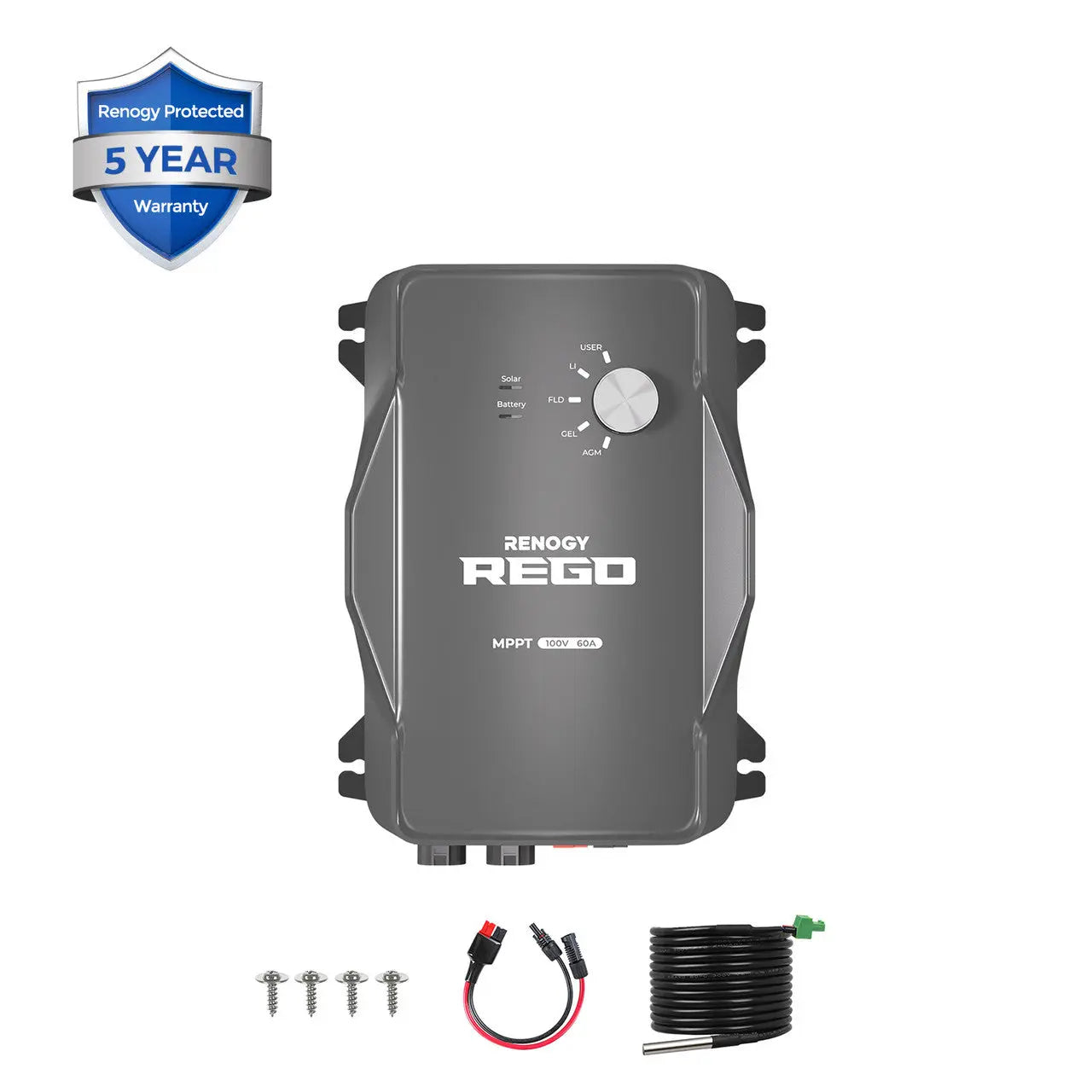

Package Includes
|
REGO 12V 60A MPPT Charge Controller
1 x
|
Renogy Temperature Sensor
1 x |
|
Solar Adapter Cable
1 X |
Mounting Screws
4 x |
|
Options 1 ：5FT 6AWG Anderson Adapter Cable
1 X |
Options 2 ：10FT 6AWG Anderson Adapter Cable
1 x |
| REGO 12V 60A MPPT Solar Charge Controller |
|---|
Electrical Parameters
|
Nominal System Voltage: 12 V |
Rated Charge Current: 60A |
|
Max. PV Input Power: 800W |
MPPT Voltage Range: 15 - 100 VDC /12V |
|
Solar Input Voltage Range (VOC): 100 V |
Max Input Current (short-circuit, Isc): 50A |
|
Power Limiting Protection: Up to 800W/12V |
Battery Operating Range: 10 -16V |
|
Power Consumption: ≤0.5 W |
Ground Type: Common Negative Lug |
|

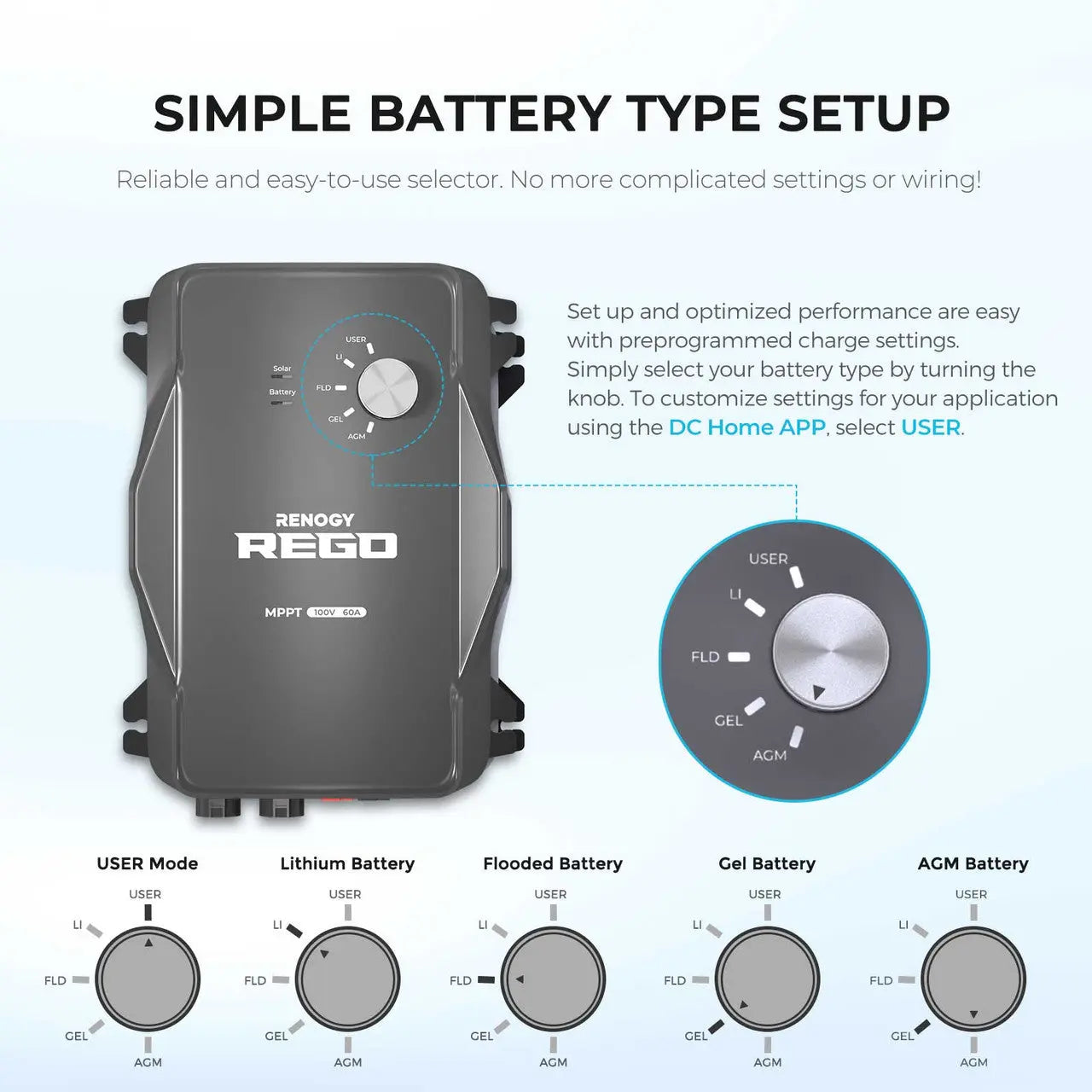

Battery Types: AGM/Sealed, GEL, FLOODED, LFP, USER* |

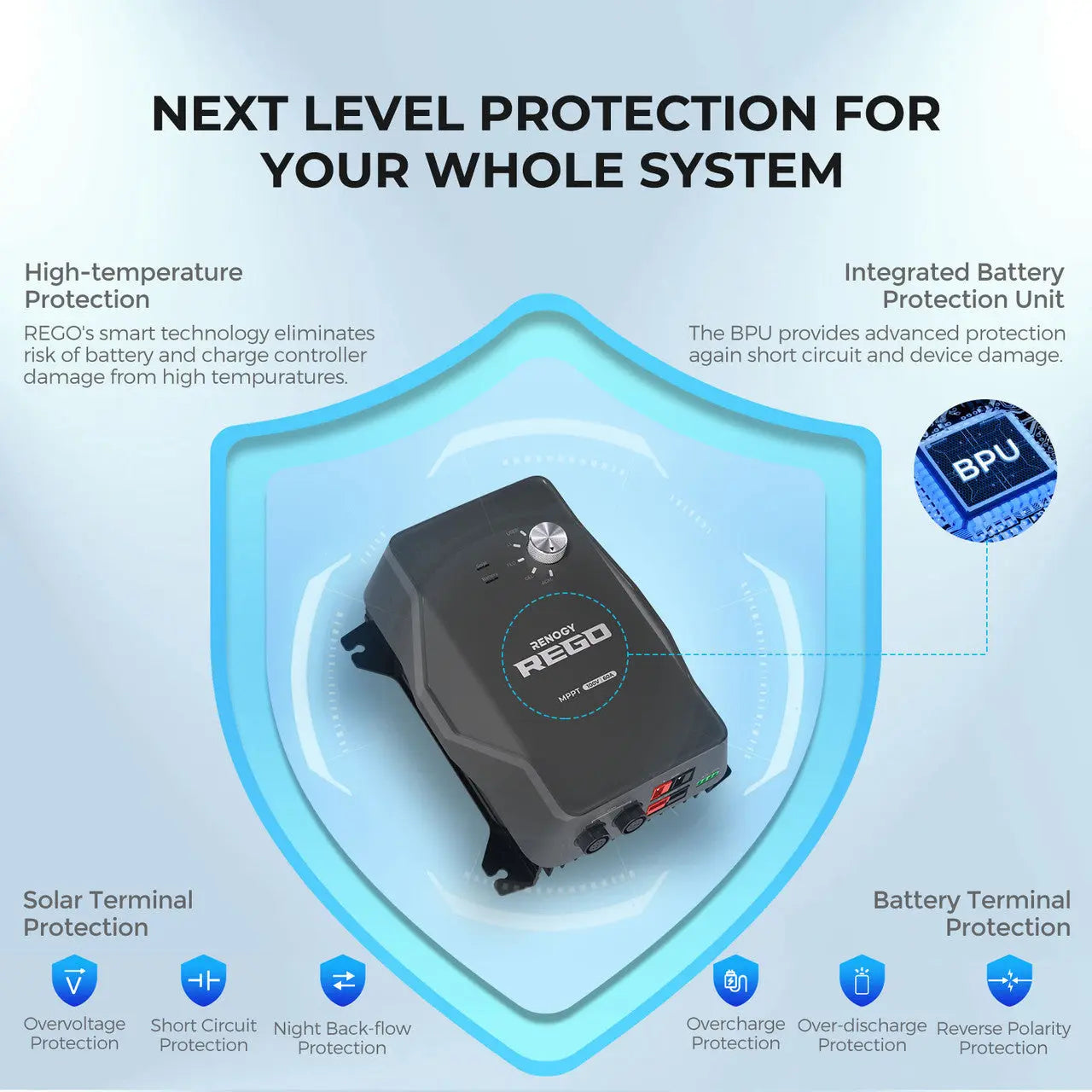

Electronic Protections: Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection |
Environmental Data
| Operating Temperature Range: -20 ℃ - 60℃ |
Storage Temperature Range: -25 ℃ - 65℃ |
| Operating / Storage Humidity: 0%-90% RH |
Temperature Compensation: '-3mV / ℃ / 2V (Non-Lithium)；'0mV / ℃ / 2V; no compensation (Lithium) |
Mechanical Specifications

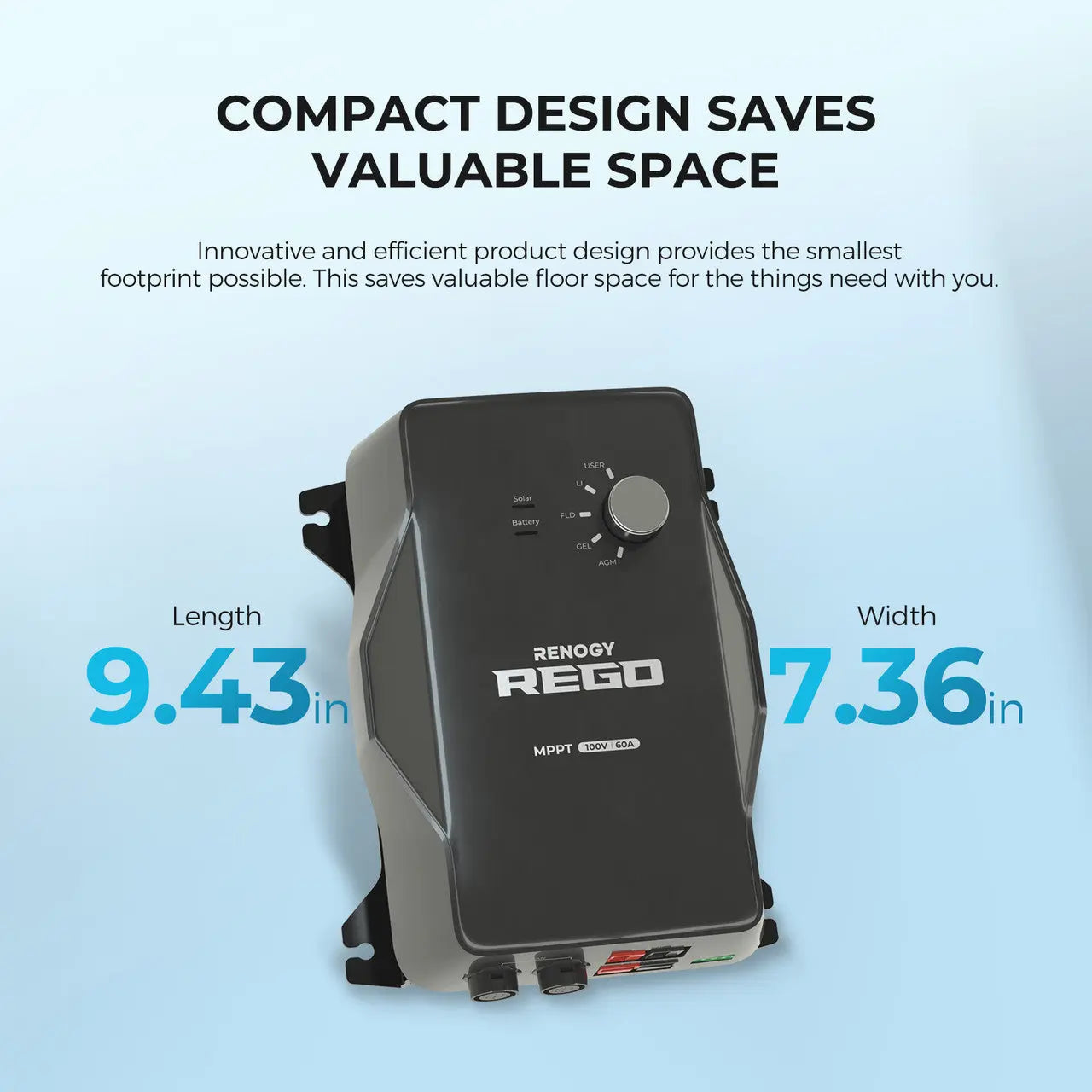

| Dimensions: 9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm | Weight: 5.07 lbs/ 2.30kg |
| Terminals Size: | Anderson PP75 |
Optional Accessories
| Remote Monitor: |
Bluetooth Module BT-2 (RS485 / CAN bus signal) |
Certifications
| CE and RoHS compliant: YES |
FCC Class B Part 15 Compliant: YES |
Warranty
| Material and workmanship warranty: |
5 Year |
1. Ensure the controller is installed vertically with 150mm of clearance for proper heat dissipation.
2. Connect the controller to the battery first and solar panels second.
