Renogy

100 Watt 12 Volt Foldable Solar Suitcase with Voyager

$259.99 USD
Shipping calculated at checkout.
Payment & Security
PayPal
Venmo

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • ✔ Fast, insured shipping from US warehouses
  • ✔ Authorized dealer for every brand we sell
  • ✔ Backed by full manufacturer warranty
  • ✔ Questions? Email info@garagegeardirect.com

    • Usually ships within 3–5 days and delivers within 10 business days.

    - Negative-ground charge controller for compatibility with an RV, boat, trailer
    - Excellent performance in low-light environments.
    - Adjustable, corrosion resistant aluminum stand for maximum solar light capture.
    - 20A built-in 5-stage solar charge controller provides overcharge protection.

    KEY FEATURES


    【Reliable】Excellent performance in low-light environments.
    Adjustable, corrosion resistant aluminum stand for maximum solar light capture.
    Protective casing included.
    【Smart】Compatible with GEL, Sealed Lead Acid, Lithium (LFP), and Flooded batteries.
    Charge controller with LCD display for collecting and adjusting operating parameters.
    【Safe】20A built-in 5-stage solar charge controller provides overcharge protection.
    Negative-ground charge controller for compatibility with an RV, boat, trailer, etc.



    Looking for the perfect off-grid renewable energy product? Well look no further! Renogy is excited to bring you solar power and portability.

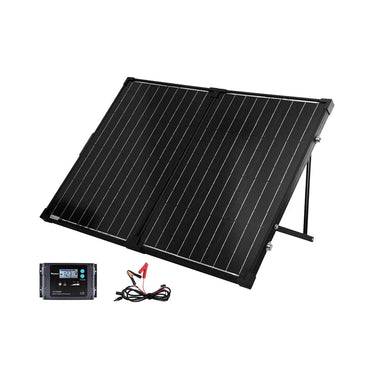

    This portable solar panel is perfect for the adventurous traveler, providing both convenience and dependability when venturing off the grid. The Renogy 100W Solar Suitcase comes with two 50W Monocrystalline Solar Panels, one set of wires with solar connectors, and one protective soft case for safe portability. Along with the adjustable aluminum stand, latches, and heavy duty handle, this 100W Solar Suitcase will change the way the world looks at portable power.

    Higher Module Efficiency

    The Renogy solar panels use Grade A+ solar cells,multi-layered sheet laminations enhance cell performance and provide a long service life.

    Small Size Easy for Carrying and Storage

    Folding design minimizes in size, allows the suitcase can be easy to carry around, or stored in any gap in your RV or van without taking much space.

    Multi-Protection Ensure System Safety

    With utilizing smart PWM technology, the Voyager controller provides efficient, stable, and safe charging.Multiple protection keeping your battery and system fully protected.

    Easy to Set Up

    This kit comes with alligator clips, allowing you to use the easiest way to connect the Voyager charge controller to your battery, ideal for a mobile system looking for flexibility.

    More Power and Flexibility

    Adjustable kickstands are easy to set up and allow you to get the best sunshine only need to change in small angles, ensuring you always get enough energy. Empower your outdoor adventures with more flexibility and possibility.

    System Expansion Available

    Additional panels added to the system are available based on your needs and space. (*We suggest connecting the same specification solar suitcases for expansion. The 20A charge controller included in the kit can accept expanding one additional 100W suitcase.)

    NOTE
    • If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
    • More questions about your off-grid power system? Learn more from Renogy Learning Center!
    RV
    MARINE
    CAMPING
    OUTDOOR
    CABIN
    TRUCK


    Package Includes



    100 Watt Mono Foldable Solar Suitcase

    1 x

    20A Voyager Charge Controller

    1 x

    Solar Connectors to Alligator Clips w/ Fuse


    1 x

    BUILT-IN COMPONENTS

    Junction Box: One single hole and one double hole junction box

    Cell Type: 158 monocrystalline

    Number of Cells: 72(3*12*2)

    opc:


    100 Watt Mono Foldable Solar Suitcase

    Maximum Power at STC: 100W

    Cell Efficiency: 22%

    Optimum Operating Voltage (Vmp): 20.3V

    Open-Circuit Voltage (Voc): 24.3V

    Optimum Operating Current (Imp): 2x2.47A

    Short-Circuit Current (Isc): 2 x 2.73A

    Operating Temperature: -40°F to 185°F

    Maximum Series Fuse Rating: 20A

    Maximum System Voltage: 600VCD(UL)

    Weight: 9.6kg/21.2 lbs

    Maximum AWG Size Range (MC4): 30A

    Dimensions: 24.8 x 20.0 x 2.8 inches

    Material and workmanship warranty: 3 years

    Performance Warranty: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty


    Renogy 20A Voyager Charge Controller

    Nominal Voltage: 12 VDC

    Self-consumption: ≤8mA

    Rated Charge Current: 20A

    Operating Temperature: -40°F to 140°F

    Max. PV Input Voltage: 26 VDC

    Dimensions: 6.38 x 3.82 x 1.34 inches

    Grounding: Common Negative

    Weight: 0.88 lbs




    1. Which kind of extension cord I should purchase with this panel for more mobility from my RV?


    The Renogy Solar Panel Extension Cable will be able to make more space between your solar panels and the charge controller. There is multiple size choice, please choose the same size of cable for extension. And please also realize that the longer the extension, the greater the line loss. A bigger gauge will be required for longer runs.

    2. What type of batteries can be used with the kit?


    Battery type compatibility depends on the charge controller specified compatible battery type. This solar kit comes with a Renogy Voyager 20A PWM waterproof charge controller. It supports Gel, AGM, Flooded, and Lithium batteries. Still, please set the correct battery type once it is installed and if a Lithium battery is connected, please manually set the system voltage due to the corresponding battery voltage. It also comes with a Lithium activation feature.

    3. Can this kit charge two or more 12V batteries connected in parallel?


    Yes, it's possible if the batteries have the same type and capacity and are wired in parallel as a single 12V battery bank.

    4. Can I use this suitcase to charging my 120v receptacles directly?


    The suitcase is not able to charge 120V power receptacles directly. Plus a 12v battery and inverter would give the 120v output you would want. The panel would recharge the battery, the battery will store the power, and the inverter would be able to supply the 120v power that you need.

    5. Are these monocrystallin or polycrystallin panels?


    The suitcase with 2 pcs 50W Renogy high quality monocrystalline solar panels.

    6. Can I use this suitcase in ranniy days? Can rain damage the solar kit?


    The solar panels are fully waterproof with IP66 class. It will be able to work on rainy days and applicable to a wider range of scenarios, such as marine, yacht, etc. But we recommend you to use it with a waterproof charge controller, since water into the regular controller may damage the internal circuitry. You can search and find a bundle system including this suitcase with a waterproof Renogy Voyager 20A charger controller.

    7. Why is my solar panel underproducing?


    Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output. This is a portable suitcase, you may try to move it in place or adjust the kickstands angels to get better sunshine. The ideal output of it will be around 500 Watt-hours per day (Calculated based on 100Wx5h expected sunlight availability).

    9. What does the 12V/24V in the product title of the solar panel mean? Why is it different from the value on the label/specification sheet of the solar panel?


    The 12V/24V in product titles (ex. 100W 12V Monocrystalline Solar panel) does not refer to the actual voltage (Voc or Vmp) of the solar panels, but rather to the voltage of the solar system or energy storage system to which the panel is best suited. The voltage of the solar panel must be higher than the solar system voltage.
    More questions about your off-grid power system? Learn more from Renogy Learning Center!



    100 Watt 12 Volt Monocrystalline Foldable Solar Suitcase with Voyager
    100 Watt 12 Volt Monocrystalline Foldable Solar Suitcase with Voyager



    Brand Renogy
    Vendor Renogy
    Model 100-watt-12-volt-monocrystalline-foldable-solar-suitcase-with-voyager

    For warranty and technical support, visit renogy.com/support or call 1-909-287-7111.
