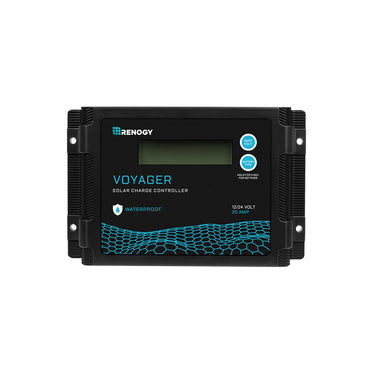

New Edition Voyager 20A PWM Waterproof Solar Charge Controller
New Edition Voyager 20A PWM Waterproof Solar Charge Controller
products.product.pickup_availability.unavailable
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Usually ships within 3–5 days and delivers within 10 business days.
The Voyager 20A is a top-tier 20-amp charge controller, rated IP67, making it perfect for outdoor use in conditions involving water spray, rain, and condensation. Featuring advanced PWM technology, it supports both 12V and 24V off-grid applications and is compatible with four different battery types, including Lithium Iron Phosphate. With built-in protections for the solar panel, battery, and controller, the Voyager 20A ensures the longevity of your system. PLEASE NOTE: For lithium batteries, it is essential to manually set the voltage for optimal charging.
Note: Please set the voltage manually to charge lithium batteries.
Leveraging intelligent PWM technology, the Voyager 20A offers 4-stage charging (Bulk, Absorption, Float, and Equalization) to protect the battery. It also includes multiple electronic protections for the battery, controller, and PV system, ensuring safe and efficient charging and usage.
The Renogy Voyager PWM Waterproof Controller is compact and lightweight, making it perfect for applications with limited space. With a weight of only 0.55lb, a height of 3.84 inches and a width of 6.08 inches, this controller is ready to be installed in small spaces.
The Voyager PWM Waterproof Controller is a common positive ground charge controller, beneficial in ensuring charging safety.
Equipped with a Remote Temperature Sensor Port, the Voyager 20A measures battery temperature in real-time and uses this data for precise temperature compensation, ensuring stable and consistent charging performance.
In a 12V system, the Voyager PWM Waterproof Controller consumes just 0.22W/h or 1.92kWh per year (365 days), making it highly energy-efficient while effectively charging your battery.
The Voyager PWM Waterproof Controller supports both 12V and 24V systems and automatically detects system voltage when connected to Gel, AGM, or Flooded battery banks. REMEMBER: For lithium batteries, please manually set the voltage to ensure proper charging.
- For users with a PWM controller in their solar system, we highly recommend connecting the solar panels in parallel. This setup helps maintain the PV output voltage, allowing the controller to operate at optimal efficiency.
- Never install the controller in a sealed enclosure with flooded batteries as gas can accumulate and there is a risk of explosion.
- The solar controller should be installed as near the battery as possible to avoid efficiency loss.
- Incorrectly setting the battery type on the controller may damage your battery. The system's auto-recognition feature is only compatible with Gel, AGM, and Flooded batteries. When using the Voyager to charge a lithium battery bank, make sure to manually set the system voltage. Otherwise, an over-discharged lithium battery may not be activated.
- To ensure optimal controller performance, avoid any damage or wear to the wires connected to the controller. Ensure all terminals are tightly secured, and regularly inspect for loose, broken, or burnt connections. It is a good idea to sporadically clean the controller’s case with a damp cloth to keep it in good condition.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
More questions about the inverter and your off-grid power system? Learn more from Renogy Learning Center!
Package Includes
|
New Edition Voyager 20A PWM Waterproof Solar Charge Controller
1 x |
| Voyager 20A PWM Waterproof Solar Charge Controller | |||
|---|---|---|---|
| Electrical Parameters | Environmental Data | ||
| Nominal System Voltage | 12/24V Auto-Detection (For Non-Lithium Batteries) | Protection Level | IP67 |
| Rated Charge Current | 20A | Operating Temperature Range | -31°F - 113°F |
| PV Input Voltage Range | 15V-55V | Storage Temperature Range | -31°F - 167°F |
| Max. Pv Open Circuit Voltage | 12V@25V 24V@55V | Operating / Storage Humidity | 10%-90%, No Condensation |
| Max. PV Input Power | 12V @ 260W / 24V@520W | Temperature Compensation | '-3mV/C/2V excludes LI |
| Warranty | 2-year material and workmanship warranty | Mechanical Specifications | |
| Battery Types | SLD/AGM, GEL, FLD. LI | Dimensions | 6.08*3.83*1.40 in |
| Power Consumption | 12V @ 0.24W / 24V@0.74W | Weight | 0.55Ibs |
| Max Battery Voltage | 32V | Max. Cable Size | 6 AWG |
| Ground Type | Positive | Controller Terminals | 20 - 6 AWG, 2-pin terminals |
| Electrical Protection | Battery/Controller over-temperature protection, PV/Battery reverse polarity, Over-voltage, Over-current protection | Optional Accessories | |
| Communication Port | N/A | Temperature Sensor RTSVOY-US | 22AWG 10FT |
1. Can i connect the controller to my 12v/24v solar system?
2. Does it support Lithium battery?
3. What does IP67 means?
4. What is 4-stage charging and how does it benefit the battery?
Bulk charging charges batteries to 75-80% of full charge.
Boost Charging gradually completes the remaining charge to full.
Float Charging maintains battery charge.
Equalization Charging increases the battery voltage to higher than the standard complement voltage and gasifies the battery electrolyte, which is carried out every 28 days. Certain types of batteries benefit from periodic equalizing charges, stirring the electrolyte, balancing battery voltage, and completing chemical reactions.
 |
 |
 |
