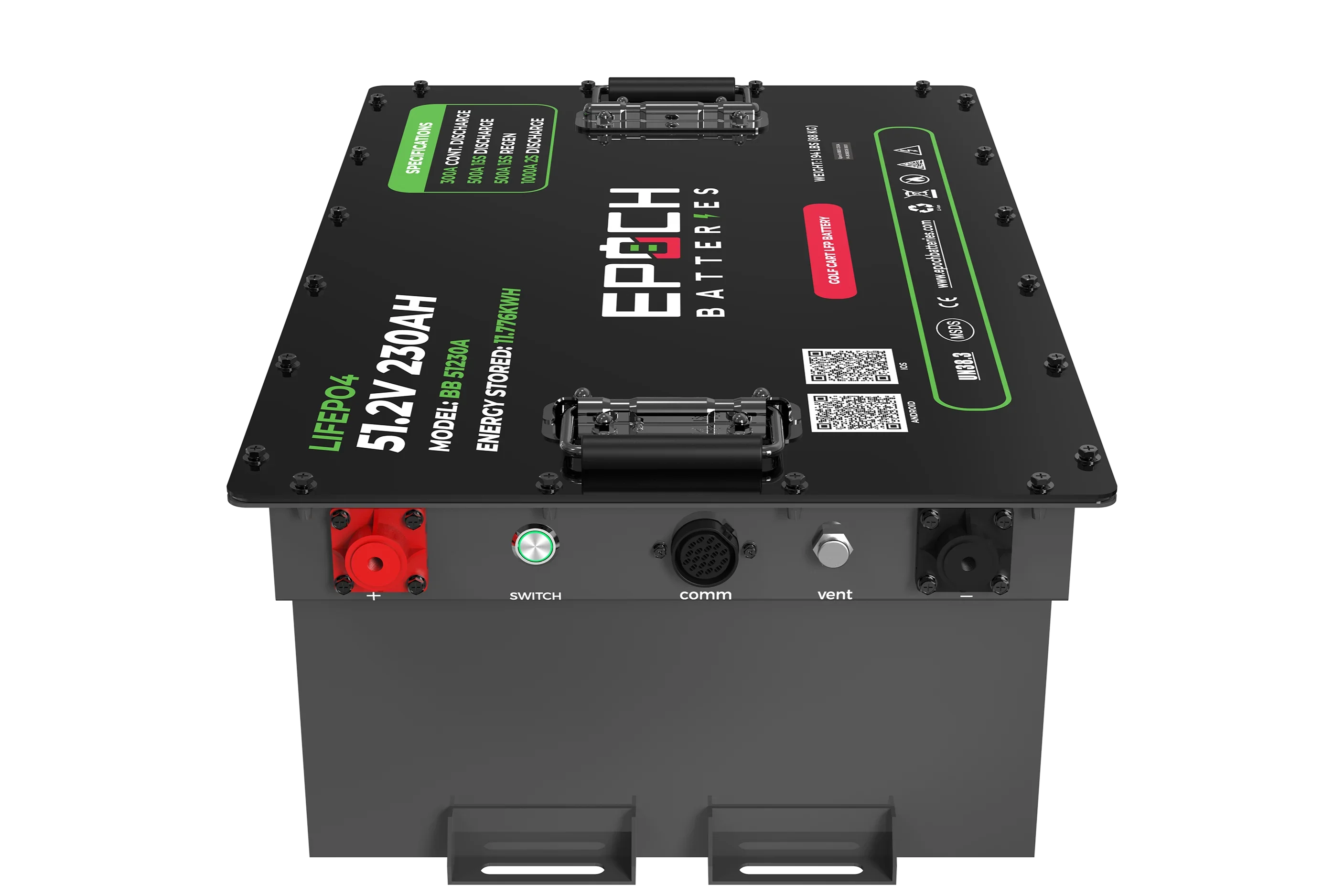

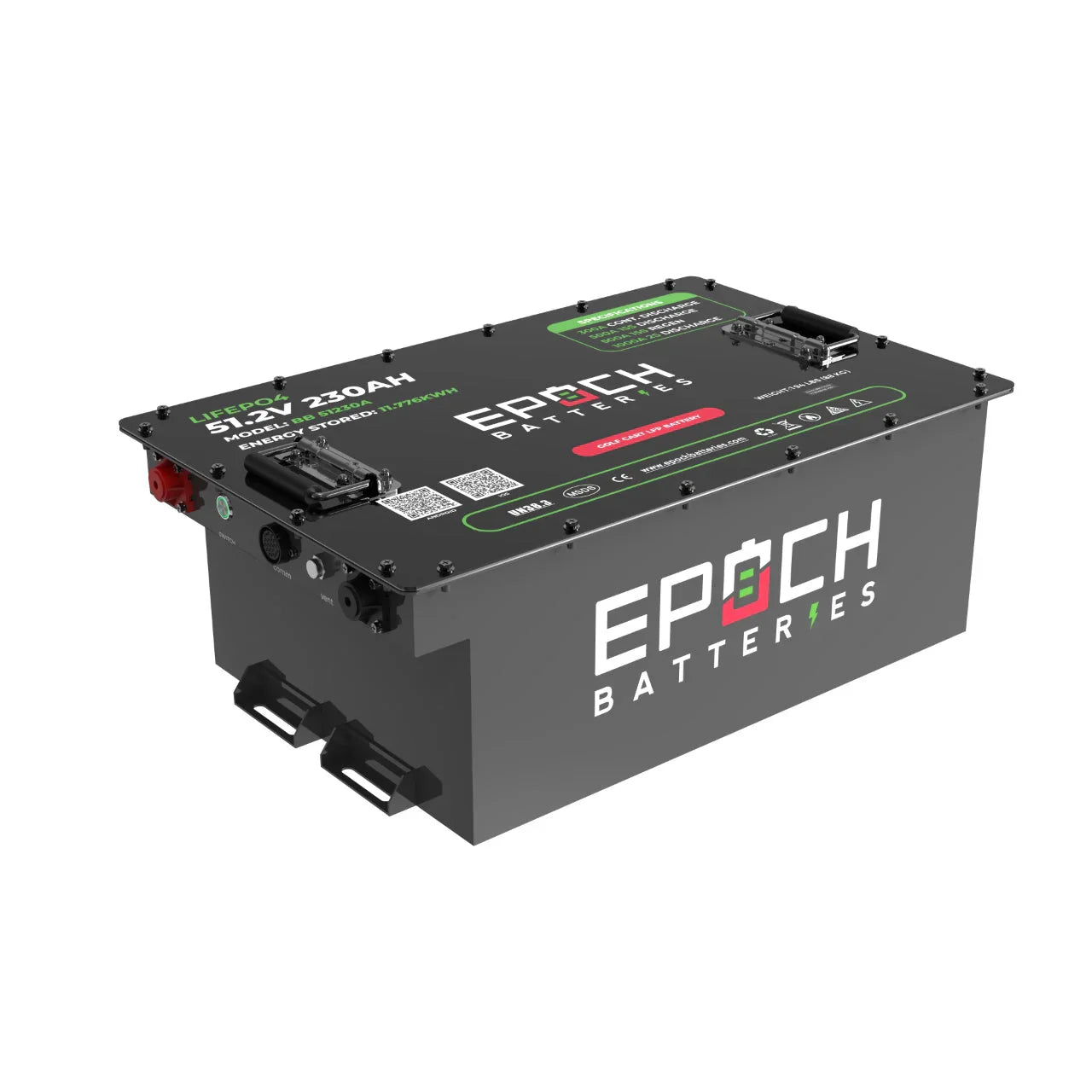

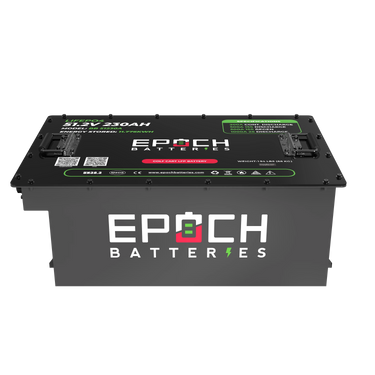

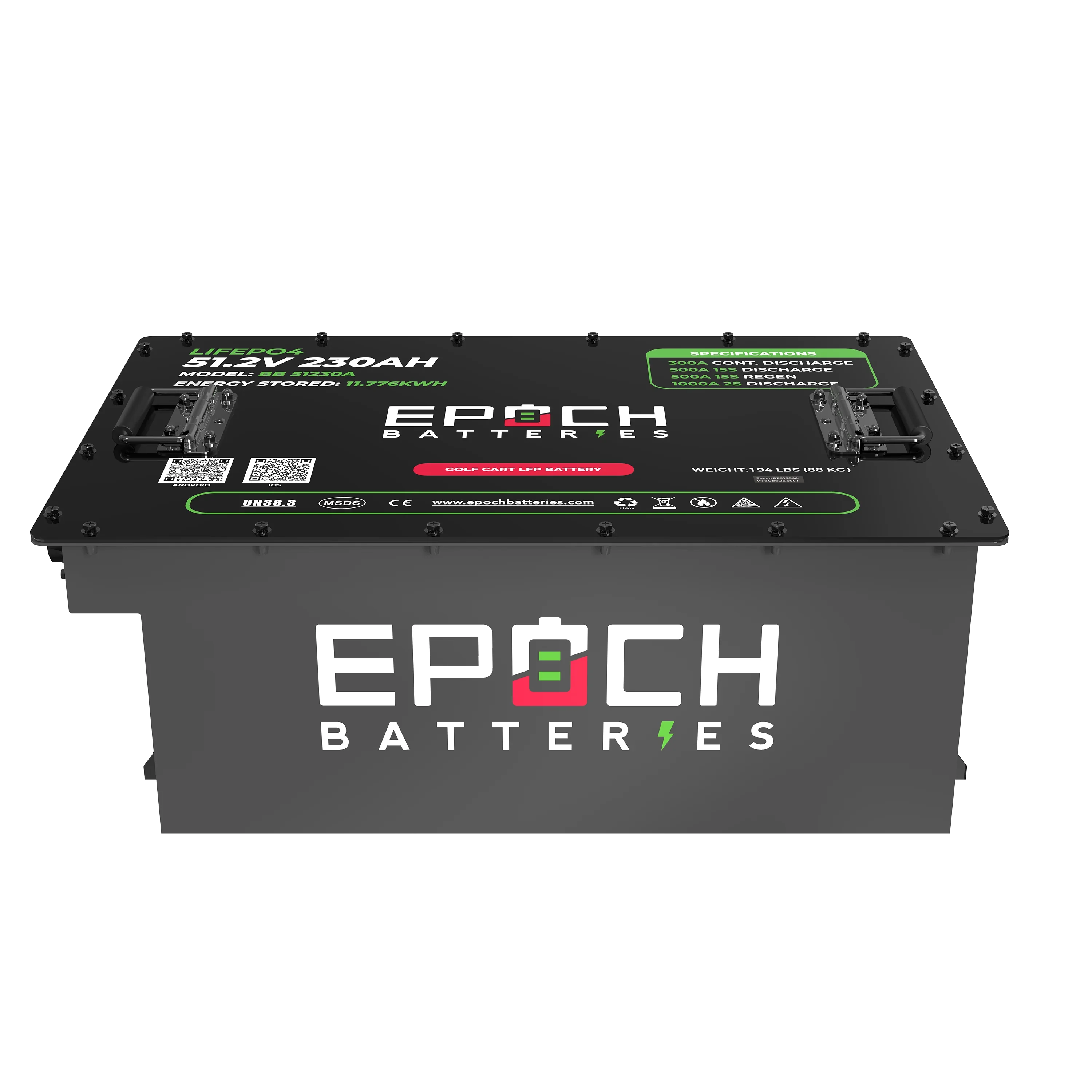

Epoch Batteries 48V 230Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit
Shipping calculated at checkout.
Epoch Batteries 48V 230Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit
Shipping calculated at checkout.
Low Stock (4)
products.product.pickup_availability.unavailable
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Usually ships within 3–5 days and delivers within 10 business days.
Epoch Batteries 48V 230Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit
- Complete Lithium Conversion Kit

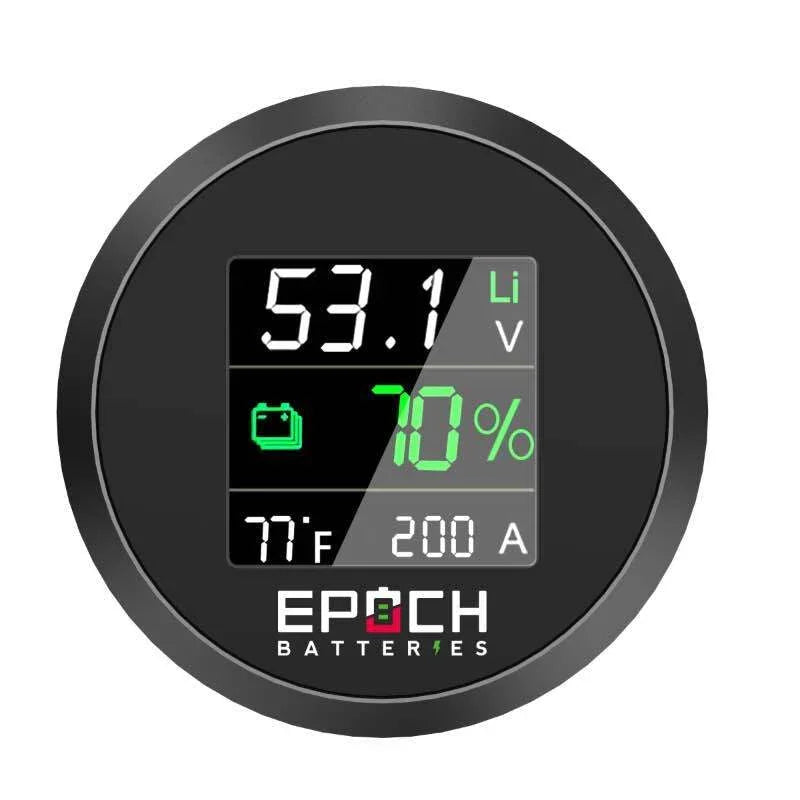

- 48V 22A Lithium Charger, Battery Gauge, 12V Converter INCLUDED

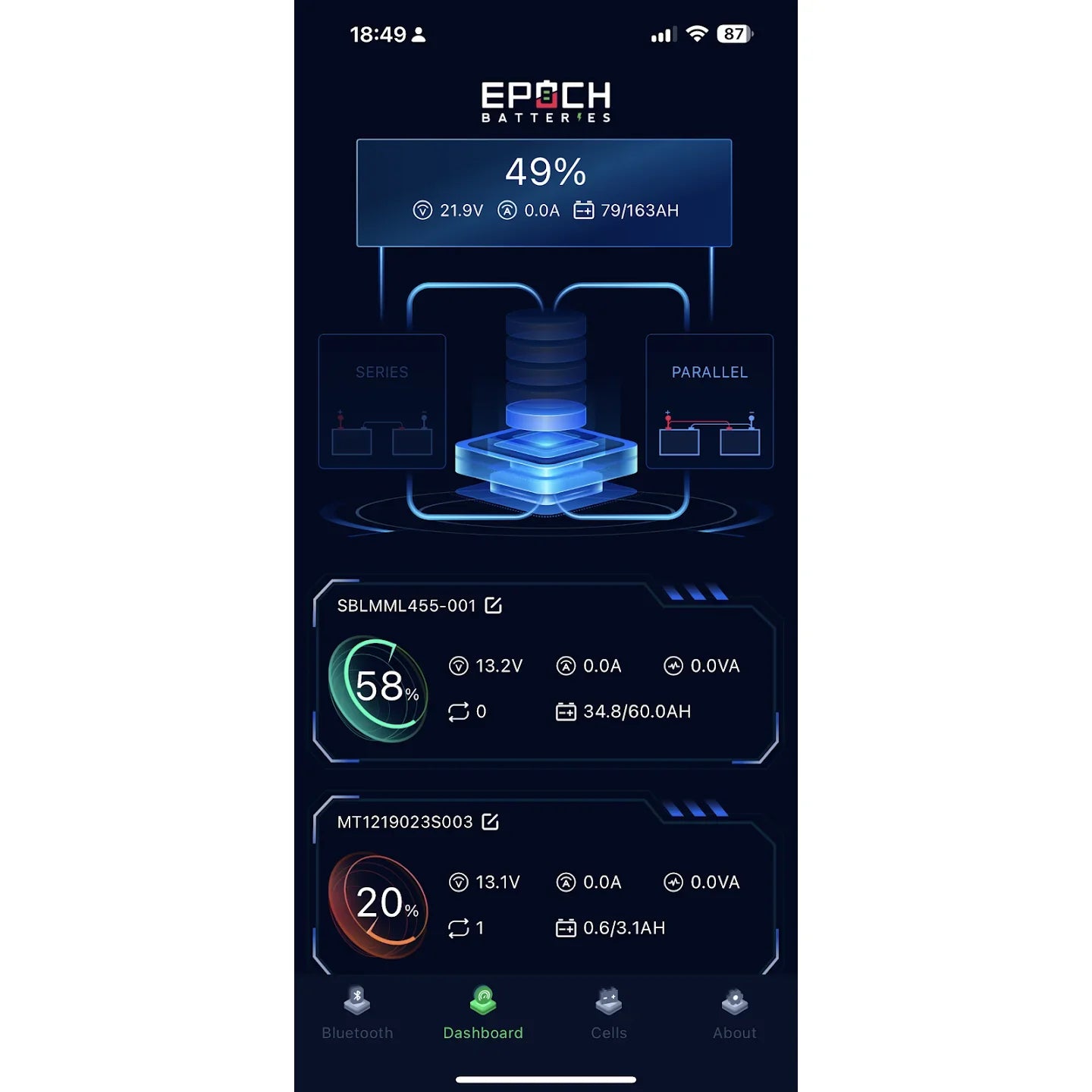

- Bluetooth App (iOS & Android)
- Over the air firmware updates available
- 300A Max Continuous Discharge
- 500A @ 15s, 1,000A @ 2s Peak Discharge
- 230A Max Continuous Charge
- 500A @ 15s Peak Charge/Regen
- 4,000 Cycle Life
- 11 Year Warranty
Configuration
Cell Configuration: 1P16S
Chemistry: LiFePO4
Current
Ah Capacity: 230Ah
Max Continuous Discharge Amps: 300A
Max Charge Current Amps: 230A Continuous, 500A @ 15s
Max Discharge Peak Current Amps: 500A @ 15s, 1,000A @ 2s
Series | Parallel: Max (2) in Parallel
Voltage
Voltage: 51.2V
Max Charge Voltage: 58.4V
Operating Voltage Range: 40 - 58.4V
Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)
Weight: 196 (LBS)
Dimensions
Length: 23.5 (inches)
Width: 14.4 (inches)
Height: 9.9 (inches)
