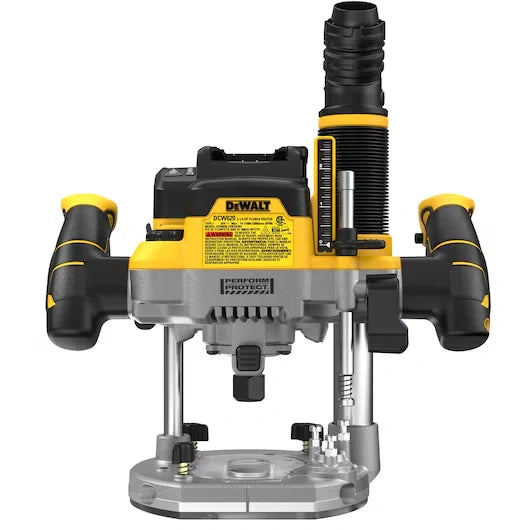

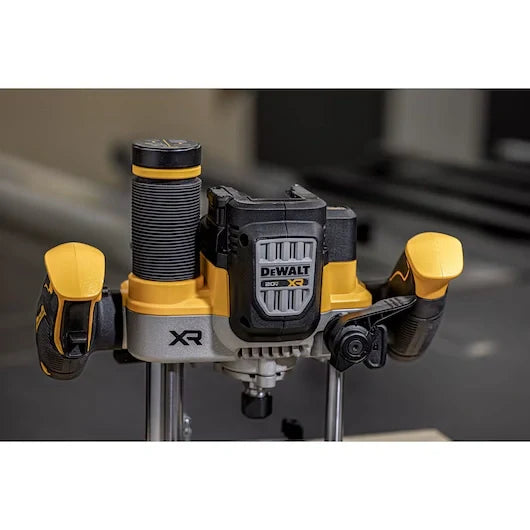

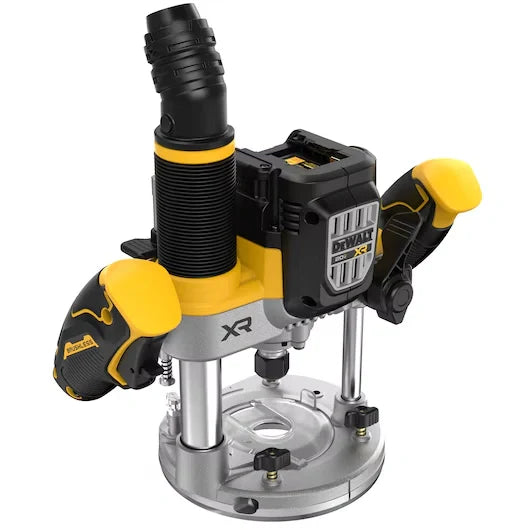

DEWALT DCW620B 20V MAX* XR® Brushless Cordless 2-1/4 Peak HP Plunge Router (Tool Only)
DEWALT DCW620B 20V MAX* XR® Brushless Cordless 2-1/4 Peak HP Plunge Router (Tool Only)
DEWALT DCW620B 20V MAX* XR® Brushless Cordless 2-1/4 Peak HP Plunge Router (Tool Only)
$349.00 USD
$299.00 USD
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
DEWALT DCW620B 20V MAX* XR® Brushless Cordless 2-1/4 Peak HP Plunge Router (Tool Only)

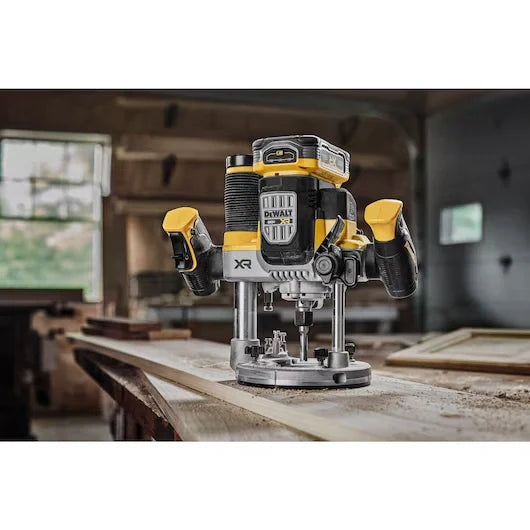

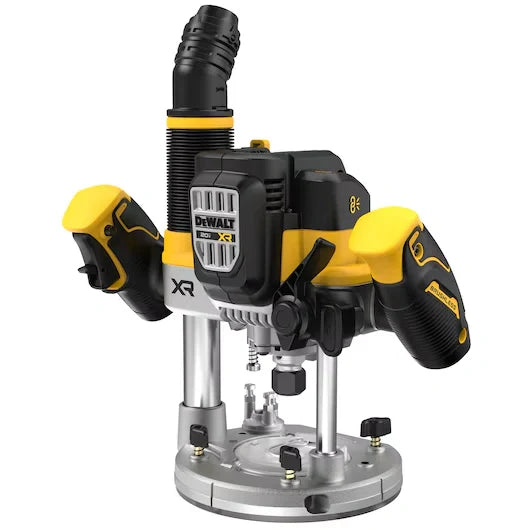

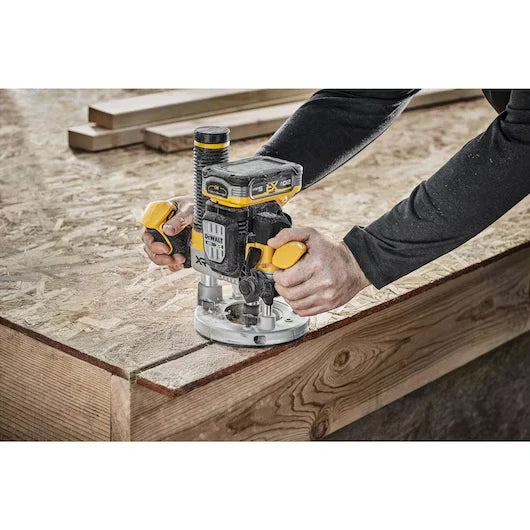

The world's first 20V MAX* cordless 2-1/4 Peak HP dedicated plunge router delivers consistent cutting performance without the hassles of a cord. From meticulous edgework to aggressive plunge cuts, the 20V MAX* XR®2-1/4 Peak HP Plunge Router (battery and charger sold separately) features a 2-1/4 peak horsepower brushless motor that seamlessly handles bits up to 2-1/2 in. in diameter. The variable speed dial helps maximize user control while maintaining constant speed under load. This router can complete up to 256 linear feet routing 5/8 in. roundovers in pine on a single charge† and helps to maintain a clean workspace with integrated dust collection with AirLock™ compatibility. Designed for tough jobsites, the PERFORM & PROTECT™ ANTI-ROTATION system senses the motion of the tool and shuts it down if the motion is excessive.
Applications
- Dados, Grooves, Flute
- Edge Profilin
- Inlay
- Flush Trimmin
- Rabbetin
- Mortisin
- Doweling
Specifications
|
Collet Diameter [in]
|
0.5
|
|
Color
|
Yellow & Black
|
|
Is it a Set?
|
No
|
|
Power Source
|
Cordless
|
|
Power [W]
|
1700
|
|
Product Height [in]
|
11.5
|
|
Product Height [mm]
|
292
|
|
Product Weight [g]
|
3620
|
|
Product Weight [Kg]
|
3.62
|
|
Product Weight [oz]
|
128
|
Additional Features
- Our Most Powerful 20V MAX* Cordless Router** - Take on tough applications without the hassle of a cord.
- Help Maximize Productivity - Complete up to 256 linear feet routing 5/8 in. roundovers in pine on a single charge (using DCBP520 battery sold separately).

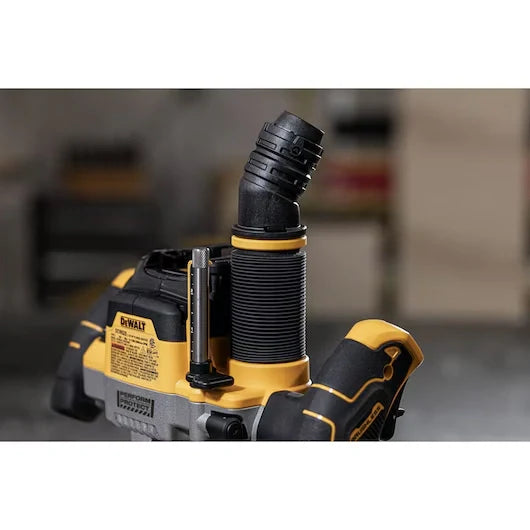

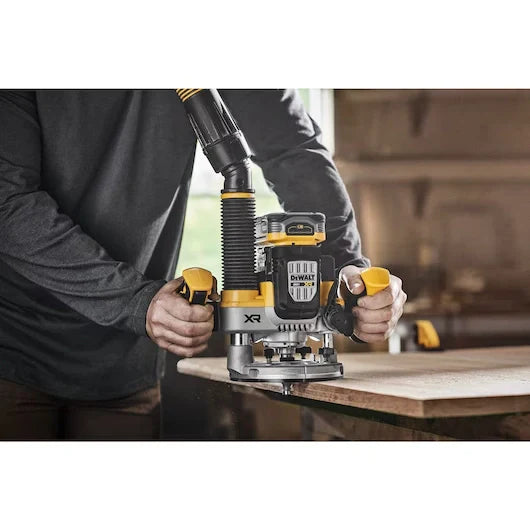

- Integrated Dust Collection With AIRLOCK™ Compatibility - Collects up to 97% of dust cutting grooves in particleboard using DCBP520 battery and DWV015 dust extractor (battery and extractor sold separately)

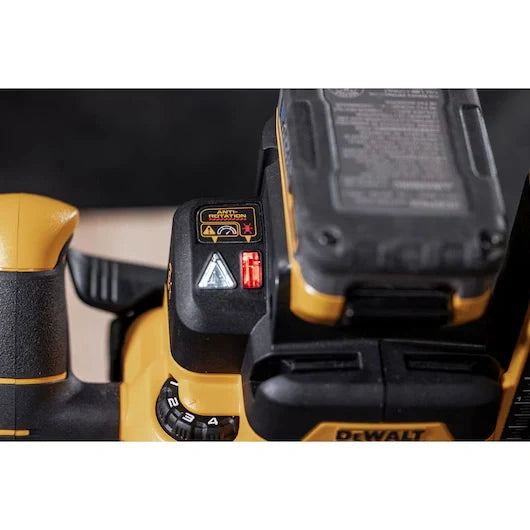

- Help Maximize Control - Equipped with the ANTI-ROTATION System that senses the rotational motion of the tool and shuts it down if the motion is excessive. The red LED indicator illuminates when the ANTI-ROTATION System is engaged.

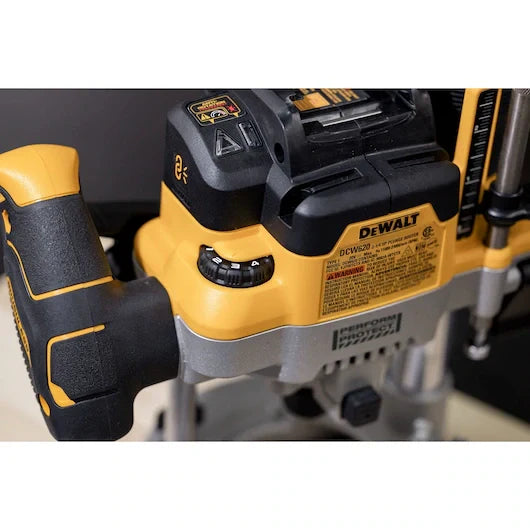

- Versatile Performance - Quickly match the speed of the router to the application at hand with the variable speed dial with constant speed under load that offers (no-load) 11,000-23,000 RPMs.

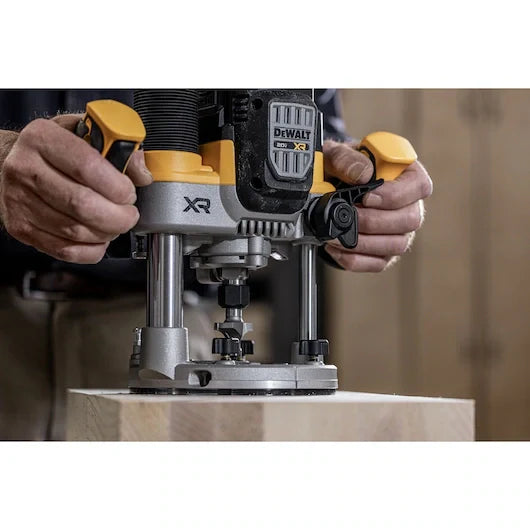

- Adjustable Turret Stop - Make quick depth adjustments with the 3-position adjustable turret stop.

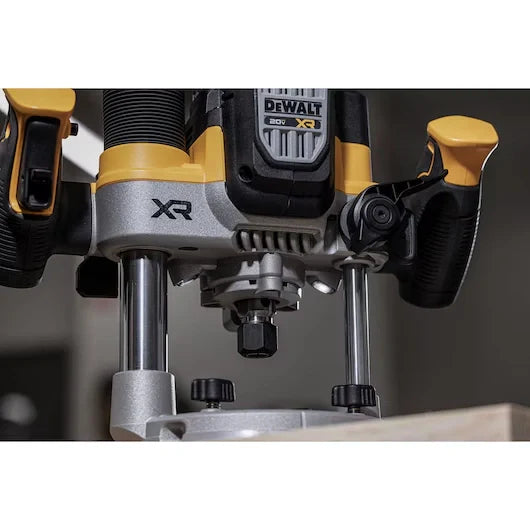

- TOOL-FREE Depth Adjustment System - Quickly and accurately setup with the depth adjustment scale, depth stop, micro-fine depth stop adjuster, and micro-fine height adjuster.

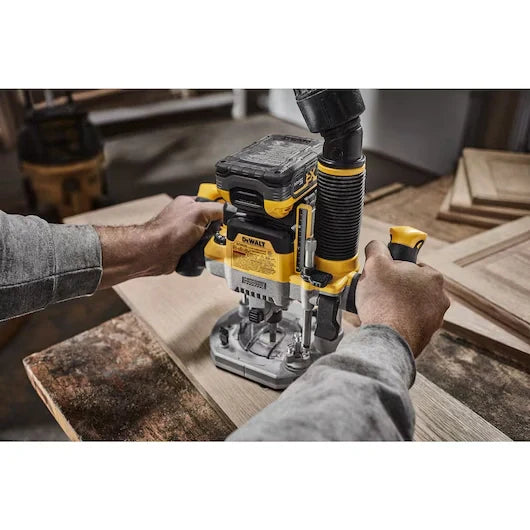

- Tool-Free Plunge Lock Lever - Seamlessly engage and disengage the lock lever without having to remove hands from handles.
- Dual LED - Helps provide additional illumination of the work surface for bit visibility.
- Balanced Design - Get precise routing performance with a compact design of 11.5 in. in height, weighing only 8 lbs. (tool only).
- Part Of Our Best Performing Line Of 20V MAX* Power Tools – Innovative power tools designed to deliver certainty for the world’s toughest pros.
Includes
- (1) 20V MAX* XR® 2-1/4 Peak HP Plunge Router (Tool Only)
- (2) Sub-base
- (1) 30mm Guide Bushing
- (1) 1/4 in. (6.4mm) Collet with nut
- (1) 1/2 in. (12.7mm) Collet with nut
- (1) Wrench
- (1) Dust cap
- (2) Dust Shield
- (1) Dust port w/ AIRLOCK™ Compatibility
- (1) Chip collector
- (1) Centering cone
Warranty Information
3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed
We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
