Battery Inverter Cables for 3/8 in Lugs
products.product.pickup_availability.unavailable
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Usually ships within 3–5 days and delivers within 10 business days.
Description

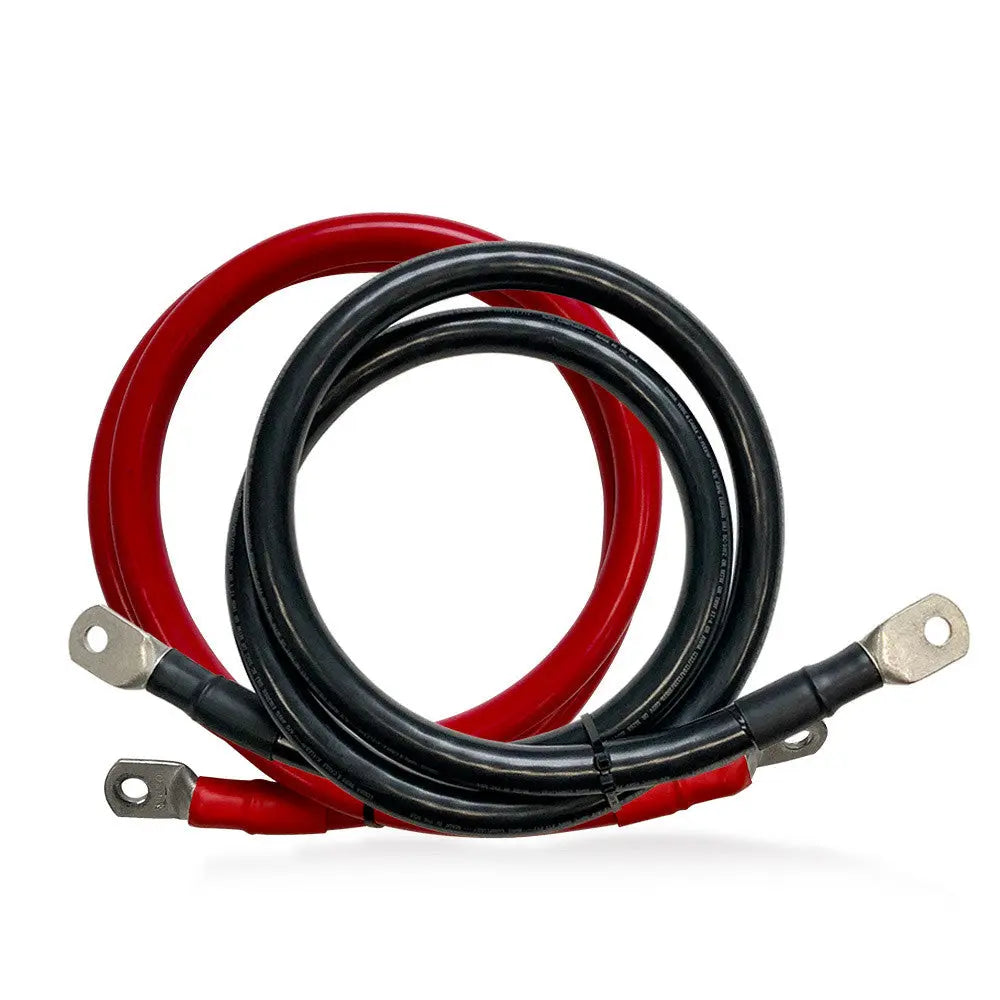

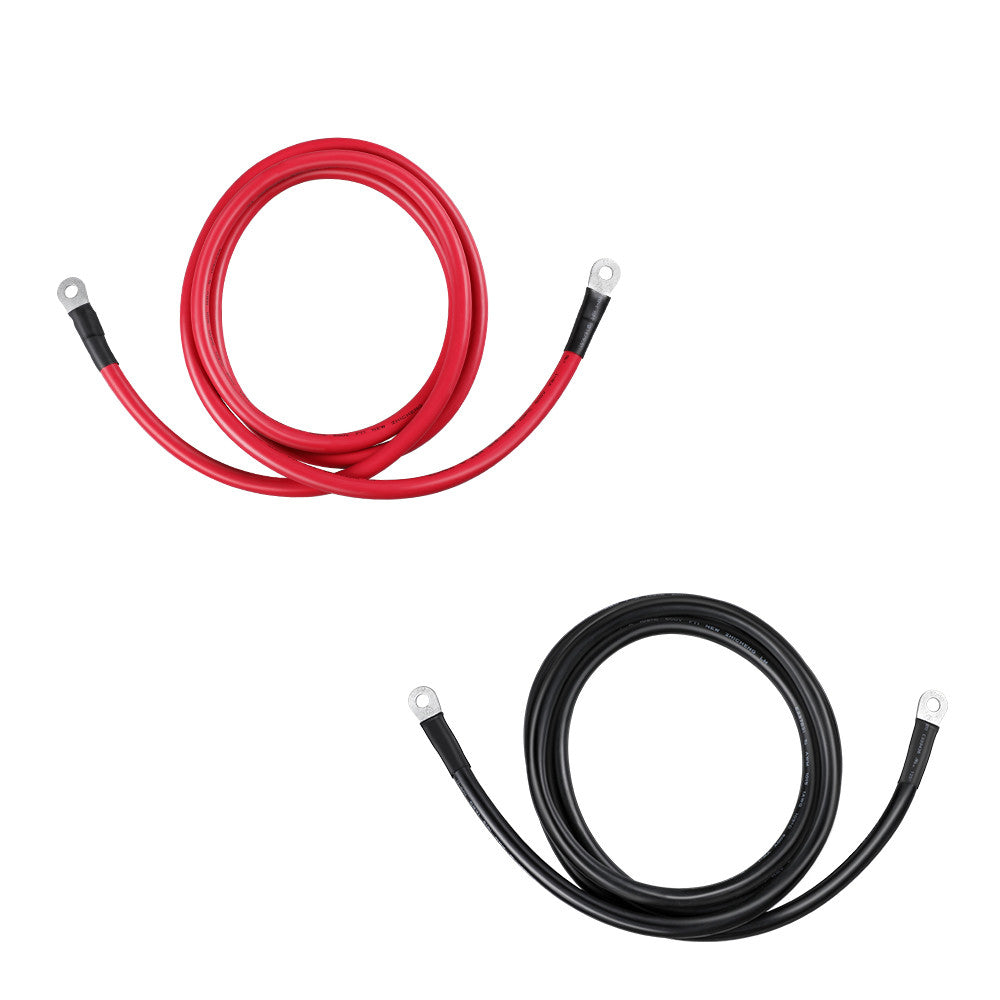

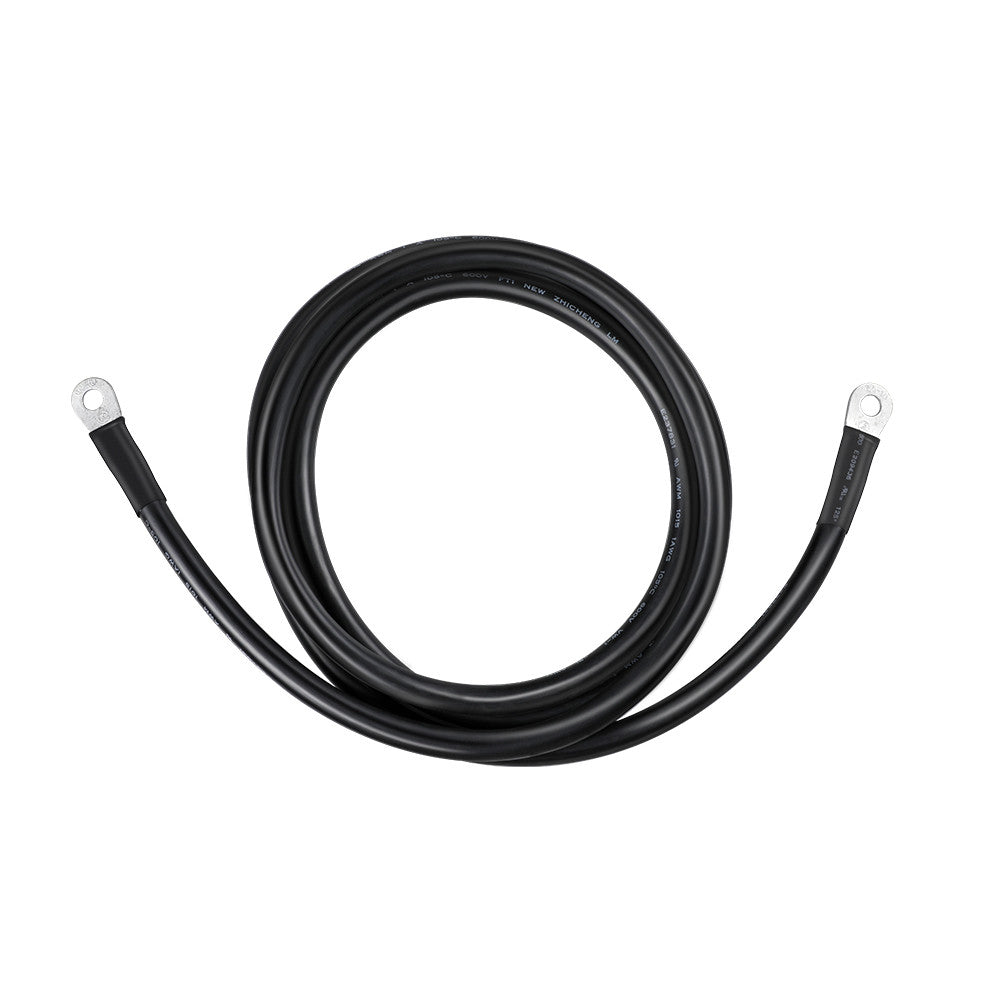

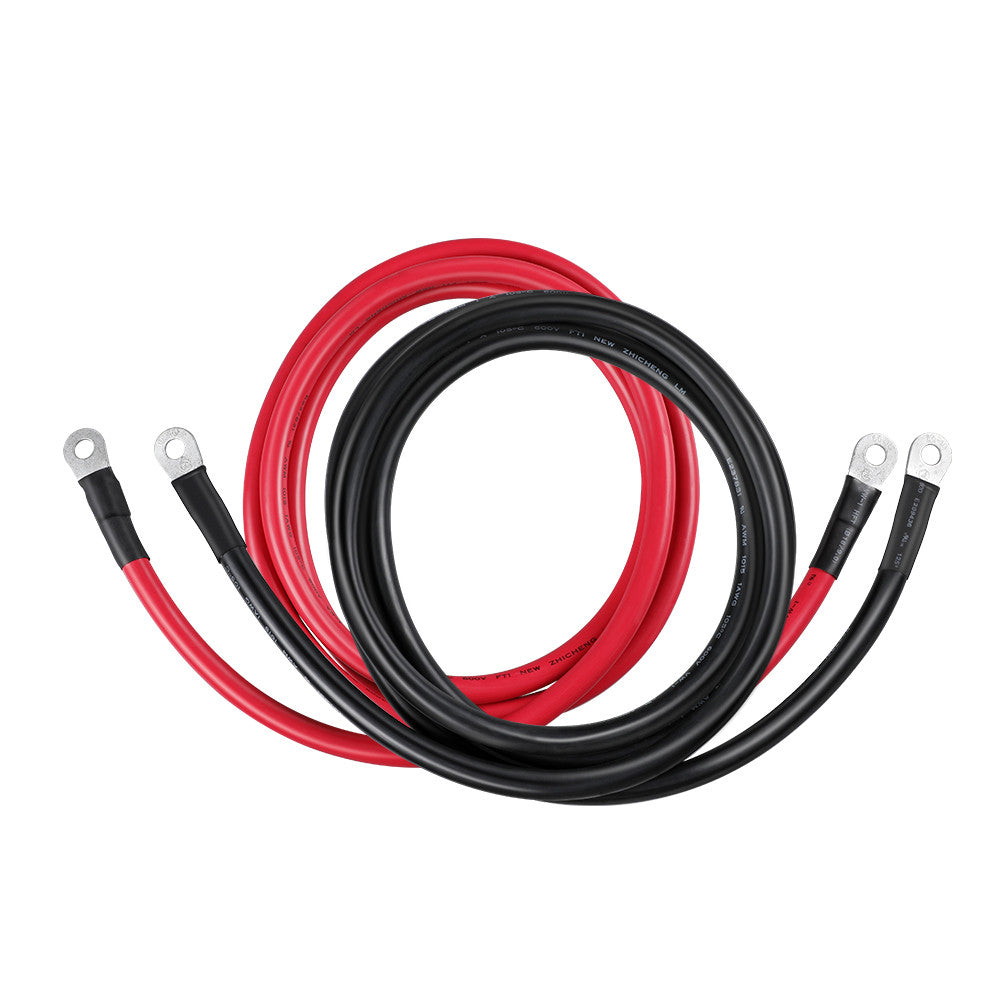

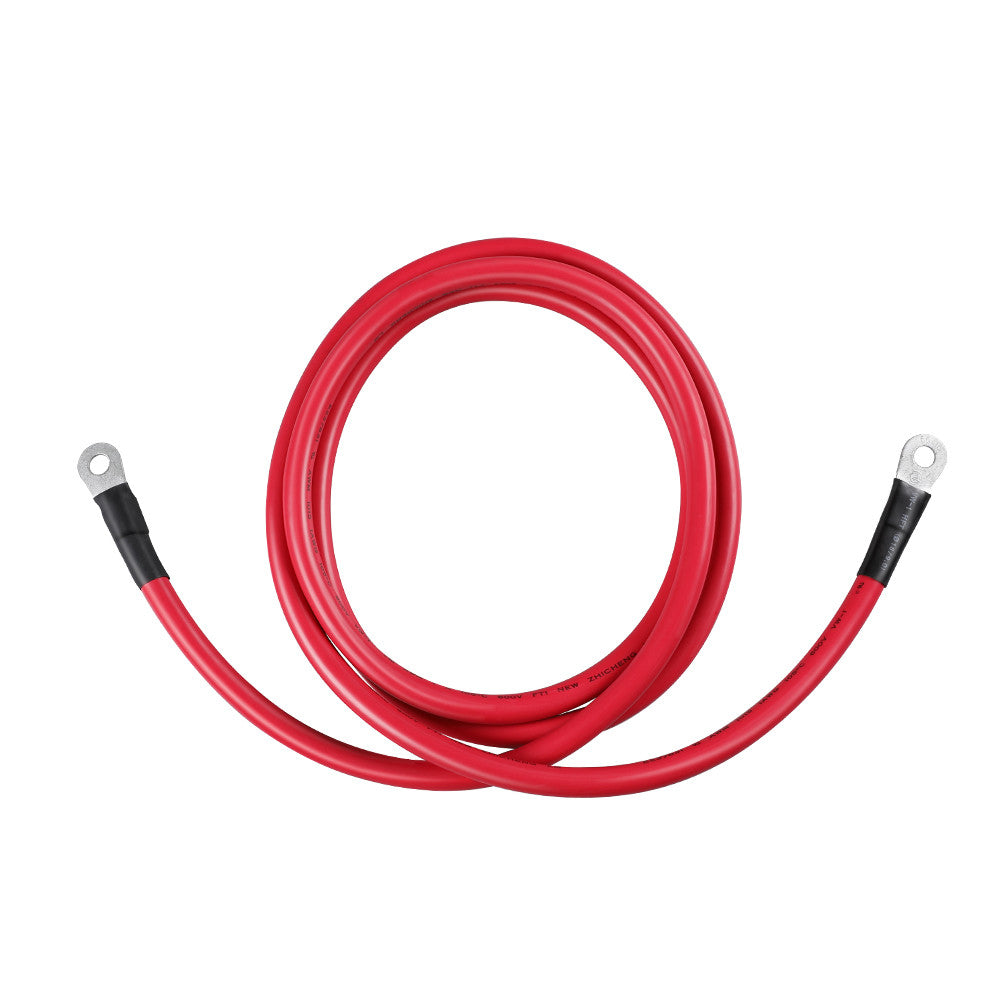

Designed to be used between a power inverter and a battery bank, the 8ft 1AWG Inverter Cables are made of UL-certified Cobra X-Flex, making them resistant to moisture, abrasion, acid, diesel fuel, and oil. Color-coded for easy identification, these cables have heat shrink on both ends and feature stainless steel ring terminals that use 3/8 lugs. Match this pair of inverter cables with your inverter for a secure connection to your battery bank.
NOTE
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us with livechat for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center
Key Features
- Colored red and black for easy identification.
- Stainless steel ring terminals for easy installation.
- Unique flame retardant polyvinyl chloride compound.
- Stranded conductors for flexibility, can be bent to suit the usage scenes.
- Durable for use, resistant to moisture, abrasion, acid, diesel fuel, and oil.
Package Includes
|
Inverter Cable for Connecting Inverter to Battery
1 Pair
|
| Renogy Inverter Cables (A pair) | |
|---|---|
| Length: 5Ft | Size: 4AWG |
| Operating Voltage: 600/1000V | Conductor: Tinned Copper |
| Maximum Operating Temperature: 221°F Dry, 167°F Wet | Terminal: 3/8In Rings Terminals at Both Ends |
| Stranding: Class K 30AWG Bare Copper Stranded | |
| Renogy Inverter Cables (A pair) | |
| Length: 8Ft | Size: 1AWG |
| Operating Voltage: 600/1000V | Conductor: Tinned Copper |
| Maximum Operating Temperature: 221°F Dry, 167°F Wet | Terminal: 3/8In Rings Terminals at Both Ends |
| Stranding: Class K 30AWG Bare Copper Stranded | |
| Renogy 5Ft 4/0 AWG Inverter Cables (A pair) | |
| Length: 5Ft | AWG: 4/0AWG |
| Operating Voltage: 600/1000V | Stranding: Stranded Copper |
| Maximum Operating Temperature: 220°F Dry, 165°F Wet | Ring terminal: 3/8” metal lugs |
| Maximum Operating Amp(Amperage): 230A |
Warranty Information
| Accessories | 1-year material and workmanship warranty |
 |
| Brand | Renogy |
| Vendor | Renogy |
| Model | battery-inverter-cables-for-3-8-in-lugs |
For warranty and technical support, visit renogy.com/support or call 1-909-287-7111.
