Communication Hub
products.product.pickup_availability.unavailable
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Usually ships within 3–5 days and delivers within 10 business days.
Description
The Renogy Communication Hub allows you to connect multiple Renogy appliances with an RJ45 port and RS485 communication protocol to just one BT-2 Bluetooth module. Now you can use your phone to monitor multiple devices at the same time! The Renogy Communication Hub also supports both RS485 and CAN communication protocols – giving you a wider selection of compatible devices.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us.
Key Features

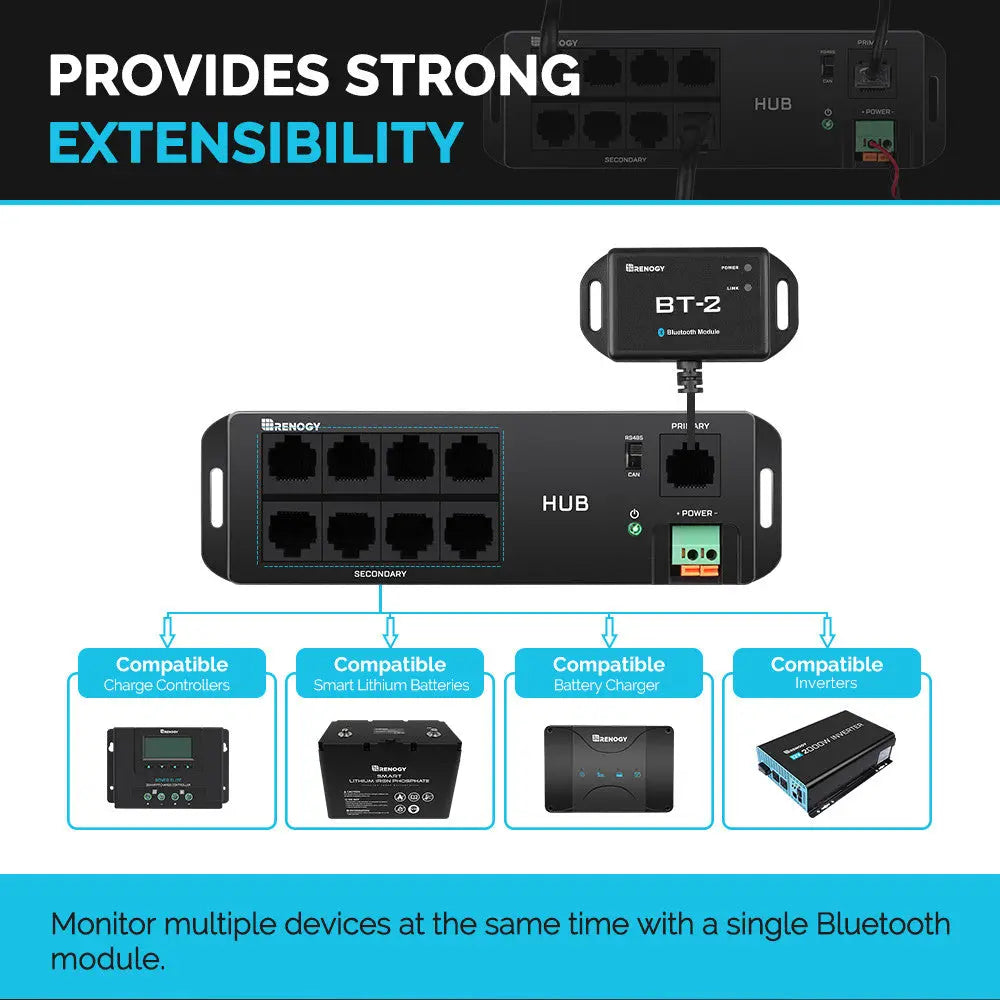

- Monitor multiple devices at the same time with a single Bluetooth module.

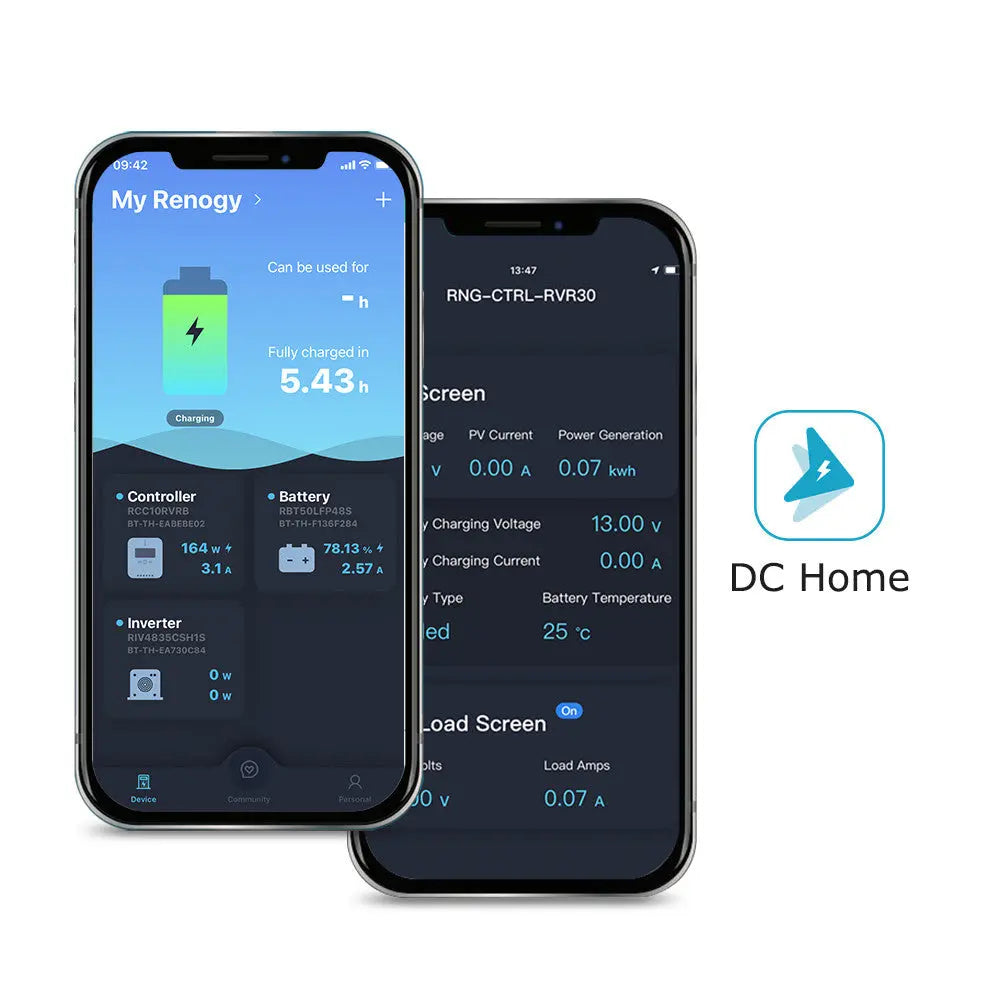

- Connect to our user-friendly smart phone App, Renogy DC Home, to keep track of your system.

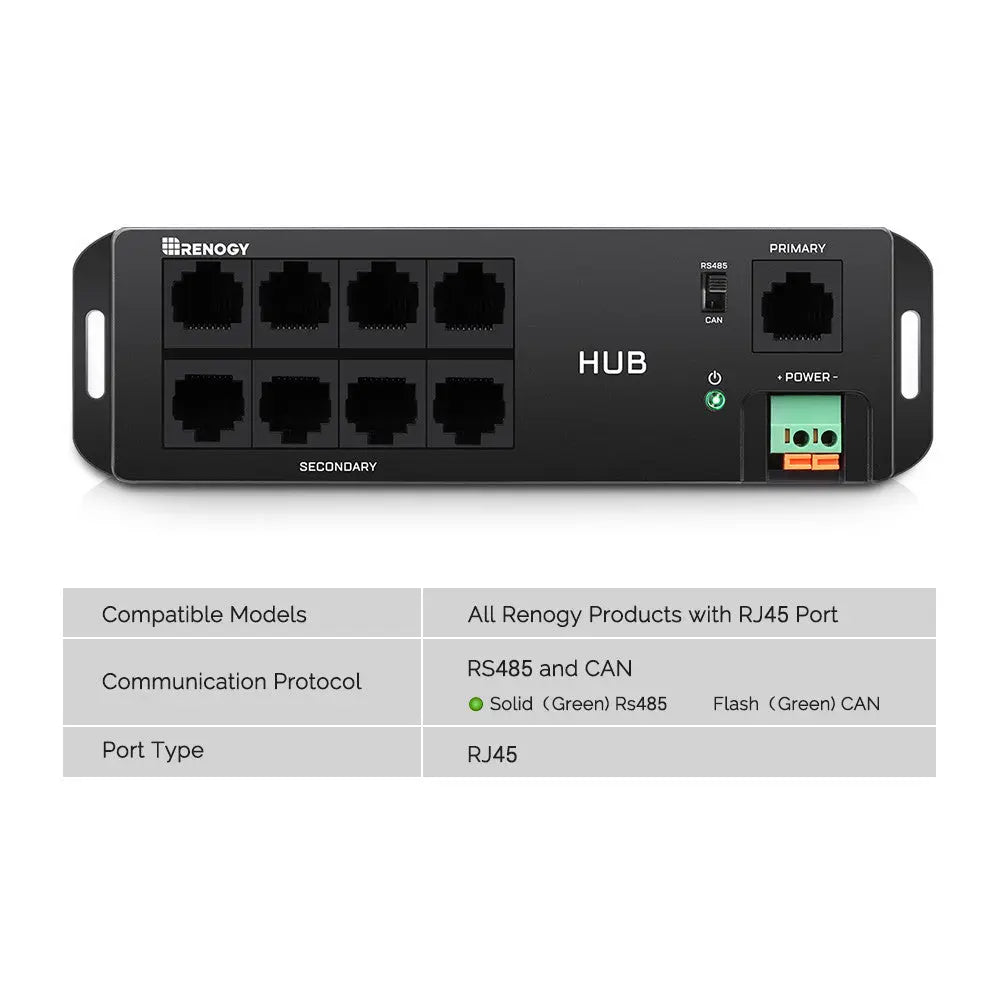

- Supports both RS485 and CAN communication protocol.

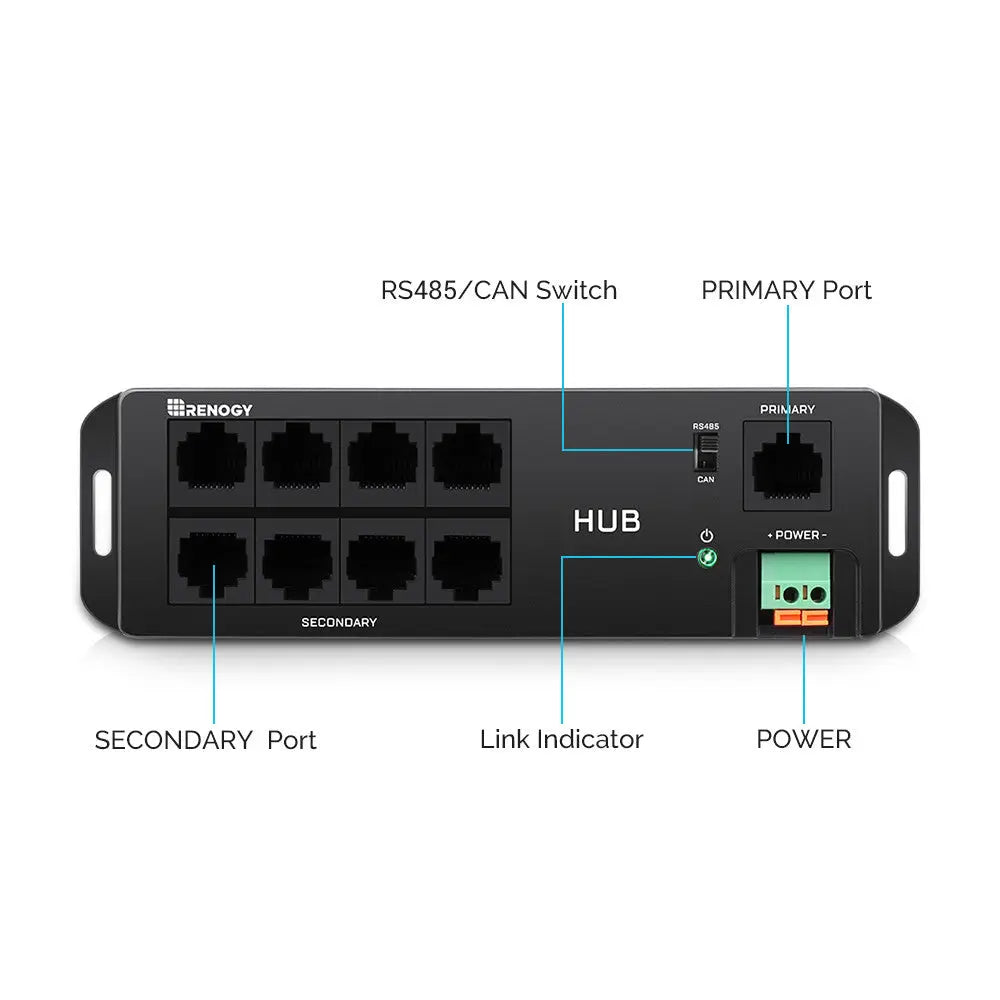

- Green LED lights indicate which communication protocol is currently on.
Package Includes
|
Renogy Bluetooth Hub
1 x
|
Power Cable
1 x
|
| Specifications | |
|---|---|
| Input Voltage: 9V - 60V | Port Type: RJ45 |
| Standby Power Consumption: 0.324W | Cable Length: 5.00m (16.4ft) |

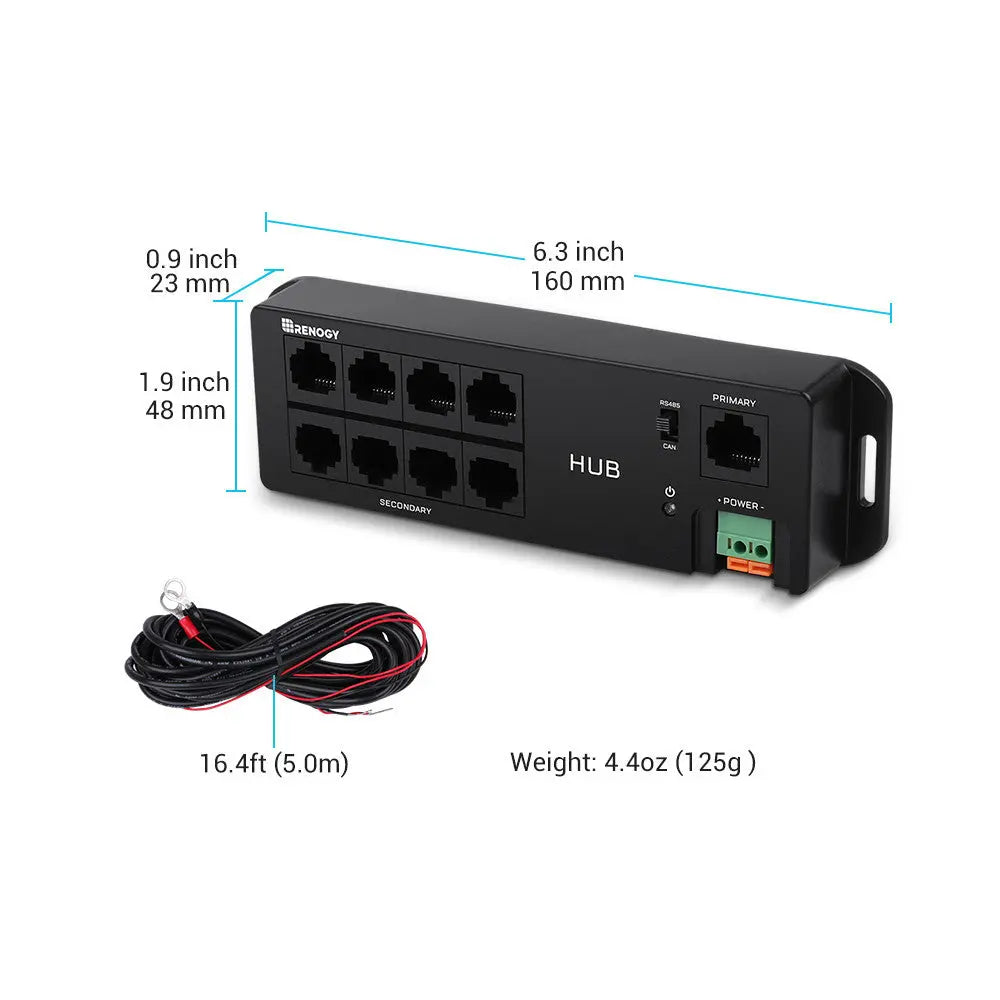

| Operating Power Consumption: <0.35W | Dimension: 6.29 X 1.89 X 0.91in (160 x 48 X 23mm) |
| Communication Range: ≤82ft | Installation Dimension: 151.4 φ3.5mm (5.96 φ 0.14in) |
| Serial Baud Rate: RS485-9600 bps CAN-500 kbps | Operation Temperature: -20°C~85°C;(-4°F to 185°F) |
| Communication Protocol: RS485 CAN | Weight:125g (4.41oz) |
Warranty Information
| Accessories | 1-year material and workmanship warranty |
 |
 |
| Brand | Renogy |
| Category | Solar & Power |
| SKU | RCM-HUB-US |
| Weight | 0.04 kg |
