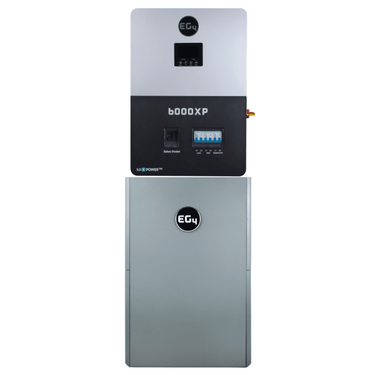

EG4 6K XP & EG4 PowerPro WallMount Battery Bundle (ESS) 14.3kWh Capacity | 10-Year Warranty

What's Included With Your Order?

• 1 x EG4 PowerPro 14.3kWh Wall Mount Lithium Battery
• 1 x Inverter to Battery Cable (Included with the Battery)
• 1 x EG4 6000XP Off-Grid Inverter
• Lifetime Customer Support (Email, Live Chat & Phone)

EG4 PowerPro Lithium Battery WallMount AllWeather Features

Introducing the EG4 PowerPro WallMount All Weather Battery - the ultimate energy storage solution for all your solar power needs. This cutting-edge 48V 280Ah Lithium Iron Phosphate (LiFePO4) battery redefines reliability and performance, ensuring your power supply remains uninterrupted.

Confident Power

• 10kW delivery, with peak power 10.5kW (10 sec.) & 15.4kW (3 sec.)
• Constant discharge current – 200A
• Over 8000 cycles at 80% DOD with an 82.6Mwh lifetime production

Reliable

• Smart and intelligent BMS for reliability, efficiency and safety
• Integrated self-heating features when needed in low temperature

All-Weather Design

• Perfect for outdoor applications, built to withstand various weather conditions
• Integrated self-heating feature ensures optimal battery performance in low temperatures.
• Weather rated quick connectors (Amphenol)

EG4 PowerPro Lithium Battery Safety

• Dual onboard fire arrestors offer fail-safe protection
• Innovative total emergency stop function for instant shutdown by RSD / ESS disconnect / inverter RSD
• 10-year warranty offered by EG4 Electronics.

Seamless Integration

• Can pair with any inverter in the market
  - Designed to pair seamlessly with EG4, Victron, Growatt, Megarevo, Luxpower, Deye, and Sol-Ark inverters
• Onboard LCD touch screen for easy BMS monitoring and communication.
• Quick connect battery cables for fast, safe, and reliable battery connections.

Comprehensive Certifications(Excludes this SKU, Please purchase 1511075 for Certifications)

• UL9540A Certified
• UL9540 pending
• Outdoor Rating IP65

PowerPro ESS

• Optional conduit box addon makes installation with an EG4 18kPV simple
• Turn any PowerPro into a fully capable Energy Storage System when paired with an EG4 18kPV
• No thermal monitoring, or ventilation needed
• No maintenance

Technical Specifications

• Model name: PowerPro WallMount AllWeather Battery
• Battery Type: LiFePO4 (Lithium Iron Phosphate, Grade A)
• Voltage: 48V (Nominal: 51.2V, Float: 54V)
• Continuous Charge/Discharge Current: 200A (Max)
• Capacity: 14.3kWh
• BMS: 200A
• Weight: 308.6 lbs. / 140Kg
• 34.6 in.×22.3 in.×9.1 in

EG4 6000XP Off-Grid Inverter Features

The EG4 6000XP Inverter is a 48V split-phase, off-grid inverter/charger capable of utilizing 8kW of PV and efficiently outputting 6kW of power while also charging your battery bank. Parallel up to 16 units for 96kWs worth of output power and control multiple stations and units using the new EG4 monitoring software.

• Applicable for purely off-grid inverter/backup power situations.
• Integrated with 2 MPPT solar charge controllers with maximum PV input of 480V with an optimal range of 120VDC-385VDC.
• Rated for 6kW output, with a power factor of 1.
• Able to run without battery in off-grid mode.
• Able to utilize generators with dedicated generator terminals.
• Supports paralleling for up to 16 inverters.
• Supports CAN/RS485 for Lithium battery communications.
• Features remote monitoring and firmware updates via mobile phone app or monitoring system website.
• Transformerless Split-Phase Design
• Remote Adjustment via EG4 Software
• 5-Year Warranty

All-In-One Solar Inverter

EG4 6000XP Inverter is capable of running entirely off the grid, or with grid input for supplemental charging and output power.

480VDC Max

The extra high voltage enables lower cable sizing for the 2 MPPTs and a maximum recommended PV input of 8,000W eliminating the need for a combiner box.

Mountable Wi-Fi Device

Enables wireless connection between our new monitoring platform and the 6000XP through the app or online website.

Closed-Loop Communications

Able to communicate with EG4 48V batteries and other battery brands. *A firmware update is required for closed-loop communications with LifePower4 batteries.

High Frequency, Split Phase Output

Allows for 120/240V service application with only a single unit.
