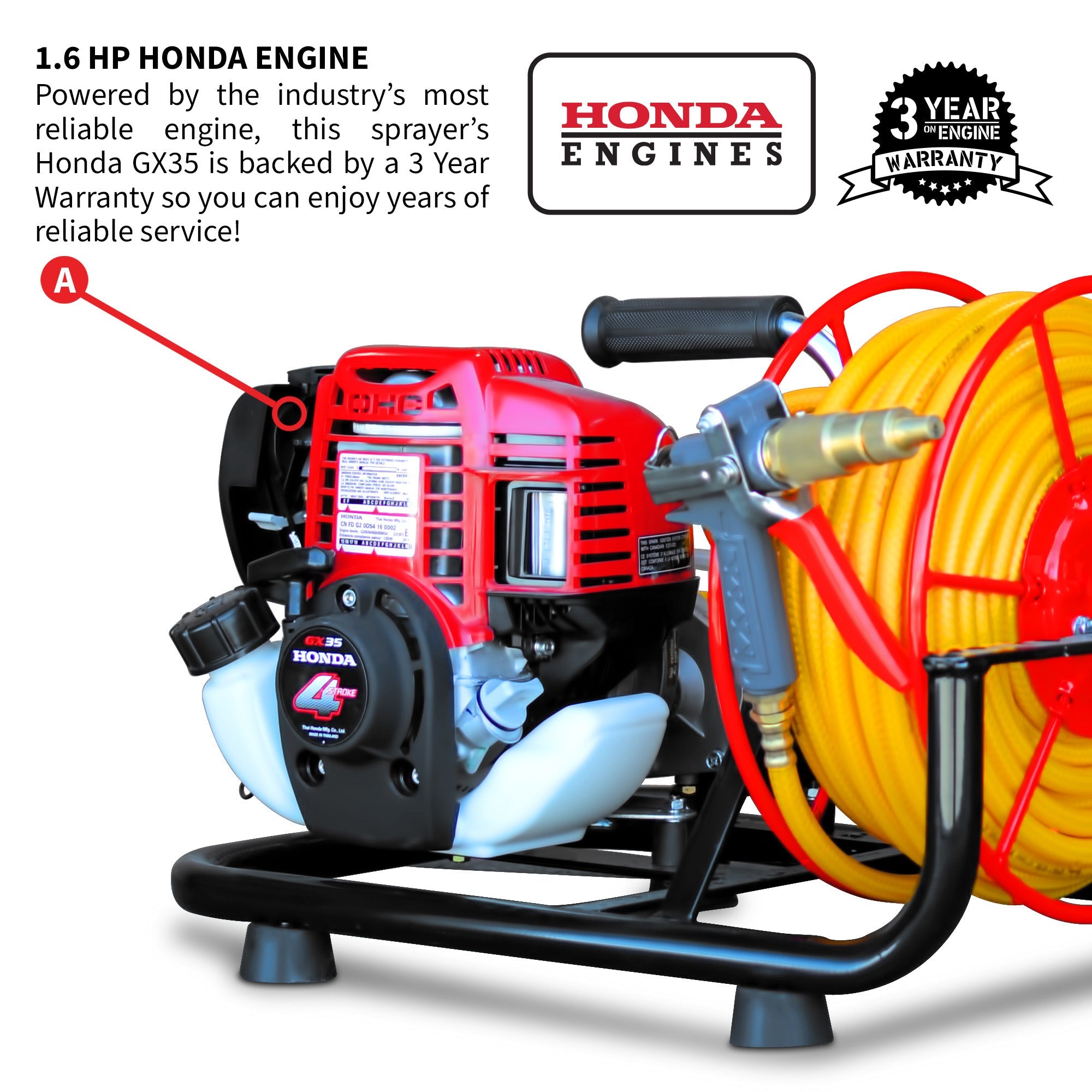

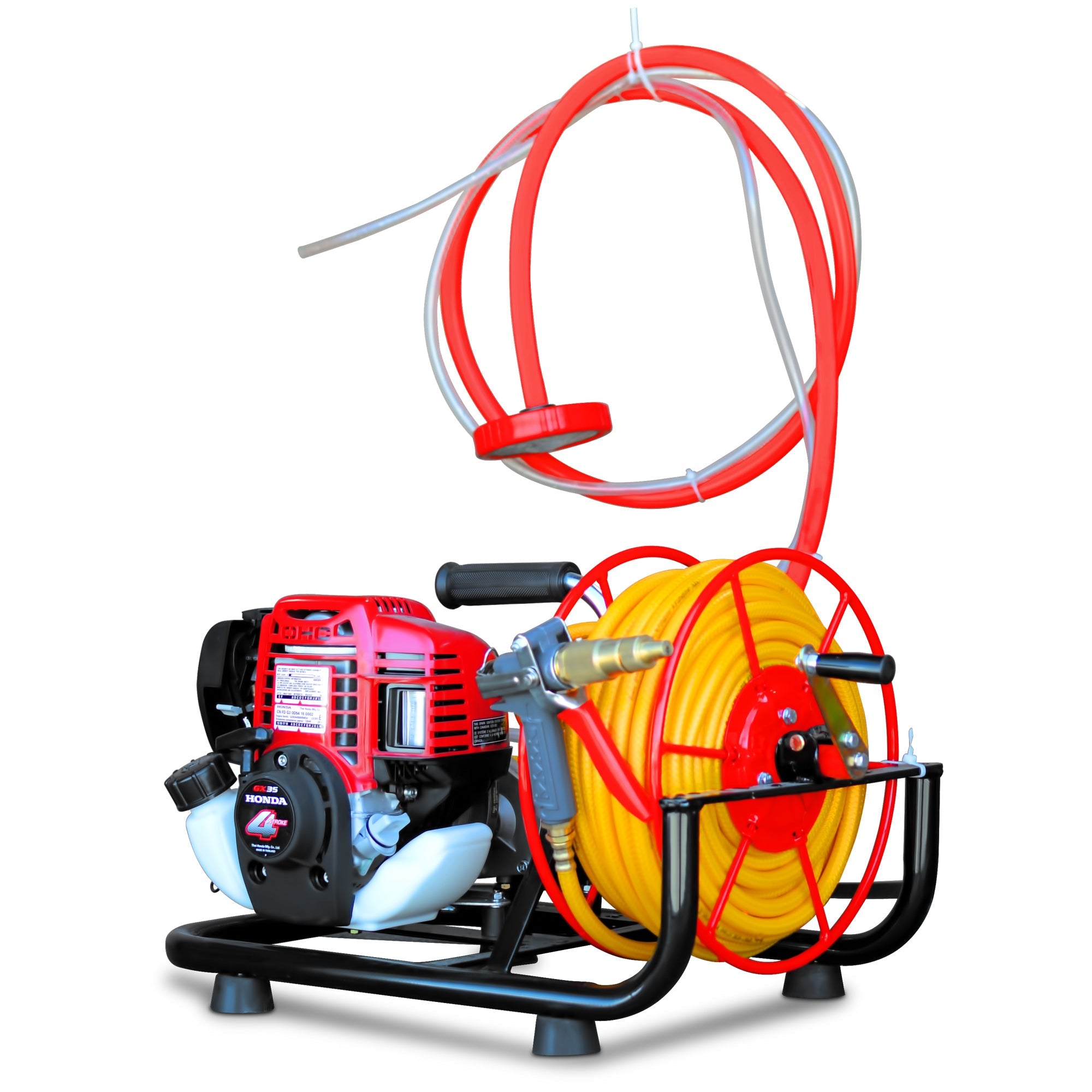

HONDA ENGINE

Powered by the incredible 1.6HP Honda GX35 engine with a 3 year guaranty!

COVER MORE LAND

Cover 1 acre of land in less than 15 minutes and reach more surface area so you can finish projects faster!

SPRAY 10X FASTER

Avoid stopping/starting and tedious pumping with longer spray sessions, covering more ground faster!

ADJUSTABLE PRESSURE

With a powerful engine, maintain constant, adjustable pressure from 50 - 500 PSI for even spraying!

30FT RANGE OF SPRAY

Adaptable to a wide range of attachments and able to reach up to 30ft of spraying power!

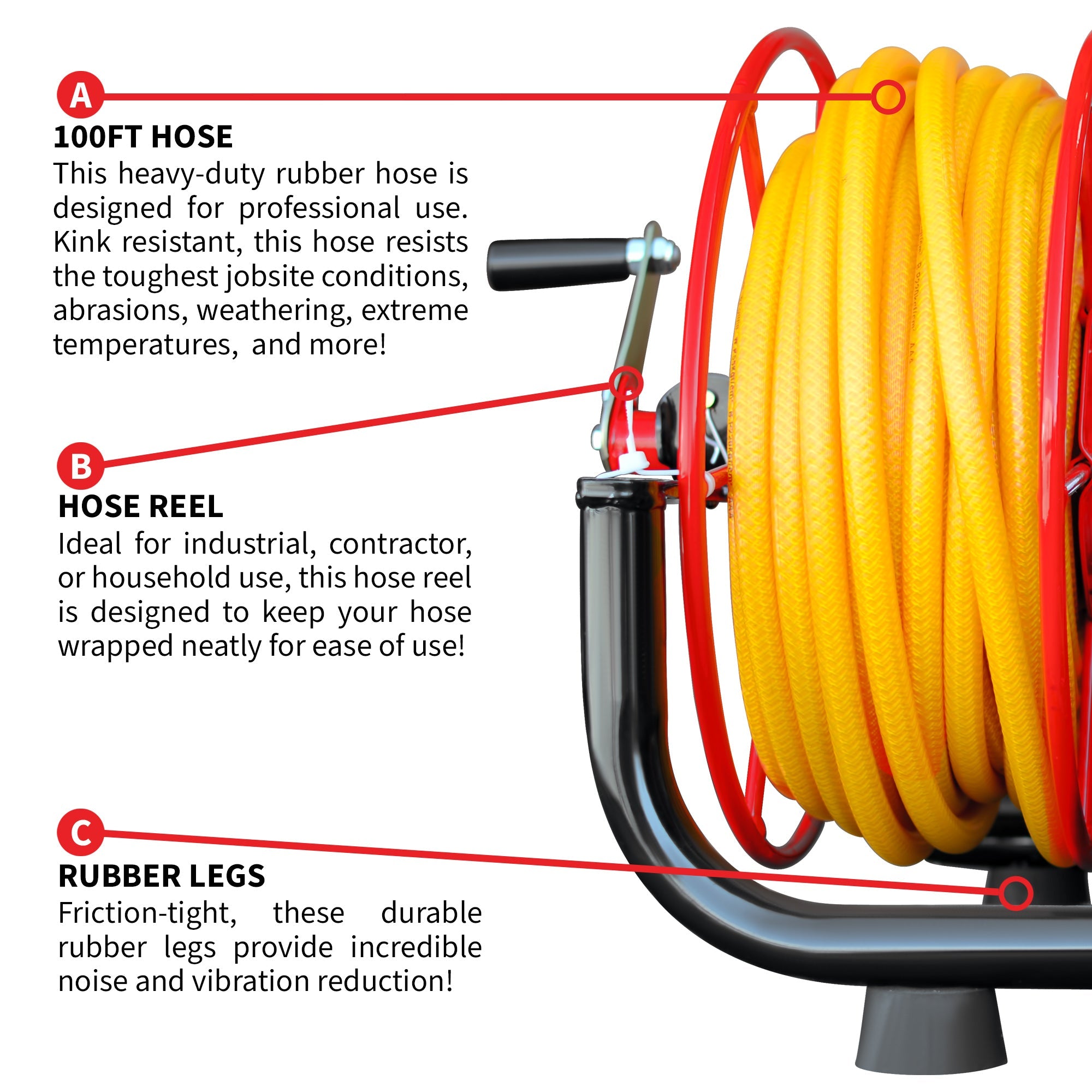

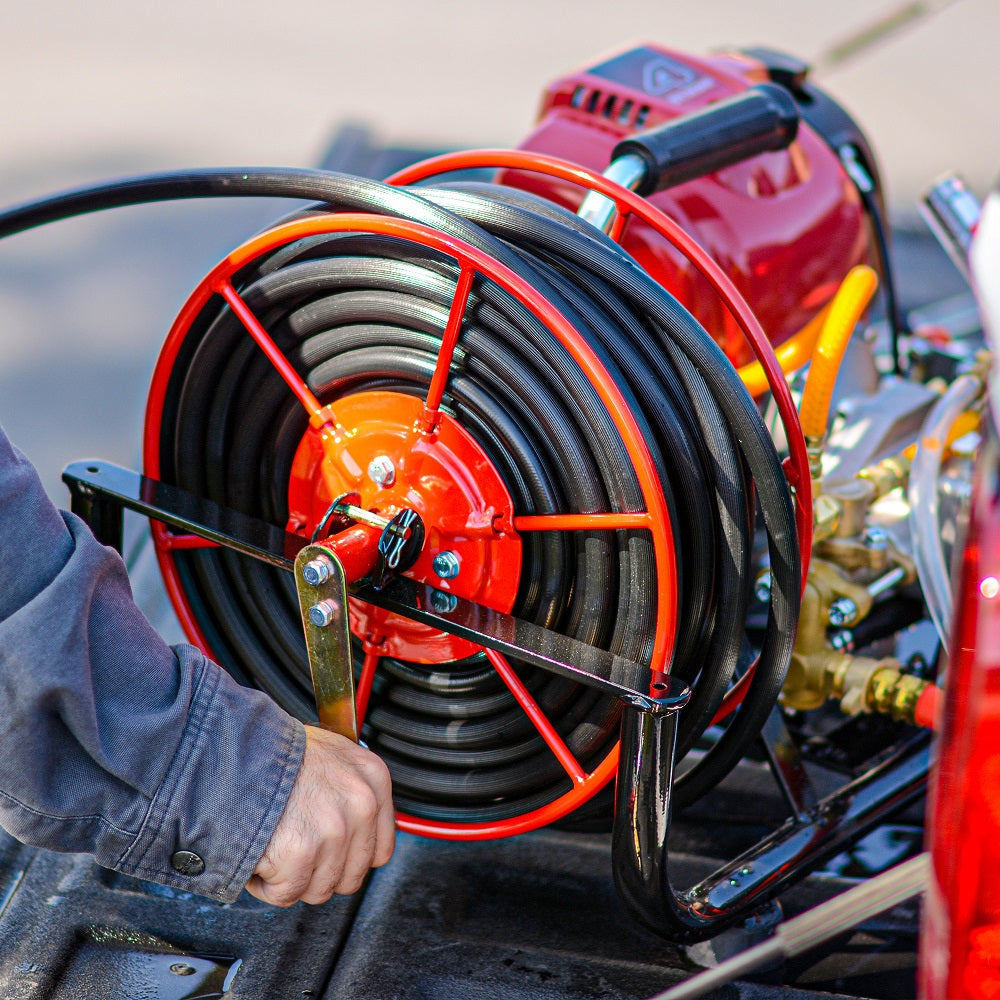

INCLUDES 100FT HOSE

Reach further distances around homes, barns, rural areas, and more with the included 100 ft hose!

Features

• Ideal for spraying pesticide and chemicals out of a 50 gal. drum
• Built with a Reliable Honda Engine with 3 year warranty
• Steady Portable Pressure for a variety of application

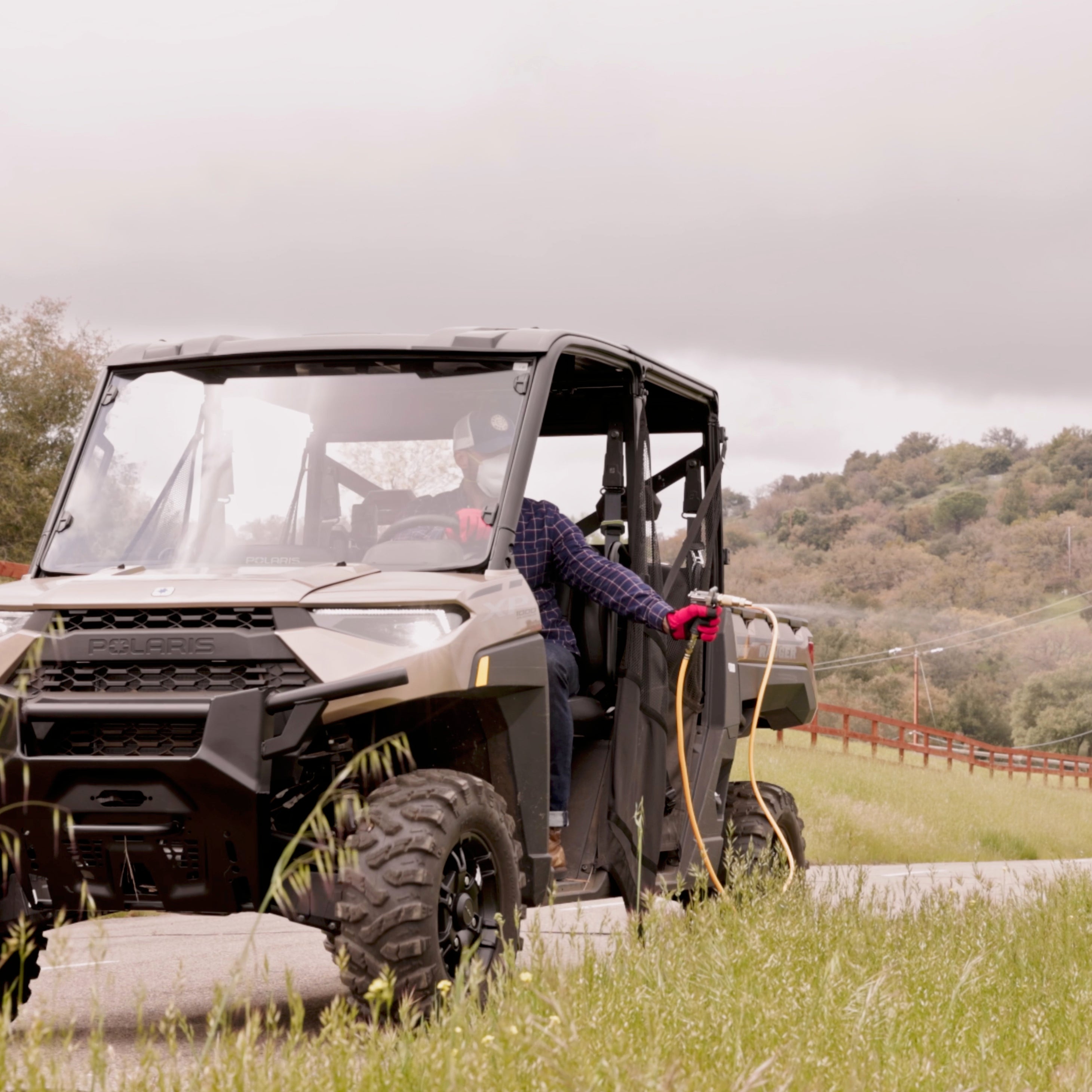

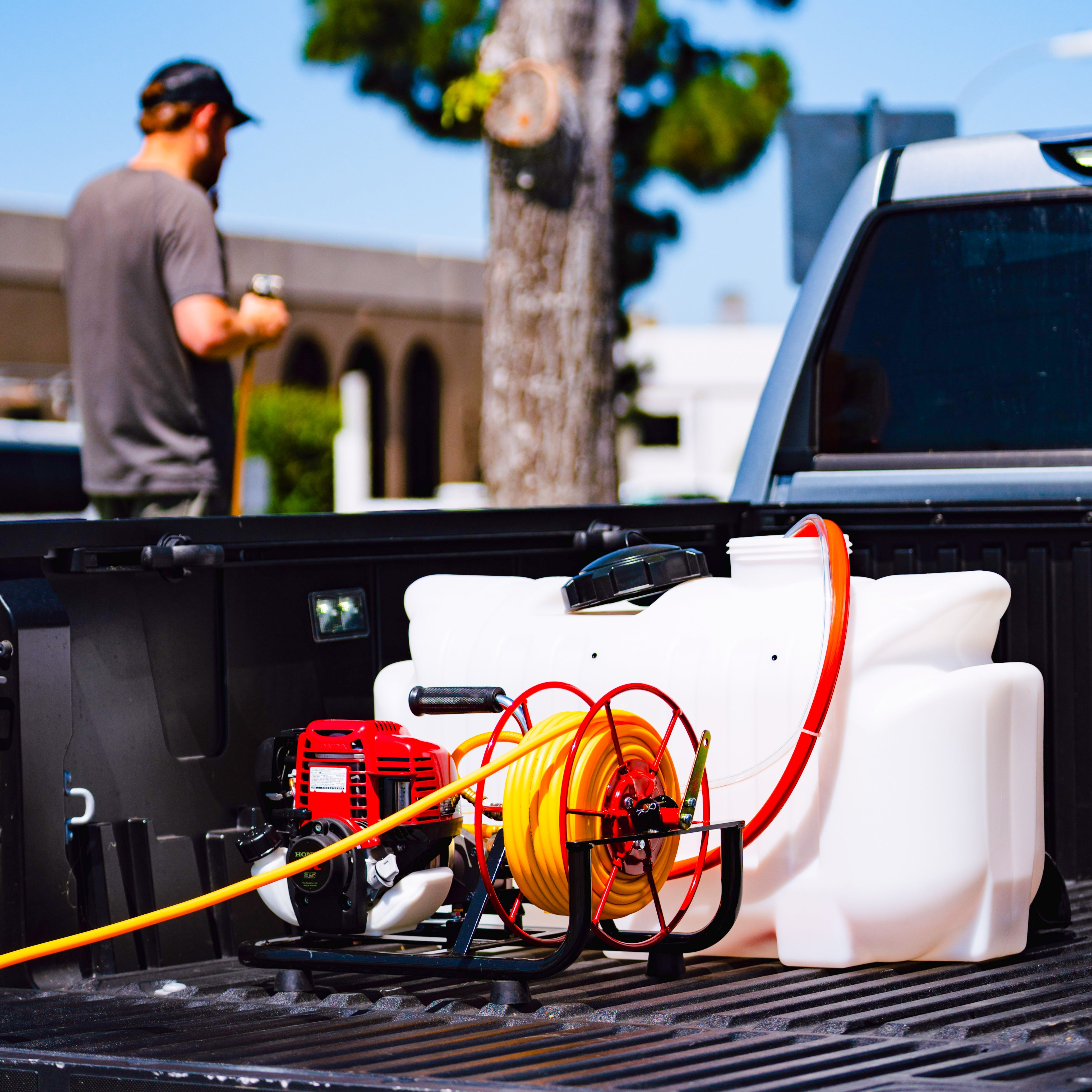

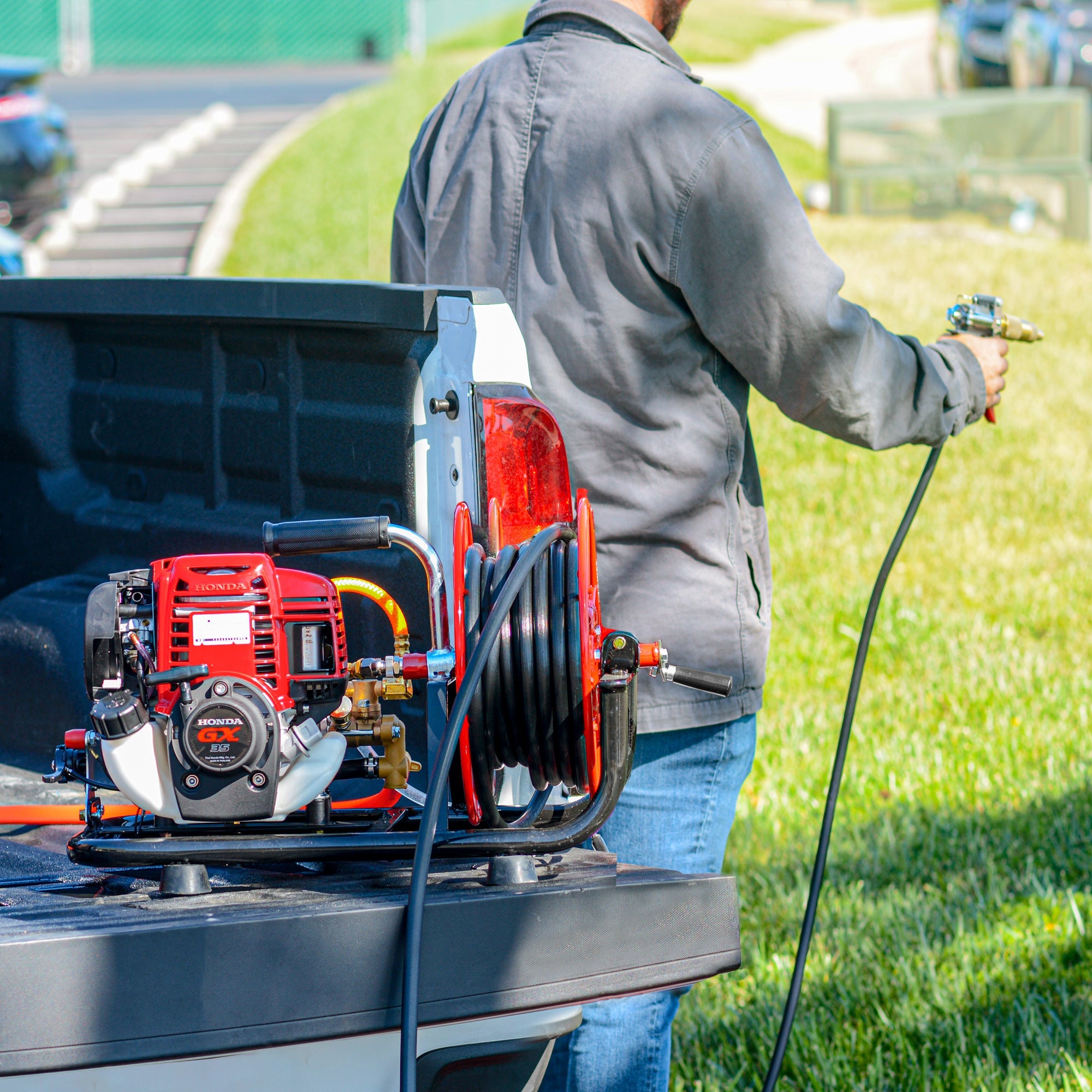

• Portable and can be mounted to trucks, ATVs, tractors, and more
• Great for pesticide treatments against mosquitoes helping to reduce the spread of ZIKA
• Effective for pest control against ticks carrying LYME disease

Specifications

• Suction Capacity：2.8GPM

• Working Pressure：500PSI
• Flow Rate: 2 GPM

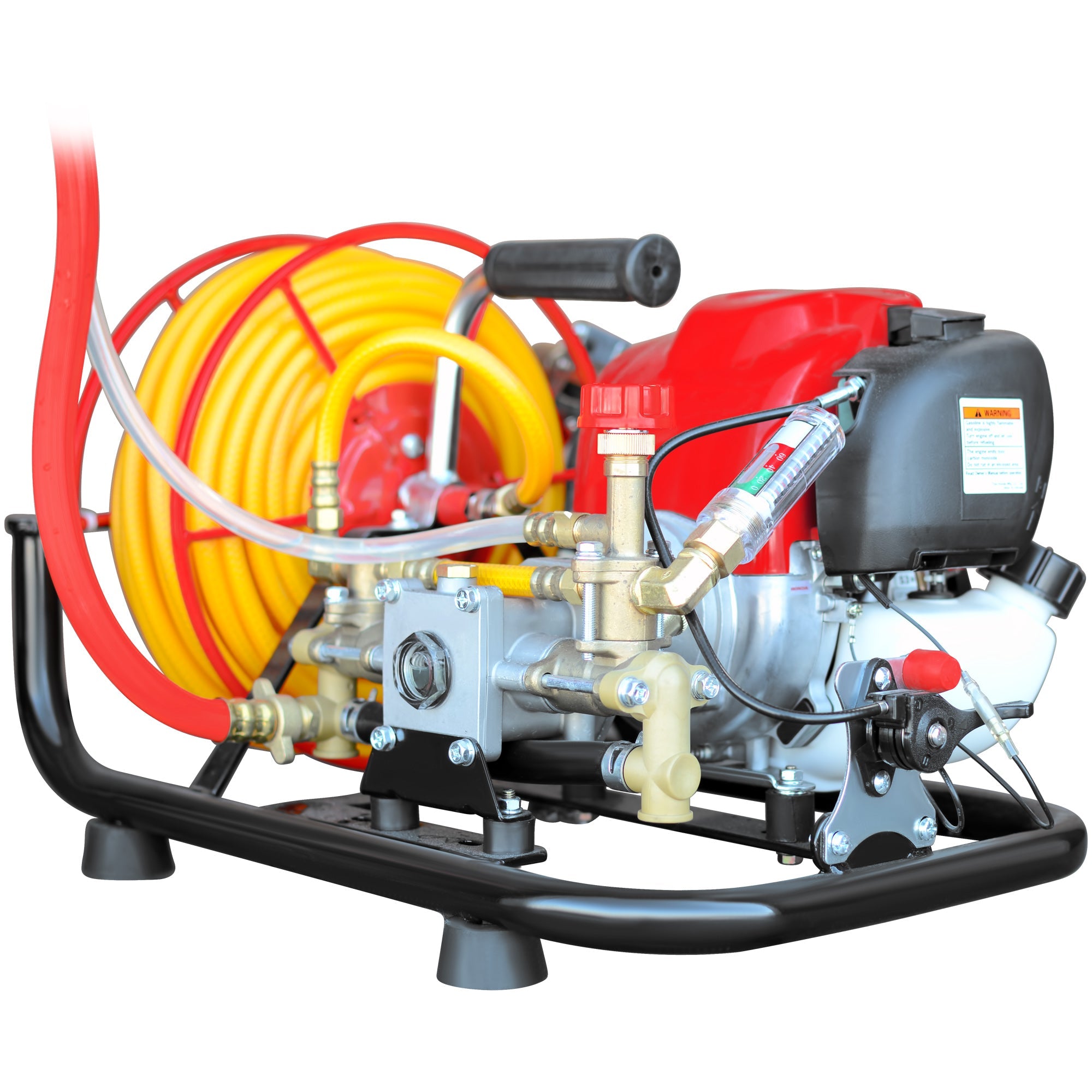

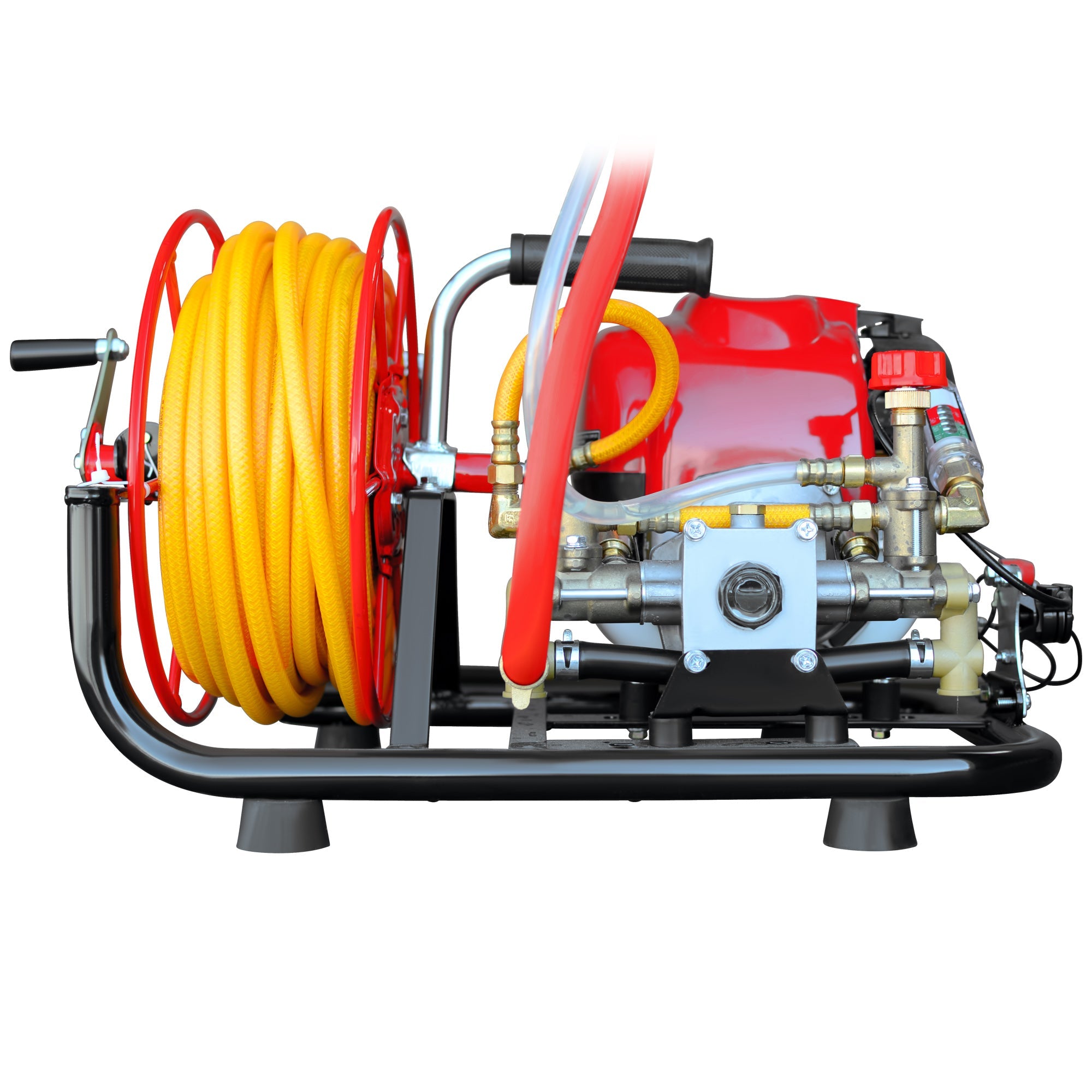

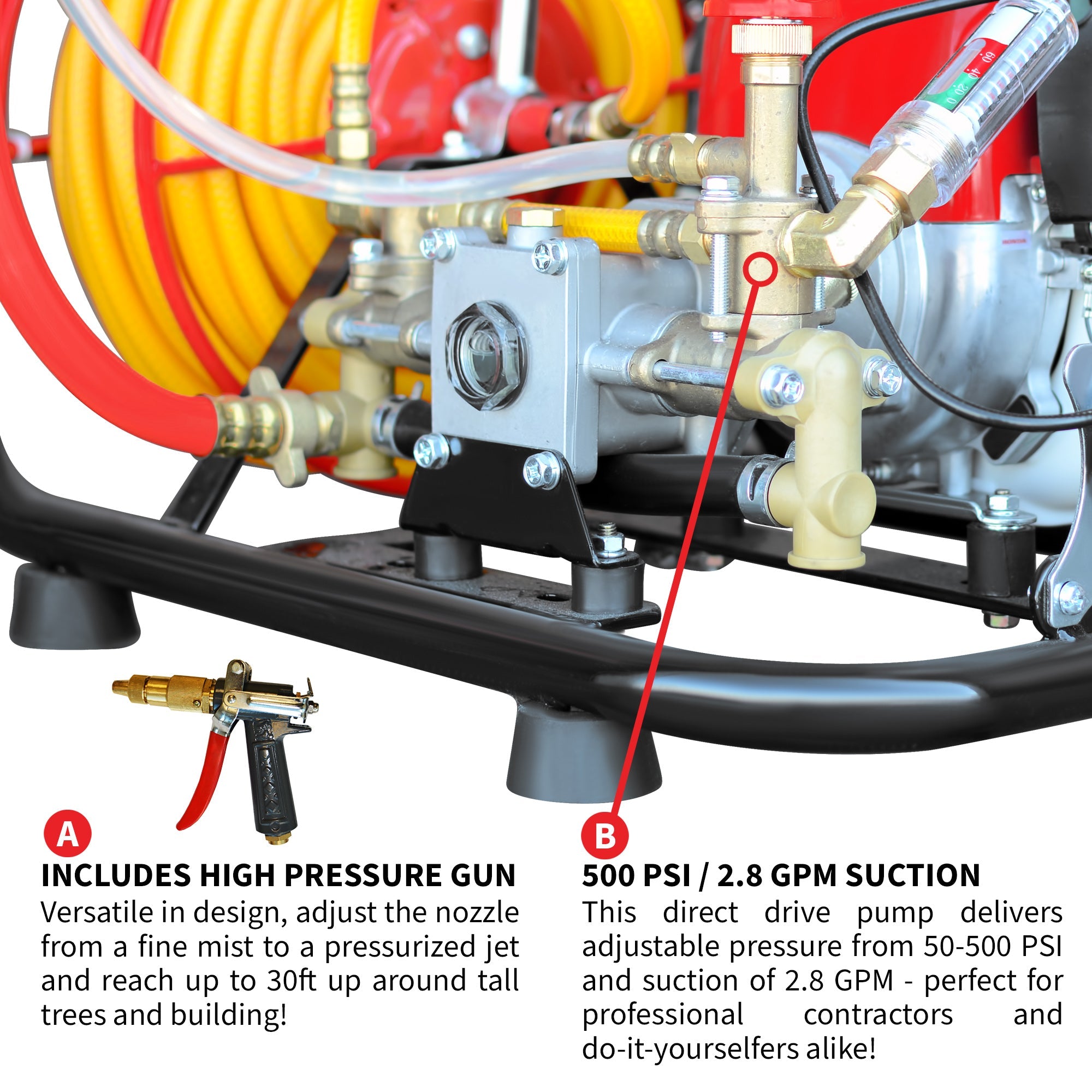

• Pump: Twin Pumping Brass Pump
• Spray Hose：100ft (30.4m)
• Suction Hose: 8ft (2.4m)
• Foundation Gun Reach: 30ft
• Engine: Honda GX35 4 Stroke
• Engine Horsepower: 1.6HP
• Engine Displacement：35CC
• Fuel Type：87 octane or better Gasoline
• Oil Type : SAE10w-30
• Oil Capacity: 3.3 oz
• Fuel Tank Capacity：1 quart
• Starting Systems：Recoil Start
• Noise Level: 82DB @ 22ft (7m)
• Agitator Diameter: 5 inches (12.7cm)
• Carburetor: Diaphragm
• Weight kgs：48lbs (21.7 kg)
• L x W x H：27" x 12" x 13’’ ( 68.5cm x 30.4cm x 33cm)

• Tank Compatibility: Any tank with an opening larger than 5inches. Can be purchased at local hardware store like Tractor Supply, Northern Tool, Menards, and Grainger.

Package Includes

Applications

Target Pests

Ants, Aphids, Bagworms, Boxelder Bugs, Caterpillars, Centipedes, Clover Mites, Cockroaches, Crickets, Fleas, Flies, Ground Beetles, Japanese Beetles, Mole Crickets, Mosquitos, Scorpions, Sod Webworms, Sowbugs, Spiders, Termites, Ticks, Wasps, and more!

Target Plants American Burnweed, Bindweed, Black Medic, Broadleaf Plantain, Buckhorn Plantain, Buttonweed, Chamberbitter, Chickweed, Clover, Crabgrass, Cudweed, Dallisgrass, Dandelion, Deadnettle, Dog Fennel, Dollarweed, Doveweed, English Daisy, Foxtail, Goosegrass, Green Kyllinga, Ground Ivy, Henbit, Knotweed, Lawn Burweed, Lespedeza, Lesser Celadine, Mallow, Matchweed, Pennywort, Pineappleweed, Poa annua, Poison Ivy, Prickly Lettuce, Purslane, Pusley, Spurge, Thistle, Veronica, Wild Garlic, Wild Geranium, Wild Strawberry, Wild Violet, Woodsorrel, Yellow Nutsedge, and more!

Target Bacteria
Escherichia coli O157:H7 (E. coli), Methicillin Resistant Staphylococcus aureus (MRSA), Salmonella enterica (Salmonella), Staphylococcus aureus (Staph), Streptococcus pyogenes (Strep)

Target Fungi
Mold & Mildew

For Use Around
Commercial & Residential, Athletic Fields, Parks and Recreation Areas, Flower Beds, Lawns, Trees & Shrubs, Fruits & Vegetables, and more!

Sprayer Applications

Mosquitoes, Ticks, Flies, Mites, etc.
TMD14, TMD14-2, eTMD14

Aphids, Ants, Cockroaches, Spiders, etc.
TPS25, eTPS18, TMP1G, TBS500

Orchards and Nurseries
TMD14, TMD14-2, eTMD14, TBS500

Greenhouses, Vineyards, Row Gardens, etc.
TPS25, eTPS18

Indoor Spraying
eTPS18, TMP1G
