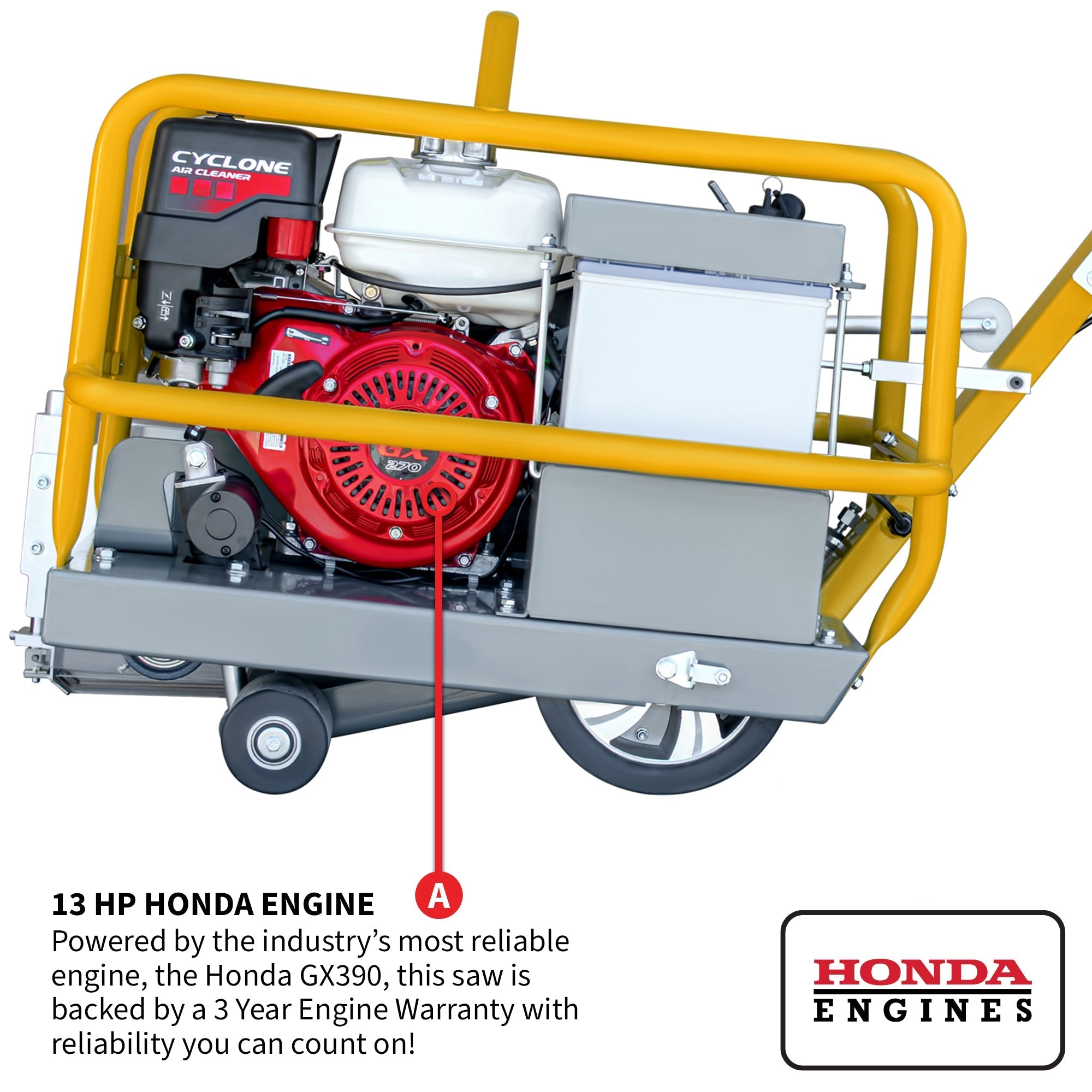

13 HP HONDA GX390 ENGINE

Powered by the industry’s most reliable engine, the Honda GX390, this saw starts on the first pull and will keep your jobsite running smoothly day after day!

CUT FASTER

With a maximum cutting depth of 1.5 in. and blades up to 10 in.

PRECISE RELIABILITY

Cuts concrete slabs in one clean sweep to avoid damage to your fresh concrete pour.

Description

CUT CONCRETE FASTER

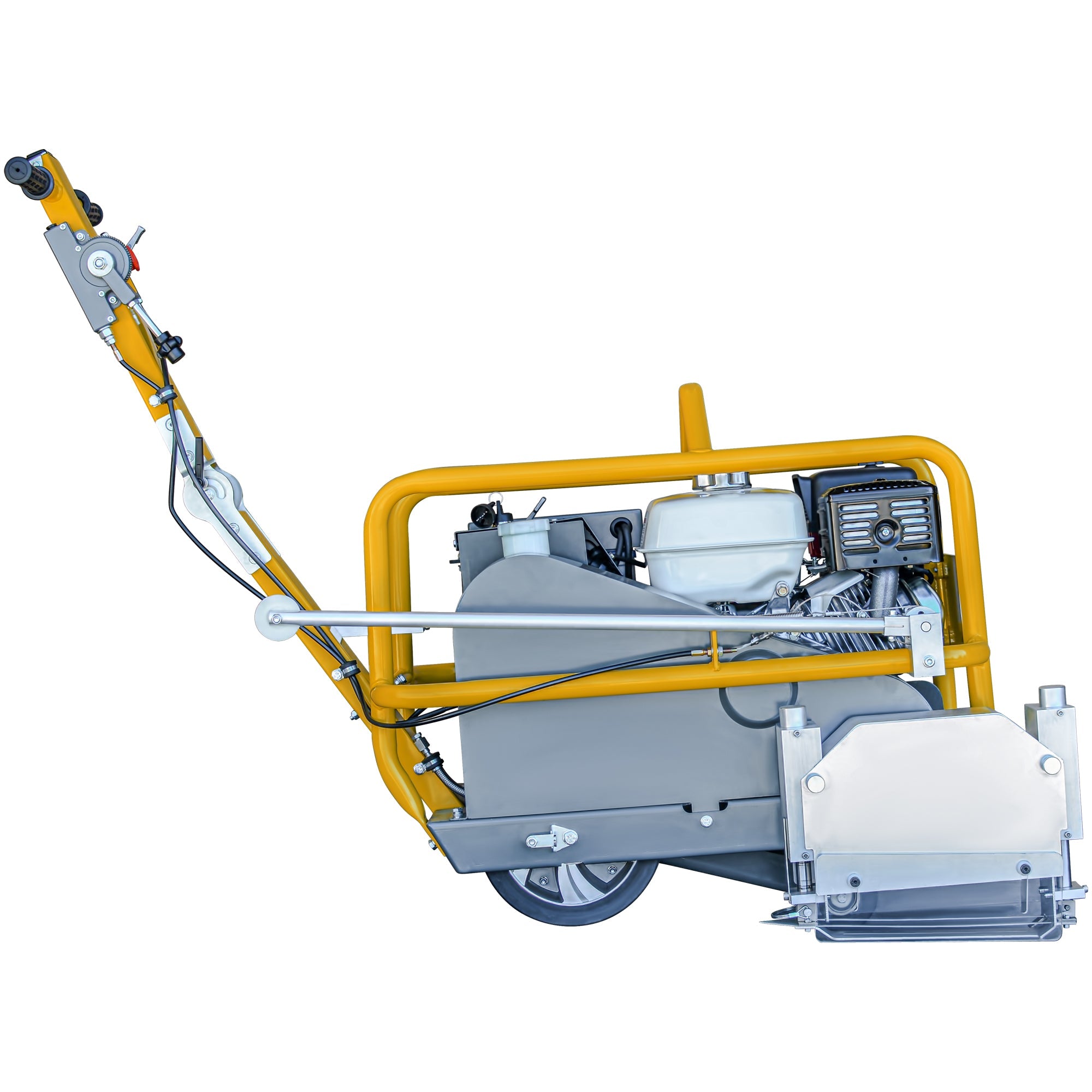

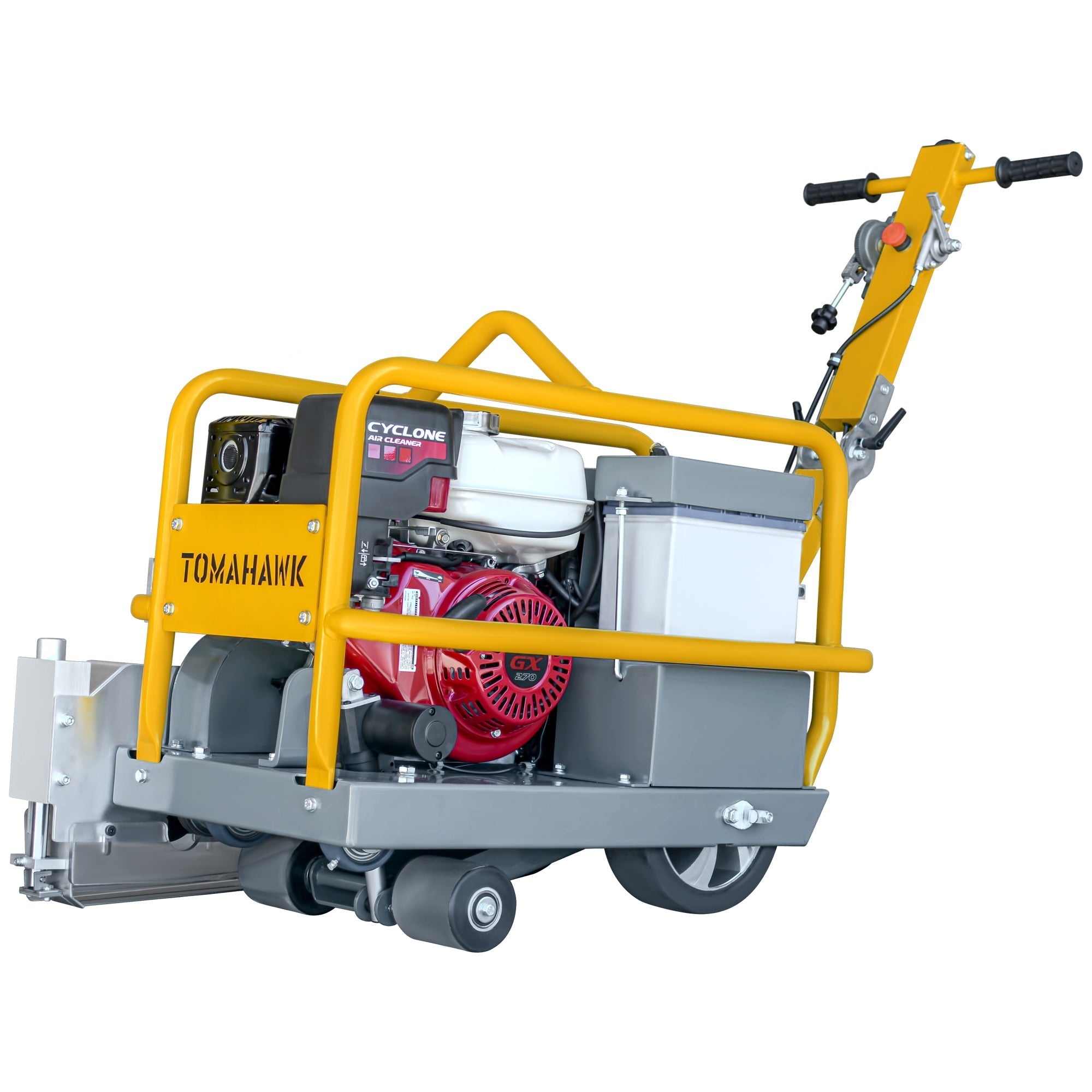

Cut perfect, straight concrete slab joints with the new Tomahawk Power 10” Early Entry Green Concrete Saw. A bigger size blade for your biggest concrete projects. Powered by the reliable Honda GX390 13HP engine, this vigorous saw can cut up to a depth of 1.5 inches.

Save money and time by preventing stress fractures and random cracking after your concrete pour. The TFS10H’s Easy Electric Key Start allows for hassle-free operation from start to finish.

From large-scale commercial projects to paving applications, operators can tackle any green concrete slab safely and efficiently.

The 10” Early Entry Saw provides concrete contractors with stress-free results by eliminating any opportunities for cracks. Backed by a 3-year engine and 1-year product warranty for satisfaction guaranteed.

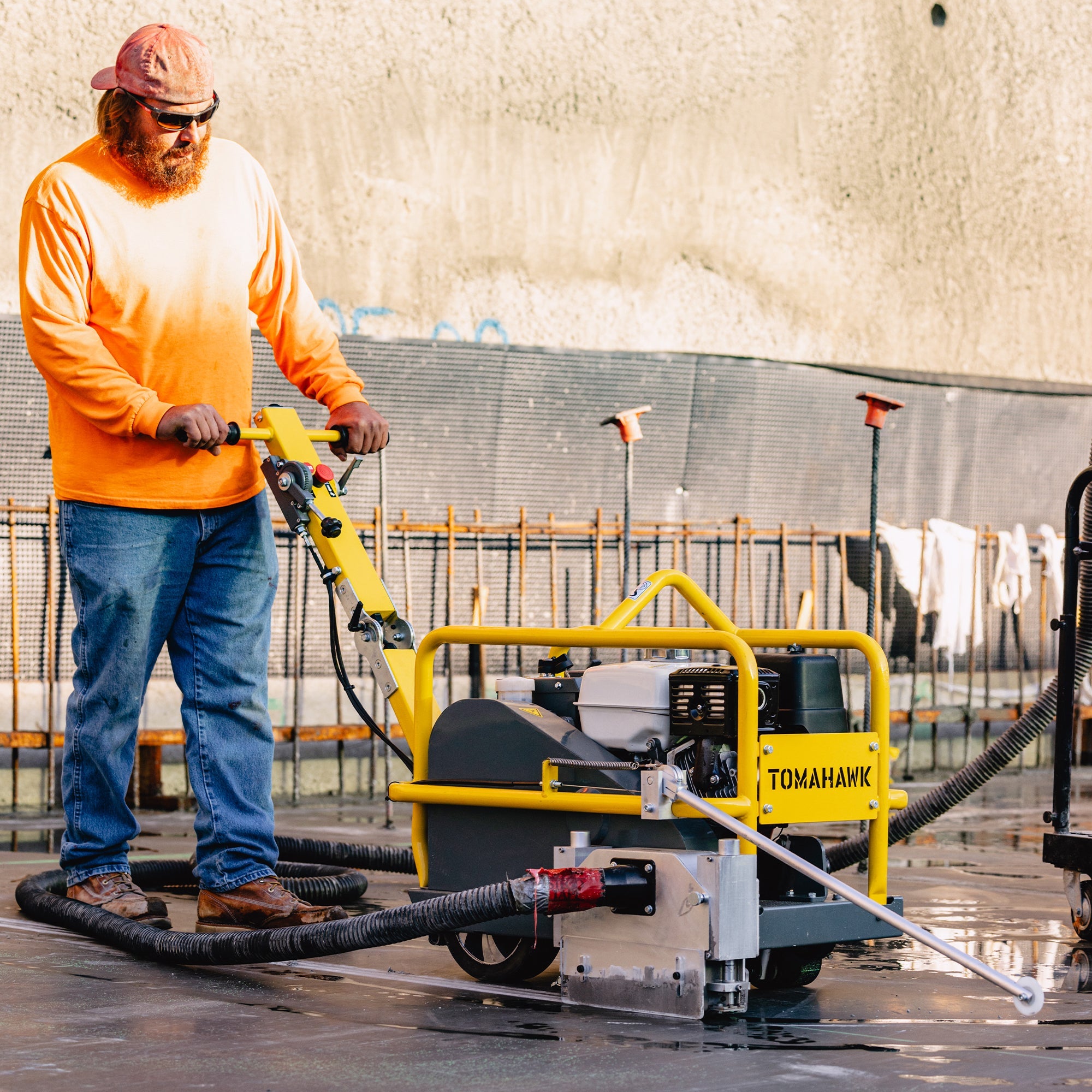

The Tomahawk Power 10” Green Concrete Early Entry Saw cuts concrete slabs in one clean sweep. Avoid damage to your fresh concrete pour and enjoy the durability and performance of the new TFS10H.

Features

• Excellent for making joints in concrete slabs for random crack control
• Polyurethane wheels for safe operation on fresh concrete
• Used for medium to large concrete pours
• Fits blade sizes up to 10 inches
• Maximum cutting depth of 1.5 inches
• Easy Electric Key Start
• Powered by the Honda GX390 13HP engine

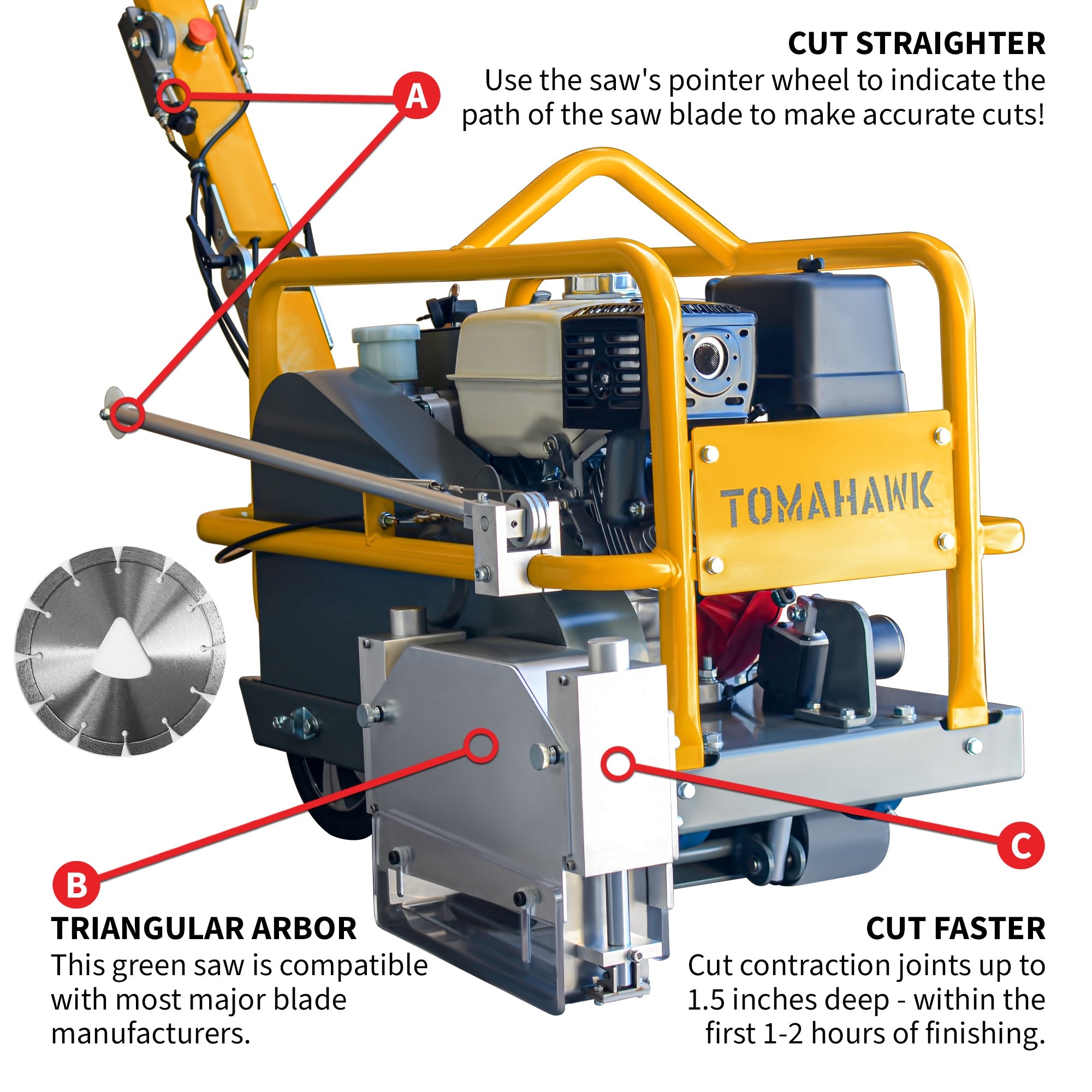

• Arbor Size: Triangular
• Hydro Static Transmission
• Comfortable grip handles for easy operation
• EPA and CARB compliant
• 1-year product warranty
• 3-year engine warranty

Specifications

• Maximum blade diameter, in (mm): 9-10''
• Maximum depth of cut, in (mm) 7/8''- 1 1/2''
• Average Bladeshaft, rpm: 3000
• Blade flanges, in (mm): Triangular
• Wheels front, in (mm): 4'' (101.6)
• Wheels rear, in (mm): 10'' (254)
• Maximum weight uncrated, lbs: 320' (145kg)

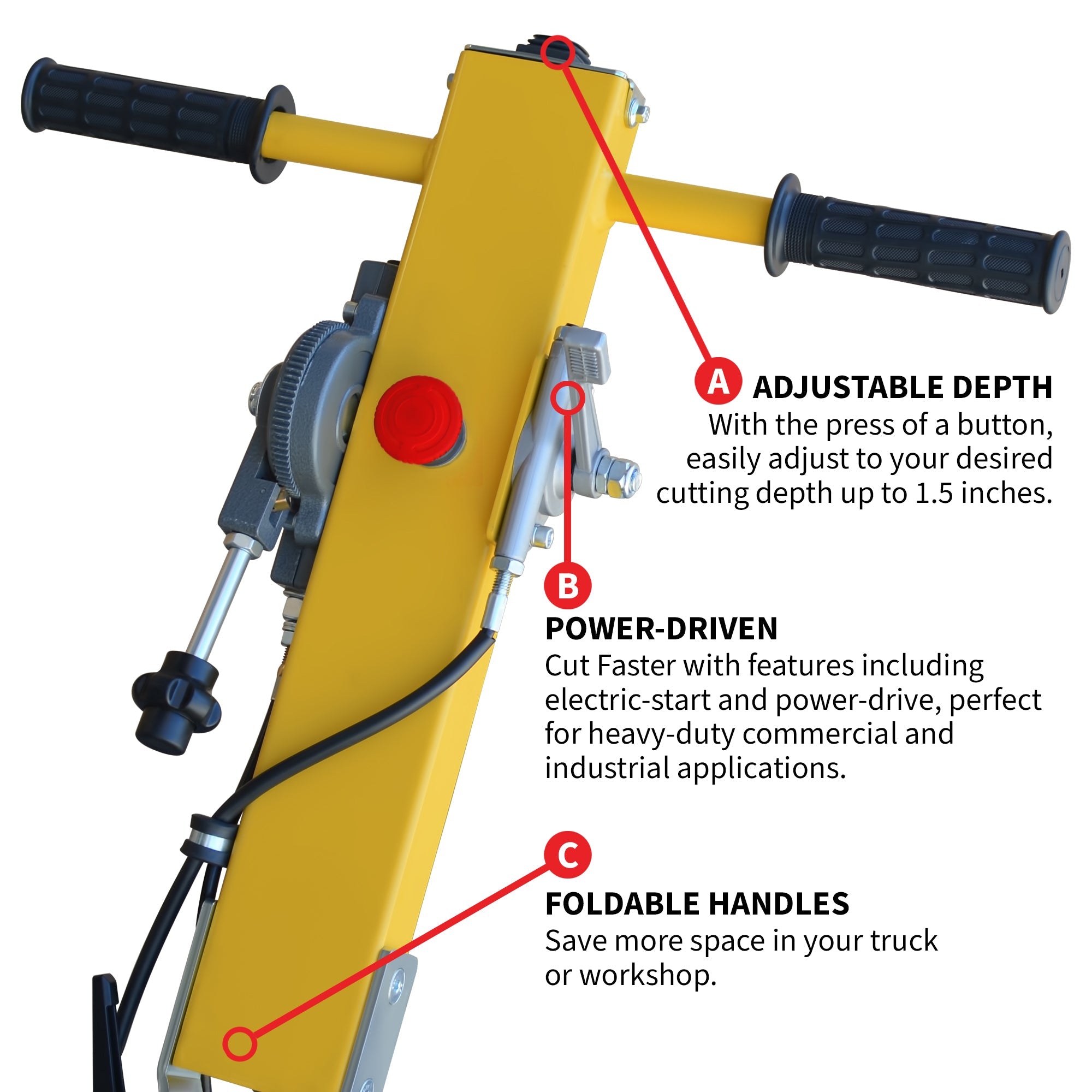

• Blade Depth Adjustment: Electric
• Handlebar Adjustment: Adjustable
• Blade guard type: Enclosed
• Number of belts: 1
• Arbor: Triangular
• Start Type: Electric
• Engine Manufacturer: Honda
• Engine Specifications: GX390
• Horsepower: 13HP

• Fuel Tank Capacity:  6.4 U.S. qts (6.1 liters)
• Oil Capacity:  1.16 US qt (1.1 L)
• Maximum weight crated, lbs: 380 lbs (172.3 kg)
• Maximum weight uncrated, lbs: 320 lbs (145.1kg)
• Dimensions: 45" x 27" x 36" ( 114.3cm x 68.5cm x 91.4cm)

Package Includes

Applications

• Parking Lots

• Side Walks

• Residential and Commercial Applications
• Garages
• Patios
• Driveways
• Decorative Jobsite Enhancements

What Blade Do I Need?

DBR6 for Medium/Hard Aggregate

The DBR6 early entry saw blade strikes a balance between hardness and toughness, making it versatile for cutting through medium to hard aggregate. Its segments ensure clean and precise cuts, providing a polished finish. This blade is designed for durability, making it suitable for a wide range of aggregate hardness levels.

DBP6 for Ultra Hard Aggregate

Designed specifically for ultra-hard aggregate, the DBP6 early entry saw blade boasts extreme hardness to tackle the toughest cutting conditions. It excels in precision cutting, offering accuracy and control in challenging environments. With longevity in mind, the DBP6 is built to withstand the most demanding cutting tasks.
