20A/30A/40A/60A/80A/100A/200A/300A/400A ANL Fuse Set w/ Fuse — 40A

$16.89 USD
Shipping calculated at checkout.
Renogy

20A/30A/40A/60A/80A/100A/200A/300A/400A ANL Fuse Set w/ Fuse — 40A

$16.89 USD
Shipping calculated at checkout.
Payment & Security
PayPal
Venmo

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • ✔ Fast, insured shipping from US warehouses
  • ✔ Authorized dealer for every brand we sell
  • ✔ Backed by full manufacturer warranty
  • ✔ Questions? Email info@garagegeardirect.com

    • Usually ships within 3–5 days and delivers within 10 business days.



    Description

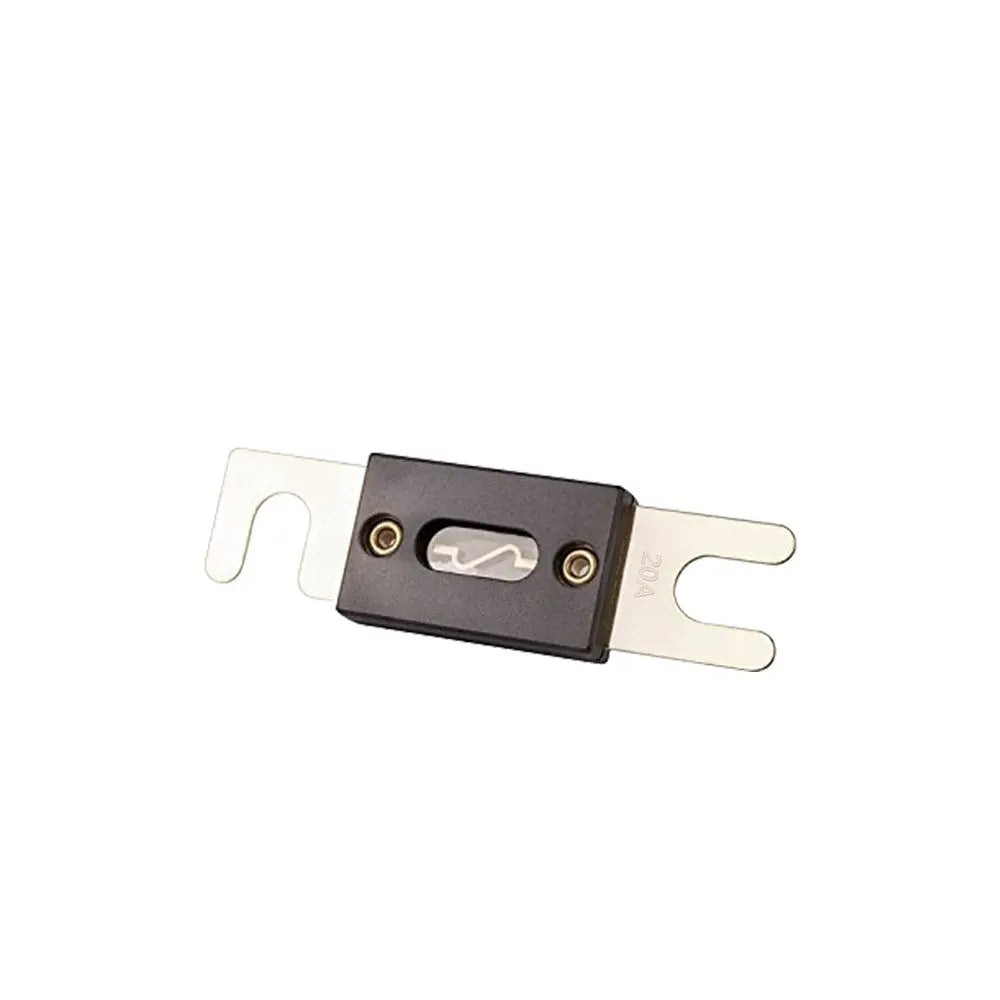

    The Renogy ANL fuse offers complete protection to your system, protects your charge controller, battery, inverter, and connecting wires from over-current, and ensures you get the longevity out of your system that expected. This fuse is composed of high-quality alloy and brass copper materials and comes with a clear protective non-conductive resistant cover which is ideal for custom installation and can be easily added to your solar system.



    NOTE

    • If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us with livechat for troubleshooting assistance.
    • More questions about your off-grid power system? Learn more from Renogy Learning Center



    Key Features

    【Safeguard Your System】

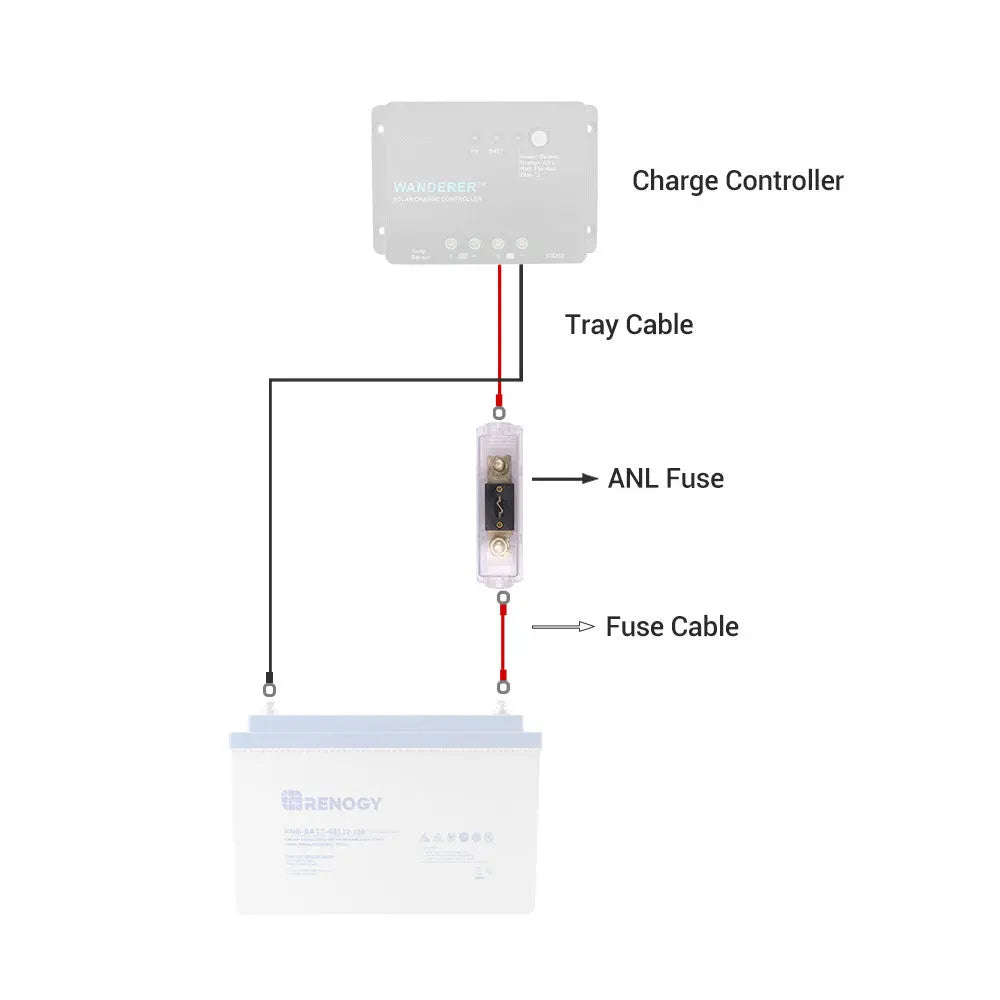

    • The Renogy ANL fuse offers complete protection to your system, protects your charge controller, battery, inverter, and connecting wires from over-current, and ensures you get the longevity out of your system that expected. Ignition protection guarantees the safe use of the fuse in RVs, boats, or any other closed environments.
    【Multiple Specifications are Available】
    • Renogy offers multiple specifications of the ANL fuses to meet the requirement of different size systems. Optional specifications including 20A/30A/40A/60A/80A/100A/200A/300A/400A.The protective cover is compatible with all specifications.
    【High Quality and Easy to Use Design】

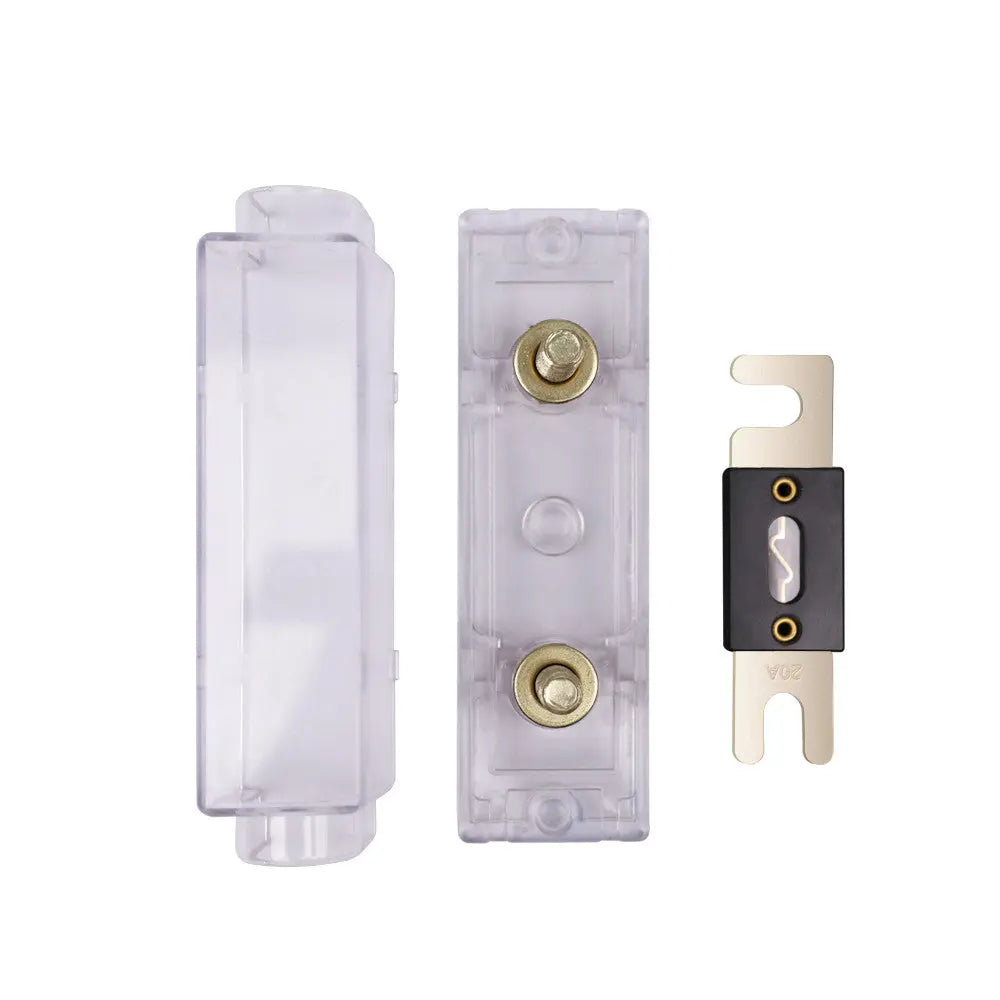

    • The Renogy ANL fuse is composed of high-quality alloy and brass copper materials and come with a clear protective non-conductive resistant cover which is ideal for custom installation and can be easily added to your solar system.
    【System Suitability】
    • The fuse is designed to work with RENOGY ANL Fuse Block.
    【Environment Friendly】

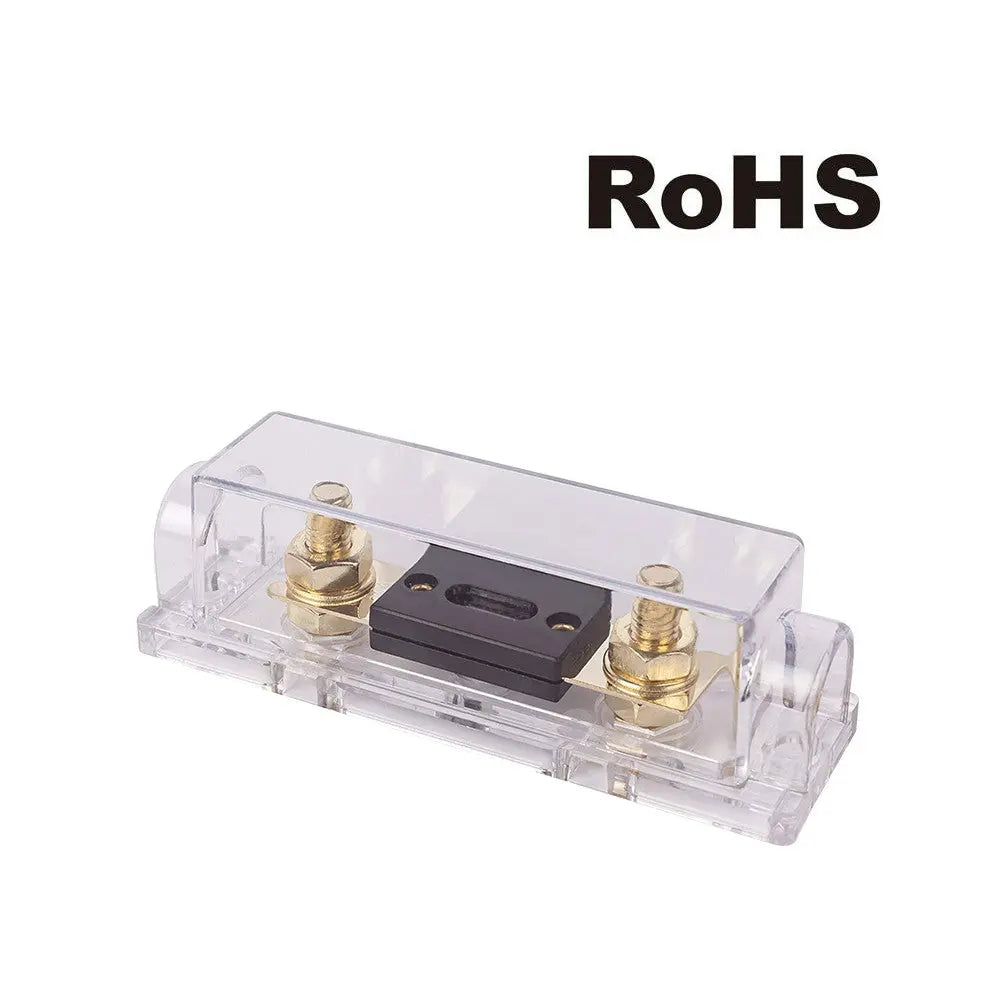

    • The Renogy ANL fuse is RoHS compliant, which confirms that it's free from environmentally hazardous, difficult-to-dispose substances.

    Key Features (RAD40ANL-RR08)

    • Protects your system from damaging over-current.
    • Safe for RVs, boats, and enclosed spaces.
    • Durable alloy and brass copper construction.
    • RoHS compliant and eco-friendly design.
    • UL-tested, UV-resistant fuse cables included.

    Package Includes

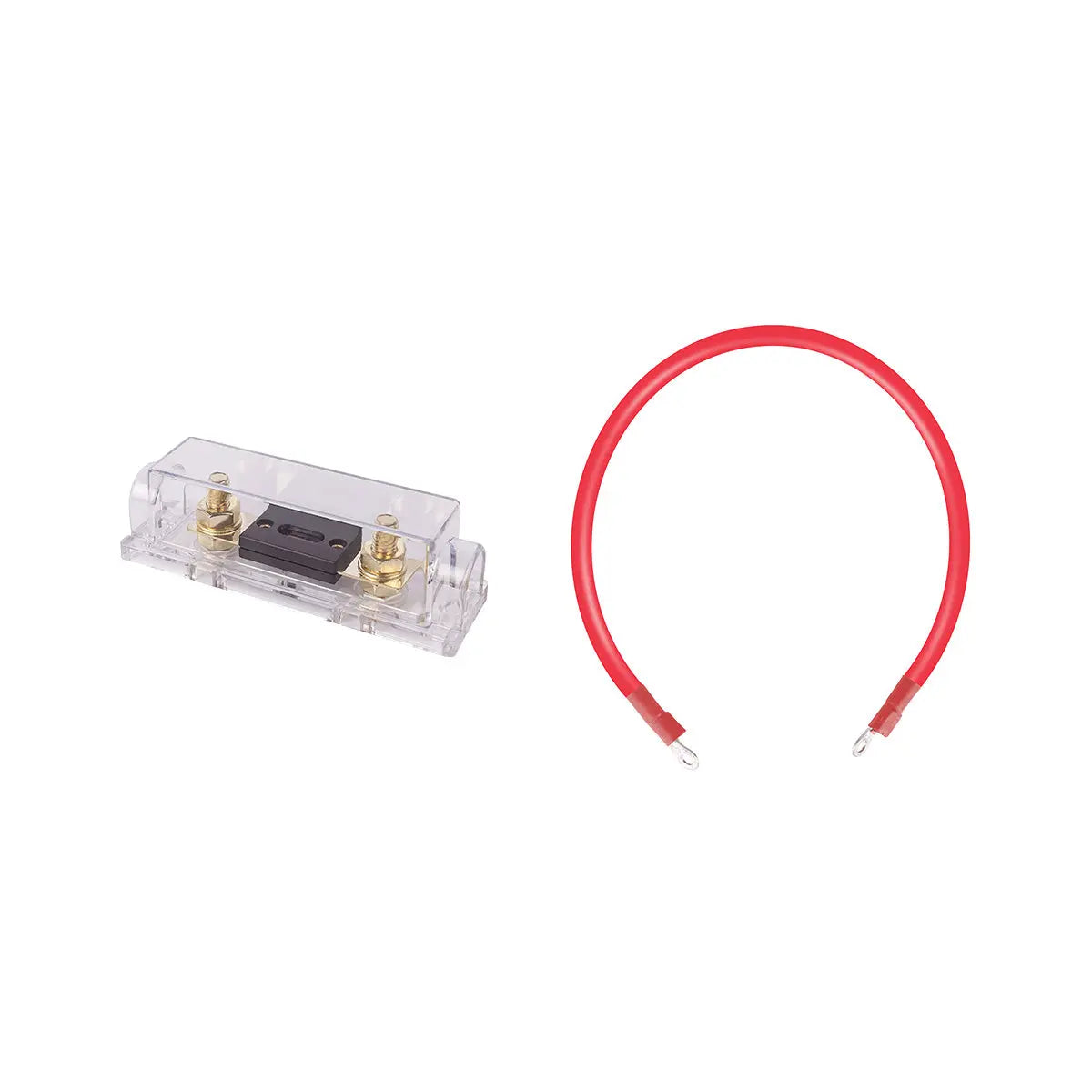

    Renogy 20-400A ANL Fuse Set w/ Fuse

    1 x



    RAD40ANL-RR08
    Cable Size: 8AWG Testing Standard: UL1015
    Rated Voltage: 600VDC Operating Temperature: ＜105℃
    Terminal Type: 5/16 Inch Ring Lug Cable Length: 0.65Ft / 198 mm
    Fuse Type: ANL Fuse Rated Voltage: 32VDC
    Rated Current: 40A Operating Temperature:-40 - 125℃

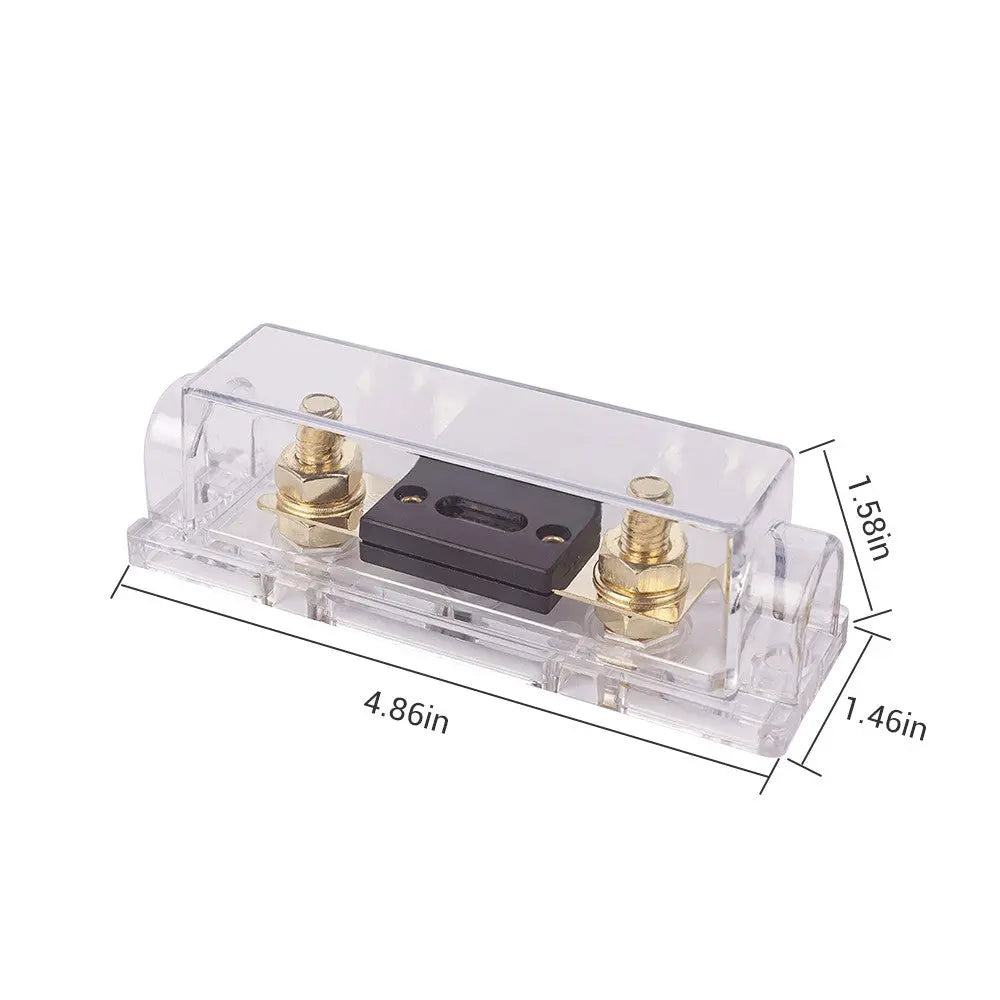

    Fuse Dimension: 124 x 37.6 x 37.5mm/4.88 x 1.48 x 1.48in Warranty: 1-year material and workmanship warranty


    1. Can the fuse be replaced or does the entire device have to be replaced?


    Yes, easily removed and replaced.

    2. Mentions a renogy fuse block which i cant find any recommendations for substitutes or links to it?

    You can get any fuse holder you want as long as it has the appropriate size fuse to protect the wire. Example-30A for#10 wire. Renogy makes them and also Installgear.
    3. What size posts on this holder? Or what size lug works?

    The post are 5/16 stud.
    4. How do you select the fuse size? Go with the charge controller rating or go one up from there?

    You need to consider the maximum input/output current of the charge controller and allow an appropriate safety margin to avoid the risk of false triggering or overload. It is recommended that the rated current of the fuse be 1.25 times the maximum operating current. For example, the 60A MPPT solar charging controller can choose 80A ANL fuse.
    5. Does this include a short fuse cable?

    NO, cable is provided you must purchase your own cable separately, which can be found at any Auto parts store.
    More questions about your off-grid power system? Learn more from Renogy Learning Center!


    Certification





    Brand Renogy
    Category Charge Controllers
    SKU RNG-SET-ANL40-US
    Weight 0.09 kg
