PRO-PERFORMANCE & SUPREME POWER.

Description

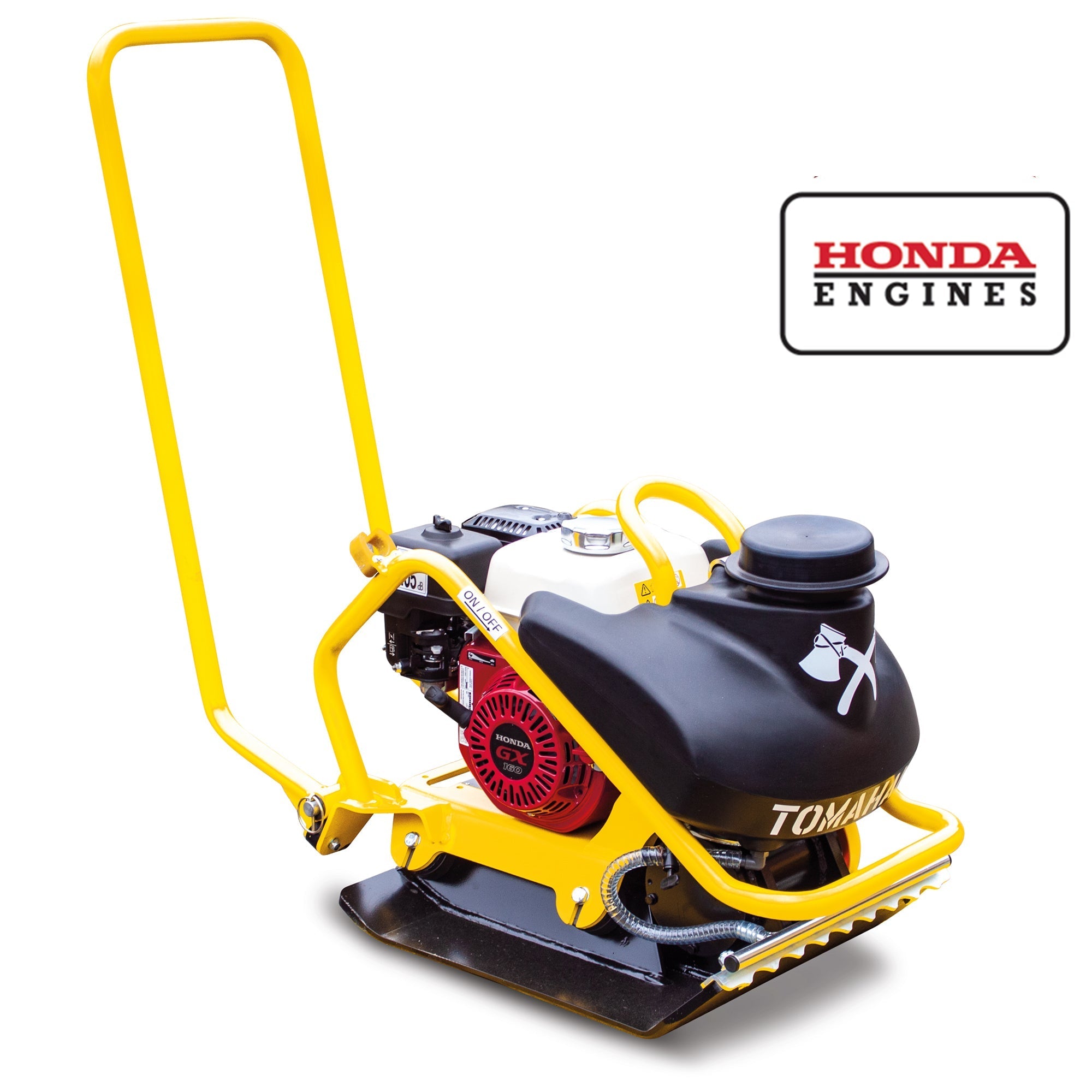

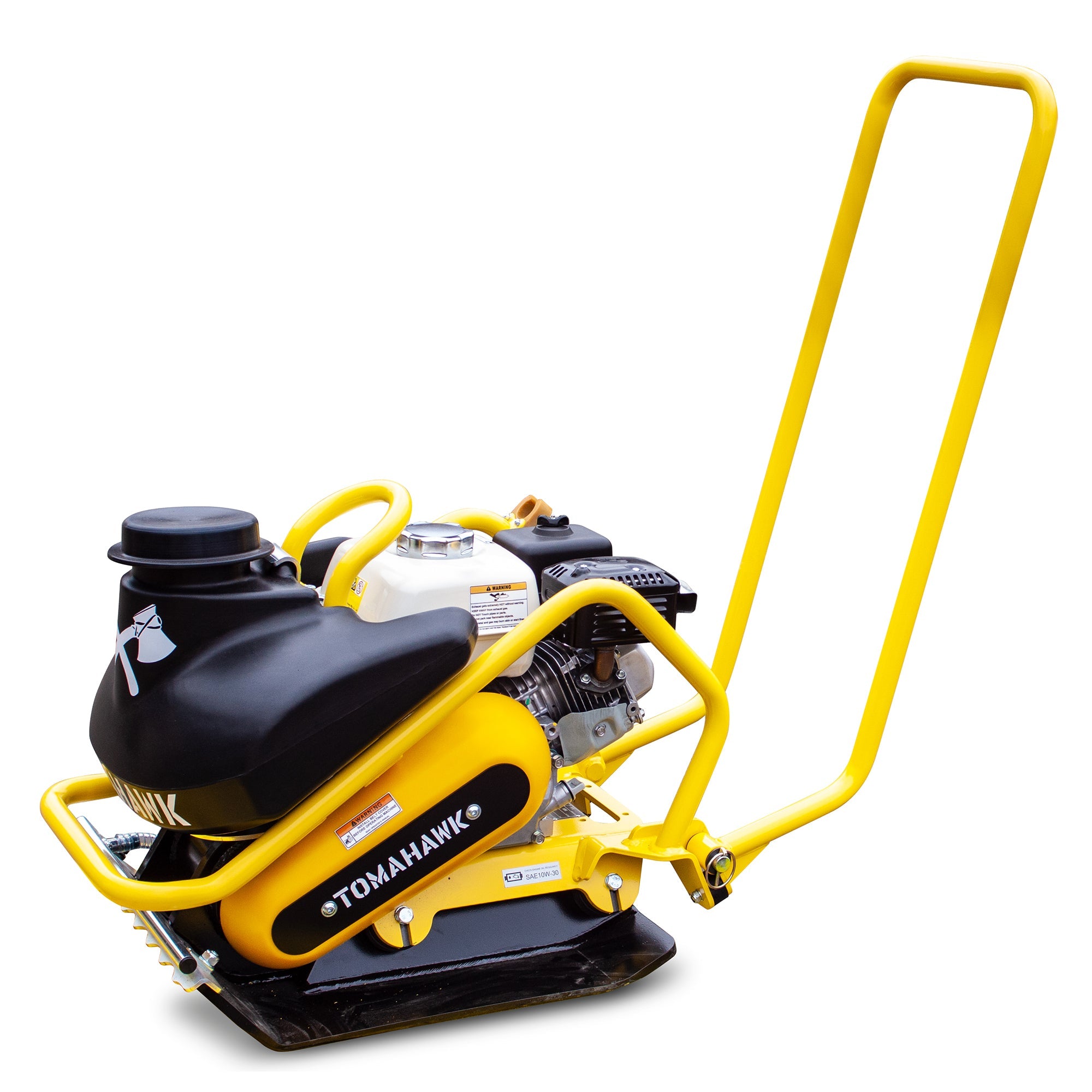

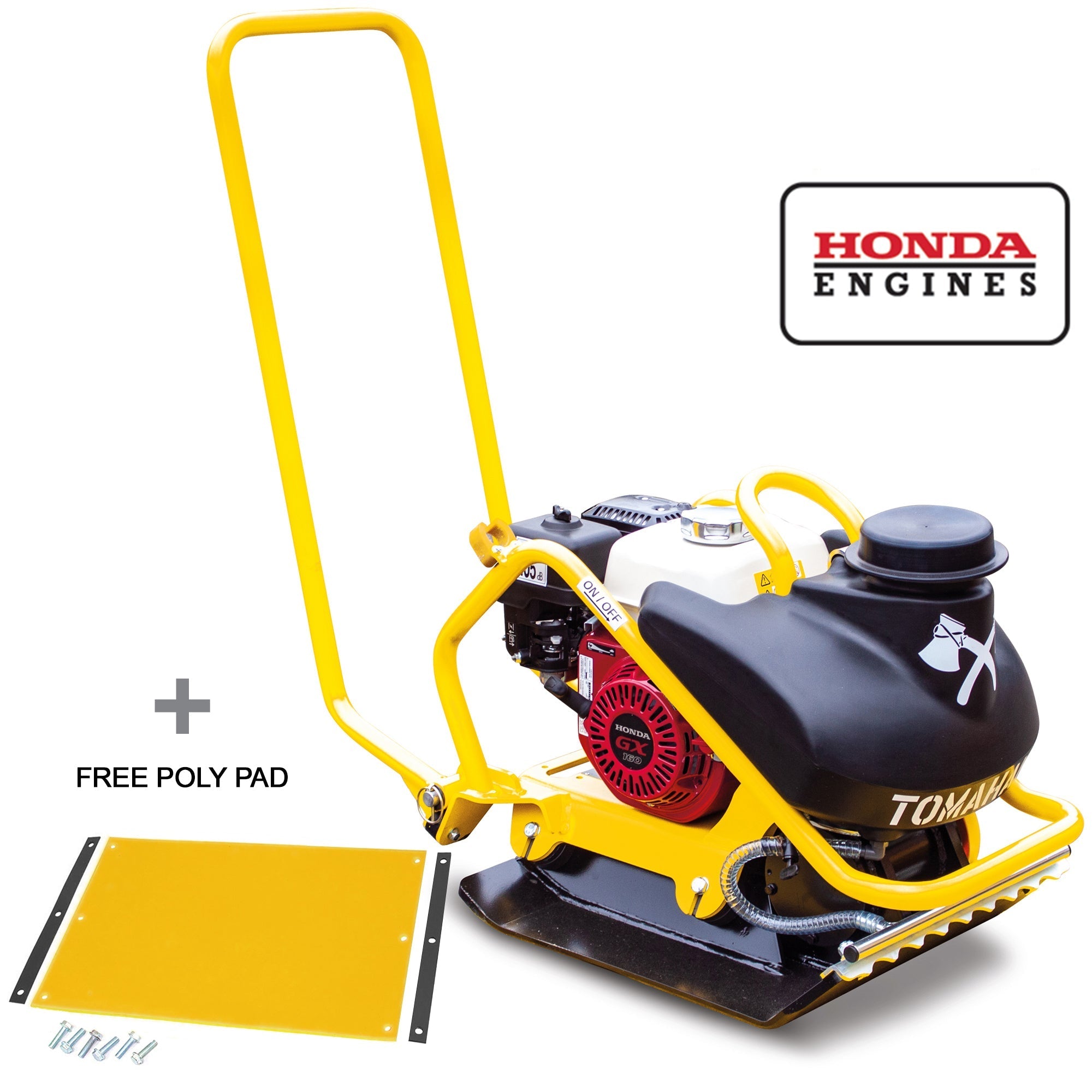

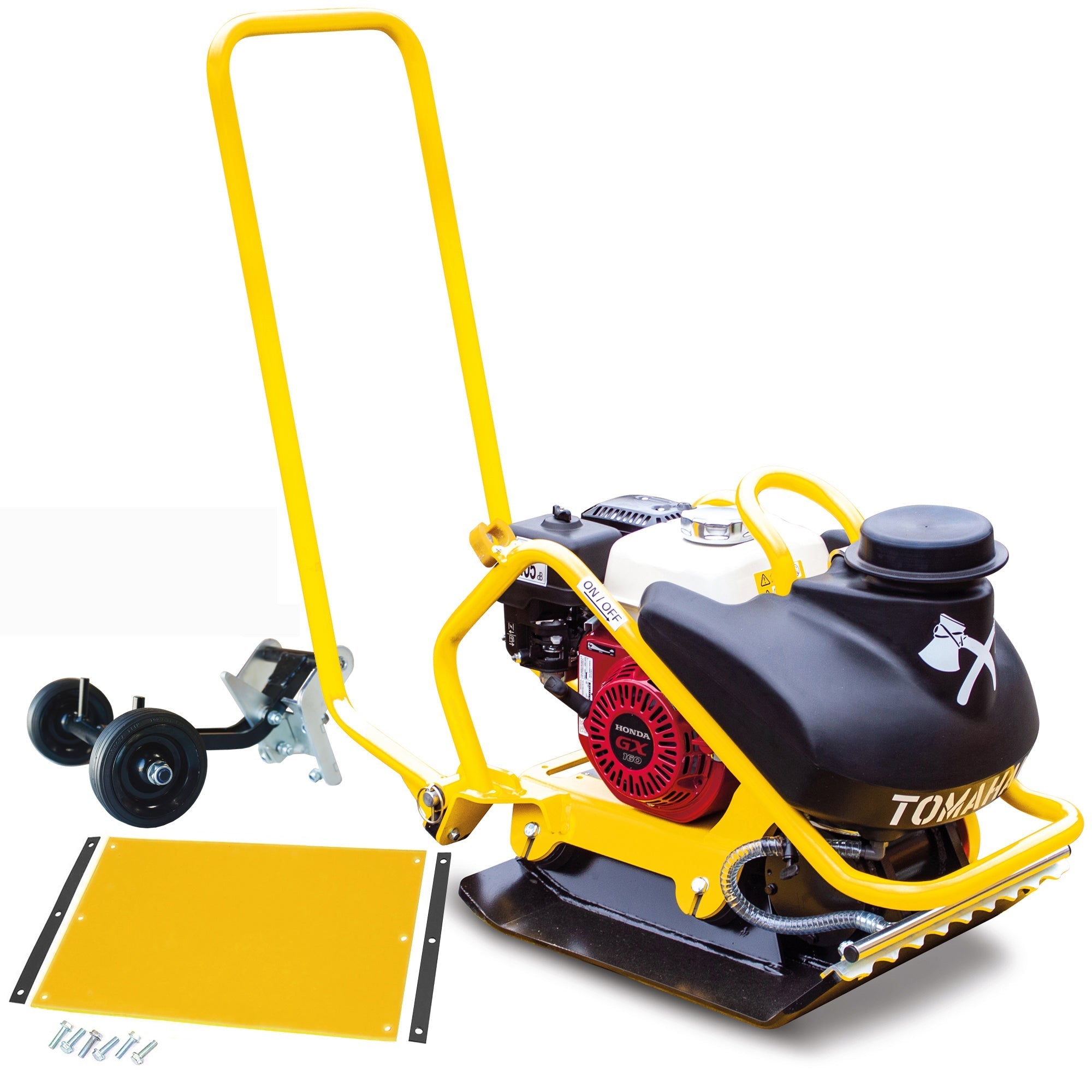

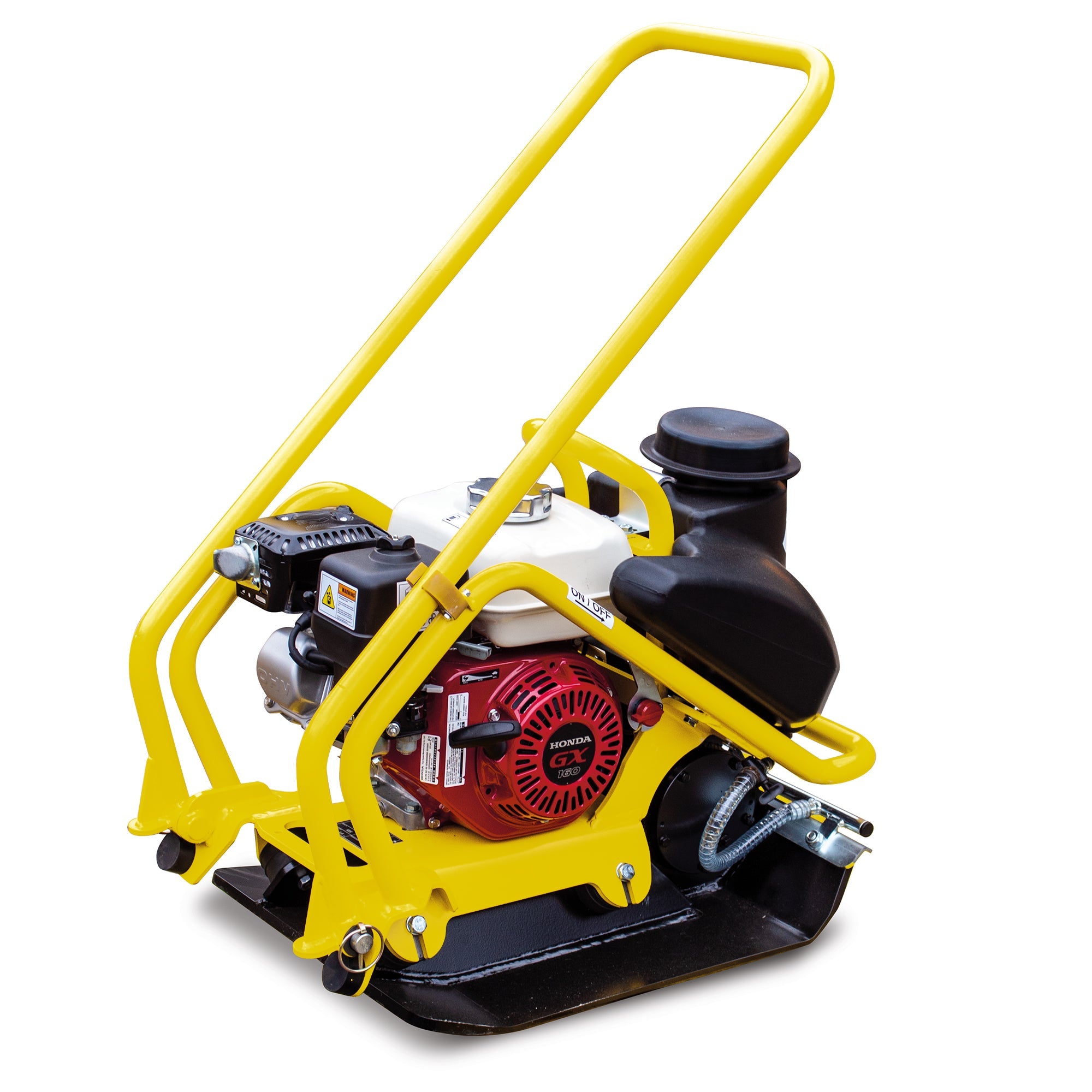

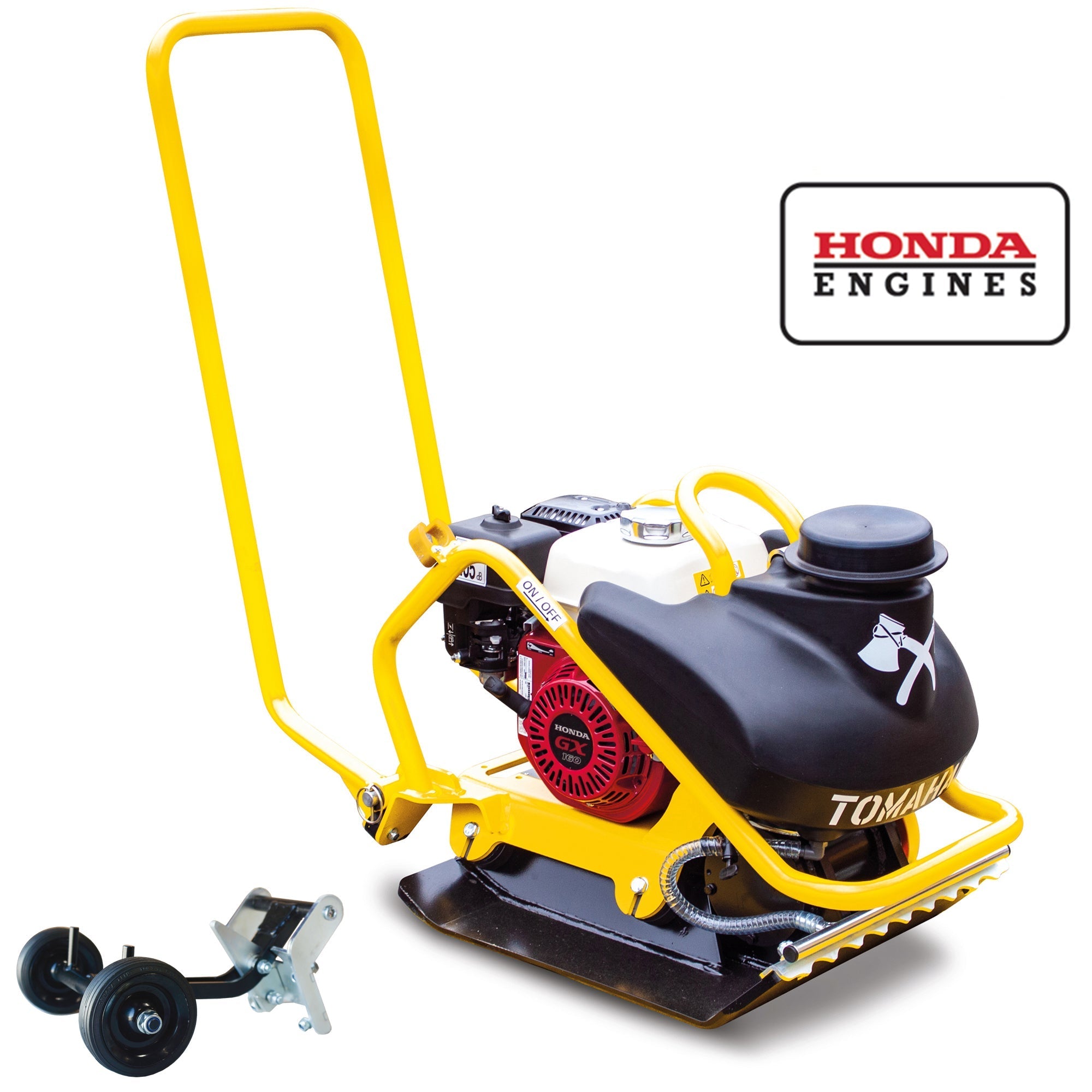

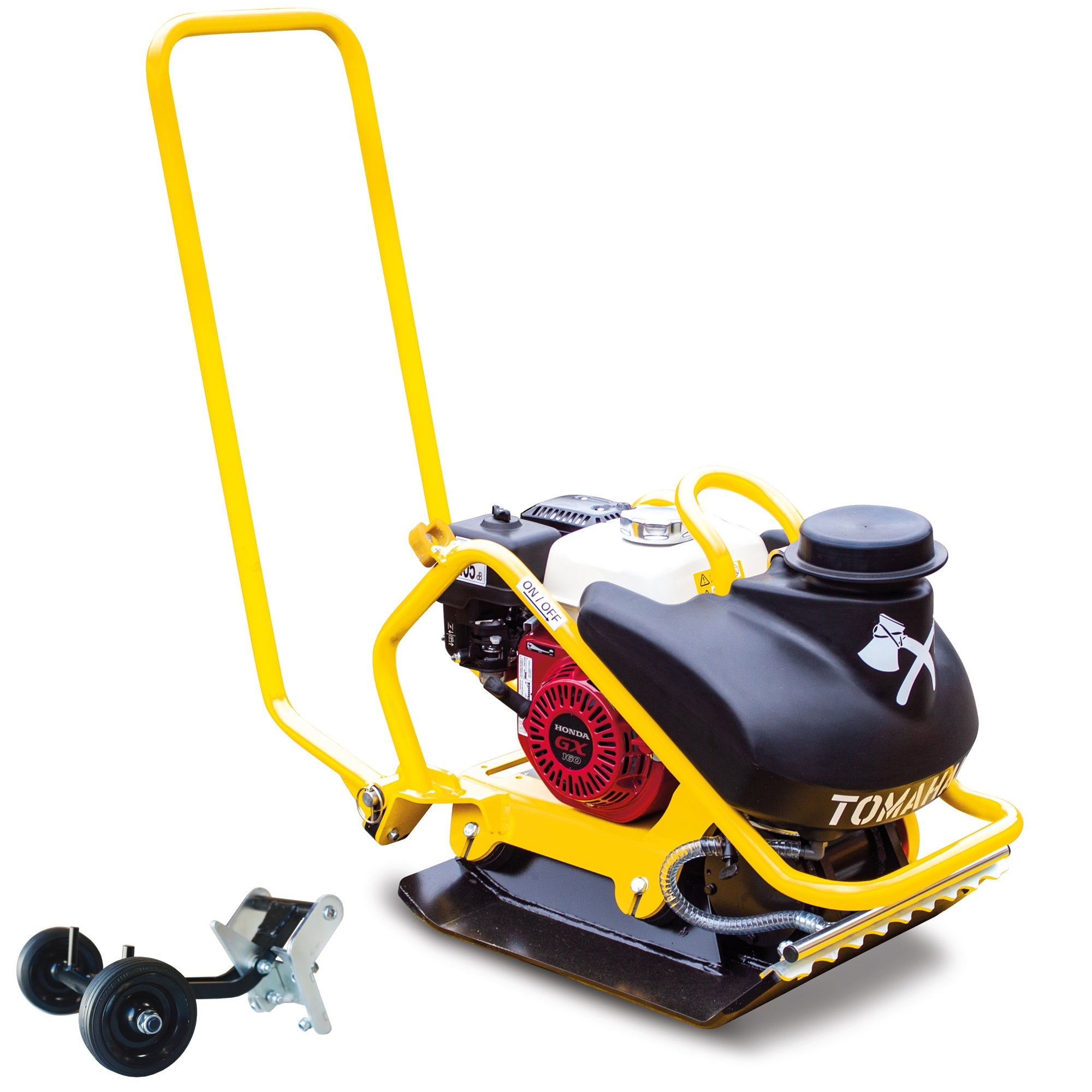

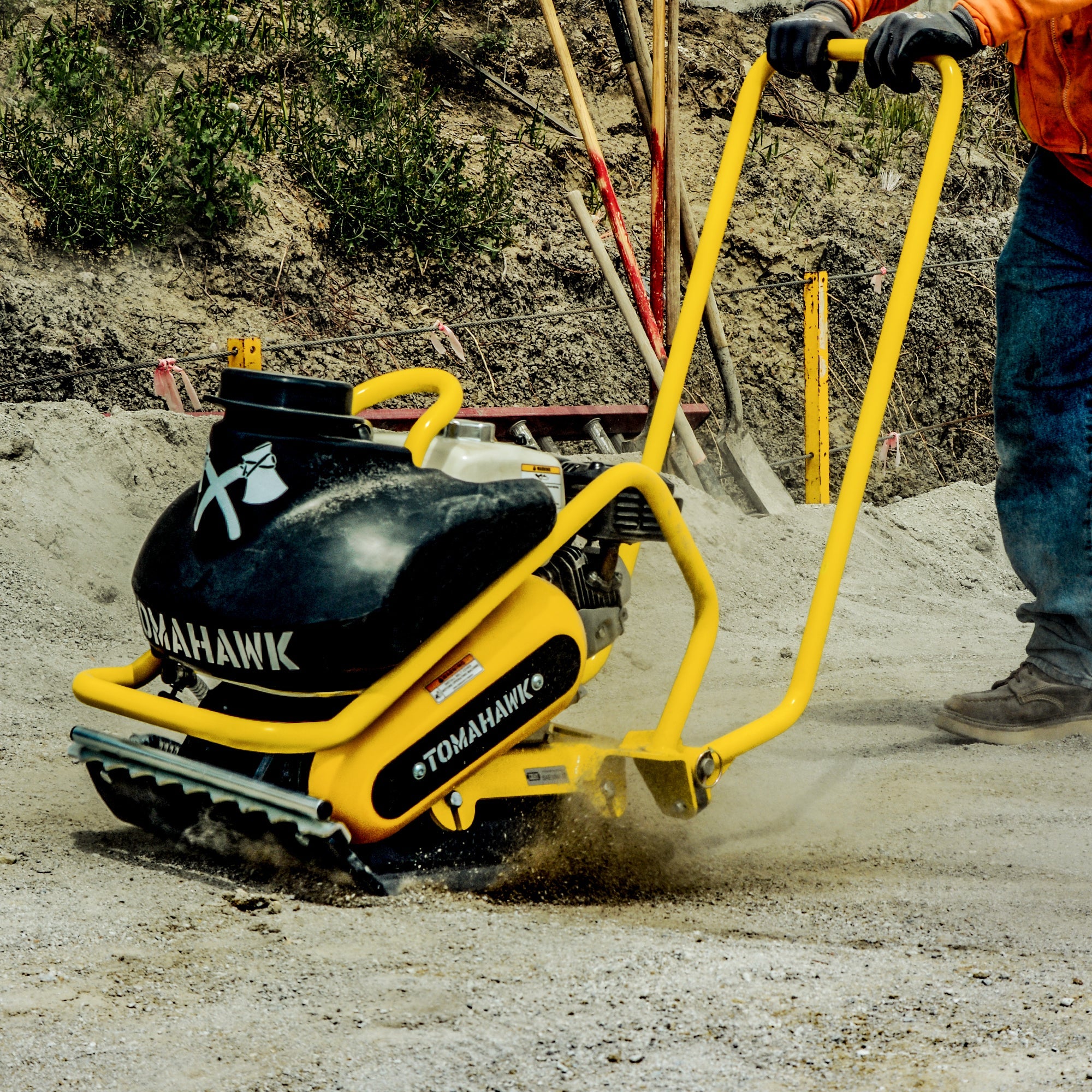

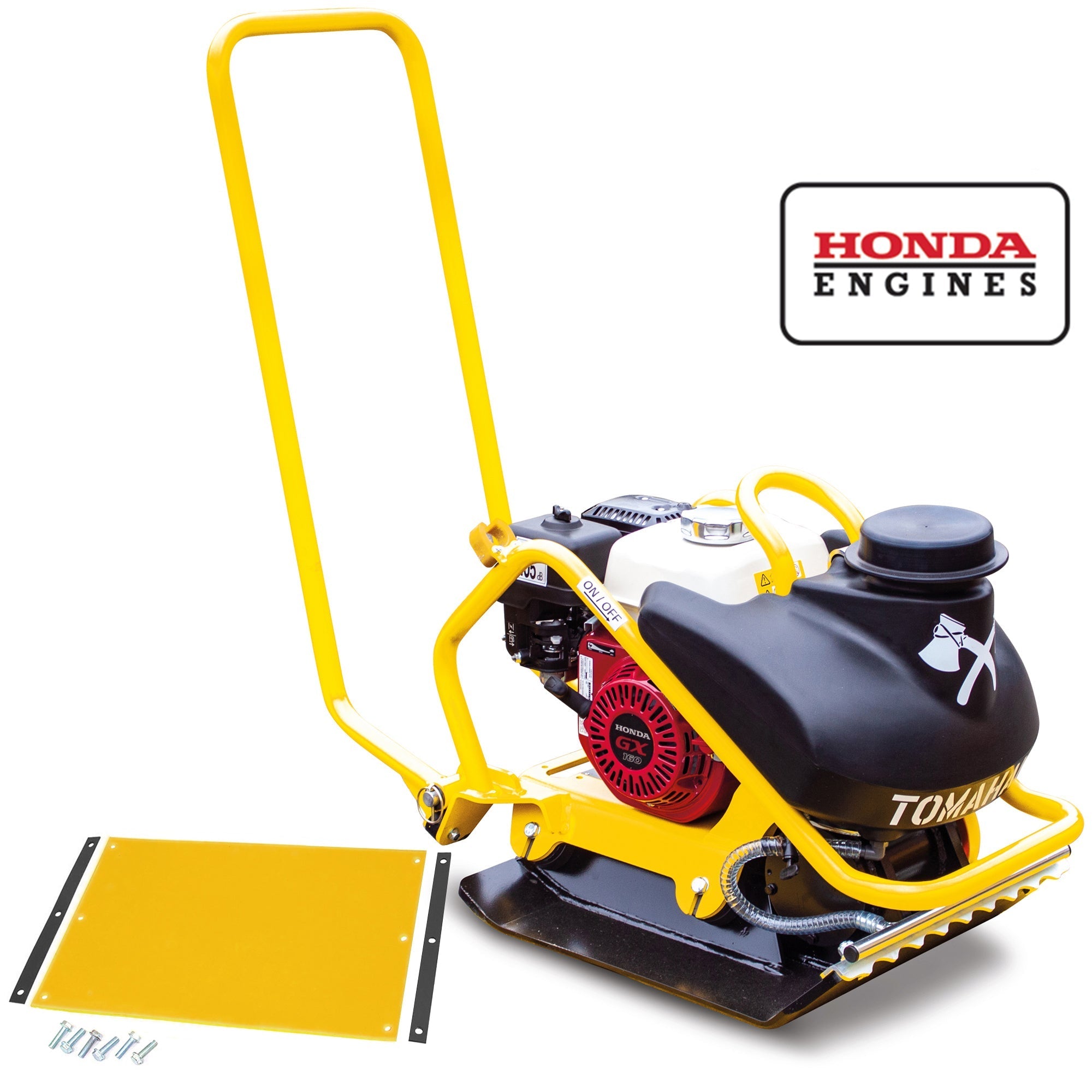

Featuring a 22” x 20” cast iron base plate with curved, seamed edges for markless compaction, the TPC90H Forward Plate Compactor delivers an incredible force of 3,400 lbs. per square ft. at 5,400VPM. Powered by the incredible 163cc / 5.5 HP Honda GX160 Engine, this vibratory plate is perfect for jobsites, Public Works Departments, and rental fleets. Designed specifically to maneuver narrow, cramped spaces, the TPC90H compacts cohesive and granular soils up to 12 inches, while its self-cleaning, open base plate minimizes rock and dirt build up. Ideal for compacting landscapes, hardscapes, roadways, and asphalt, this vibratory plate is perfect for professionals, construction equipment rental, and do-it-yourselfers alike.

Features

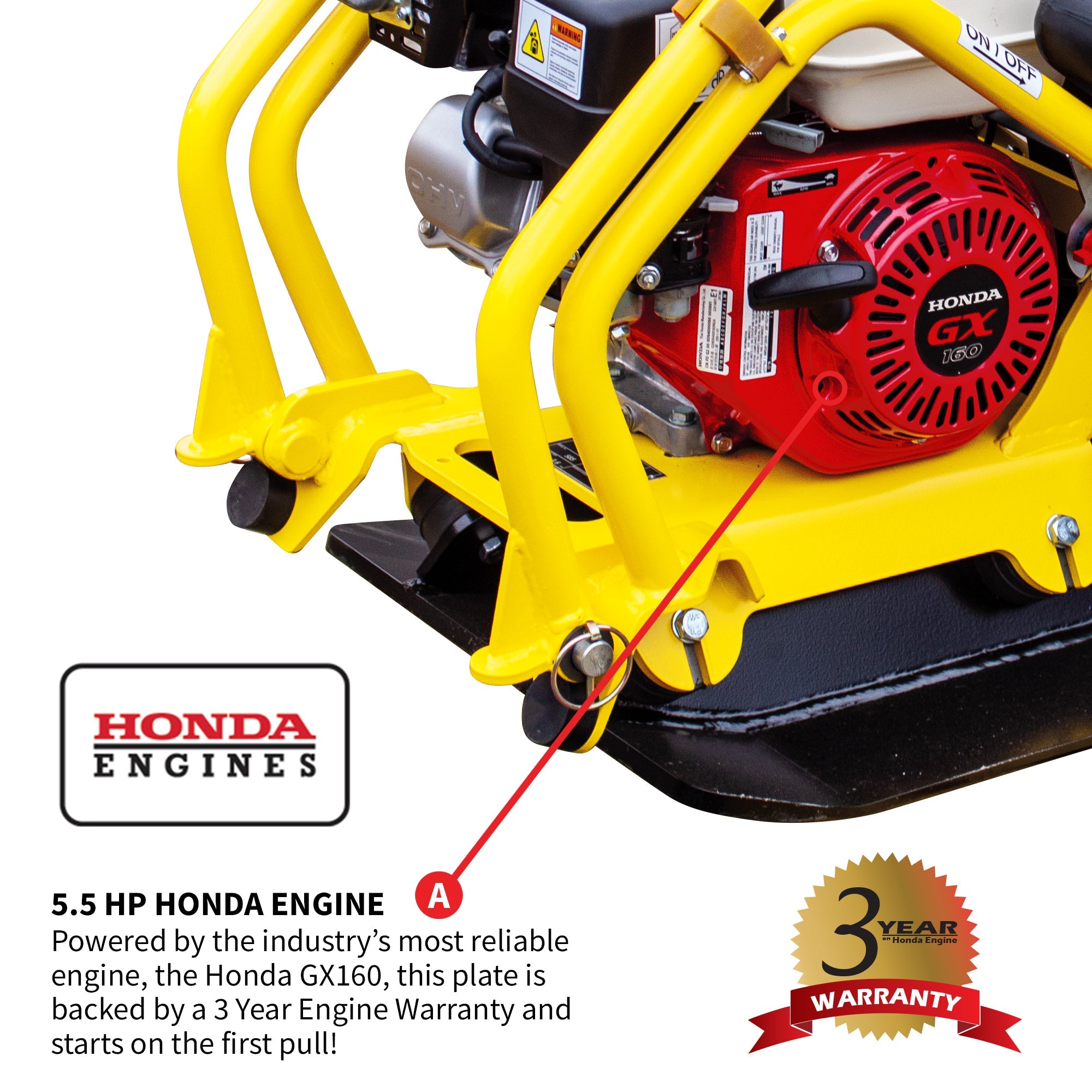

• 163cc / 5.5 HP air-cooled 4-stroke OHV Honda GX160 Engine
• Achieve 100% compaction ratings on field density tests and nuclear densometers
• Compaction of cohesive and granular soils up to 12 in.
• Travel speed up to 78 ft/min

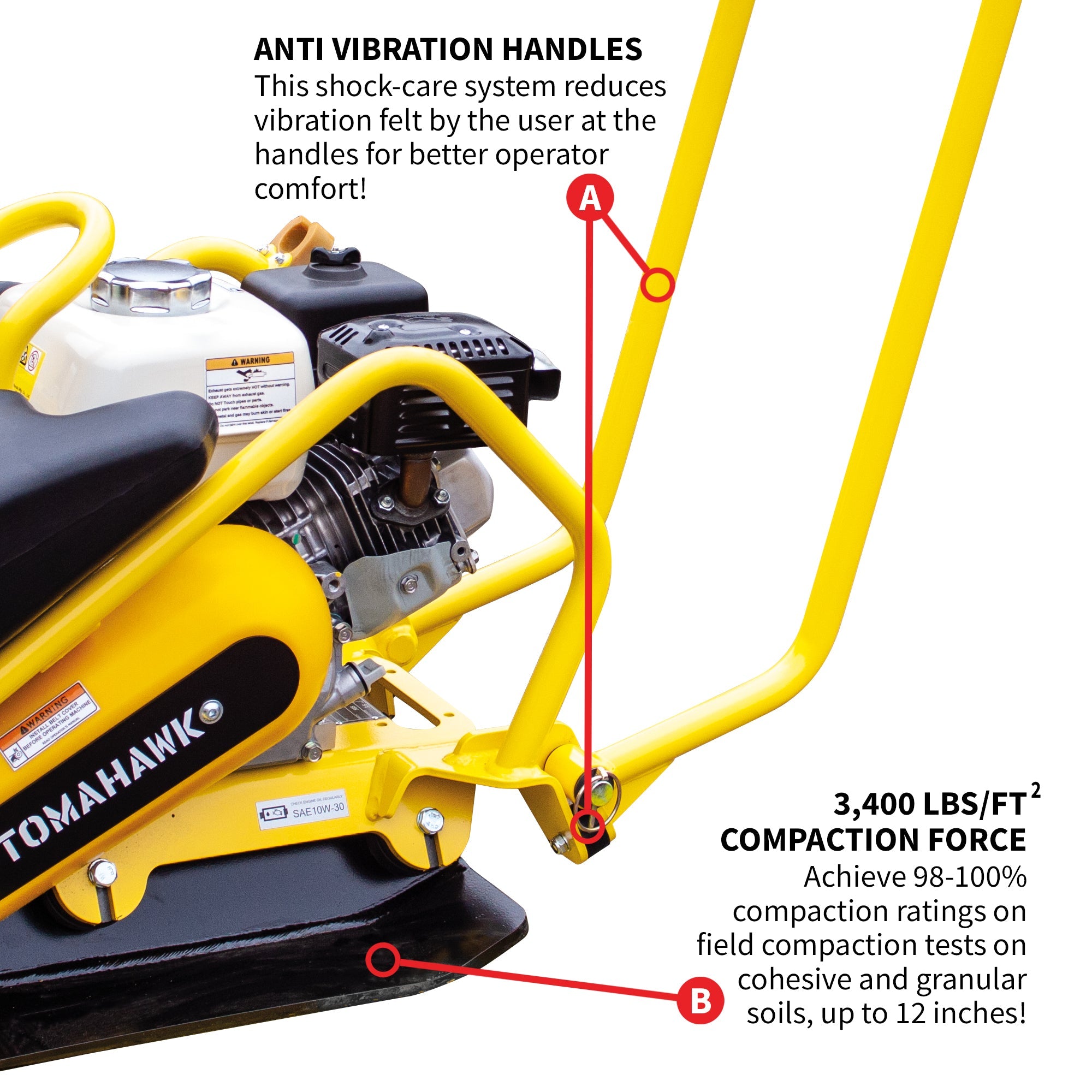

• Compact soils at an incredible force of 3,400 lbs/ft at 5,400 VPM

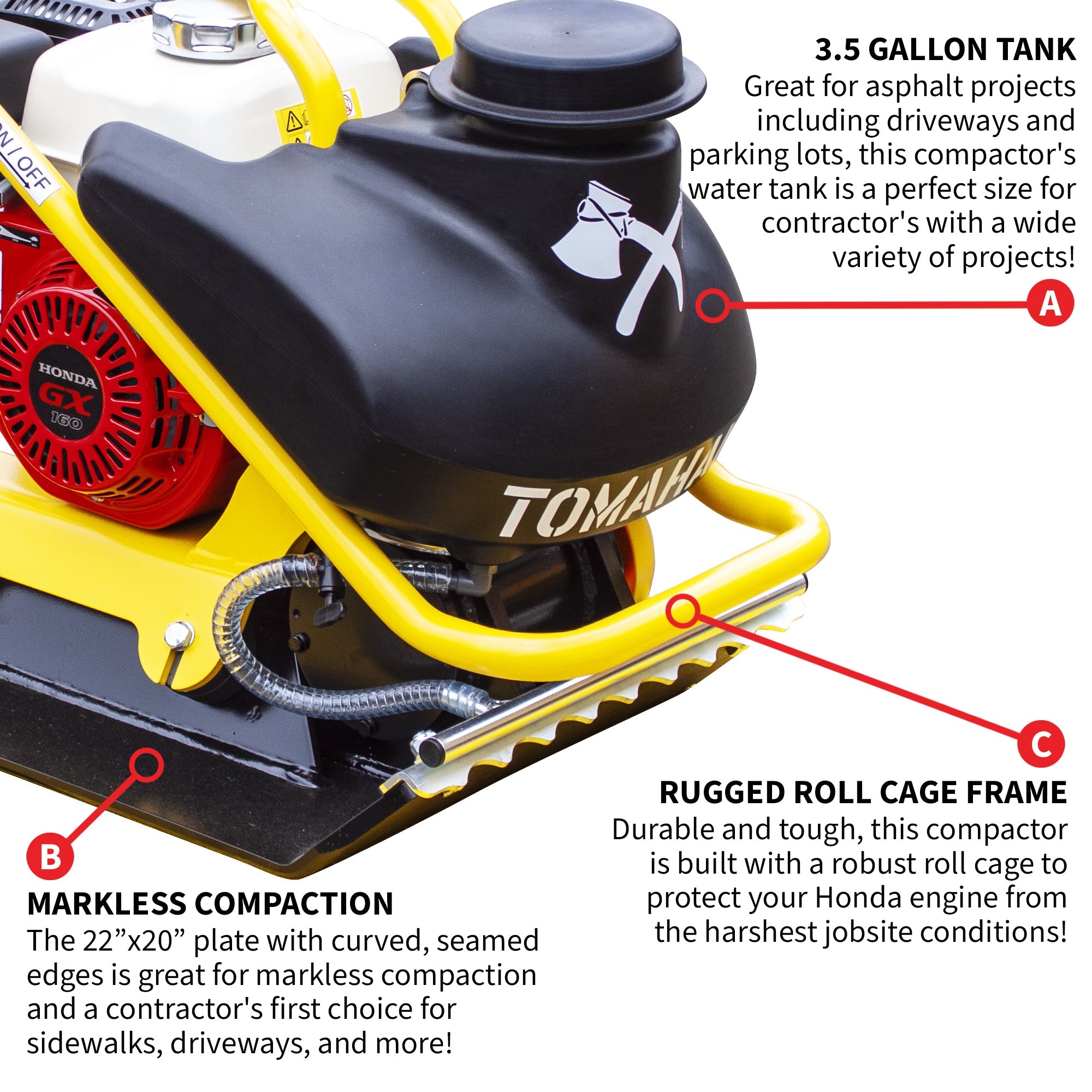

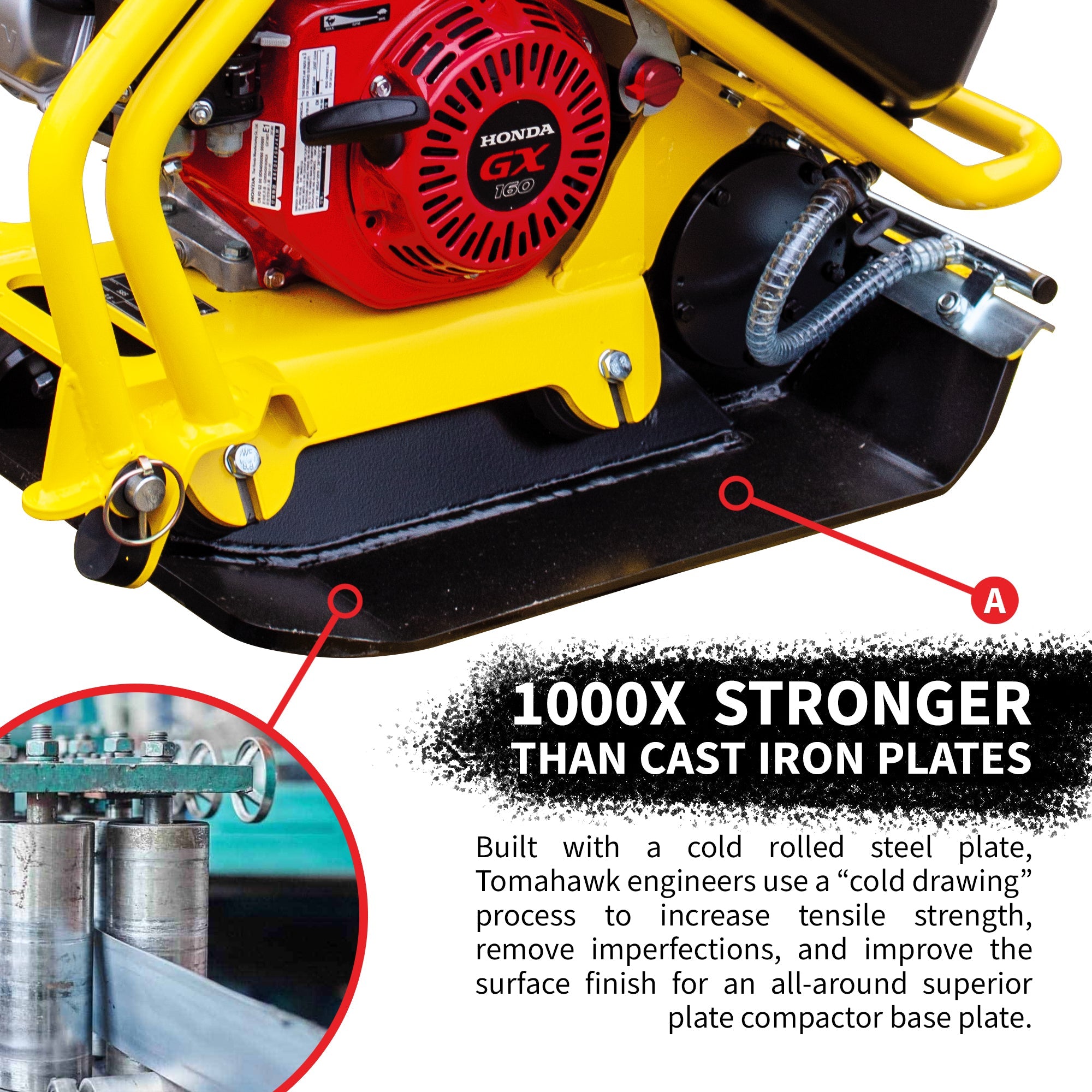

• Cold rolled steel plate with curved, seamed edge base for markless compaction

• Self-cleaning open base plate to minimize rock and dirt build up

• CARB and EPA compliant

Specifications

• Engine: Honda GX160
• Power: 5.5 HP
• Oil Capacity: .6 quarts
• Weight: 240 lbs. (108.8 kg)
• Plate Size: 22 in. × 20 in.  (55.8 x 50.8 cm)
• Centrifugal Force: 15 KN
• Vibration Frequency: 90
• Travel Speed: 79 ft./min

Package Includes

Applications

• Retaining Walls
• Footings and Foundation Projects
• Landscapes and hardscapes
• Patchwork on Asphalt
• Pipeline Applications
• Road Repair and Trenchwork
• Backfill Pools, Parks, Cemeteries, and Golf Courses
• Cohesive Soils and Granular Soils
• Sticky soils - such as clay or clayey silt
• Gravel, sand, silt, clay, or mixed soils
• Base, Subbase, Subgrade, Subsoil

What Compactor Do I Need?

A compactor is an essential tool for preparing a solid base for structures such as patios, retaining walls, concrete slabs, and more. Tamping rammers and compactors are used to increase the density of soil by reducing air voids, which help to improve soil stability, support structures, and prevent settling. With so many options on the market, choosing the right plate compactor can be a daunting task.

Small Jobs

If you are installing artificial turf, building dirt pathways, or need to improve soil stability - but do not need to adhere to a minimum compaction rating you can use a compactor in the 110 lbs (50 kilo) range. These are great for anyone looking to get a job done by themselves with little headache.

Medium Jobs

If your project involves building a retaining wall, patio, driveway, sidewalk, or concrete slab you will need a bit more muscle. Rammers and compactors in the 130-200 lbs (60-90 kilo) range that can achieve a compaction force above 3,000 lbs²/ft are best. You will achieve 98-100% compaction ratings needed for proper compaction to prevent soil settling and foundation damage.

Large Jobs

Equipment needed for large compaction projects should also be able to achieve a minimum compaction force of 3,000 lbs²/ft to reach 98-100% compaction ratings needed for proper compaction. Where this equipment differs from medium range equipment is it's efficiency. Large jobs are typically performed by professional contractors where speed and jobsite efficiency are critical to their success. Compactors that help jobsite efficiency may feature reverse control, hydraulic drive, and the ability to compact asphalt. If you are not too worried about the time it takes to complete a project, you can save a few bucks and invest in equipment in the medium range.

Renting vs. Buying

Buy
Investing in your own plate compactor is ideal for professionals who need reliable, on-demand access to equipment. Ownership means no rental wait times, lower long-term costs, and the freedom to choose the right model for your jobs. With proper care, your compactor can serve you for years—paying for itself after just a few projects. It’s the smart choice for contractors, landscapers, and construction crews who compact frequently.

Rent
Renting is best for one-off or infrequent projects where the upfront cost of buying isn’t justified. It offers flexibility and no maintenance responsibilities, but can get expensive over time. If you’re using a compactor more than a few times a year, buying will quickly become the more cost-effective option.

Buy Local

To find a local Tomahawk Power Distributor, please refer to our Buy Local page to locate your regional manager that can refer you to the closest distributer.

How Does this Ship?

⚠ This is an oversized item which requires shipment on a freight truck. Ship this item to a business address to shave 1-2 days off the transit time!

HOW DOES THIS SHIP?

CA Proposition 65 Warning

⚠ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
