600W 12V Essential Solar Panel Kit
$1,481.99 USD
/
Shipping calculated at checkout.
products.product.pickup_availability.unavailable
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Usually ships within 3–5 days and delivers within 10 business days.
● Solar power customized kit
● More energy, even in partially shaded areas
● Consistent, environmentally-friendly power supply
● Multiple options and free combination
● 25-year performance warranty
The Renogy Custom Kit is thoughtfully designed to provide you with a seamless and convenient solar power solution, tailored to fit your unique energy needs. Whether you're powering your home, RV, boat, or off-grid cabin, our customizable kits offer everything you need to build a reliable and efficient system with ease.
With a versatile selection of components, you can mix and match solar panel sizes, controllers, batteries, and inverters to create the perfect setup without the hassle of sourcing compatible parts from multiple providers. Everything is conveniently packaged to streamline your solar journey.

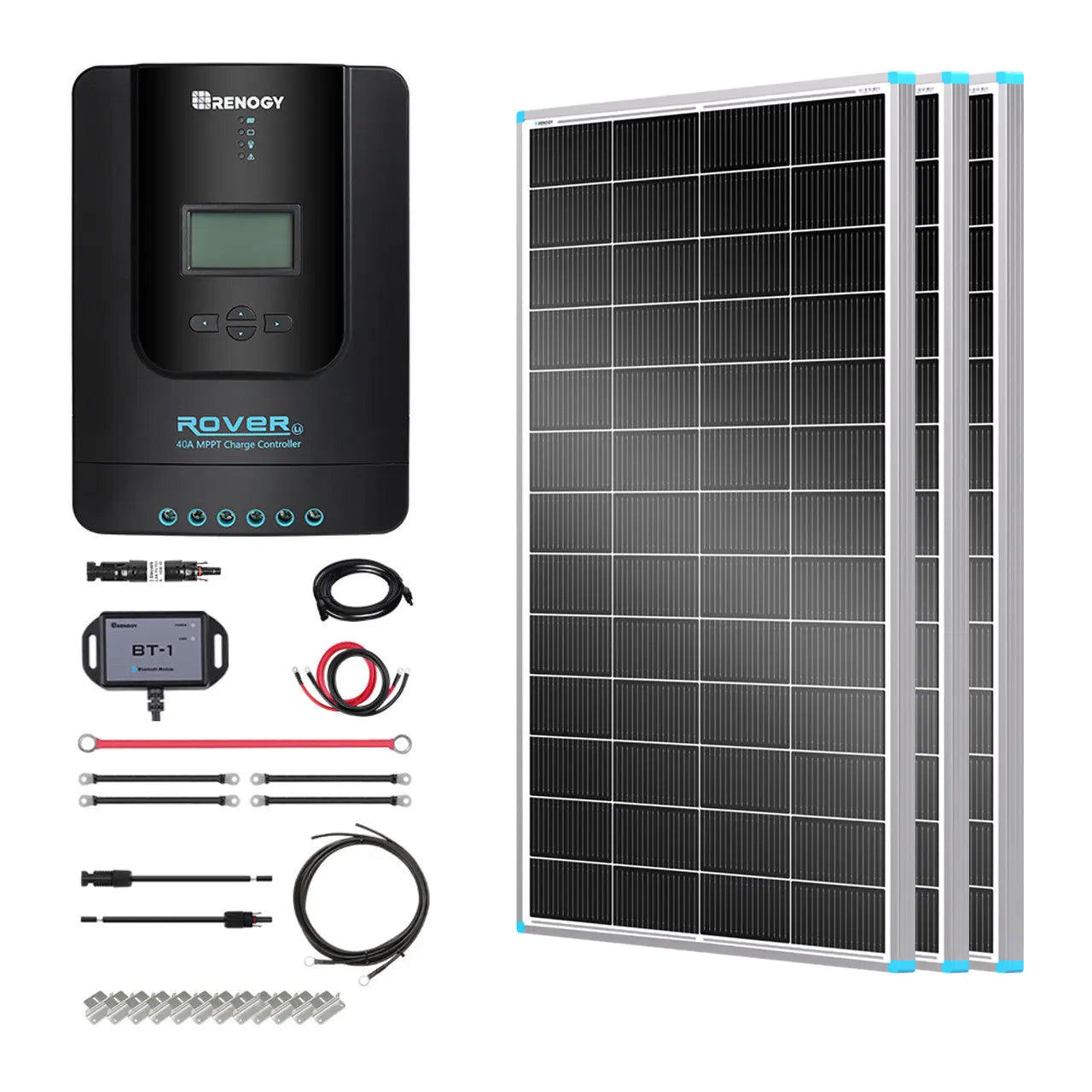

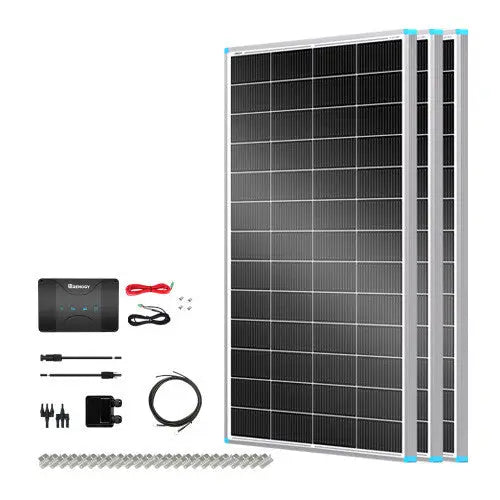

Each kit includes your choice of three 200W classic rigid panels, along with a 60A MPPT charge controller from either the trusted Rover series or the advanced Rego series. Battery options range from no battery to three 100Ah smart lithium batteries with self-heating capability, or the cost-effective lithium battery with built-in Bluetooth. You can also select either no inverter or a 3000W pure sine wave inverter or inverter charger. The kit comes complete with all essential accessories, including cables, connectors, mounts, and monitoring equipment to ensure seamless assembly and operation.
Designed for optimal performance, the Renogy Custom Kit is the ultimate solution for reliable, high-quality, and efficient solar power tailored to meet your lifestyle. NOTE: Performance is based on an average of 5–6 peak sunlight hours per day.
With 50A DC-DC On-Board Battery Charger with MPPT
3*200 Watt 16BB N-Type 24V Solar Panel
1*2pcs of 320W 24V Rigid Solar Panel
NOTE
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
RV
MARINE
CAMPING
OUTDOOR
CABIN
TRUCK
Package Includes
| Solar Panel | Quantity*Title |
|---|---|
| 3*200 Watt 16BB N-Type 24V Solar Panel | |
| Charge Controller
|
Quantity*Title |
| 1*Rover 60A MPPT W/ LCD & BT1 Module &1*Waterproof In-Line Fuse Holder | |
| 1*REGO 60A MPPT Built-in Bluetooth & 1*Waterproof In-Line Fuse Holder | |
| Battery
|
Quantity*Title |
| 3*12V 100Ah Pro Lithium Battery w/Bluetooth & Self-heating | |
| 3*12V 100Ah Core Mini Lithium Battery w/ Self-heating Function | |
| 4*Battery Inverter Cables | |
| Inverter | Quantity*Title |
| 1*3000W 12V Pure Sine Wave Inverter | |
| 1*3000W 12V Pure Sine Wave Inverter Charger | |
|
1*Fuse Cable |
|
|
Accessory Set/Premium
|
Quantity*Title |
| 1*Solar Y Branch Connectors MMF+FFM Pair （12V 50A DC-DC On-Board Battery Charger ） | |
| 1*Solar Panel to Charge Controller Adaptor Kit | |
| Battery to Charge Controller Tray Cables | |
| 1*2ft ANL Fuse Cable with Double Ring Terminals | |
| 1*BT-1 Bluetooth Module (New Version) | |
| 1*BT-2 Bluetooth Module (New Version) | |
| Solar Panel Mounting Z Bracket -- Set of 4 | |
| 1*Solar Panel Extension Cable with Male to Female Solar Connectors |

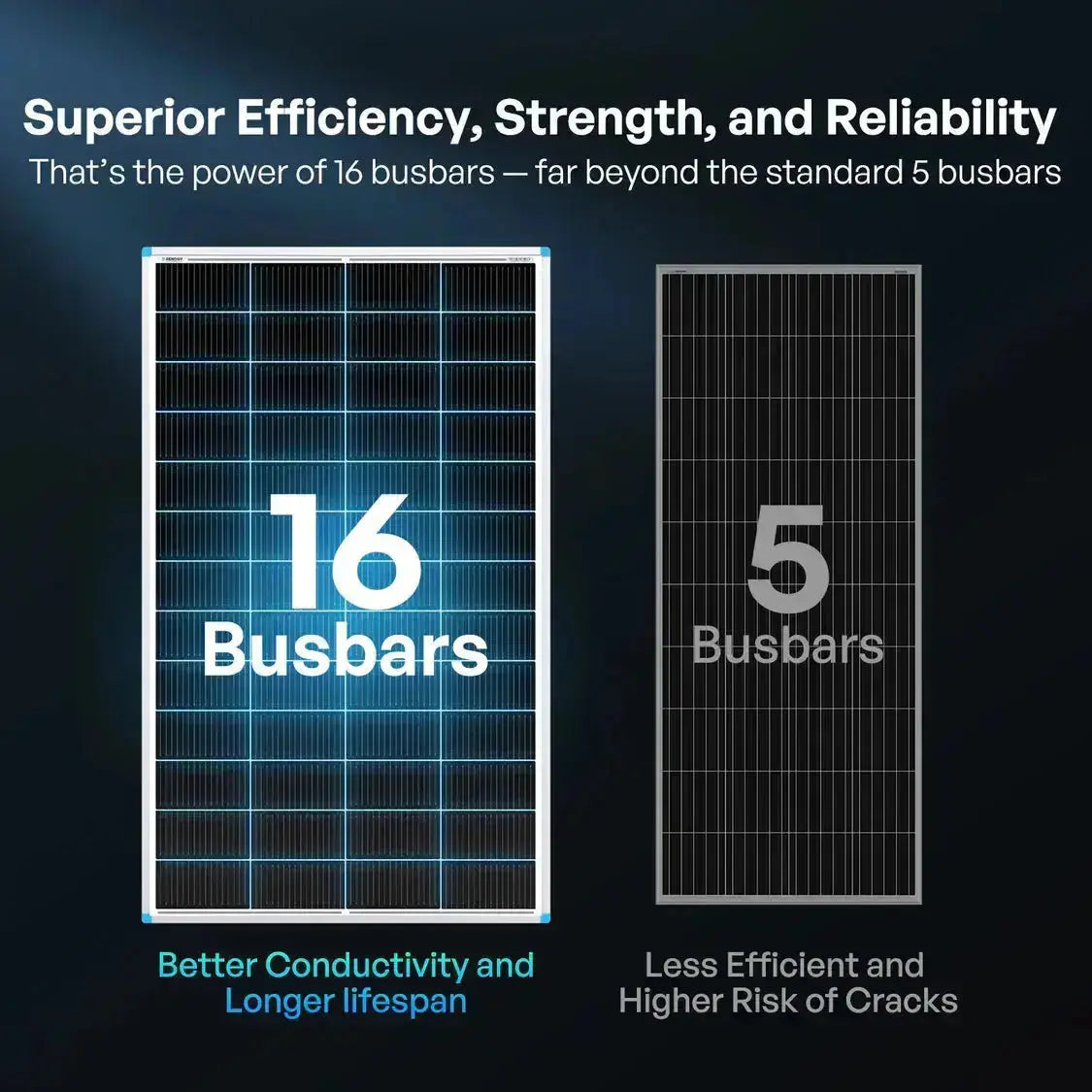

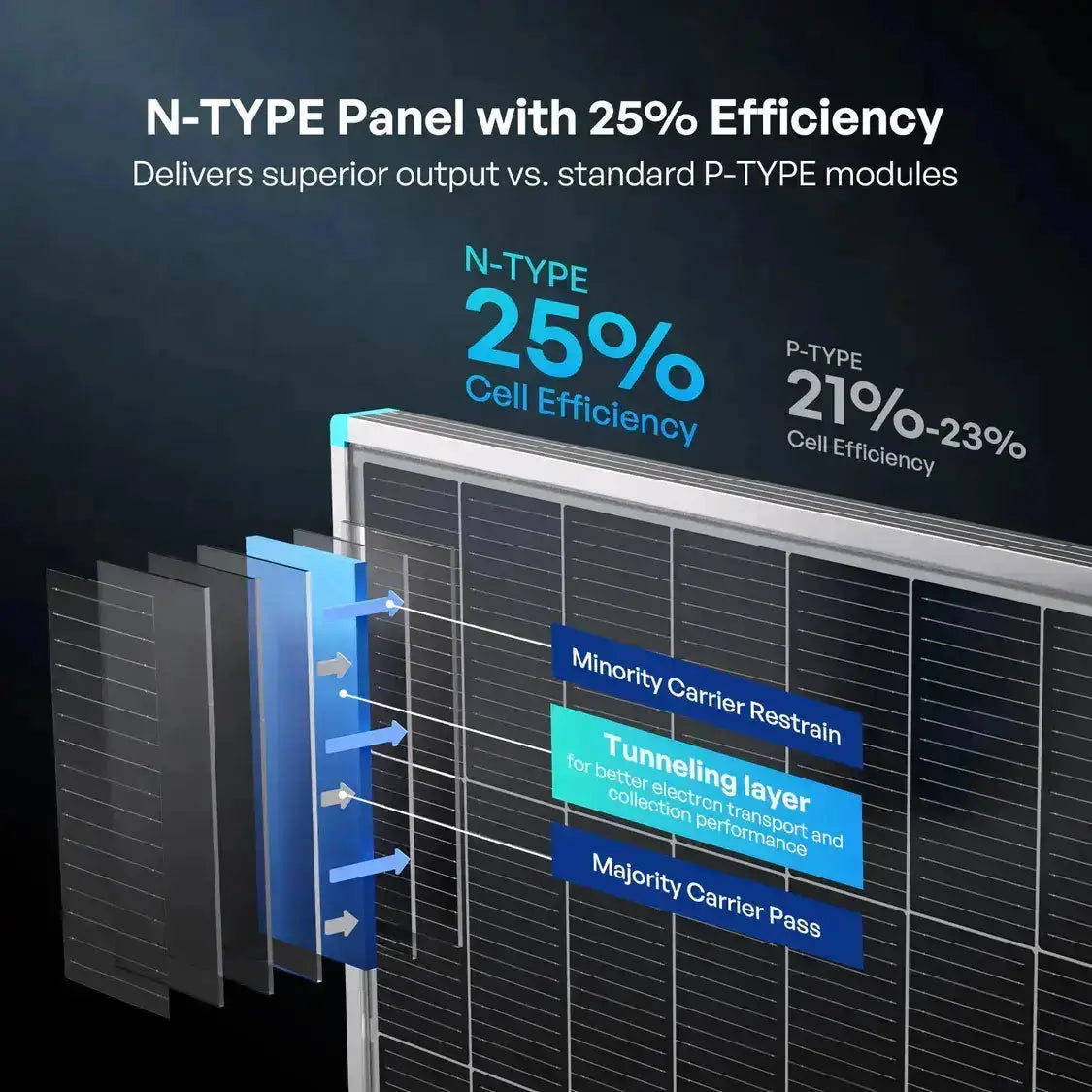

| 200 Watt 16BB N-Type 24V Solar Panel | |
|---|---|
|
Max Power at STC: 200W |
Open Circuit Voltage: 37.44V |
|
Short Circuit Current: 6.85A |
Optimum Operating Voltage: 31.03V |
|
Optimum Operating Current: 6.45A |
Operating Temperature: -40°F~185°F / -40℃~85℃ |
|
Maximum System Voltage: 600 VDC UL |
Maximum Series Fuse Rating: 15A |
| Dimensions: 1262x764x30mm/49.7x30.1x1.2in | Weight: 10.6kg/23.4lbs |

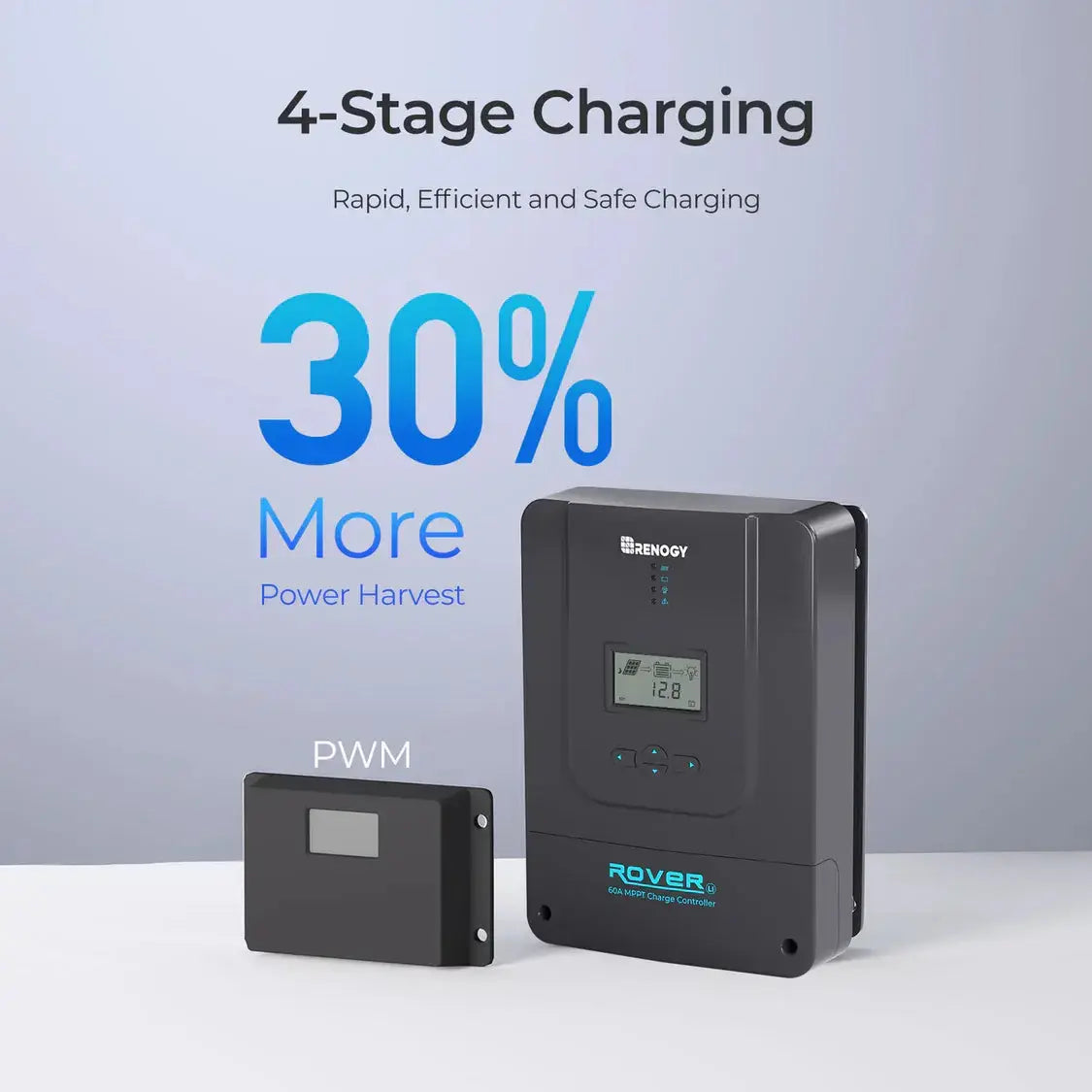

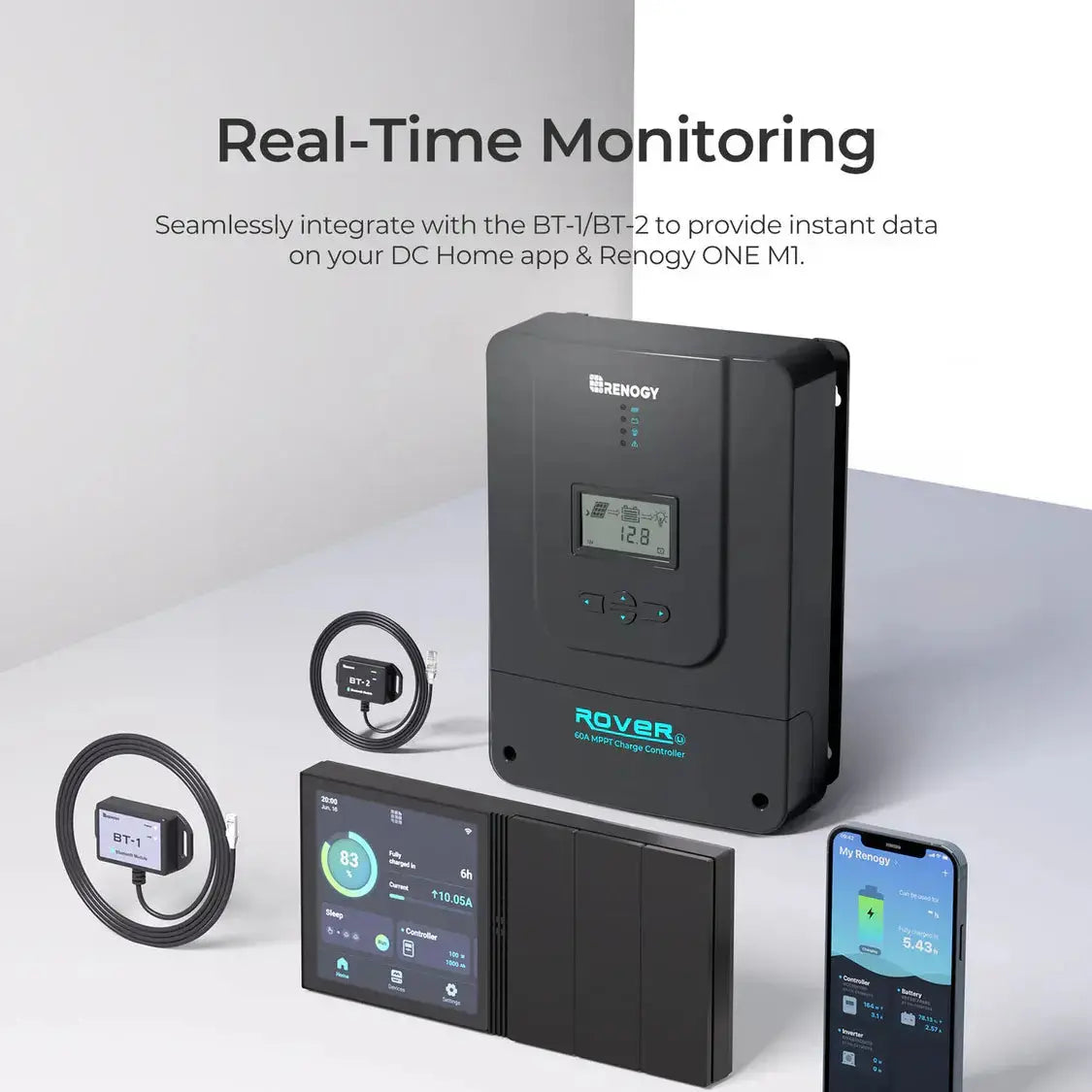

| Rover 60A MPPT W/ LCD & BT2 Module | |
|
Nominal Voltage: 12V/24V/36V/48V Auto Recognition (for non-lithium batteries) |
Rated Charge Current: 60A |
|
Rated Load Current: 20A |
Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V |
| Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C) | Self-Consumption: 0.7W-1.2W |
| Operating Temperature: -31 °F to 113 °F (-35 °C to 45 °C ) | Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in) |
| Weight: 7.9lbs | |
| REGO 60A MPPT Built-in Bluetooth | |
|
Nominal System Voltage: 12 V |
Rated Charge Current: 60A |
| Max. PV Input Power: 800W | MPPT Voltage Range: 15 - 100 VDC /12V |
| Solar Input Voltage Range (VOC): 100 V | Max Input Current (short-circuit, Isc): 50A |
| Power Limiting Protection: Up to 800W/12V | Operating Temperature Range: -20 ℃ - 60℃ |
| Dimensions: 9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm | Weight: 5.07 lbs/ 2.30kg |
| DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT | |
|---|---|
|
System Voltage: 12VDC |
Maximum Charging Current: 50A |
| Battery Types: SLD, GEL, FLD, LI,USER |
Service Battery Charging Mode: MPPT |
|
Max. Solar Input Voltage: 25V |
Max. Solar Input Power: 660W @ 50A |
|
Operating Temperature Range: -31°F - 149°F |
Dimensions: 9.6*5.7*3.0in |
| Weight: 3.13Ibs | Communication Protocol: RS485 |

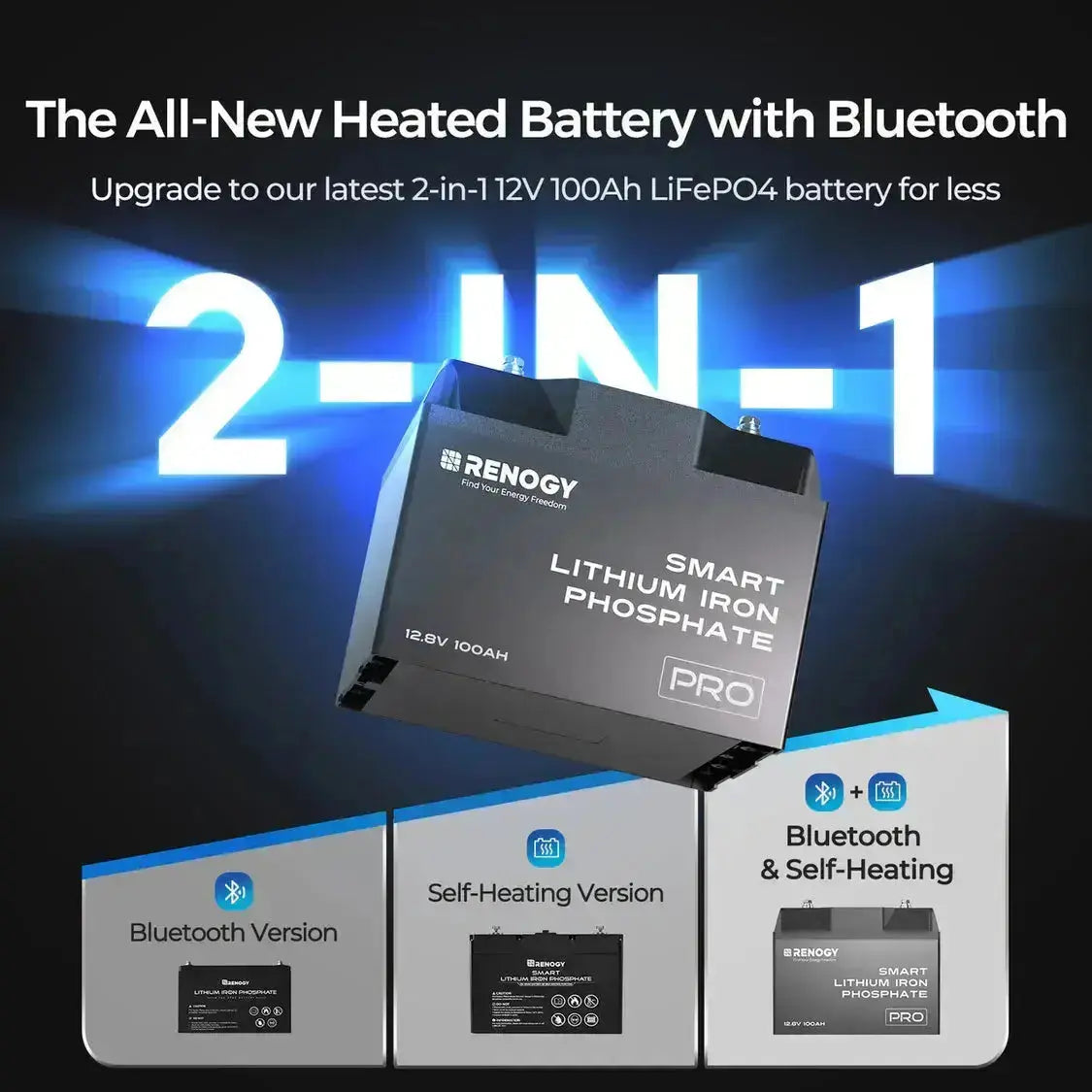

| 12V 100AH PRO LITHIUM BATTERY W/BLUETOOTH & SELF-HEATING | |
|
Battery Type: Lithium Iron Phosphate |
Rated Capacity: 100 Ah |
| Voltage: 12 V | Voltage Range: 10V to 14.8V |
| Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL) | Connection Method: Parallel(Up to 8) |
| Protection Rate: IP67 | Charge Voltage: 14.4V |
| Maximum Charge Current: 100Ah | Maximum Discharge Current: 100Ah |
| Peak Discharge Current: 245A@30s | Charge Temperature Range: -4°F to 131°F (-20°C to 55°C) |
| Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C) | Storage Temperature Range: -13°F to 149°F (-25°C to 65°C) |
| Operation Relative Humidity: 10% to 95% | Dimensions: 10.6 x 7.6 x 8.1 in (268 x 193 x 205 mm) |
| Weight: 26.9 lbs. (12.2 kg) | |

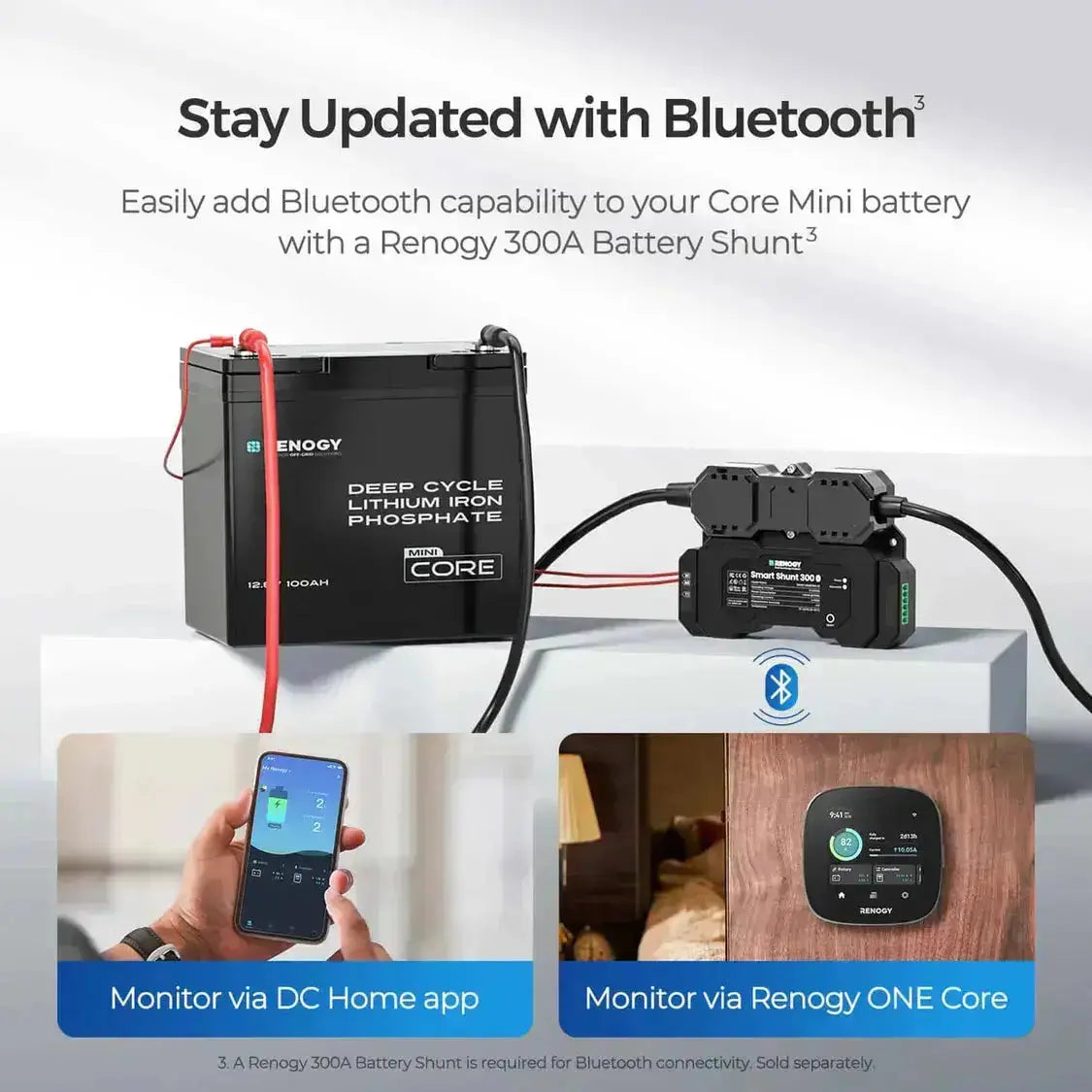

| 12V 100Ah Core Mini Lithium Battery w/ Self-heating Function | |
|---|---|
|
Battery Type: Lithium Iron Phosphate |
Rated Capacity (0.5C, 25°C): 100AH |
| Voltage: 12 V | Cycle Life (0.5C, 77°F/25°C): 5000 Cycles (80% DOD) |
| Charge Voltage: 14.6V | Protection Rate: IP65 |
| Maximum Charge Current: 100A | Maximum Discharge Current: 100A |
| Maximum Continuous Discharging Current: 100 A | Charge Temperature Range: -22°F to 131°F (-30°C to 55°C) – Ideal for safe charging |
| Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C) | Connection Method: Series (Up to 4): Series & Parallel (up to 4S4P) |
| Terminal Bolt Size: M8 x 1.25 × 12 mm | Dimensions: 9.02 × 5.43 × 8.39 in (229 × 138 × 213 mm) |
|
Weight: 21.38 lbs (9.7 kg) |
|
| 3000W 12V Pure Sine Wave Inverter | |
|---|---|
|
Continuous Output Power: 3000W |
Peak Power Rating: 6000W |
| Output Voltage: 120V | Output Frequency: 60 Hz ± 0.1% |
| AC Output Sockets: 3 | AC Terminal Block: 1 |
| USB Power Port: 5V/2.1A | Power Output Control: AC On/Off Switch, and Remote Control |
| Output Waveform: Pure Sine Wave | Nominal Efficiency: > 90% |
| Operating Temperature Range: -4°F - 104°F | Cooling Fan: Thermally controlled |
| Dimensions: 18.9 x 9.0 x 4.0 in | Weight: 12.5 lb |
| REGO 12V 3000W Pure Sine Wave Inverter Charger w/ LCD Display | |
|---|---|
|
Continuous Power: 3000W |
AC Output Voltage Range: 100~120VAC configurable, 5V interval |
| Surge Power: 9000W | Nominal Efficiency: > 90% Peak |
| Output Waveform: Pure Sine Wave | Output Frequency : 50/60 Hz ± 0.1% |
| Input Voltage Range: 90-138 VAC | Input Wave Form: Sine Wave (Utility or Generator) |
| Operating Temperature: -20-40°C/-4-104°F | Storage Temperature: -30 ~ 70°C / -22 ~ 158°F |
| Dimensions: 20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm | Weight: 63.5 lbs / 28.8 Kg |
| WARRANTY INFORMATION | |
|---|---|
|
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty |
Accessories: 1-year material and workmanship warranty |
1. What do I need to complete my off-grid solar power system ?
A solar panel has to be connected to a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
2. What does off-grid and on-grid mean ?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
3. Can I add more solar panels to the Rover 60A and expand my system power output?
Yes, more solar panels can be added to this system to increase the power output. The Rover 60A has a maximum PV input current of 60A, maximum PV input voltage of 100VDC, and maximum input solar power of 520W at 12V or 1040W at 24V. You can wire more solar panels in series / in parallel to achieve larger power output, however you are limited by the maximum input voltage and current the charge controller can handle. It is safer to build a system operating at around 90% of the rated voltage and current to ensure there is a tolerance for any system overvoltage or overcurrent.
4. Will this solar kit power my AC unit ?
In order to determine what size solar kit is appropriate, you must first define the total load to be expected of the solar power system. Most manufacturers will publish a specification sheet of the AC unit online and will include a nameplate sticker on the AC body. Both can be used to determine the actual power rating of the AC. BTU is a common measuring unit for energy in AC and water heater products, however we are intrested in the energy rate, or simply power. Power will be listed in units of Watts, and can be used to determine the total load resulting from running the intended AC unit. Multiply the power rating recorded in watts by the total number of hours of operation intended, to obtain the total watt-hours. Divide the total watt-hours by the peak sun hours in the location of installation, and multiply by a safety factor of 1.5-2, to obtain the total number of watts your panels should produce to power the air conditioner load. The total power load can be divided by the power output of one panel to obtain the number of panels needed.
5. When do I need an inverter ?
If you intend to use this solar power kit as a power supply for home appliances (e.g. coffee maker, TV, etc.), then you will need an inverter to convert the output voltage from a 12 VDC system to a 120V AC output socket. Renogy offers a variety of inverter products to suit your unique system and meet your power demand.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
 |
| Brand | Renogy |
| Vendor | Renogy |
| Model | renogy-600w-12v-general-off-grid-solar-kit |
For warranty and technical support, visit renogy.com/support or call 1-909-287-7111.
