Cut half-blind dovetail joints in 1/2" to 3/4" thick stock. Features a 1/2" thick CNC machined phenolic template that's as tough as aluminum, but less expensive to replace if you have an "accident". This  jig makes 90 degree joints typical for drawer work with a template featuring 7/8" on-center dovetail spacing.  This is the popular spacing for drawers, etc. For stock up to 11-3/4" wide.

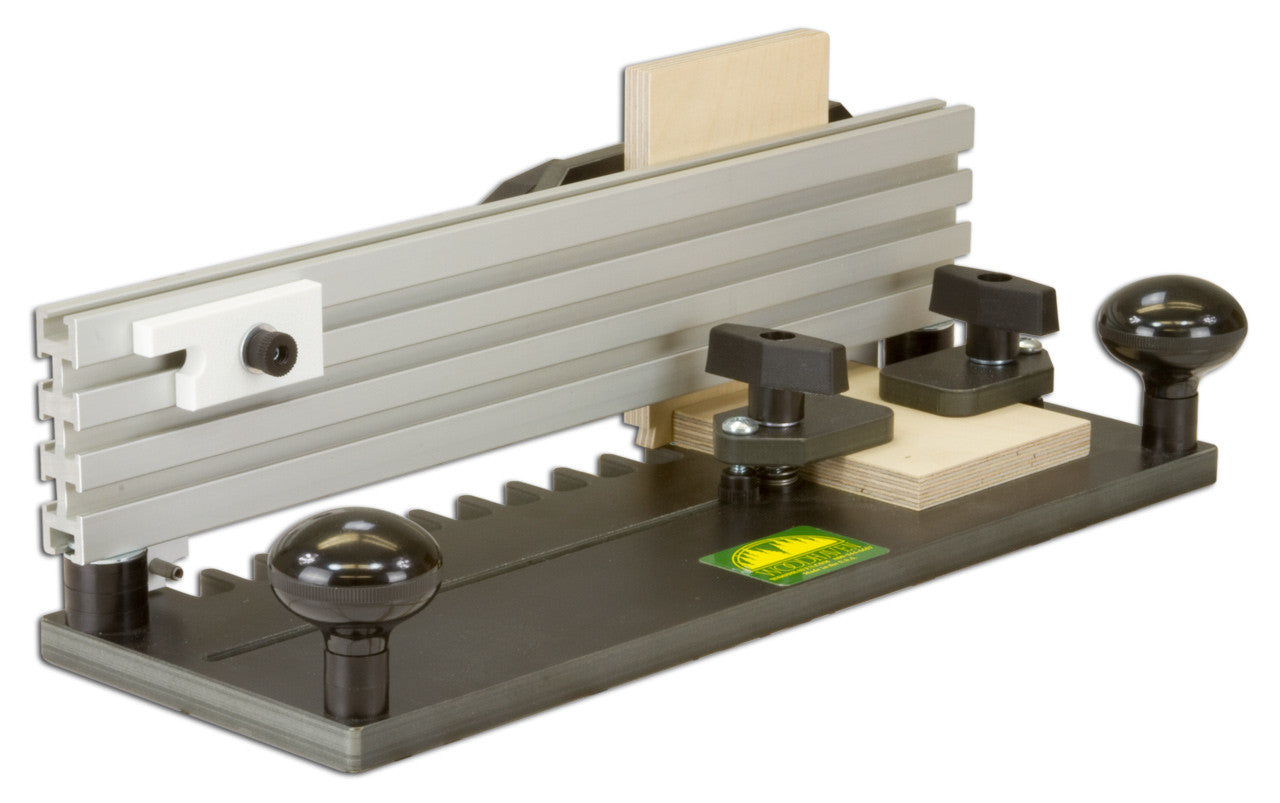

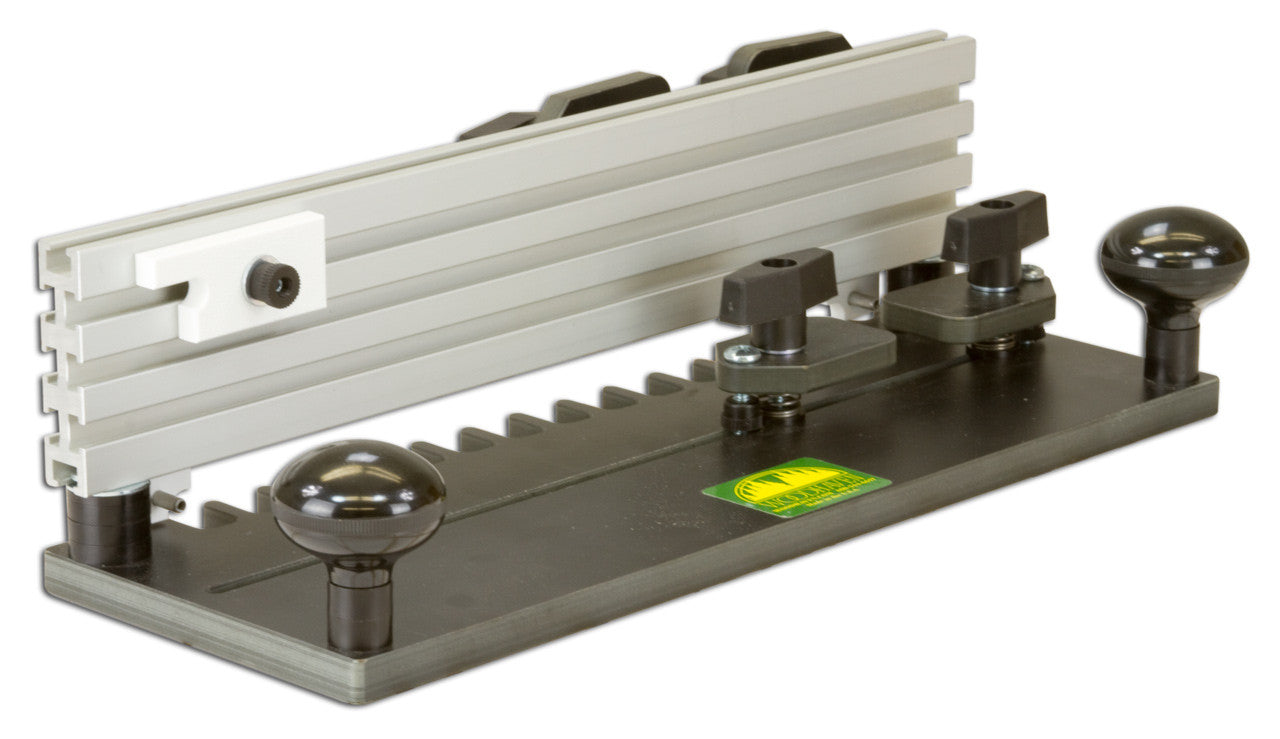

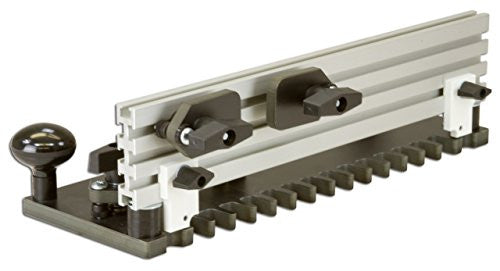

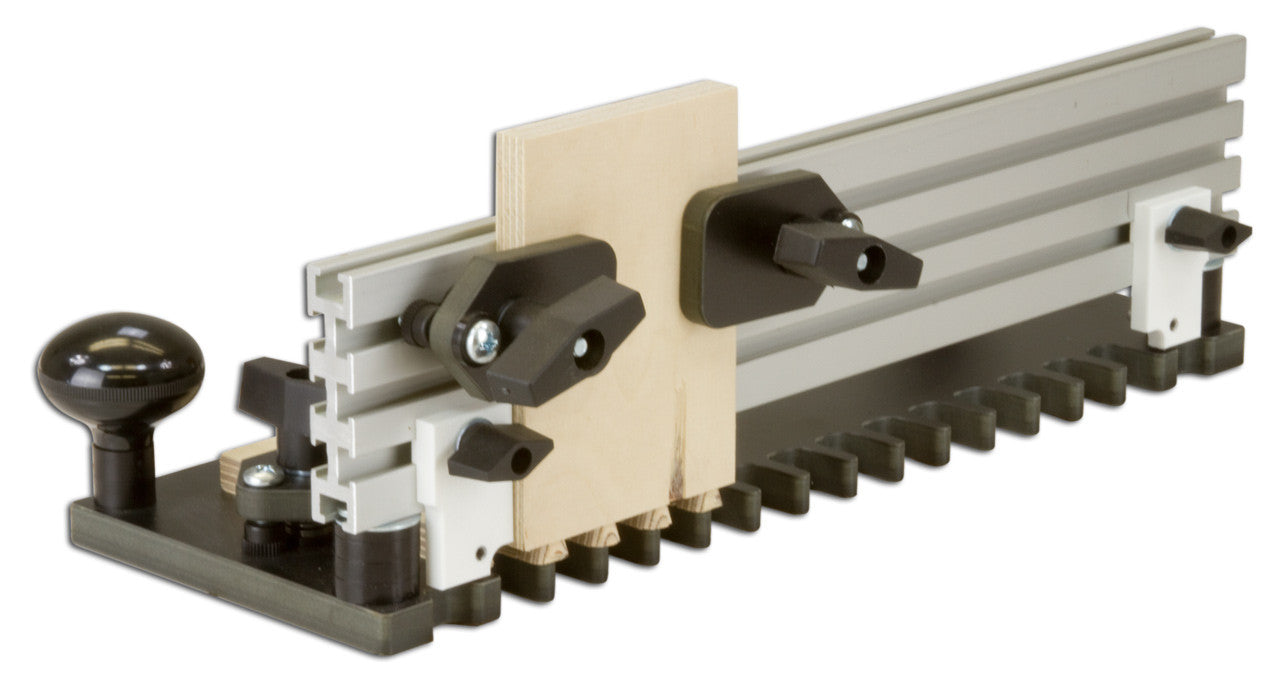

• The Woodhaven Half-Blind Dovetail Jig offers unparalleled stability and control over conventional jigs. With our router table jig there's much less risk of ruining the template or the work. The 7660 cuts half-blind dovetails in stock 1/2 -3/4" thick and up to 11-3/4" wide. Footprint is 6" x 16".
• Ready to use out of the box.
• Includes our 61780 carbide tipped 14 degree bearing guided dovetail router bit with 1/2" cut diameter, 2-3/8" overall length and a 5/8" bearing on its 1/4" shank.
• Half-Blind Dovetail Jig includes a bit height setup gauge.
• Large clamp knobs and our unique sliding clamp pads exert tremendous holding power and adjust quickly.
