800W 12V Complete Solar Panel Kit with 3.6kWh Battery — 3.6kWh Pro Lithium Battery (3*12V 100Ah | Bluetooth | Self-heating Function) / 3000W 12V Pure Sine Wave Inverter
$3,379.99 USD
/
Shipping calculated at checkout.
800W 12V Complete Solar Panel Kit with 3.6kWh Battery — 3.6kWh Pro Lithium Battery (3*12V 100Ah | Bluetooth | Self-heating Function) / 3000W 12V Pure Sine Wave Inverter
$3,379.99 USD
/
Shipping calculated at checkout.
products.product.pickup_availability.unavailable
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Usually ships within 3–5 days and delivers within 10 business days.
● Solar power customized kit
● More energy, even in partially shaded areas
● Consistent, environmentally-friendly power supply
● Multiple options and free combination
● 25-year performance warranty
The Renogy 800W Solar Kit – General Off-Grid Series is the reliable, high-quality energy solution you’ve been looking for. Whether you’re powering a yard, RV, boat, or even a remote cabin, this kit meets your daily power needs of 3.5–4kWh with ease. Imagine the freedom of having dependable, clean energy in off-grid locations, whether it’s for an outdoor adventure, an emergency, or everyday life.
With four 200W rigid solar panels and a 60A MPPT charge controller from the trusted Rover or Rego series, this kit is designed for durability and high performance. Choose from a range of battery options, including smart lithium batteries with a self-heating feature, or opt for a more budget-friendly lithium battery with Bluetooth monitoring. Plus, you can customize your setup with a 3000W pure sine wave inverter or an inverter charger, ensuring you have all the power you need.
Complete with cables, connectors, mounts, and monitoring tools, the Renogy 800W Solar Kit is ready to provide you with a smooth, reliable, and sustainable off-grid energy experience. Whether you’re looking to live off the grid or simply want backup power for emergencies, this kit has you covered.
With Rover 60A MPPT W/ LCD & BT2 Module
With REGO 60A MPPT Built-in Bluetooth
NOTE
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
RV
MARINE
CAMPING
OUTDOOR
CABIN
TRUCK

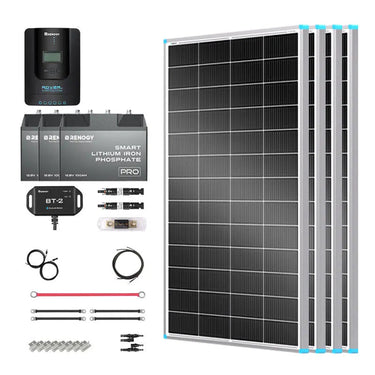

Package Includes
| 200 Watt 16BB N-Type 24V Solar Panel | |
|---|---|
| Max Power at STC: 200W | Open Circuit Voltage: 37.44V |
| Short Circuit Current: 6.85A | Optimum Operating Voltage: 31.03V |
| Optimum Operating Current: 6.45A | Operating Temperature: -40°F~185°F / -40℃~85℃ |
| Maximum System Voltage: 600 VDC UL | Maximum Series Fuse Rating: 15A |
| Dimensions: 1262x764x30mm/49.7x30.1x1.2in | Weight: 10.6kg/23.4lbs |
| Rover 60A MPPT W/ LCD & BT2 Module | |
| Nominal Voltage: 12V/24V/36V/48V Auto Recognition (for non-lithium batteries) | Rated Charge Current: 60A |
| Rated Load Current: 20A | Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V |
| Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C) | Self-Consumption: 0.7W-1.2W |
| Operating Temperature: -31 °F to 113 °F (-35 °C to 45 °C ) | Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in) |
| Weight: 7.9lbs | |
| REGO 60A MPPT Built-in Bluetooth | |
|
Nominal System Voltage: 12 V |
Rated Charge Current: 60A |
|
Max. PV Input Power: 800W |
MPPT Voltage Range: 15 - 100 VDC /12V |
| Solar Input Voltage Range (VOC): 100 V | Max Input Current (short-circuit, Isc): 50A |
| Power Limiting Protection: Up to 800W/12V | Operating Temperature Range: -20 ℃ - 60℃ |
| Dimensions: 9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm | Weight: 5.07 lbs/ 2.30kg |
| 12V 100Ah Pro Lithium Battery w/Bluetooth & Self-heating | |
|---|---|
|
Battery Type: Lithium Iron Phosphate |
Rated Capacity: 100Ah (0.5C, 25℃) |
|
Voltage: 12V |
Voltage Range: 10V to 14.8V |
|
Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL) |
Connection Method: Parallel (Up to 8) |
|
Protection Rating: IP67 |
Maximum Charge Current: 100Ah |
|
Maximum Discharge Current: 100Ah |
Peak Discharge Current: 245A@30s |
| Charge Temperature Range: -4°F to 131°F (-20°C to 55°C) | Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range: -13°F to 149°F (-25°C to 65°C) | Operation Relative Humidity: 10% to 95% |
| Communication Protocol: Bluetooth | Dimensions: 10.6 x 7.6 x 8.1 in (268 x 193 x 205 mm) |
| Weight: 26.9 lbs. (12.2 kg) |
| 12V 100Ah Core Mini Lithium Battery w/ Self-heating Function | |
|---|---|
|
Battery Type: Lithium Iron Phosphate |
Rated Capacity: 100Ah (0.5C, 25℃) |
|
Voltage: 12V |
Cycle Life (0.5C, 77°F/25°C): 5000 Cycles (80% DOD) |
|
Charge Voltage: 14.6V |
Protection Rating: IP65 (Dust-tight & splash-resistant) |
|
Maximum Charge Current: 100A |
Maximum Discharge Current: 100A |
|
Charge Temperature Range: -22°F to 131°F (-30°C to 55°C) – Ideal for safe charging |
Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C) |
| Connection Method: Series & Parallel (up to 4S4P) | Terminal Bolt Size: M8 x 1.25 × 12 mm |
| Dimensions: 9.02 × 5.43 × 8.39 in (229 × 138 × 213 mm) | Weight: 21.38 lbs (9.7 kg) |
| 3000W 12V Pure Sine Wave Inverter | |
|---|---|
|
Continuous Output Power: 3000W |
Peak Power Rating: 6000W |
|
Output Voltage: 120V |
Output Frequency: 60 Hz ± 0.1% |
|
AC Output Sockets: 3 |
AC Terminal Block: 1 |
|
USB Power Port: 5V/2.1A |
Power Output Control: AC On/Off Switch, and Remote Control |
|
Output Waveform: Pure Sine Wave |
Nominal Efficiency: > 90% |
| Operating Temperature Range: -4°F - 104°F | Cooling Fan: Thermally controlled |
| Dimensions: 18.9 x 9.0 x 4.0 in | Weight: 12.5 lb |
| REGO 12V 3000W Pure Sine Wave Inverter Charger w/ LCD Display | |
|---|---|
|
Continuous Output Power: 3000W |
AC Output Voltage Range: 100~120VAC configurable, 5V interval |
|
Surge Power: 9000W |
Nominal Efficiency: > 90% Peak |
|
Output Waveform: Pure Sine Wave |
Output Frequency : 50/60 Hz ± 0.1% |
|
Input Voltage Range: 90-138 VAC |
Input Wave Form: Sine Wave (Utility or Generator) |
|
Operating Temperature: -20-40°C/-4-104°F |
Storage Temperature: -30 ~ 70°C / -22 ~ 158°F |
| Dimensions: 20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm | Weight: 63.5 lbs / 28.8 Kg |
| WARRANTY INFORMATION | |
|---|---|
|
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty |
Accessories: 1-year material and workmanship warranty |
1. What do I need to complete my off-grid solar power system ?
A solar panel has to be connected to a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
2. What does off-grid and on-grid mean ?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
3. Can I add more solar panels to the Rover 60A and expand my system power output?
Yes, more solar panels can be added to this system to increase the power output. The Rover 60A has a maximum PV input current of 60A, maximum PV input voltage of 100VDC, and maximum input solar power of 520W at 12V or 1040W at 24V. You can wire more solar panels in series / in parallel to achieve larger power output, however you are limited by the maximum input voltage and current the charge controller can handle. It is safer to build a system operating at around 90% of the rated voltage and current to ensure there is a tolerance for any system overvoltage or overcurrent.
4. Will this solar kit power my AC unit ?
In order to determine what size solar kit is appropriate, you must first define the total load to be expected of the solar power system. Most manufacturers will publish a specification sheet of the AC unit online and will include a nameplate sticker on the AC body. Both can be used to determine the actual power rating of the AC. BTU is a common measuring unit for energy in AC and water heater products, however we are intrested in the energy rate, or simply power. Power will be listed in units of Watts, and can be used to determine the total load resulting from running the intended AC unit. Multiply the power rating recorded in watts by the total number of hours of operation intended, to obtain the total watt-hours. Divide the total watt-hours by the peak sun hours in the location of installation, and multiply by a safety factor of 1.5-2, to obtain the total number of watts your panels should produce to power the air conditioner load. The total power load can be divided by the power output of one panel to obtain the number of panels needed.
5. When do I need an inverter ?
If you intend to use this solar power kit as a power supply for home appliances (e.g. coffee maker, TV, etc.), then you will need an inverter to convert the output voltage from a 12 VDC system to a 120V AC output socket. Renogy offers a variety of inverter products to suit your unique system and meet your power demand.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
 |
