Anker SOLIX F3800 Plus Portable Power Station + Anker SOLIX BP3800 Expansion Battery + Home Power Panel + Sub Panel

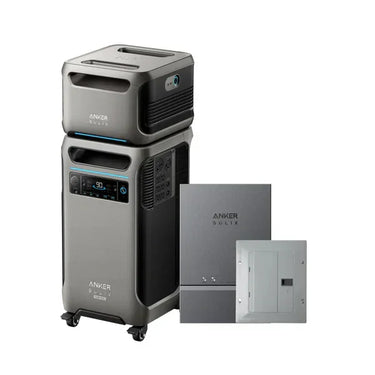

The Anker SOLIX F3800 Plus Power Solution combines the power of the F3800 Plus Portable Power Station, the BP3800 Expansion Battery, and the Home Power Panel + Sub Panel integration kit to deliver a complete whole-home, off-grid, or backup system. With an ultra-high capacity starting at 7.68kWh (expandable up to 26.9kWh), 6000W 120V/240V split-phase output, and seamless home circuit integration, this bundle powers everything from your refrigerator to HVAC systems during outages or off-grid living. Built with long-life LiFePO4 cells, advanced app monitoring, and a quiet, eco-friendly design, it’s your turnkey solution for energy independence and peace of mind.
Anker SOLIX F3800 Plus Portable Power Station + Anker SOLIX BP3800 Expansion Battery + Home Power Panel + Sub Panel Features
Massive Expandable Power - Starts with 7.68kWh capacity (3.84kWh from each unit), and can be expanded up to 26.9kWh by adding more BP3800 batteries. Keep lights, refrigerators, and heavy appliances running for days.
6000W 120V/240V Split-Phase Output - Run large household systems like well pumps, HVAC, and workshop tools with 6000W continuous AC output, supporting both 120V and 240V loads.
Home Power Panel + Sub Panel Integration - Designed for simple connection to your existing electrical system. The sub panel allows selected circuits to draw seamlessly from the F3800, automatically switching during an outage.
Long-Life LiFePO4 Battery Chemistry - Each unit is rated for over 3,000 charge cycles, translating to 10+ years of daily use, with enhanced safety and thermal stability.
Smart App Control & Touch Display - Monitor real-time load, battery health, solar or generator inputs, and more from the intuitive touchscreen or via the Anker app on your phone.
Ultra-Quiet & Emissions-Free - Operates silently with no fumes, so it’s safe indoors. Keeps your home powered without the noise and fuel demands of traditional generators.
Anker SOLIX F3800 Plus Portable Power Station + Anker SOLIX BP3800 Expansion Battery + Home Power Panel + Sub Panel Applications
- Whole-Home Backup – Power essential home circuits including your kitchen, Wi-Fi, sump pump, and even AC units during grid failures.
- Off-Grid Cabins & Tiny Homes – Create a fully independent energy system that runs everything from lights to water heaters.
- Workshops & Job Sites – Use 120V/240V output to run heavy-duty saws, welders, and compressors without grid dependence.
- RV & Mobile Tiny Houses – Power large appliances and climate control on extended road trips.
- Events & Outdoor Installations – Deliver silent power for lighting, audio, and catering equipment at outdoor venues.
- Long-Term Emergency Preparedness – Expand with multiple BP3800s for a sustained power reserve that outperforms typical gas generators.
What's Included
Everything you need is included with your product.
- 1 x Anker SOLIX F3800 Plus Portable Power Station
- 1 x Anker SOLIX BP3800 Expansion Battery
- 1 x Home Power Panel
- 1 x Sub Panel
- 1 x Battery-to-Host Cable
- 1 x AC Charging Cable
- 2 x Solar Charging Cables
- User manual
Warranty
- 5-year warranty
Anker SOLIX F3800 Plus Portable Power Station Specifications
BATTERY
| Specifications | Details |
| Battery Type | LiFePO4 Cell |
| Cell Part Number | 32140FS-15000mAh |
| Charging Cycle | 3000+ (to 80%) |
| Cell Capacity | 51.2Vdc 75Ah/3840Wh |
INPUT
| Specifications | Details |
| AC Input | 120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE |
| AC Input Power (Charging) | 1800W Max |
| AC Input Power (Bypass Mode) | 1440W Max |
| Solar Panel Input 1 | 11-165V - 17A Max (1600W Max Each) |
| Solar Panel Input 2 | 11-165V - 17A Max (1600W Max Each) |
| DC Input Port | 60V Max, 120A Max |
OUTPUT
| Specifications | Details |
| Car Charger Output | 12V - 10A |
| Home Panel Power Port | 6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE |
| AC Output Power (Total) | 6000W Max |
| AC Output 1 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output 2 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output (NEMA L14-30R) | 120V/240V~ 25A Max, 60Hz, 6000W Max |
| USB-A Output | 5V - 2.4A (12W Max Per Port) |
| USB-C Output | 5V - 3A / 9V - 3A / 15V - 3A / 20V - 3A / 20V - 5A (100W Max Per Port) |
UPS
| Specifications | Details |
| UPS | 20ms |
ENVIROMENTAL OPERATION
| Specifications | Details |
| Discharging Temperature | -4°F-104°F / -20°C-40°C |
| Charging Temperature | 32°F-104°F / 0°C-40°C |
DIMENSION
| Specifications | Details |
| Size | 27.6×15.3×15.6 in / 70.2×38.8×39.5 cm |
| Net Weight | 62kg / 136.7lb |
Anker SOLIX BP3800 Expansion Battery Specifications
| Specification | Details |
| Capacity | 51.2Vdc 75Ah / 3840Wh |
| Expansion Battery Port Input | 75A Max |
| Expansion Battery Port Output | 170A Max |
| Discharging Temperature | -4°F - 104°F | -20°C - 40°C |
| Charging Temperature | 32°F - 104°F | 0°C - 40°C |
| Dimensions | 15.5 × 14.0 × 10.3 in | 39.3 × 35.5 × 26.2 cm |
| Net Weight | 33 kg | 72 lb |
Anker SOLIX F3800 Plus Portable Power Station Videos
Frequently-Asked Questions
Can this power my entire house during an outage?
Yes, with the Home Power Panel and sub panel, it can back up multiple essential circuits, including 240V loads. For whole-home applications, especially with AC or pumps, adding more BP3800 batteries extends runtime.
Will the system automatically switch on during a power outage?
Yes. The integrated sub panel automatically shifts your selected circuits to draw from the F3800 Plus when grid power fails, and switches back once power is restored.
Is this system expandable if I want more storage later?
Absolutely. You can connect multiple BP3800 expansion batteries, growing your capacity up to 26.9kWh, which extends runtime significantly.
Does it require professional installation?
For the Home Power Panel + Sub Panel connection to your house circuits, a licensed electrician is recommended to ensure it’s safely tied into your breaker box.
Manual
- Anker SOLIX F3800 Plus Portable Power Station
- Anker SOLIX BP3800 Expansion Battery Manual
- Anker SOLIX Home Power Panel User Guide
