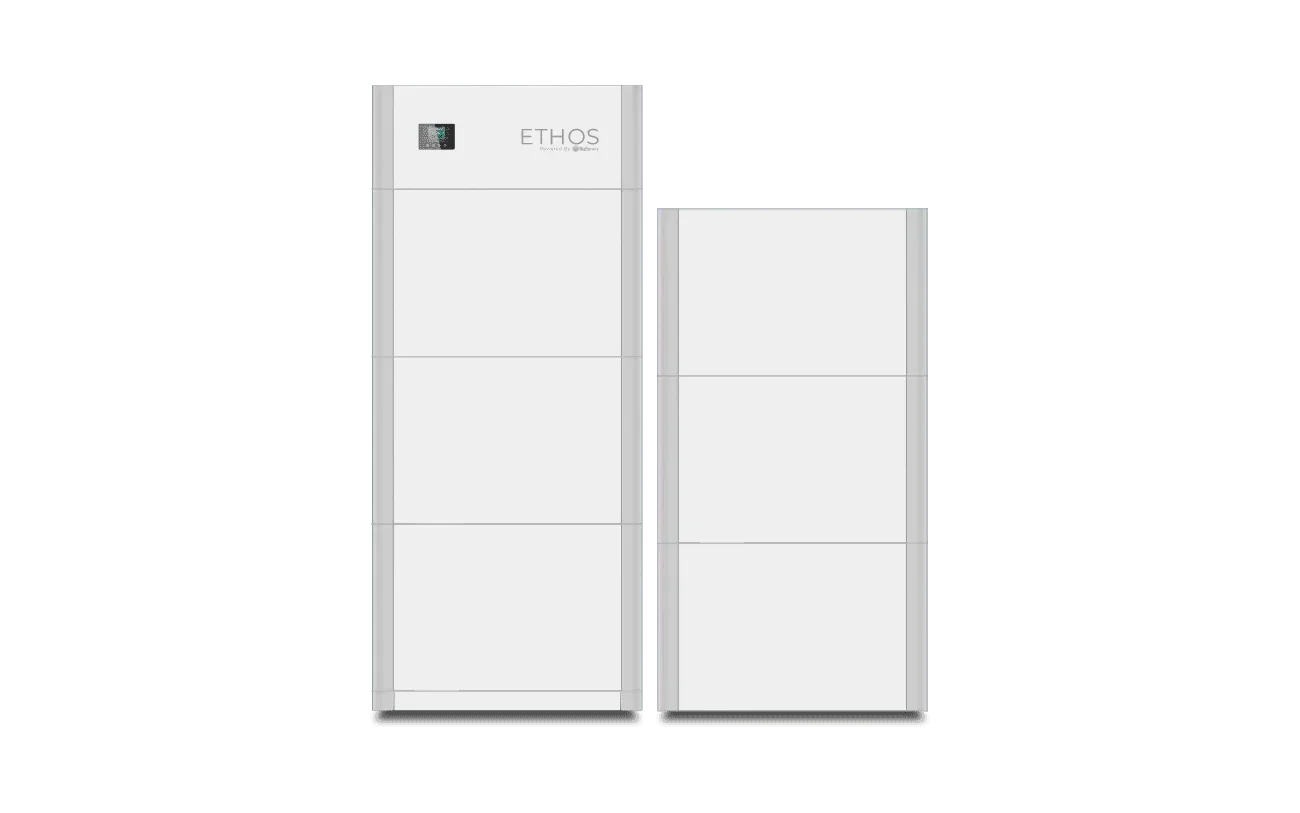

BigBattery ETHOS 30.7KWH (6 Module)
REVOLUTIONIZING RESIDENTIAL ESS! BigBattery’s 48V ETHOS systems are here, and this 30kWh indoor configuration is the ideal solution for grid-tied power in your family home, cabin, or mansion, supported by UL certifications and state-of-the-art features.
The ETHOS System was built to be a versatile home power solution, with a stackable, modular design for easy expandability, and all hardware included to mount your ETHOS to your wall with an effortless installation. The ETHOS comes equipped with an IP65-rated casing, as well as an advanced BMS with auto cell-balancing to ensure long-lasting safety and reliability. Plus, its control box features an interactive LED display, along with CANBus and RS485 communication protocols, so you can always monitor the status and performance of your power.
But that’s not all. We pair our ETHOS with a cutting-edge 12000W Lux inverter, which features its own LCD touch screen display, 3 MPPT inputs, an integrated UPS module for seamless on and off-grid switching, and the ability to handle PV arrays of up to 18000W. Plus, through its smart load control, AC coupling abilities, and peak shaving function, you can meet your power needs and protect your home against unstable grids or rolling blackouts, while seeing huge savings each month on your electric bill.
Whether you’re looking to ensure emergency backup power is always available, or you’re looking to outfit your home with a powerful solar system, the ETHOS ensures reliable, efficient power delivery day in and day out, allowing you to save on utilities, or get rewarded for giving back to the grid through net metering programs and other tax incentives. Take control of your home’s power and shop the 48V ETHOS today!
Designed For 48V Applications
Product Specifications
BigBattery ETHOS 30.7KWH (6 Module) Product Specifications
| System Voltage: | 48V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 15.36kWh |
| Ah Capacity: | 300Ah |
| Charging Voltage Range: | 55.6 - 57V |
| Max Charge Voltage: | 57V |
| Operating Voltage Range: | 48 – 57V |
| Suggested Low Voltage Cutoff: | 48 – 50.8V |
| BMS Cutoff Range: | 42 - 47V |
| Cell Configuration: | 16S 3P |
| Max Continuous Discharge Current: | 200A |
| Max Continuous Power: | 10240W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 200A |
| Charge Temperature Range: | 32°F - 113°F (0°C - 45°C) |
| Discharge Temperature Range: | -4°F - 140°F (-20°C - 60°C) |
| Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range (SoC >50%): | -4°F - 113°F (-20°C - 45°C) (Max 6 months) |
| Weight: | 387 lb (175.5 kg) |
| Depth: | 6.7 in (170 mm) |
| Width: | 26.5 in (674 mm) |
| Height: | 59.8 in (1520 mm) |
| Max Connections: | Up to (16) parallel connections per control box |
| Protection Rating: | IP65 |
| Communications: | CANBus / RS485 |
| Certifications: | UL9540, UL9540a, UL1973, UN38.3, & CE |
Kit Included

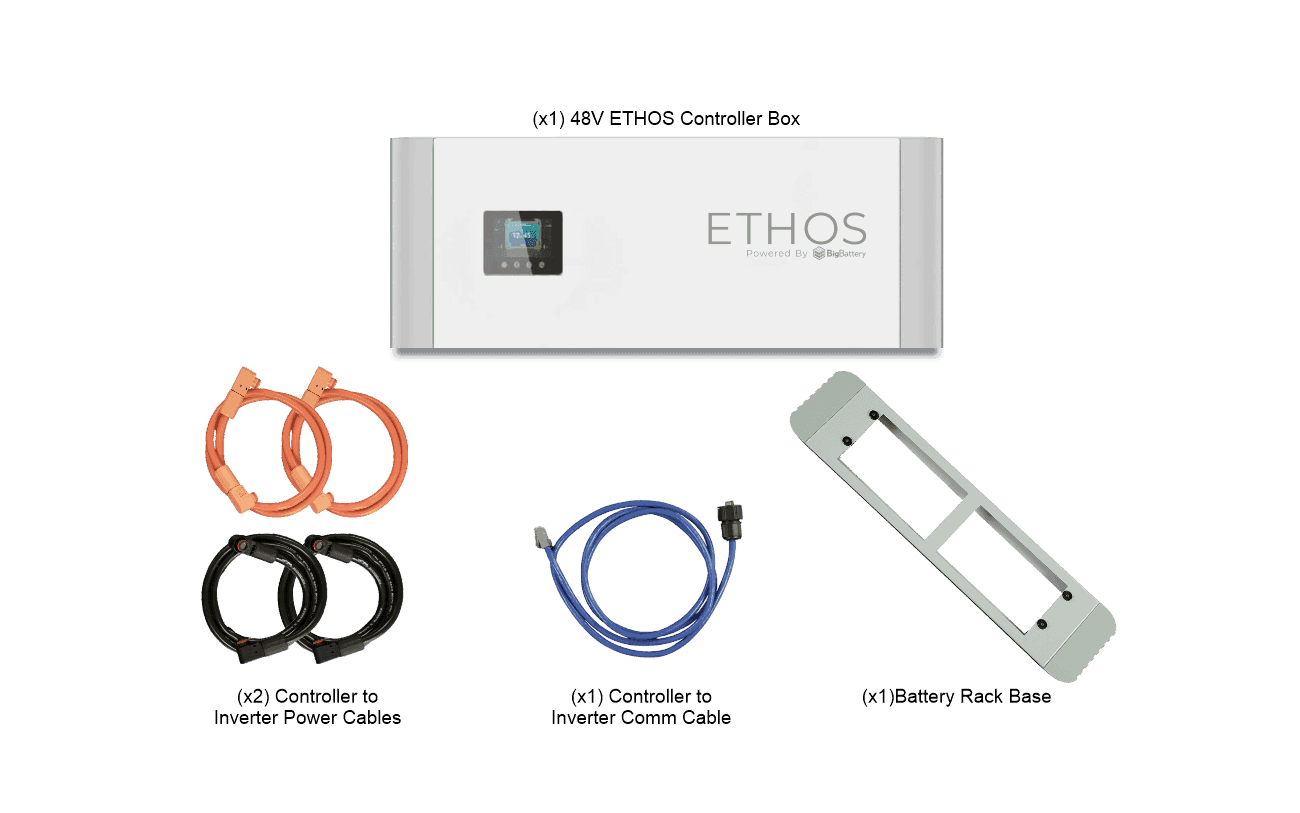

- 1 × ETHOS Control Box
- 6 × 51.2V100Ah, ETHOS 5.12Kwh, Stackable Type
- 1 × ETHOS RACK BASE
- 1 × Ethos Parallel Comm Cable 4.9 ft (1500mm)
- 2 × Ethos Parallel Power Cable 4.9 ft (1500mm)
Product Manual
| Spec Sheet Download: | Click Here |
| Safety Data Sheet Download: | Click Here |
