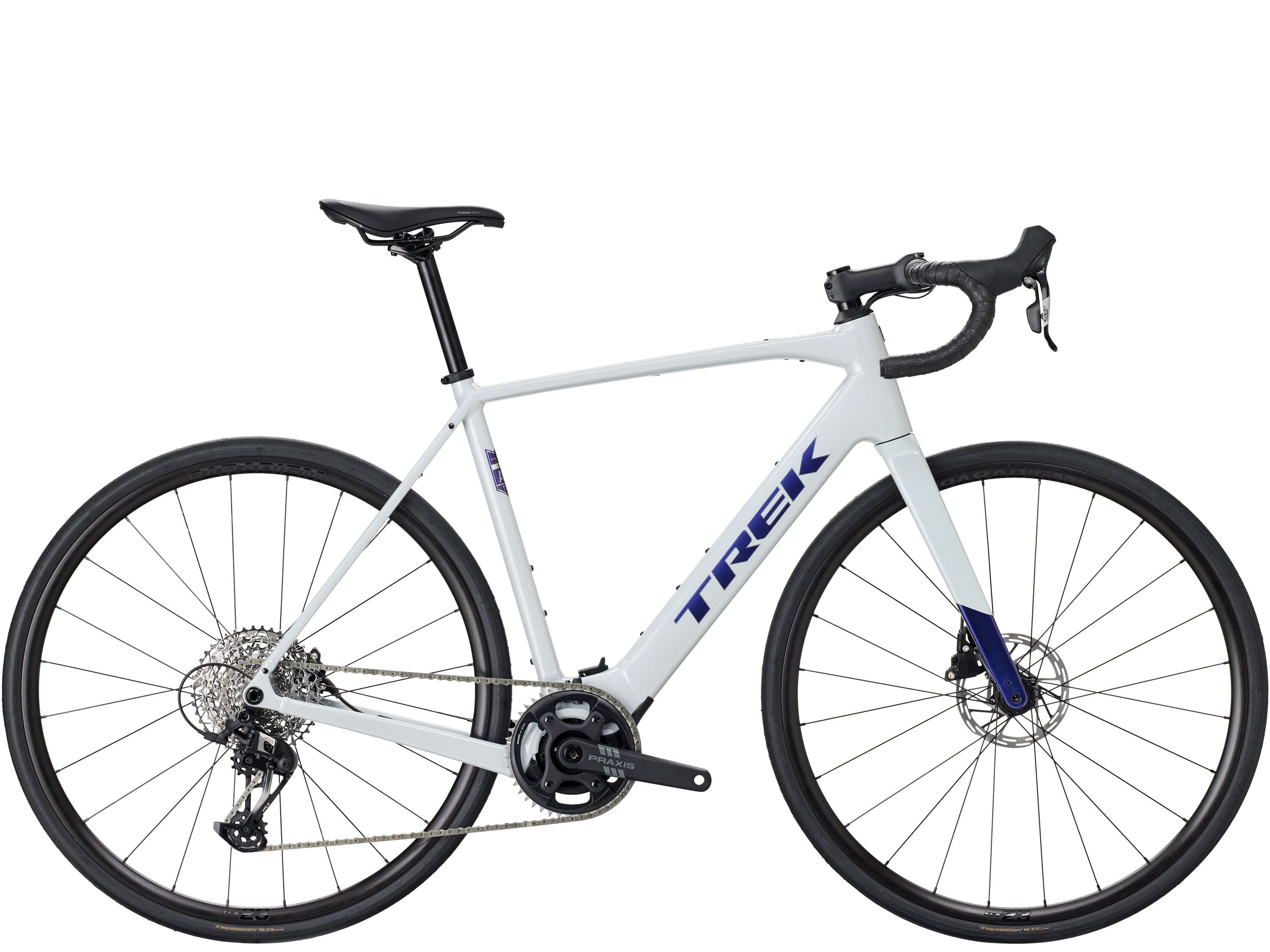

Domane+ ALR 5 US L Plasma Grey Pearl
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Usually ships within 3–5 days and delivers within 10 business days.
Domane+ ALR 5 is an aluminum electric road bike with a smooth, quiet, and natural-feeling boost. Its TQ HPR60 motor gives you plenty of support for long rides and big climbs, and pairs with a SRAM Apex 12-speed drivetrain for clean, consistent shifts.
Light and mighty e-system
The industry-leading TQ HPR60 motor is ultra-compact, whisper-quiet, and offers a natural-feeling assist up to 28 mph with three assist mode options.
Double your distance with a Range Extender
Explore even farther with an optional 160Wh Range Extender that fits in your bottle cage and gives you an extended total range of around 120 miles in Eco mode.
Comfortable Road Endurance geometry
Domane+ features a stable Road Endurance geometry that's a bit more upright to keep you fast and comfortable on all-day adventures.
All-road tire clearance
Room for up to 40mm tires (as measured) lets you venture from pavement to light gravel in comfort and confidence.
Lower-impact aluminum
Domane+ ALR features a durable and economical aluminum frame made with lower-emission aluminum.
Pack it up, pack it in
Mounts for a triangle bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.
| Frame | 300 Series Alpha Aluminum, TQ drive system, hidden fender mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat mount disc, integrated chainkeeper, UDH, 142x12mm chamfered thru axle |
| Fork | Domane+ carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle |
| Tire | Bontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32mm |
| Hub Front | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
| Hub Rear | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
| Rim | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve |
| Spokes | 14g stainless steel, black |
| Skewer Front | Bontrager Switch chamfered thru axle |
| Skewer Rear | Bontrager Switch chamfered thru axle, removable lever |
| Shifter | SRAM Apex, 12 speed |
| Rear Derailleur | SRAM Apex XPLR, 44T max cog |
| Crank | Praxis Alloy, 172.5mm length |
| Cassette | SRAM XPLR PG-1231, 11-44, 12 speed |
| Chain | SRAM Apex, 12 speed |
| Brake | SRAM Apex D1 hydraulic disc, flat mount // SRAM Apex D1 hydraulic disc, flat mount |
| Brake Lever | SRAM Apex, 12 speed |
| Brake Rotor | SRAM Paceline, rounded, centerlock, 160mm |
| Saddle | Verse Short Comp, steel rails, 145mm width |
| Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
| Handlebar | Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width |
| Stem | Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length |
| Battery | TQ 360Wh |
| Controller | TQ color LED display with Bluetooth & ANT+ connectivity |
| Motor | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power |
| Charger | TQ 4A charger TQ 4A charger |
Geometry Chart
| B B Drop | 7.8 |
| Chainstay Length | 43 |
| Eff Top Tube | 56.4 |
| Frame Reach | 38 |
| Frame Size Letter | L |
| Frame Stack | 61.8 |
| Head Angle | 72.0° |
| Head Tube Length | 20.2 |
| Offset | 4.8 |
| Seat Tube | 55.3 |
| Seat Tube Angle | 73.3° |
| Standover | 82.6 |
| Trail | 6.5 |
| Wheelbase | 102.9 |
| Wheel Size | 700c |
