EG4 OffGrid Power Kit | 6kW 120/240V Output 48VDC - 16kWh System Bundle | 1 x EG4 6000XP Inverter + 1 x EG4 WallMount 314Ah All Weather Battery

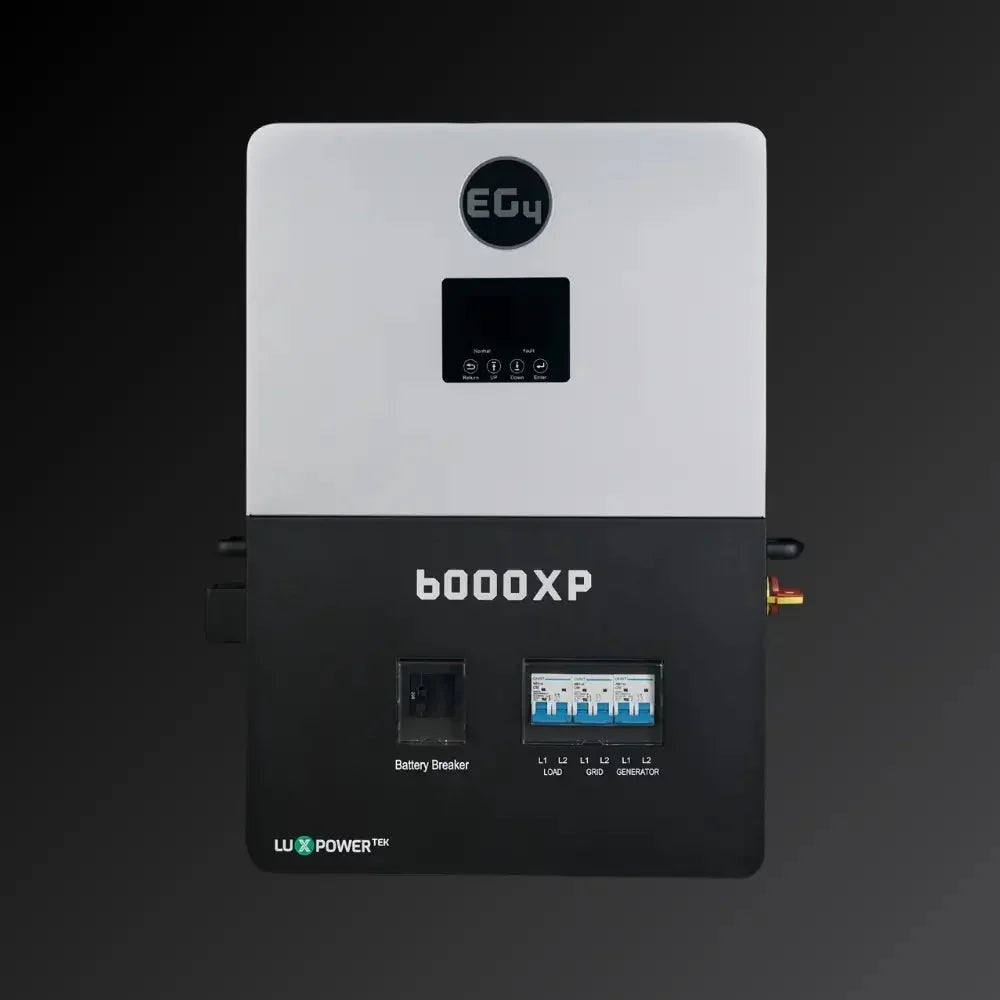

The EG4 6000XP is a cutting-edge 48V split-phase, off-grid inverter and charger, designed to revolutionize your energy needs. With an impressive 8kW of PV input capacity and an efficient 6kW continuous power output, it also serves as a battery 140A charger. What sets it apart is its scalability - you can parallel up to 16 units for an impressive 96kWs of output power while controlling multiple stations and units seamlessly using our advanced EG4 monitoring software.
Introducing the WallMount 314Ah Batteries! EG4 is proud to announce the next generation of our WallMount batteries with our 314Ah Indoor and All Weather versions! On top of the capacity improvements over our previous batteries, the WallMount 314Ahs have newly developed B The WallMount 314Ah batteries are compatible with the 280Ah form factor, so they will slot into exisiting systems easily. They pair well with the FlexBOSS21 and 18kPV when looking for whole home ESS solutions.
EG4 is proud to announce the next generation of our WallMount batteries with our 314Ah Indoor and All Weather versions! On top of the capacity improvements over our previous batteries, the WallMount 314Ahs have newly developed B
The WallMount 314Ah batteries are compatible with the 280Ah form factor, so they will slot into existing systems easily. They pair well with the FlexBOSS21 and 18kPV when looking for whole home ESS solutions.

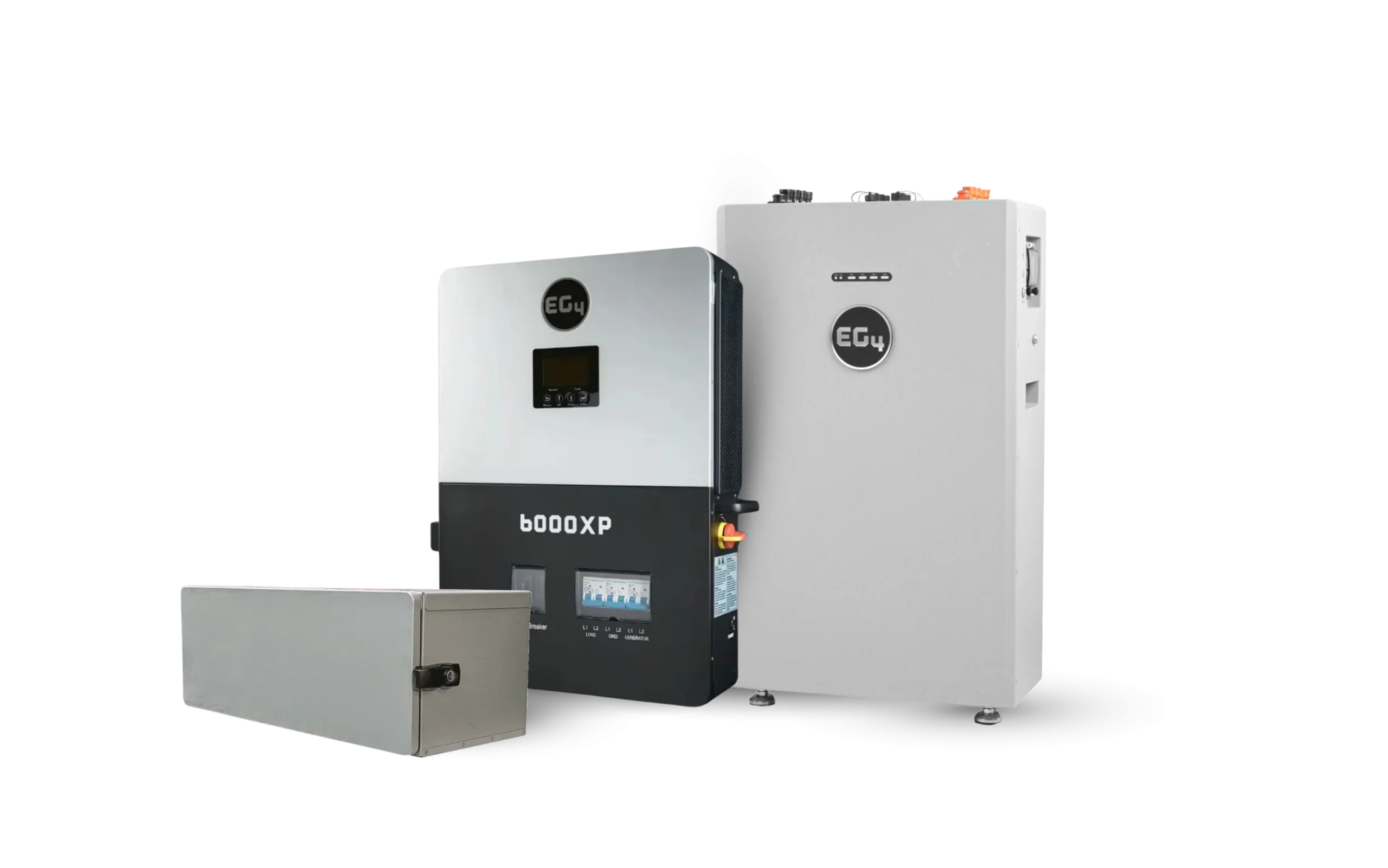

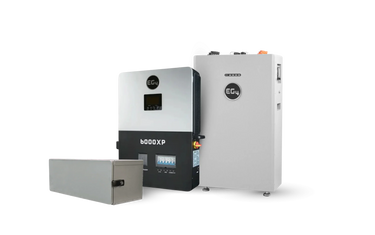

What's Included
1 x EG4 6000XP Inverter
1 x EG4 All Weather 314Wh WallMount Battery

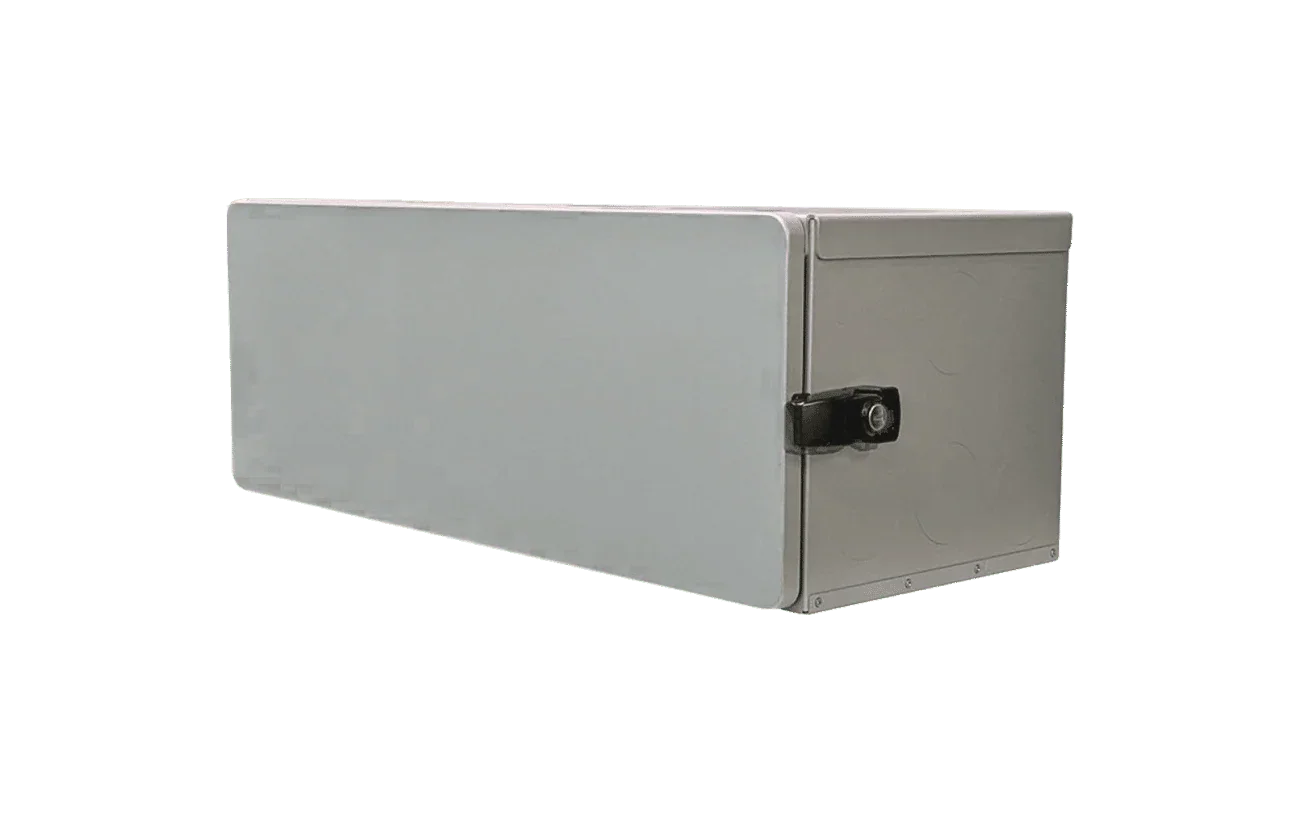

1 x EG4 All Weather Conduit Box
Product Specifications
EG4 6000XP Product Specifications
DC Input Voltage Range: 100-480 VDC
Number of MPPTs: 2
MPPT Efficiency: 99%
Dimensions: 18×25.5×5.25 in (45.7×64.8×13.2cm)
Weight: 52.9 lbs. (24kg)
Parallel: Up to 16 units for a max of 96kWs of continuous AC power.
EG4 WallMount All Weather Battery Tech Specs
- Nominal Voltage: 51.2V
- Energy Capacity: 16kWh
- Charge Capacity: 314Ah
- Parallel Support: Up to 32 batteries (closed-loop)
- Certifications: UL 1973, UL 9540 W/ Flexboss21 & Flexboss18
- Design Life: Tested for over 10,000 cycles at 80% DoD
- Dimensions: 34.6" × 21.7" × 9.3"
- Weight: 309 lbs
Product Manual
EG4 WallMount All-Weather 314Ah Battery User Manual
EG4 6000XP Inverter User Manual
Product Warranty
EG4 Product Warranty
EG4 Electronics offers a 10-year Full Parts Replacement or Full Product Replacement Prorated Warranty from the date of battery (EG4 WallMount Indoor 100Ah*1) purchase.
Your warranty must be registered within the first year of purchase or provide proof of purchase from an EG4 authorized distributor to remain valid. If you choose not to register or cannot provide proof of purchase, your warranty may be invalidated.
This limited warranty is to the original purchaser of the product and is one time transferable only if the product remains installed in the original installation location. All parts exchanges, including BMS, are covered during the warranty period. If a full replacement warranty is needed, the warranty is prorated 1/10th per year after the first year at the current retail pricing. Replacement shipping charges may incur on a case-by-case basis. Outside of the continental US, replacement shipping charges may apply.
Product that is not purchased through an EG4 approved vendor is not covered under this warranty. A list of approved vendors can be found on our website. Reselling or removing the product from the original installation site will void the warranty.
Warranty Exclusions – EG4 Electronics has no obligation under this limited warranty for products subjected to the following conditions (including but not limited to):
-
Damages incurred during installation/reinstallation or removal
-
Poor workmanship performed by an individual, installer, or a firm
-
Damages caused by mishandling the product or inappropriate environmental exposure
-
Damages caused by improper maintenance or operating outside the specified operating conditions
-
Tampering, altering, and/or disassembly of the product
-
Using product in applications other than what the manufacturer intended
-
Lightning, fire, flood, earthquake, terrorism, riots, or acts of God
-
Any product with a serial number that has been altered, defaced, or removed
-
Any unauthorized firmware updates/upgrades/patches
-
Failure to update with the most recent firmware version, when known defects/issues are corrected
-
Damages incurred from a voltage or current spikes due to open-loop lithium battery communications
EG4 product warranty is a limited warranty – EG4 limits its liability in the event of a product defect to repair or replacement in accordance with the terms of this limited warranty. EG4 is not responsible for any additional or indirect damages that may arise from the malfunctioning of the product. These damages could be incidental or consequential, including without limitation, any liability for the loss of revenue, profits, or time. EG4 shall not be liable for any direct or indirect loss of life, including but not limited to bodily injury, illness, or death arising from the misuse or mishandling of the product, whether caused by negligence or otherwise.
EG4 recommends operating its batteries under the conditions listed in our white paper “SoH, DoD and Round-trip Efficiency Explained” to maintain longer and more efficient battery life.
