Katool KT-4H150 15,000 lb Heavy-Duty 4-Post Alignment Lift with Rolling Jack
Katool KT-4H150 15,000 lb Heavy-Duty 4-Post Alignment Lift with Rolling Jack
products.product.pickup_availability.unavailable
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Usually ships within 3–5 days and delivers within 10 business days.
The Katool KT-4H150 Heavy Duty 4-Post Alignment Lift is a professional-grade vehicle lift engineered for automotive shops, heavy-duty service facilities, and serious home garages requiring high capacity, safety, and versatility. Designed to handle trucks, vans, SUVs, and heavy work vehicles with ease, this lift combines rugged construction with advanced safety features and flexible installation options. Built to support demanding workloads and reliable daily use, the KT-4H150 enhances your workflow for alignment, maintenance, storage, and undercar service jobs.
Key Features
High Lifting Capacity
Capable of lifting up to 15,000 lbs (≈ 6,803 kg), the KT-4H150 accommodates a wide range of vehicles from heavy trucks to commercial vans.
CE Certified Safety
Engineered and tested to 115 % dynamic load and 150 % static load standards, this lift meets rigorous safety performance requirements.

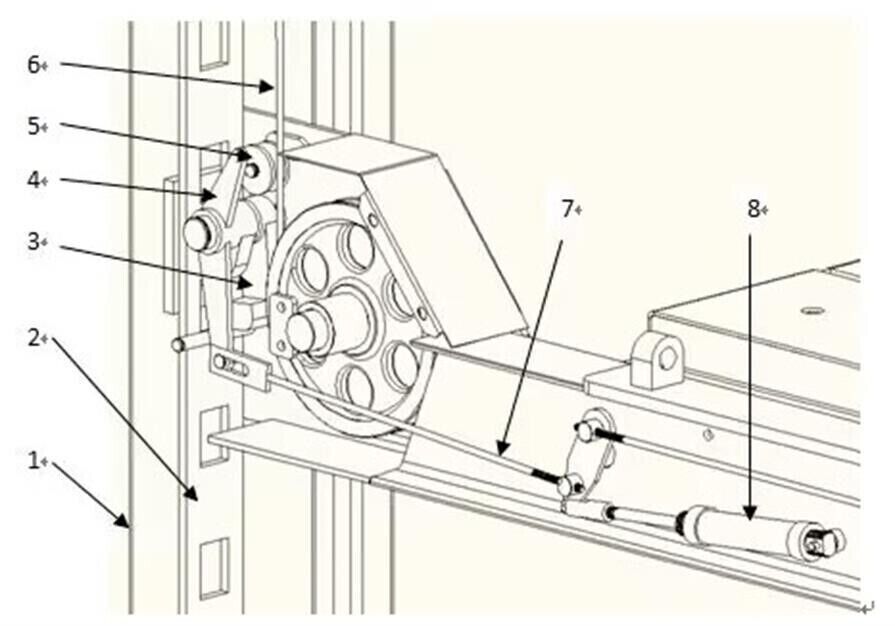

Reliable Safety Locking System
Equipped with mechanical safety locks on all four posts, including primary and secondary locking mechanisms, and a single-point manual safety lock release for secure positioning and controlled descent.

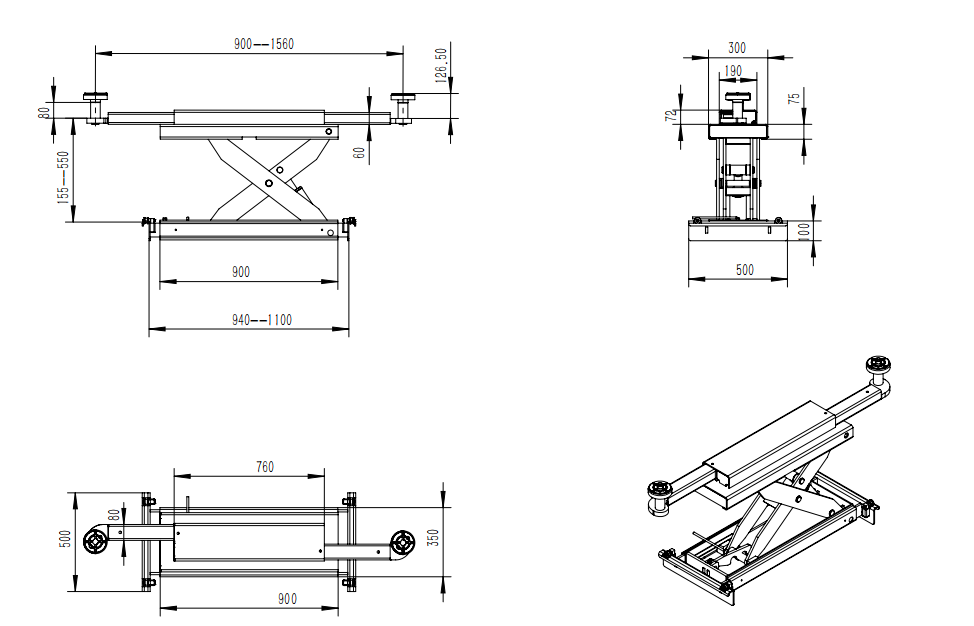

Rolling Jack Included
Includes a 6,000 lb rolling jack for additional undercarriage access and wheel service without removing the vehicle from the lift.
Flexible Installation
The power-side column can be installed on either side, front, or rear to optimize shop layout and workflow.
Non-Skid Platforms
Diamond-plate runways provide secure traction during vehicle approach and lifting operations.
Turntable-Ready
Compatible with optional alignment turntables for full wheel alignment capabilities (sold separately).

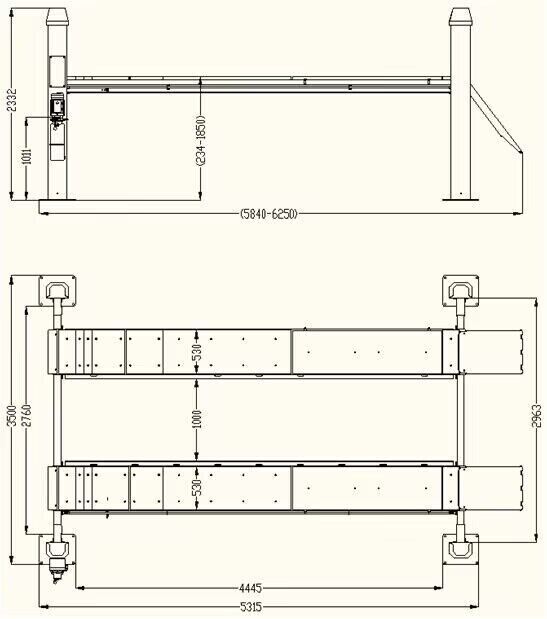

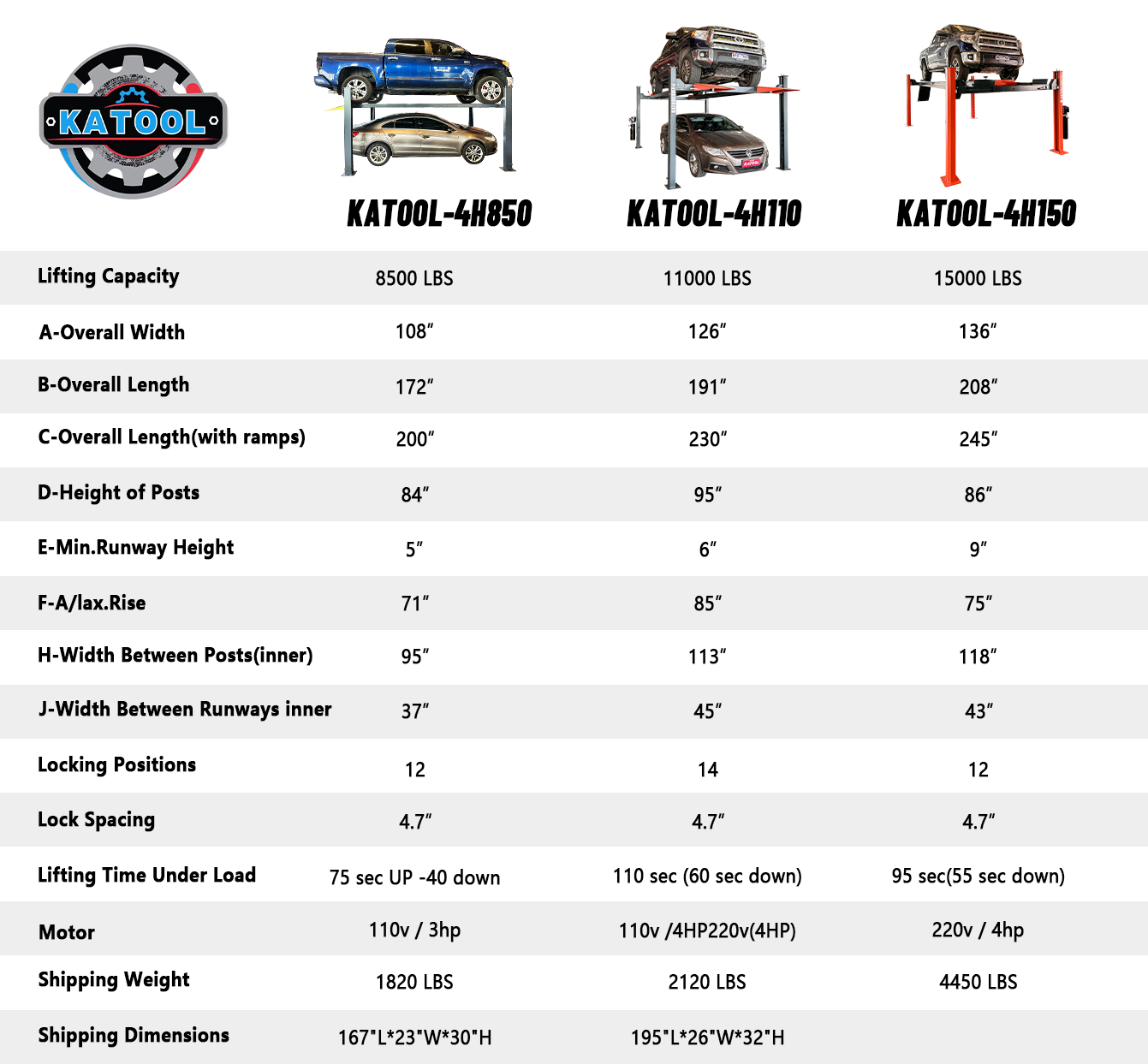

| Specification | Value |
|---|---|
| Model | KT-4H150 |
| Lifting Capacity | 15,000 lbs (≈ 6,803 kg) |
| Max Lifting Height | Approx. 76” |
| Lifting Time (Up) | Approx. 60 s |
| Lowering Time (Down) | Approx. 55 s |
| Post Height | Approx. 92″ (2175 mm) |
| Overall Width | Approx. 136.06″ (3456 mm) |
| Overall Length (with ramps) | Approx. 245.31″ (6231 mm) |
| Width Between Columns | Approx. 118.11″ (3000 mm) |
| Min Runway Height | Approx. 9.3″ (236 mm) |
| Motor / Power | 3 kW, 220 V/60 Hz/1 PH (110 V optional) |
| Rolling Jack Capacity | 6,000 lbs (≈ 2,721 kg) |
| Net Weight | Approx. 4,850 lbs (2,200 kg) |
| Safety Certification | CE Certified (115 % dynamic, 150 % static) |
Use Cases
-
Alignment and suspension service
-
Brake and wheel work with rolling jack support
-
Heavy truck and commercial vehicle maintenance
-
Long-term vehicle storage
-
Undercar inspections and repairs
Why This Lift Stands Out
The Katool KT-4H150 delivers a balanced combination of heavy lifting capacity, robust safety features, versatile installation options, and added functionality with the included rolling jack, making it a reliable anchor piece of equipment for professional service facilities. Its strong construction and CE certification ensure dependable performance and peace of mind for technicians tackling heavier vehicles or alignment tasks.
| Brand | KATOOL |
| Category | Vehicle Lifts |
| SKU | KATOOL-8014919303404-46839231676652 |
| Weight | 2018.49 kg (4450.0 lbs) |
