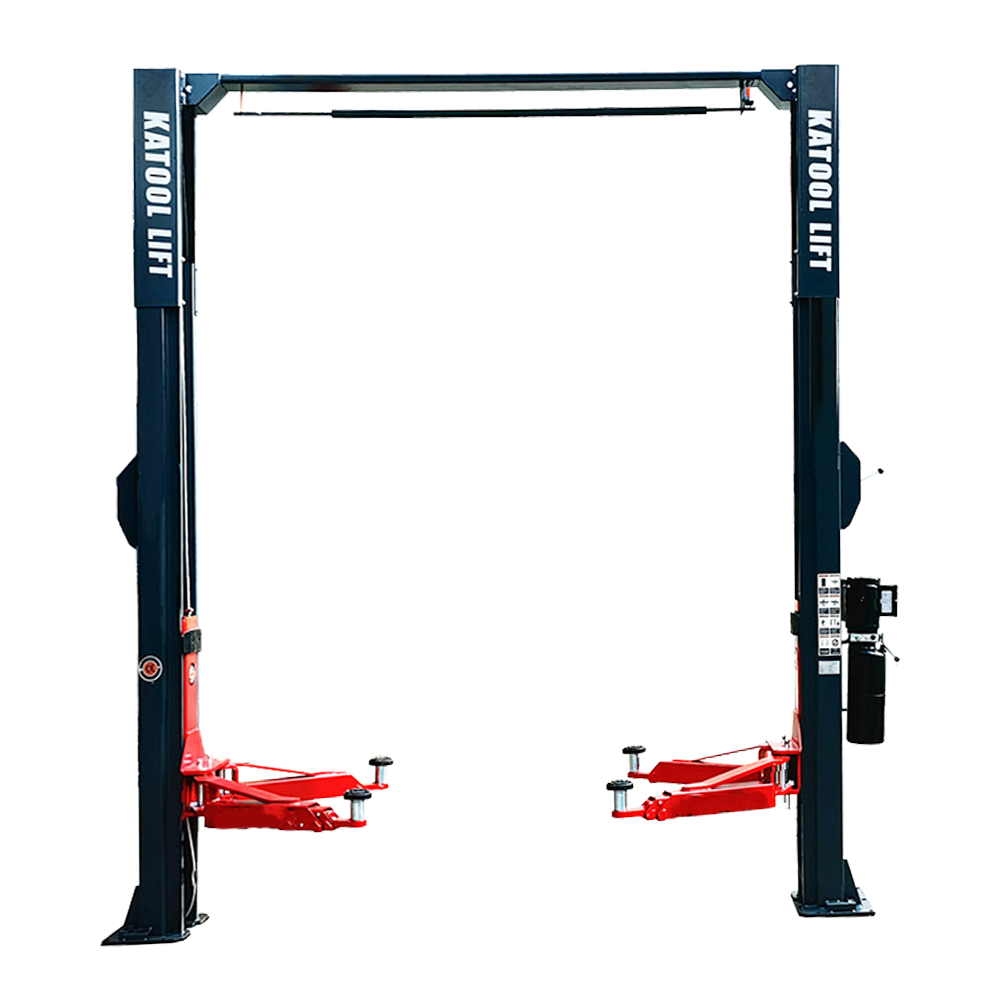

KT-AS110D 11000lbs Two Post Asymmetrical Vehicle Lift
*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

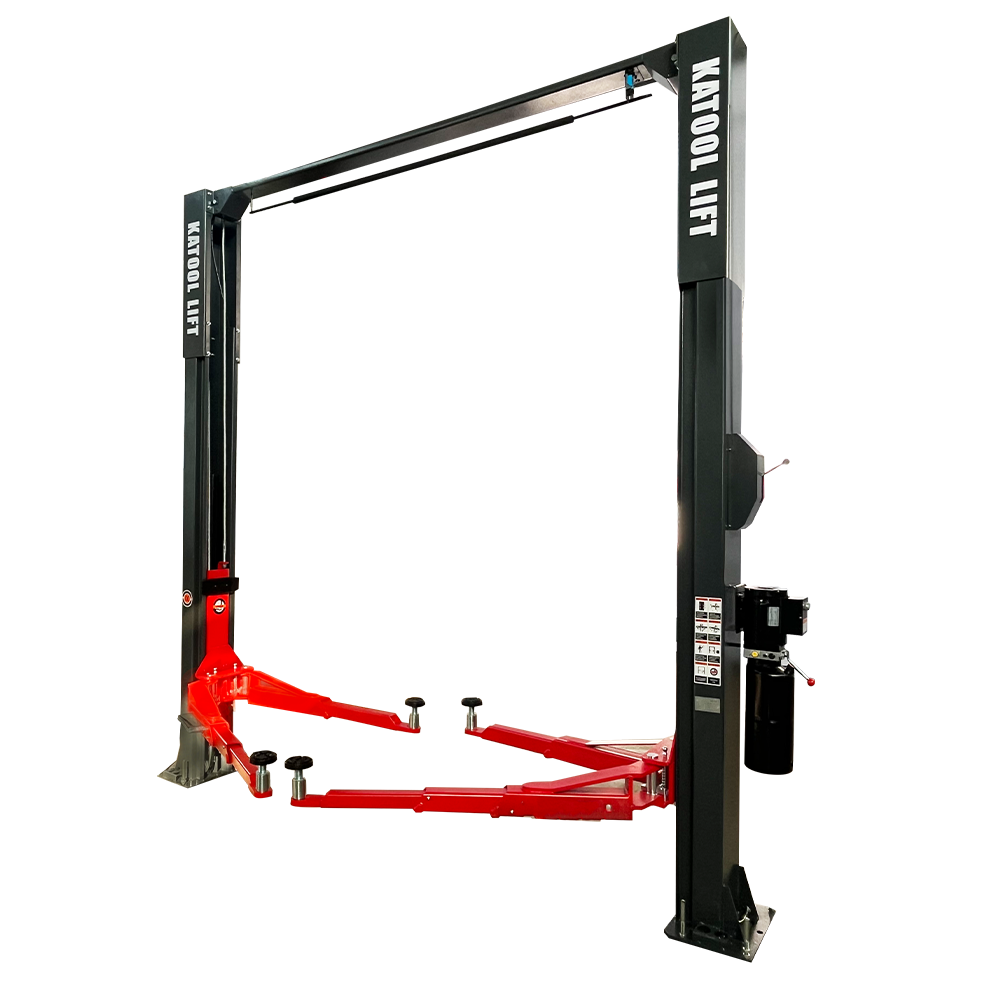

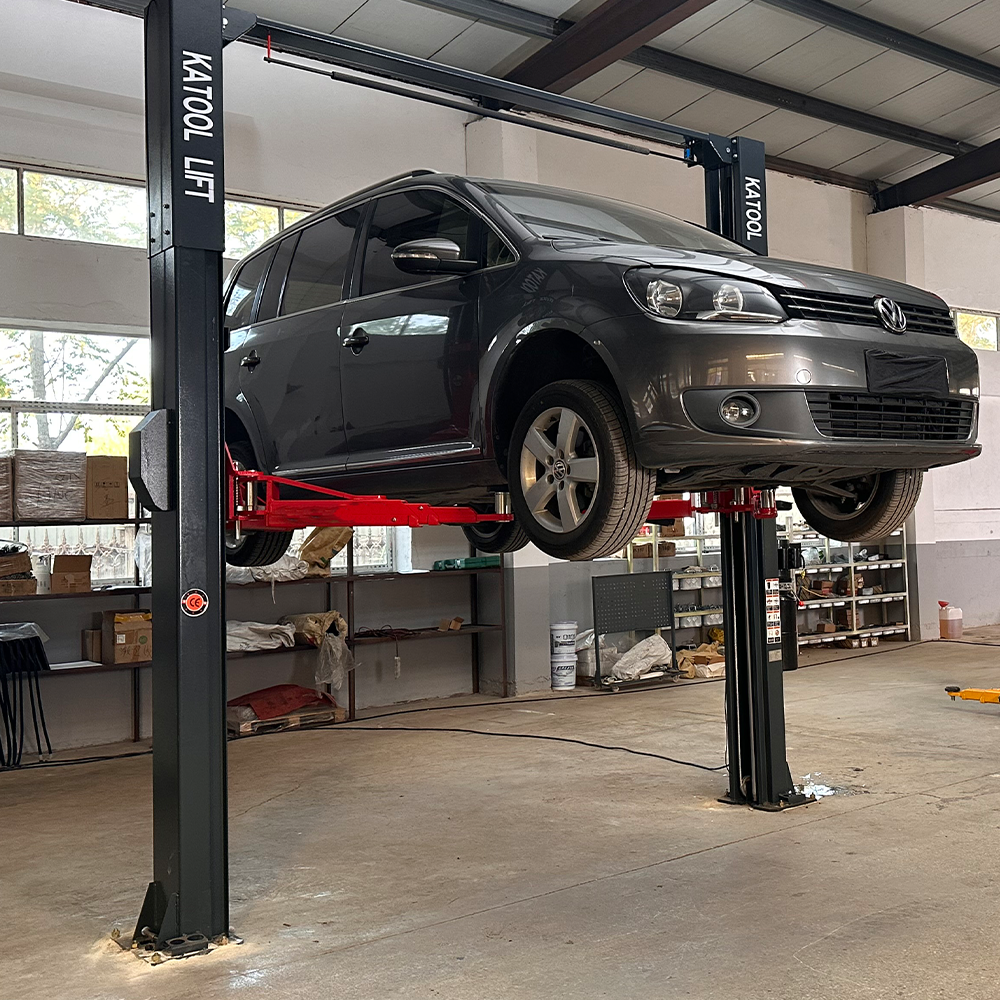

The KT-AS110D Asymmetrical Two-Post Vehicle Lift is engineered for heavy-duty lifting performance, professional reliability, and enhanced vehicle access. With an 11,000 lb lifting capacity, this lift is ideal for servicing passenger vehicles, SUVs, and light-duty trucks in commercial automotive shops and serious home garages.
Designed with asymmetrical lifting arms, the KT-AS110D provides improved door clearance and easier access to vehicle interiors while maintaining excellent balance and stability during lifting operations.
Featuring direct drive cylinders, a single-point lock release system, and an overhead safety shutoff bar, this lift combines smooth operation with advanced safety features for dependable day-to-day use.
Key Features
- 11,000 lb (4,990 kg) lifting capacity
- CE Approved and Certified
- Tested to 115% dynamic loading capacity and 150% static loading capacity standards

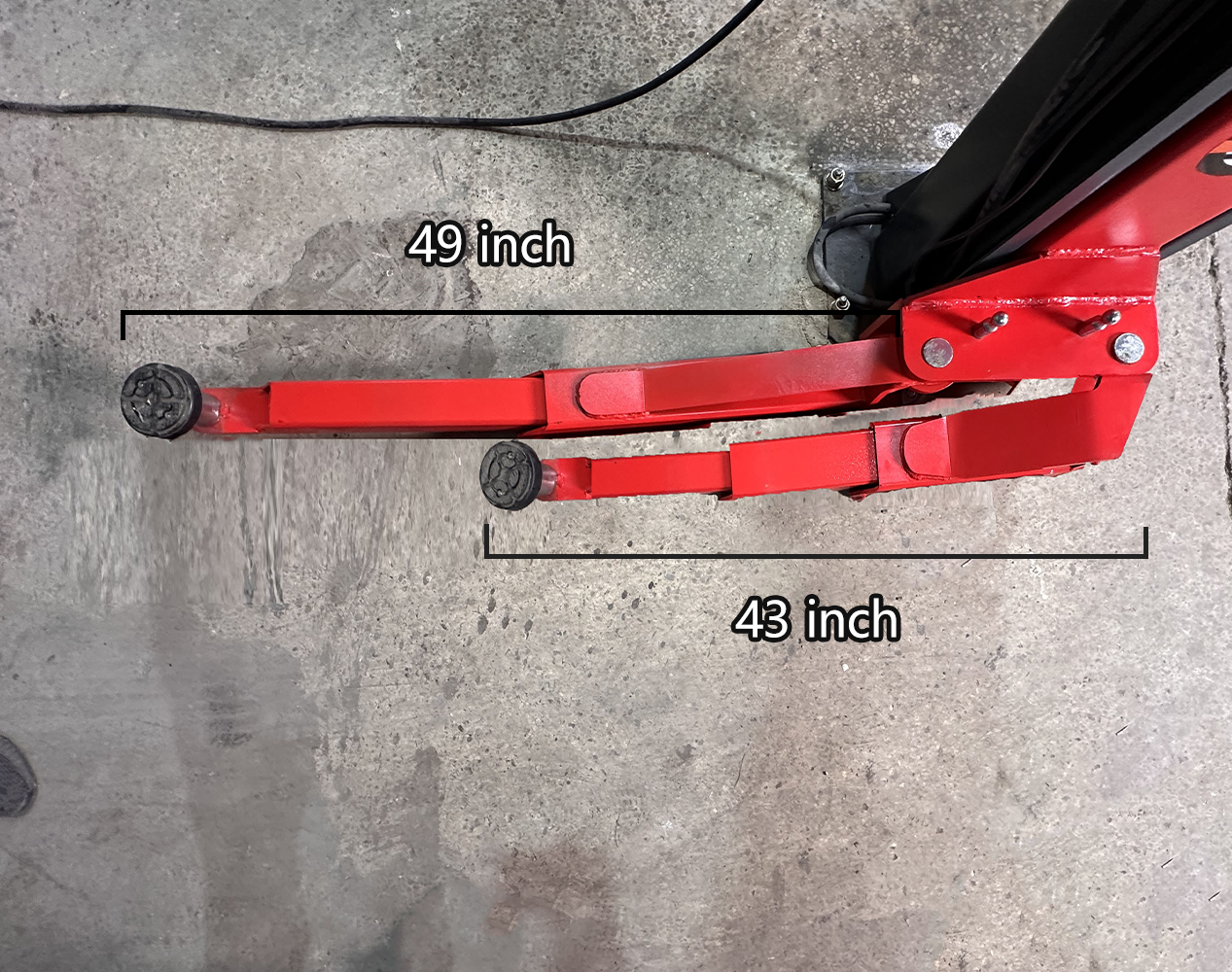

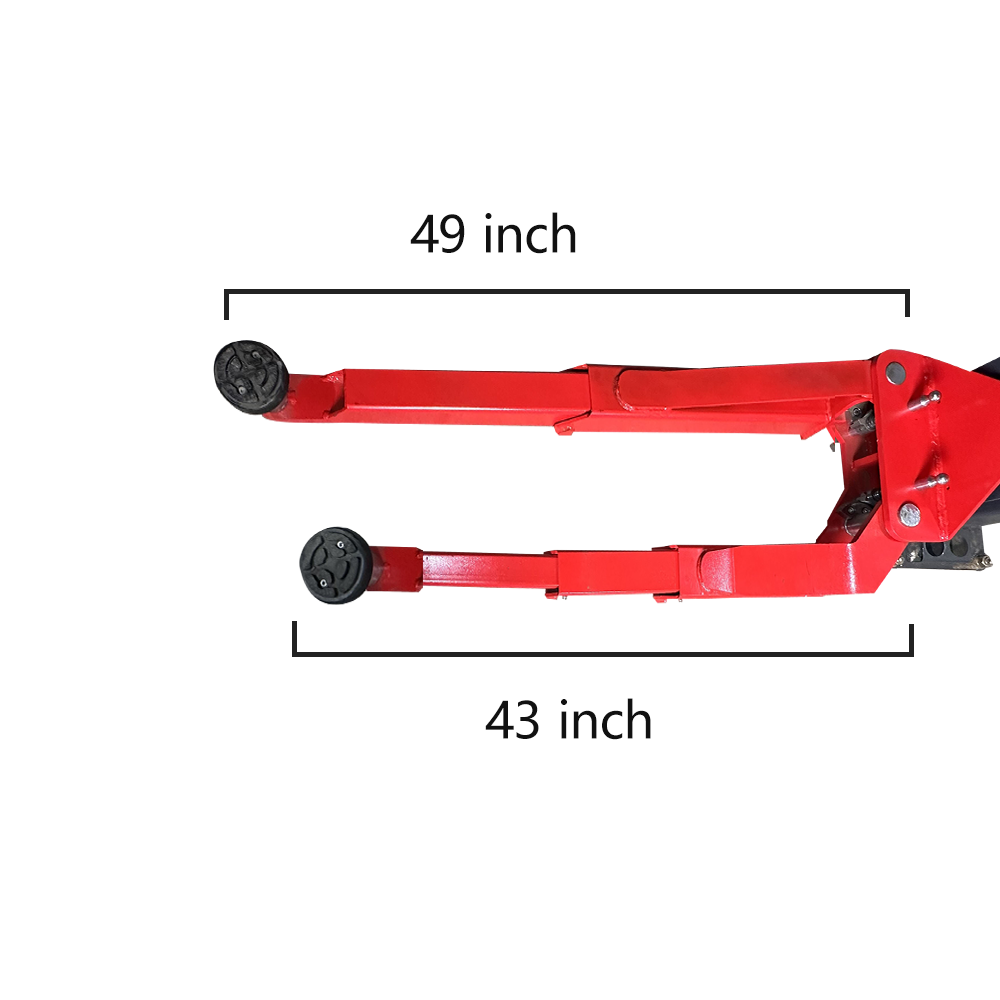

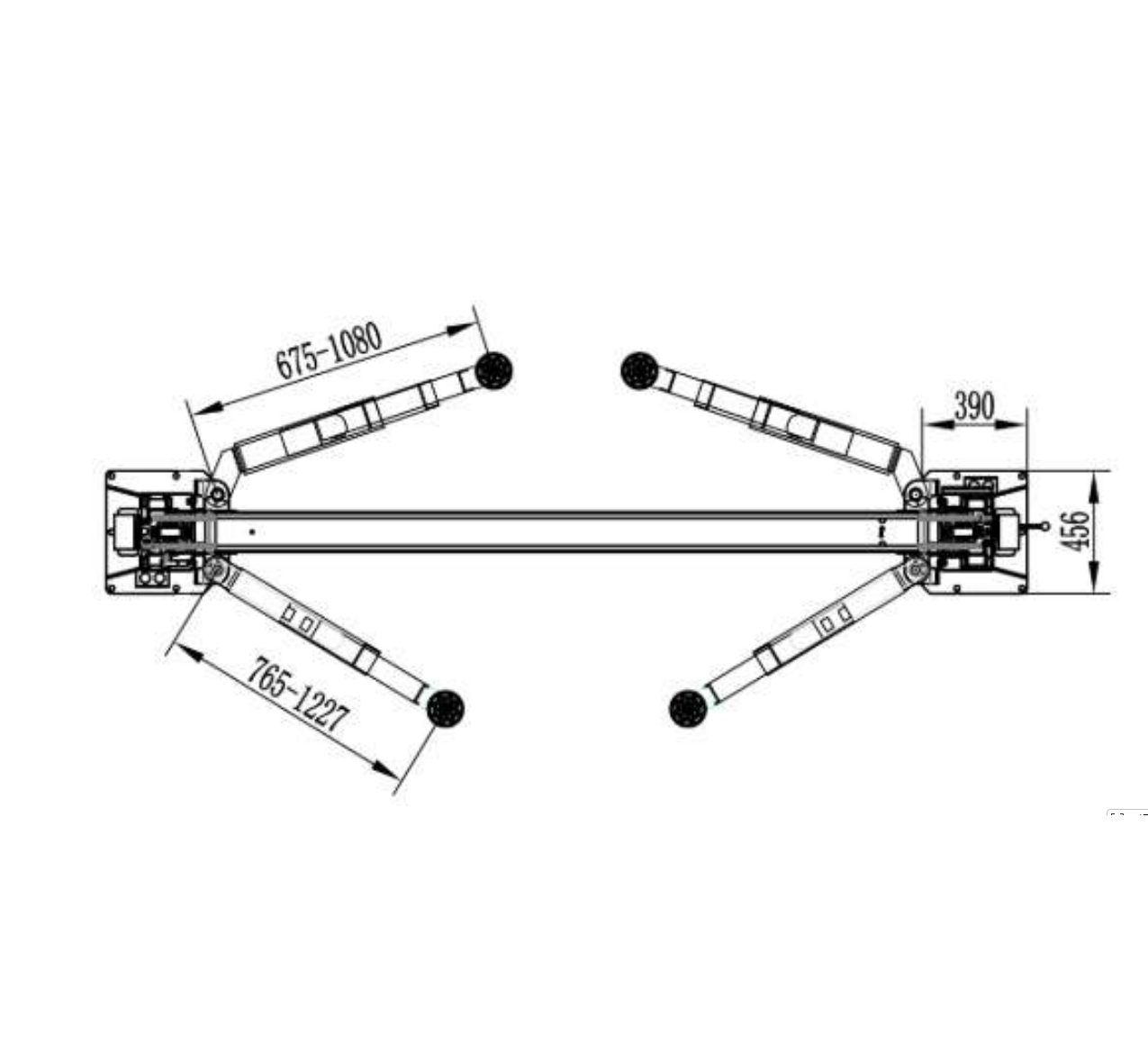

- Asymmetrical arm design for improved vehicle door access

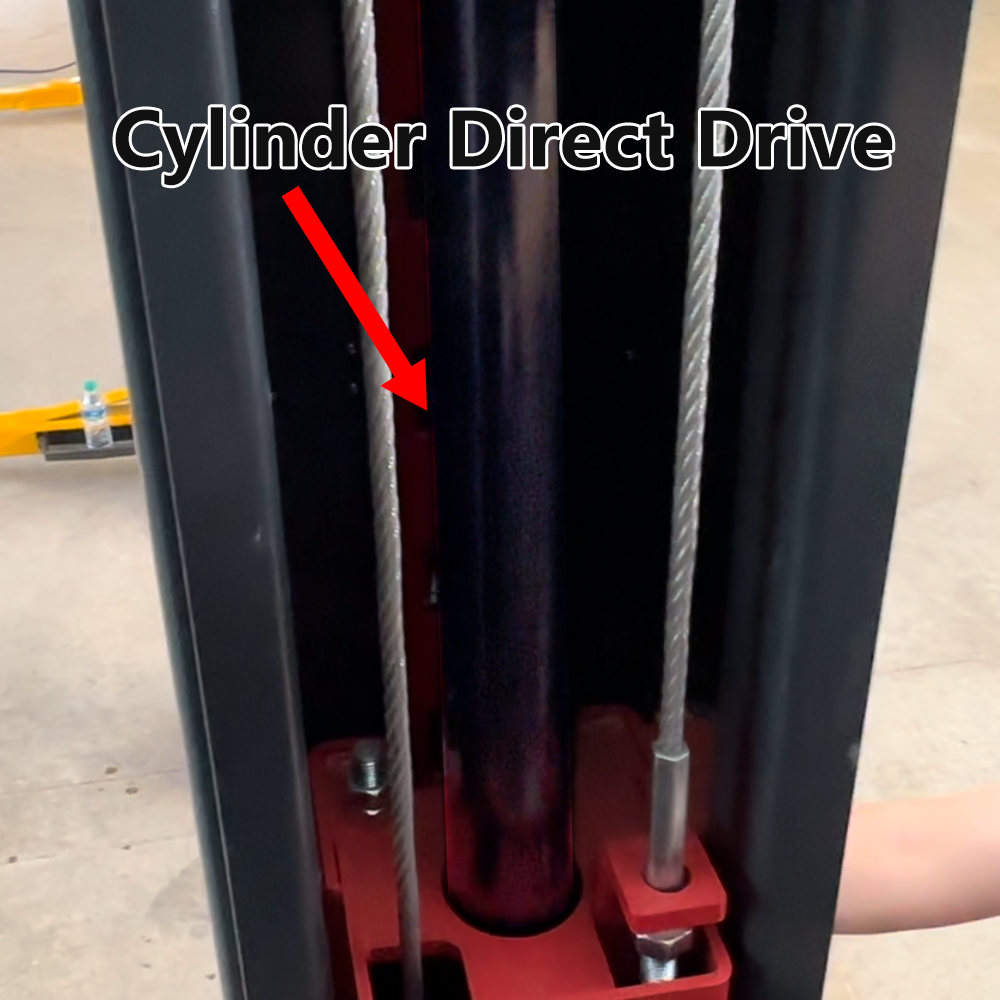

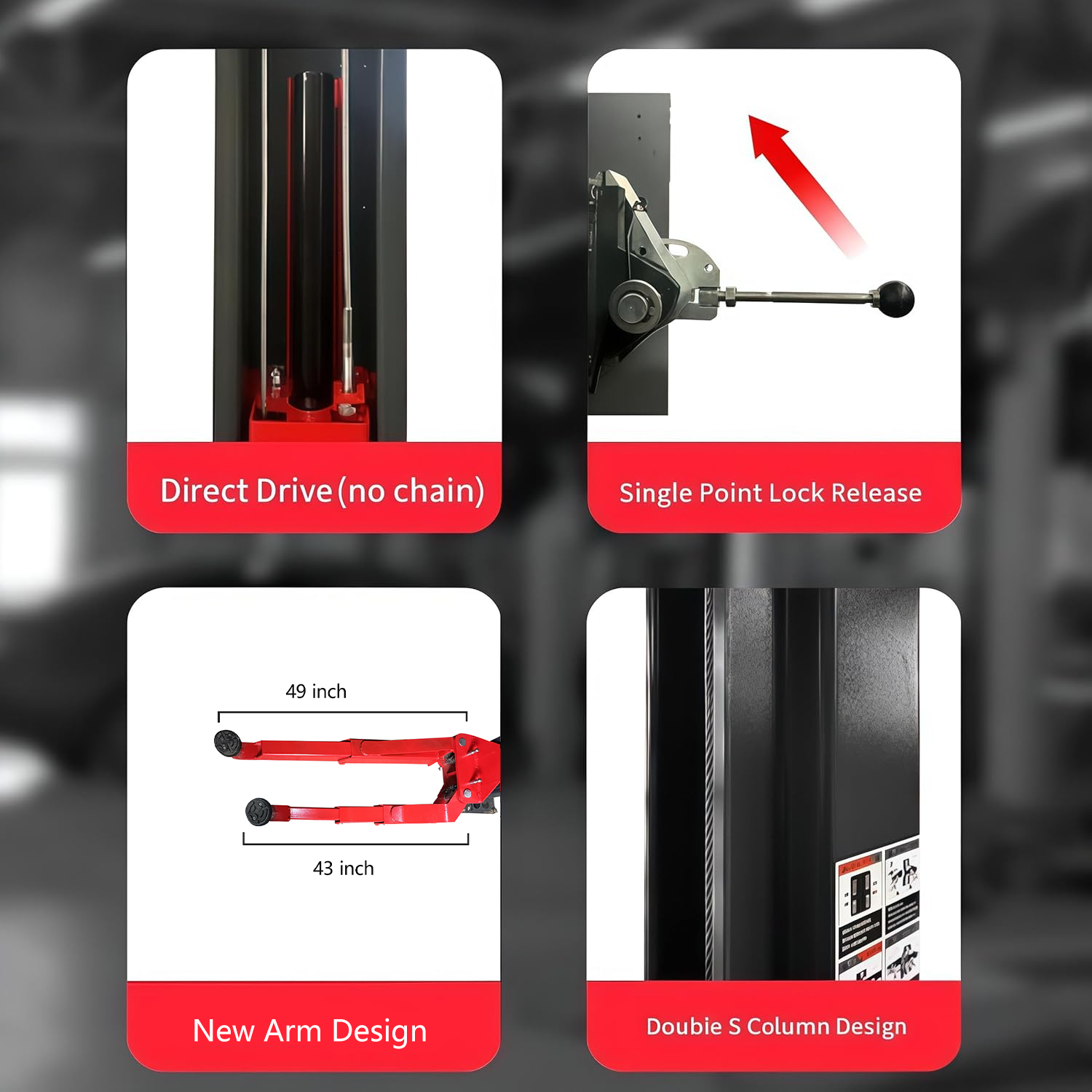

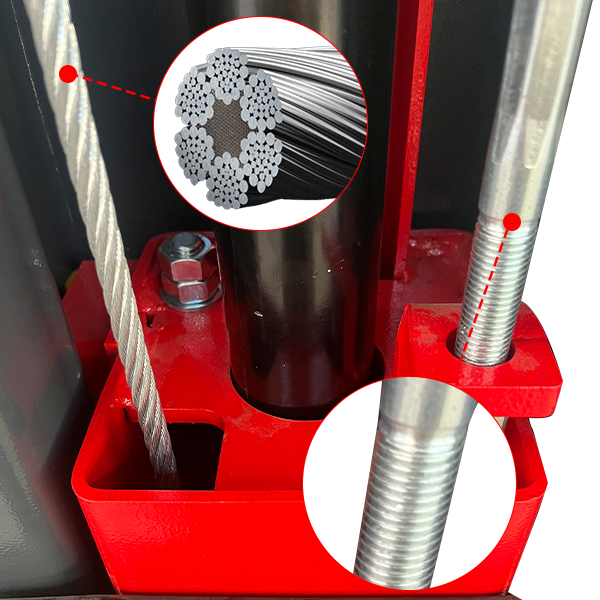

- Direct drive hydraulic cylinders for reliable lifting performance

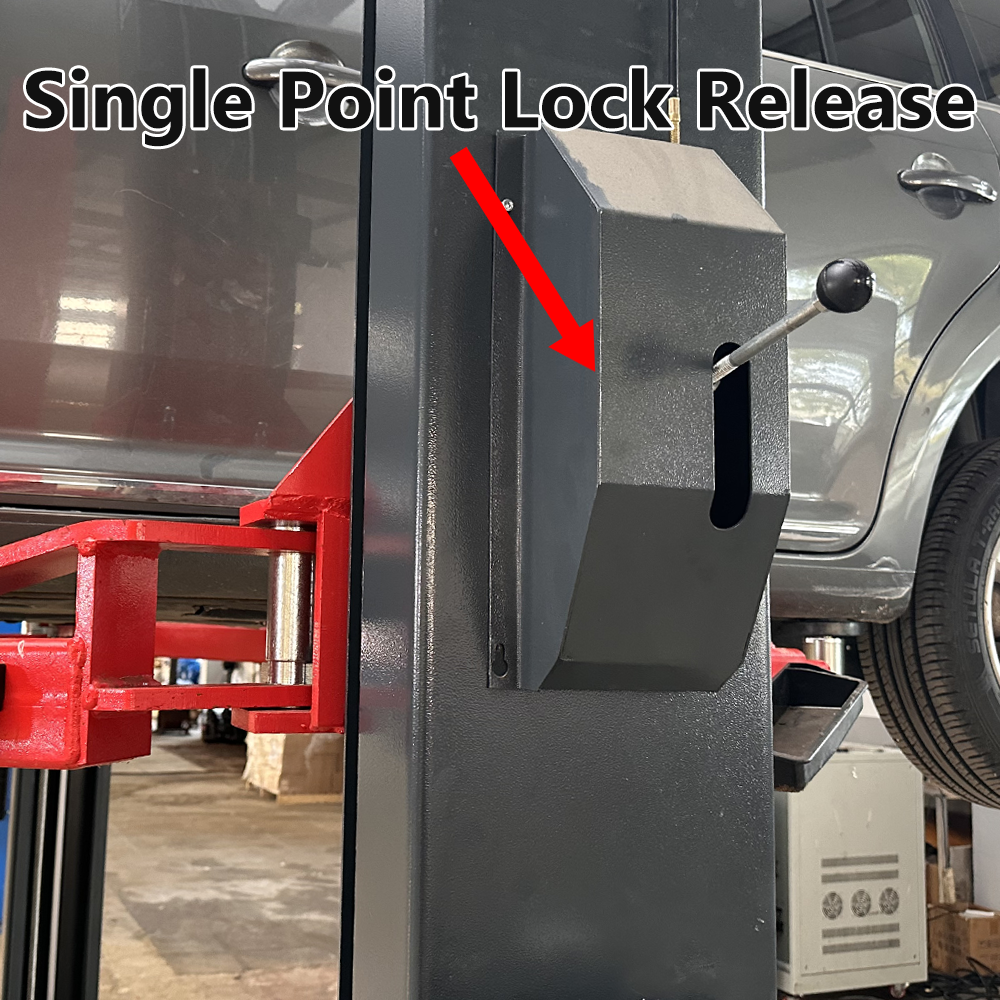

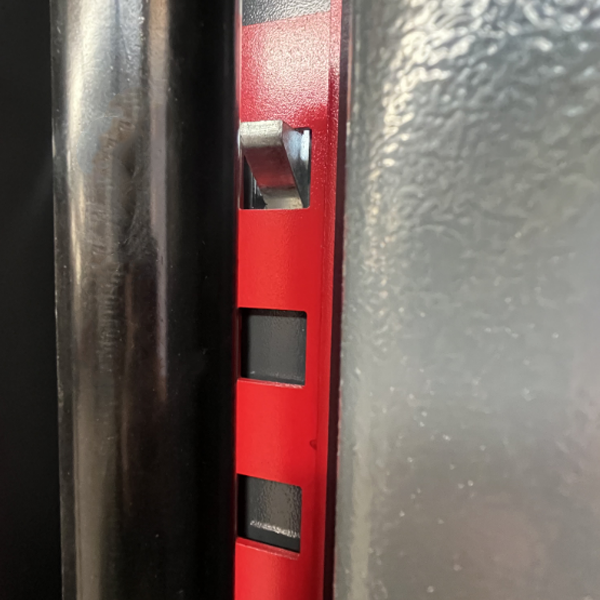

- Single-point lock release system for convenient operation
- Rubber door-opening protection pads help reduce accidental vehicle damage

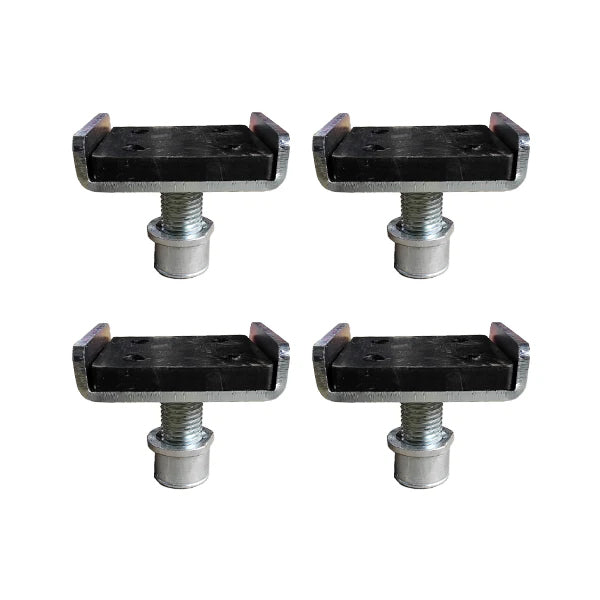

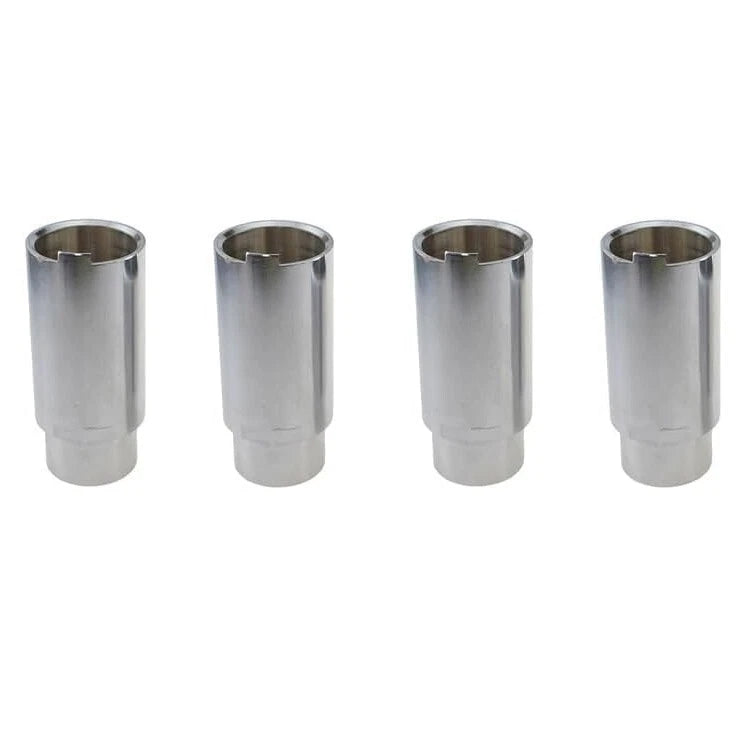

- Adjustable extension adapter set included
- Extension range: 3.94" to 6"
- Overhead safety shutoff bar for added operator protection
- High-quality hydraulic system designed for smooth and dependable operation
- Available in:
- 220V / 60HZ / 1PH
- Optional 110V / 60HZ / 1PH configuration
| Lifting Capacity | 11000 lbs. (4990KG ) |
| Max. Lifting Height | 70.75" / 1800mm |
| Min. Height | 3.74" / 95mm |

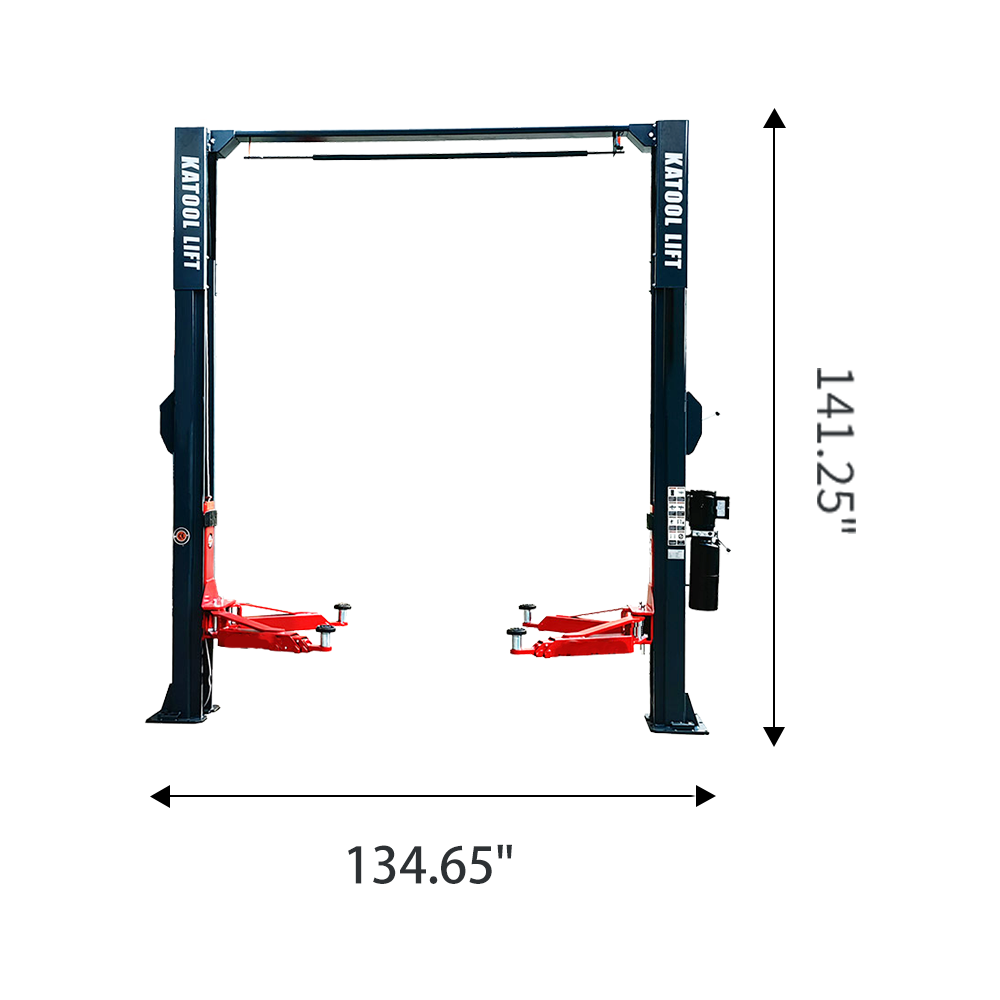

| Height Overall | 141.25" / 3587mm |
| Width Overall | 134.65" / 3420mm |
| Outside Columns | 120.4" / 3058mm |
| Inside Columns | 109.37" / 2778mm |
| Drive Thru Clearance | 99.61" / 2530mm |
| Motor | 220VAC/60HZ/1PH |
| Net Weight | 1323lbs / 600KG |
Understanding Two-Post Lift Weight Capacities
Two-post lifts are essential in automotive shops, but selecting the appropriate lift with the correct weight capacity is crucial for safety and equipment longevity.
Typical Weight Capacities
Two-post lifts generally have weight capacities ranging from 7,000 to 20,000 pounds, accommodating various vehicles from light-duty cars to heavy-duty trucks. It's important to note that each lift arm also has its own weight limit. For instance, a lift with a 10,000-pound total capacity may have each arm rated for 2,500 pounds. Therefore, if a vehicle's weight distribution exceeds this per-arm limit, the lift may not be suitable.
Calculating Required Lift Capacity
To determine the appropriate lift capacity:
- Calculate Rear Axle Weight: Multiply the vehicle's total weight by the distance from the center of gravity to the front axle, then divide by the wheelbase.
- Calculate Front Axle Weight: Subtract the rear axle weight from the total vehicle weight.
- Determine Arm Capacity: Divide each axle's weight by two to find the load per arm.
For example, if a vehicle weighs 9,000 pounds with a 6,000-pound front axle and a 3,000-pound rear axle, each arm would need to support 3,000 pounds. In this case, a 10,000-pound lift with 2,500-pound arms would be insufficient. Opting for a 12,000-pound lift would be safer.
Importance of Choosing a Lift with Adequate Capacity
Selecting a lift with a capacity that exceeds the vehicle's weight requirements is advisable. This accounts for variables like vehicle modifications, additional equipment, or unexpected weight distributions. Many manufacturers recommend not exceeding 75% of a lift's rated capacity to maintain safety margins.
Safe Operating Practices
- Adhere to Weight Limits: Never exceed the lift's total or per-arm weight capacities.
- Proper Vehicle Positioning: Ensure the vehicle is centered and balanced on the lift to distribute weight evenly.
- Regular Maintenance: Follow the manufacturer's maintenance schedule and conduct routine inspections to identify potential issues.
By understanding and respecting the weight capacities and operational guidelines of two-post lifts, automotive shops can ensure safer working conditions and prolong the lifespan of their equipment.
