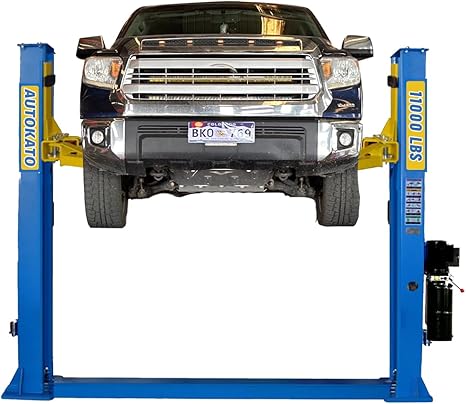

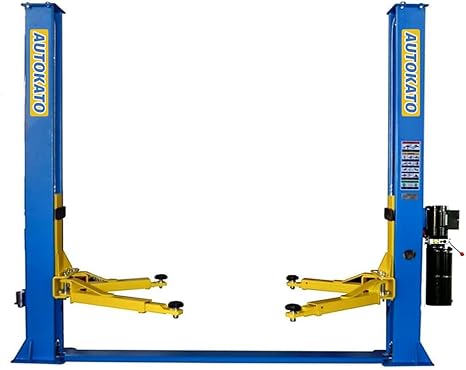

KATOOL KT-H115Z 11,000 lb 2 Post Car Lift
KATOOL KT-H115Z 11,000 lb 2 Post Car Lift
products.product.pickup_availability.unavailable
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Usually ships within 3–5 days and delivers within 10 business days.
Heavy-Duty Floor Plate Lift for Cars, Trucks & SUVs
The KATOOL KT-H115Z is a professional-grade 2-post car lift built for automotive shops and serious garages that require reliable lifting power and long-term durability. With an 11,000 lb capacity, dual hydraulic cylinders, and a reinforced steel structure, this lift delivers smooth, stable operation for a wide range of vehicles.
Designed with a floor plate configuration, it provides added structural stability while accommodating various shop layouts.
Key Features
11,000 lb Lifting Capacity — Handles passenger vehicles, light trucks, and SUVs with confidence.

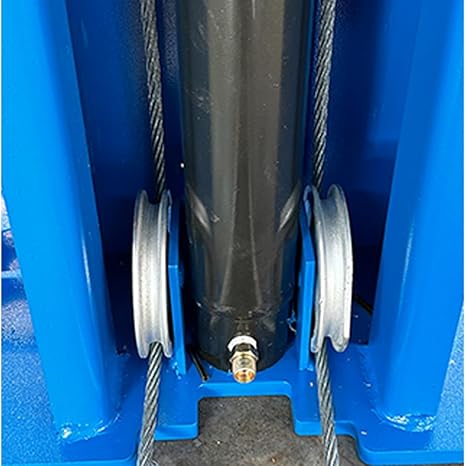

Dual Hydraulic Chain-Drive System — Provides smooth, balanced lifting with consistent performance under load.
Heavy-Duty Steel Construction — Reinforced structure designed for daily commercial use and long-term durability.
Symmetric Arm Design — Ensures even weight distribution and stable lifting across different vehicle types.
Low-Profile Swing Arms — Improves access for lower vehicles while maintaining versatility.
Manual Dual-Side Safety Release — Convenient and secure operation from either side of the lift.
Base Plate Design — Adds structural rigidity and simplifies installation in various shop environments.

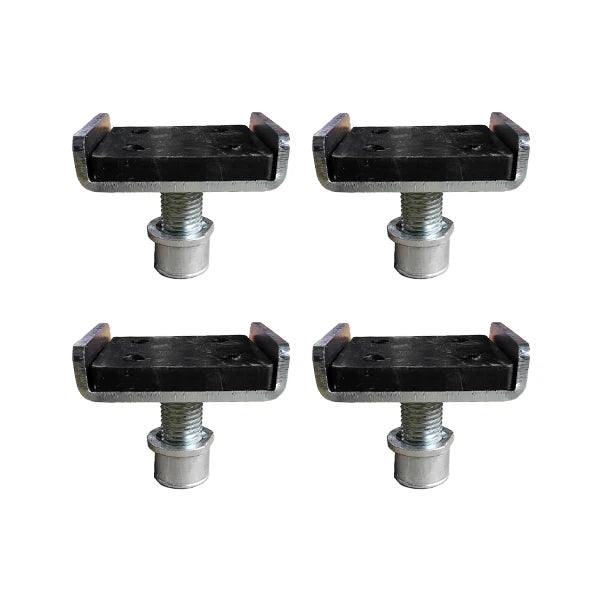

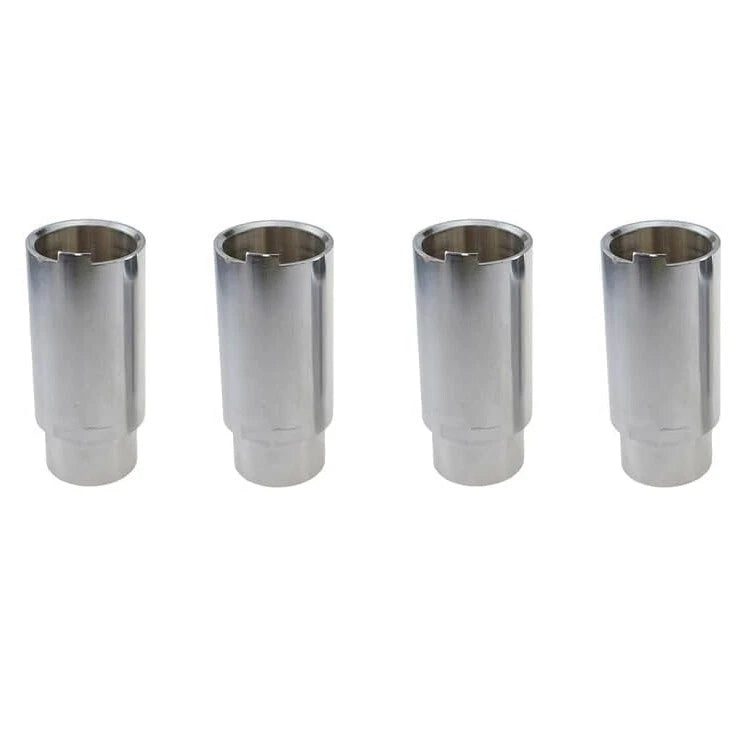

Adjustable Adapters Included — Screw-on pads and extension adapters (+100mm) allow flexible lifting points.
CE Certified Safety Standards — Tested to 115% dynamic load and 150% static load capacity for added reliability.
Specifications
| Feature | Specification |
|---|---|
| Lifting Capacity | 11,000 lbs (5000 kg) |
| Max Lifting Height | 70.8″ (1800 mm) |
| Minimum Height | 3.9″ (100 mm) |
| Overall Height | 110.9″ (2818 mm) |
| Overall Width | 140.4″ (3565 mm) |
| Outside Column Width | 124.8″ (3170 mm) |
| Inside Column Width | 110.2″ (2800 mm) |
| Drive-Thru Clearance | 98.4″ (2500 mm) |
| Front Arm Reach (Min) | 29.5″ (750 mm) – 2 stages |
| Front Arm Reach (Max) | 46″ (1170 mm) – 2 stages |
| Rear Arm Reach (Min) | 35.4″ (900 mm) – 2 stages |
| Rear Arm Reach (Max) | 58.2″ (1480 mm) – 2 stages |
| Motor | 220V / 60Hz / 1PH / 2.2 kW |
| Net Weight | 1,257 lbs (570 kg) |
Understanding Two-Post Lift Weight Capacities
Two-post lifts are essential in automotive shops, but selecting the appropriate lift with the correct weight capacity is crucial for safety and equipment longevity.
Typical Weight Capacities
Two-post lifts generally have weight capacities ranging from 7,000 to 20,000 pounds, accommodating various vehicles from light-duty cars to heavy-duty trucks. It's important to note that each lift arm also has its own weight limit. For instance, a lift with a 10,000-pound total capacity may have each arm rated for 2,500 pounds. Therefore, if a vehicle's weight distribution exceeds this per-arm limit, the lift may not be suitable.
Calculating Required Lift Capacity
To determine the appropriate lift capacity:
- Calculate Rear Axle Weight: Multiply the vehicle's total weight by the distance from the center of gravity to the front axle, then divide by the wheelbase.
- Calculate Front Axle Weight: Subtract the rear axle weight from the total vehicle weight.
- Determine Arm Capacity: Divide each axle's weight by two to find the load per arm.
For example, if a vehicle weighs 9,000 pounds with a 6,000-pound front axle and a 3,000-pound rear axle, each arm would need to support 3,000 pounds. In this case, a 10,000-pound lift with 2,500-pound arms would be insufficient. Opting for a 12,000-pound lift would be safer.
Importance of Choosing a Lift with Adequate Capacity
Selecting a lift with a capacity that exceeds the vehicle's weight requirements is advisable. This accounts for variables like vehicle modifications, additional equipment, or unexpected weight distributions. Many manufacturers recommend not exceeding 75% of a lift's rated capacity to maintain safety margins.
Safe Operating Practices
- Adhere to Weight Limits: Never exceed the lift's total or per-arm weight capacities.
- Proper Vehicle Positioning: Ensure the vehicle is centered and balanced on the lift to distribute weight evenly.
- Regular Maintenance: Follow the manufacturer's maintenance schedule and conduct routine inspections to identify potential issues.
By understanding and respecting the weight capacities and operational guidelines of two-post lifts, automotive shops can ensure safer working conditions and prolong the lifespan of their equipment.
