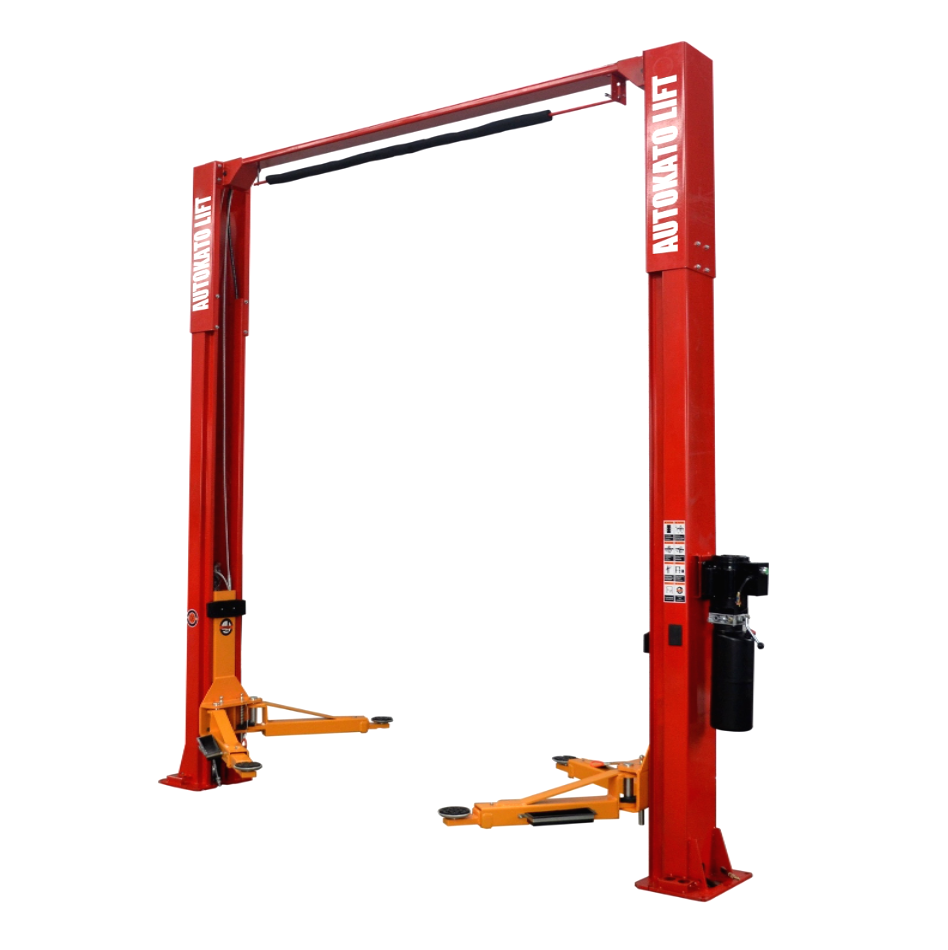

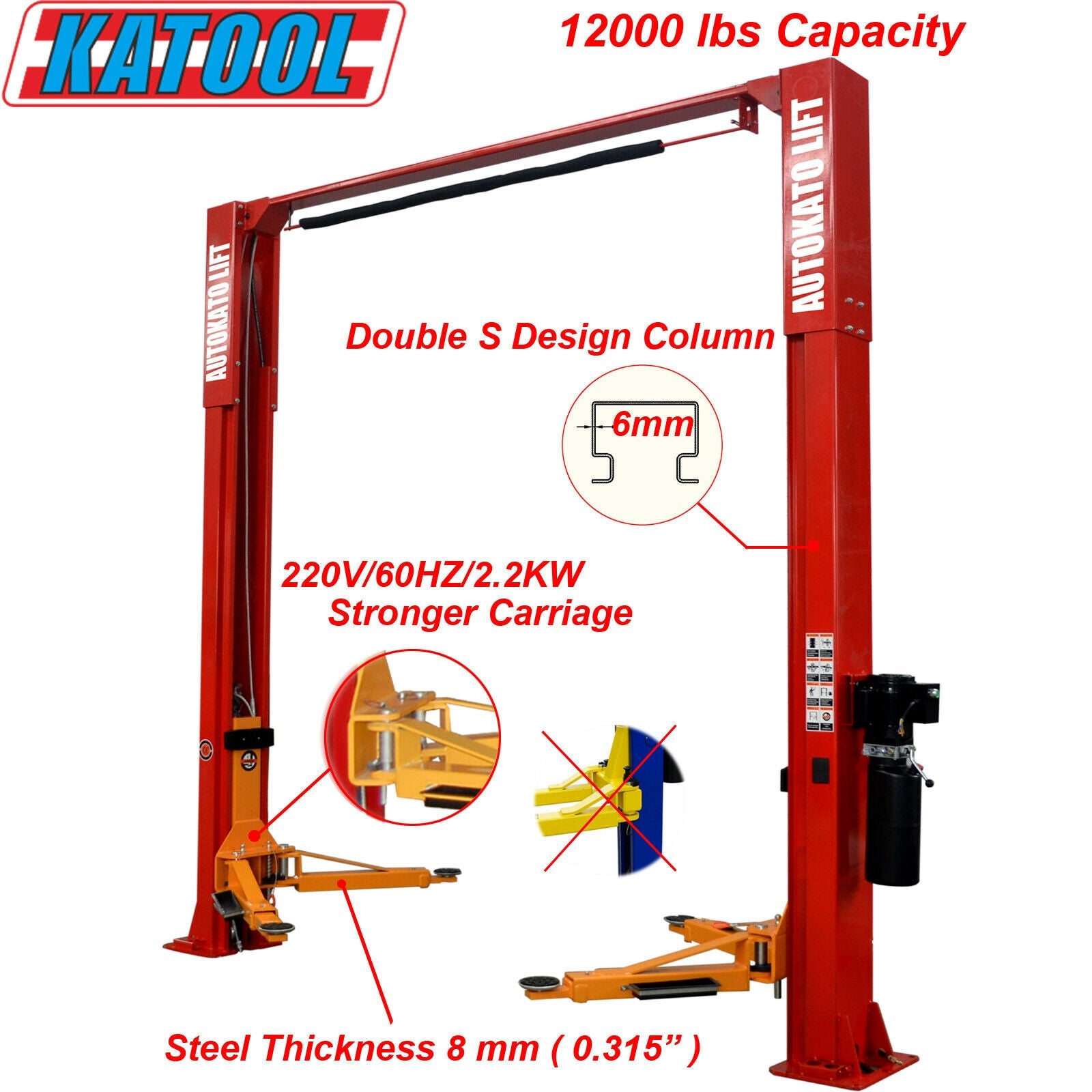

Katool KT-M120 Two-Post Vehicle Lift
Professional strength and clear-floor versatility.
The Katool KT-M120 is a rugged, high-capacity two-post lift engineered for busy automotive shops, performance garages, dealerships, and serious home workshops. With a 12,000 lb / 5,500 kg rated capacity and a clear-floor design, the KT-M120 delivers smooth, balanced lifting with expansive under-vehicle access—making routine maintenance and heavy-duty service work faster, safer, and more efficient.
Key Features
-
12,000 lb (5,500 kg) Lifting Capacity — Supports cars, SUVs, vans, and many light- to medium-duty trucks with confidence.
-

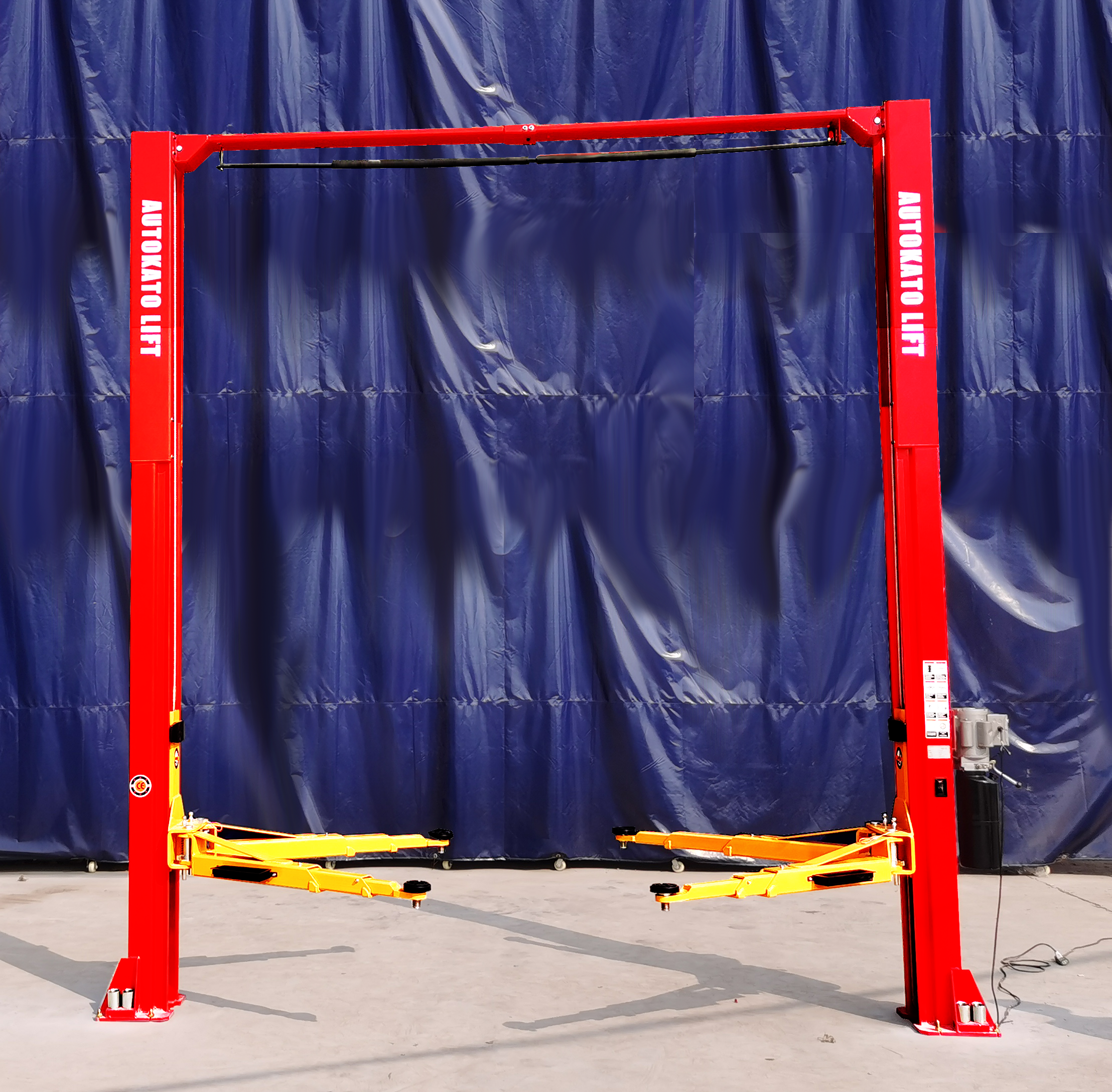

Clear-Floor Two-Post Design — Maximizes workspace under the vehicle for unhindered service access.
-

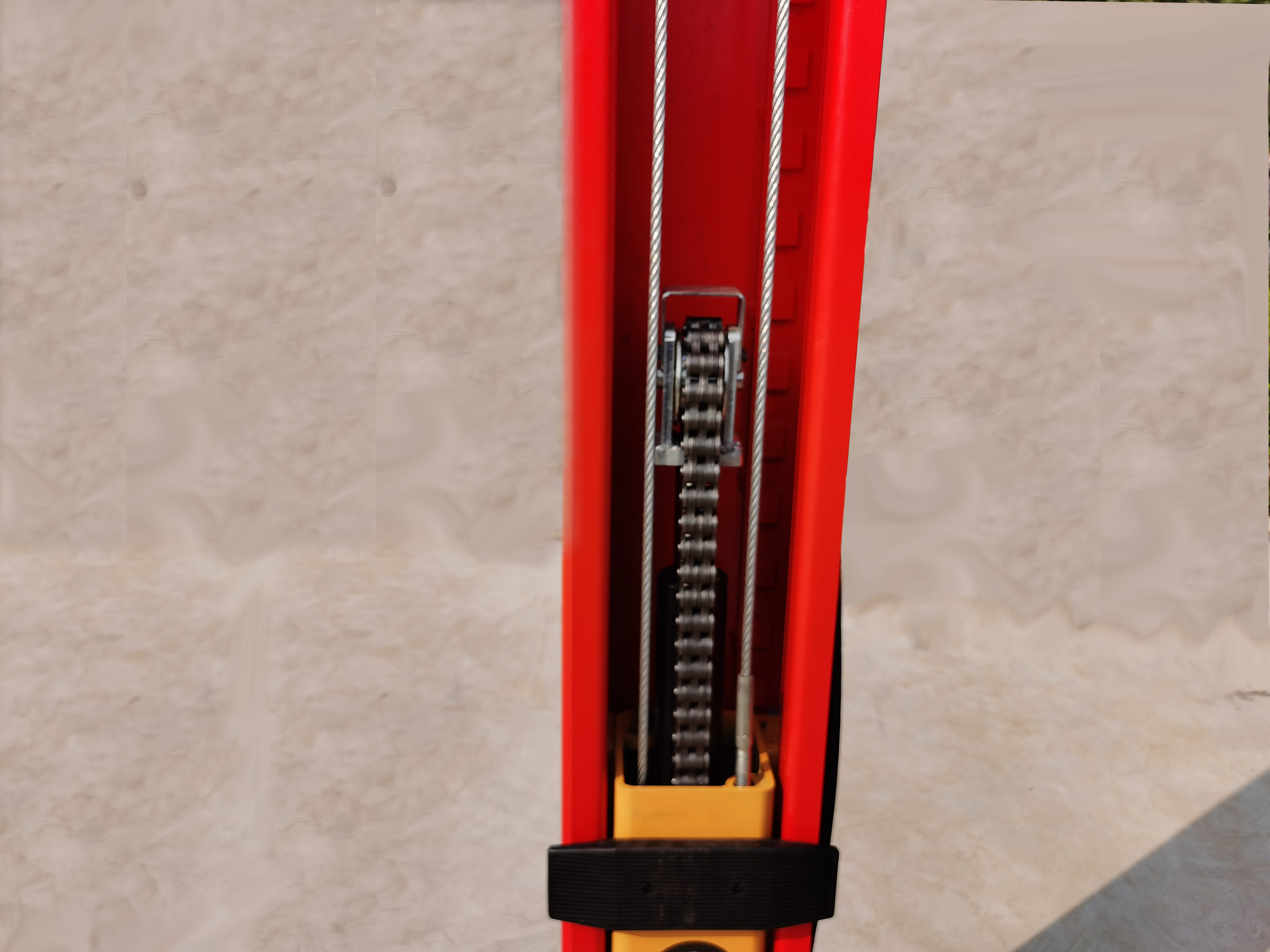

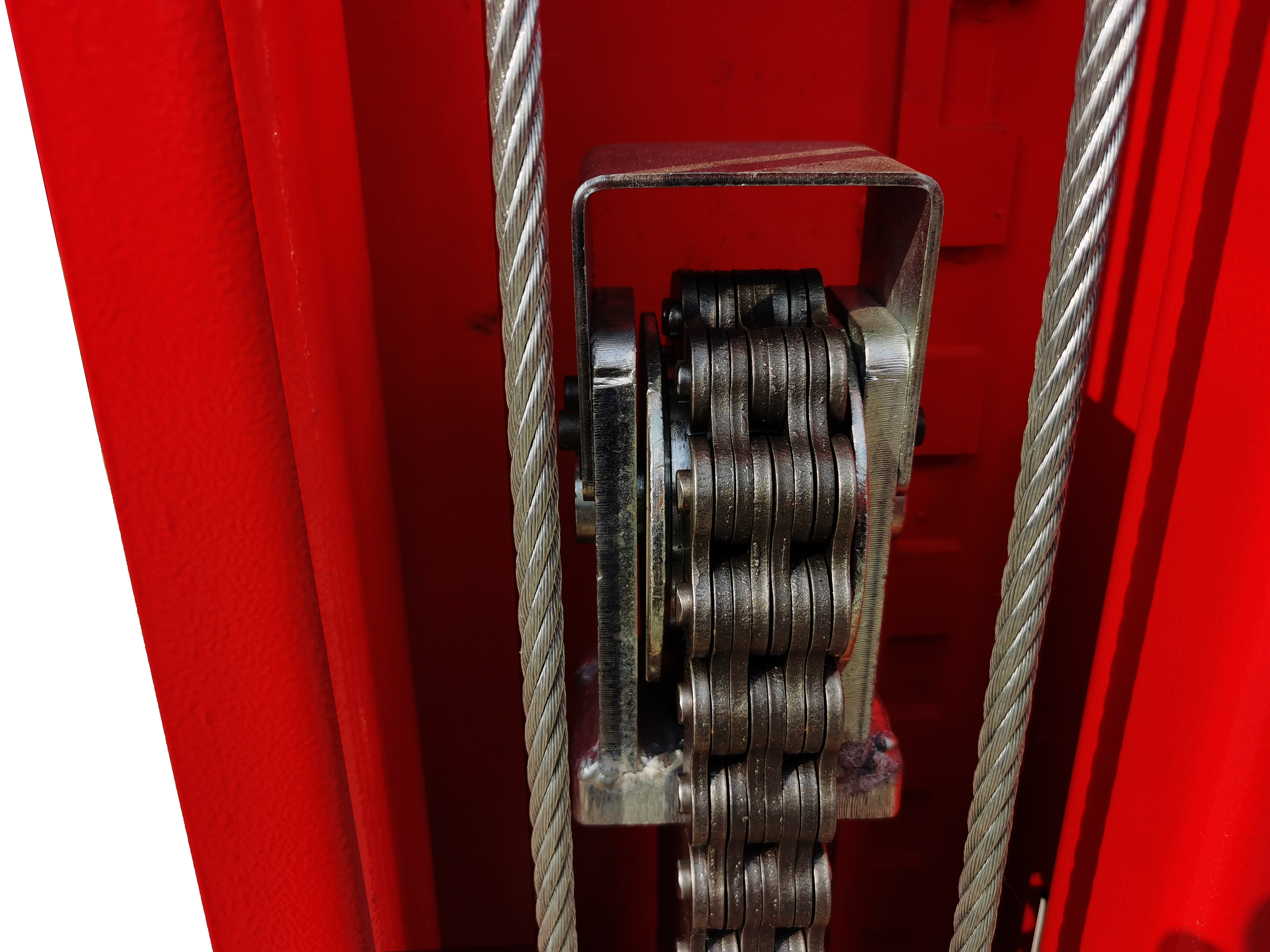

Dual Hydraulic Chain-Drive System — Synchronized lifting for smooth, stable elevation on every cycle.
-

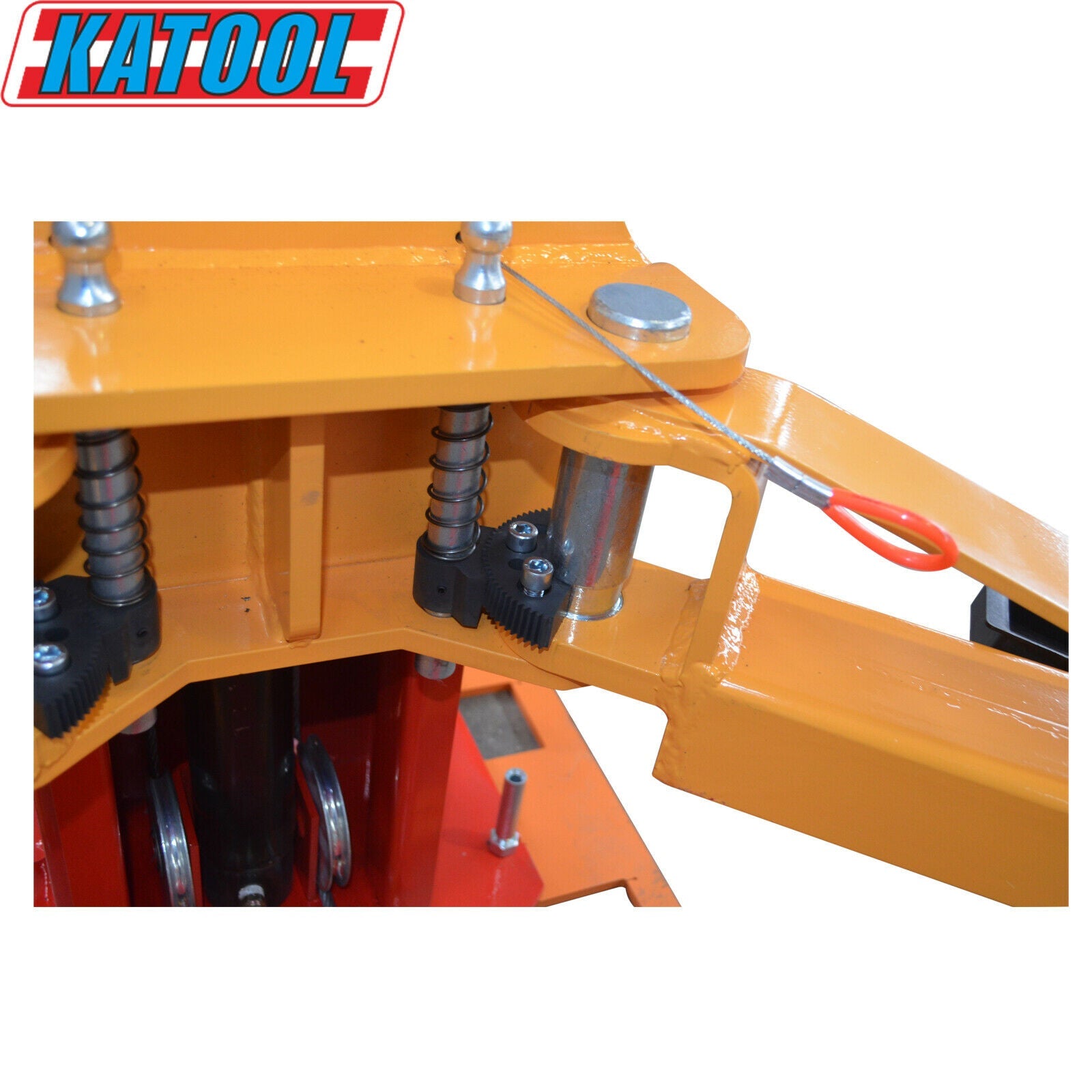

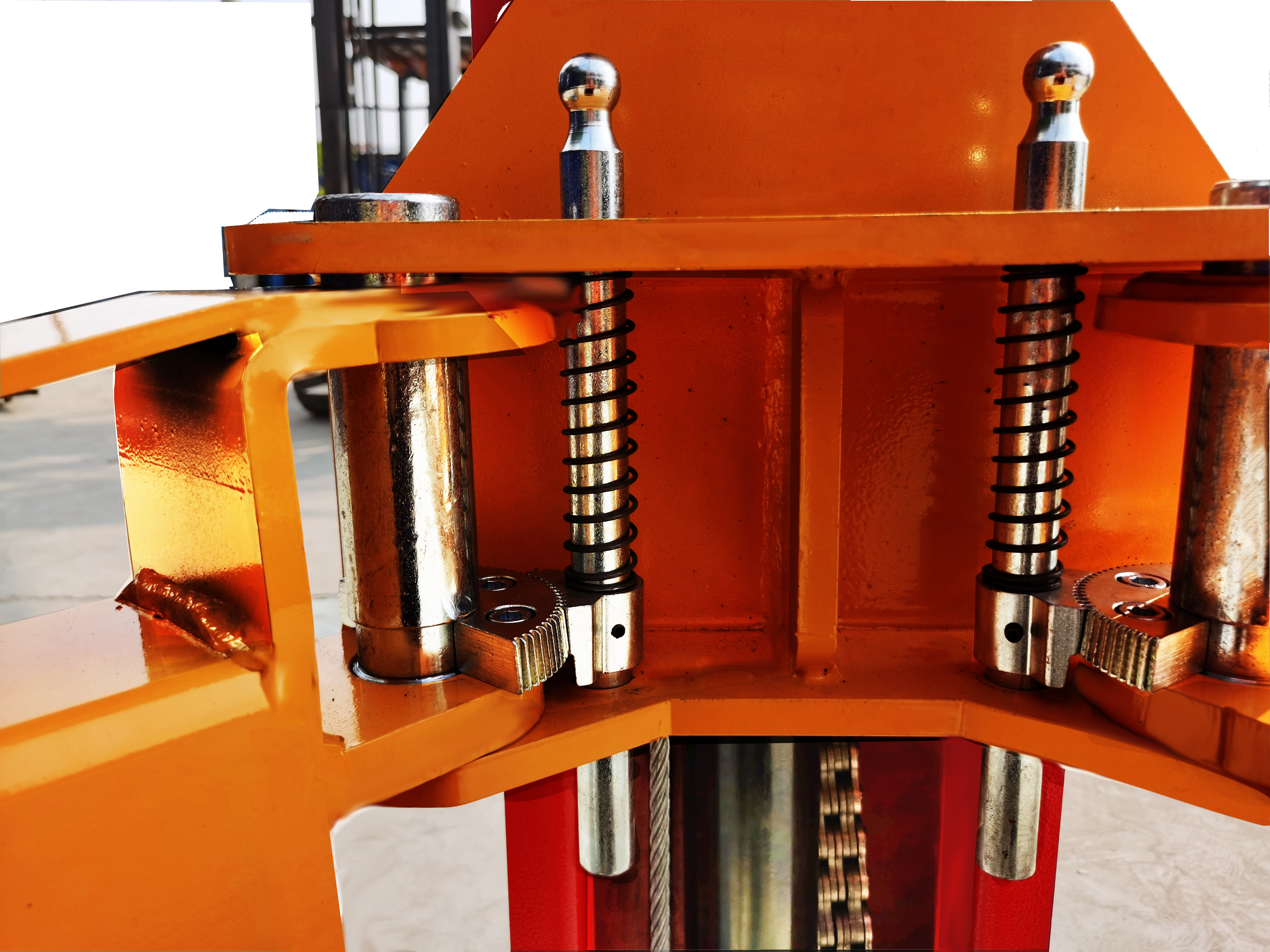

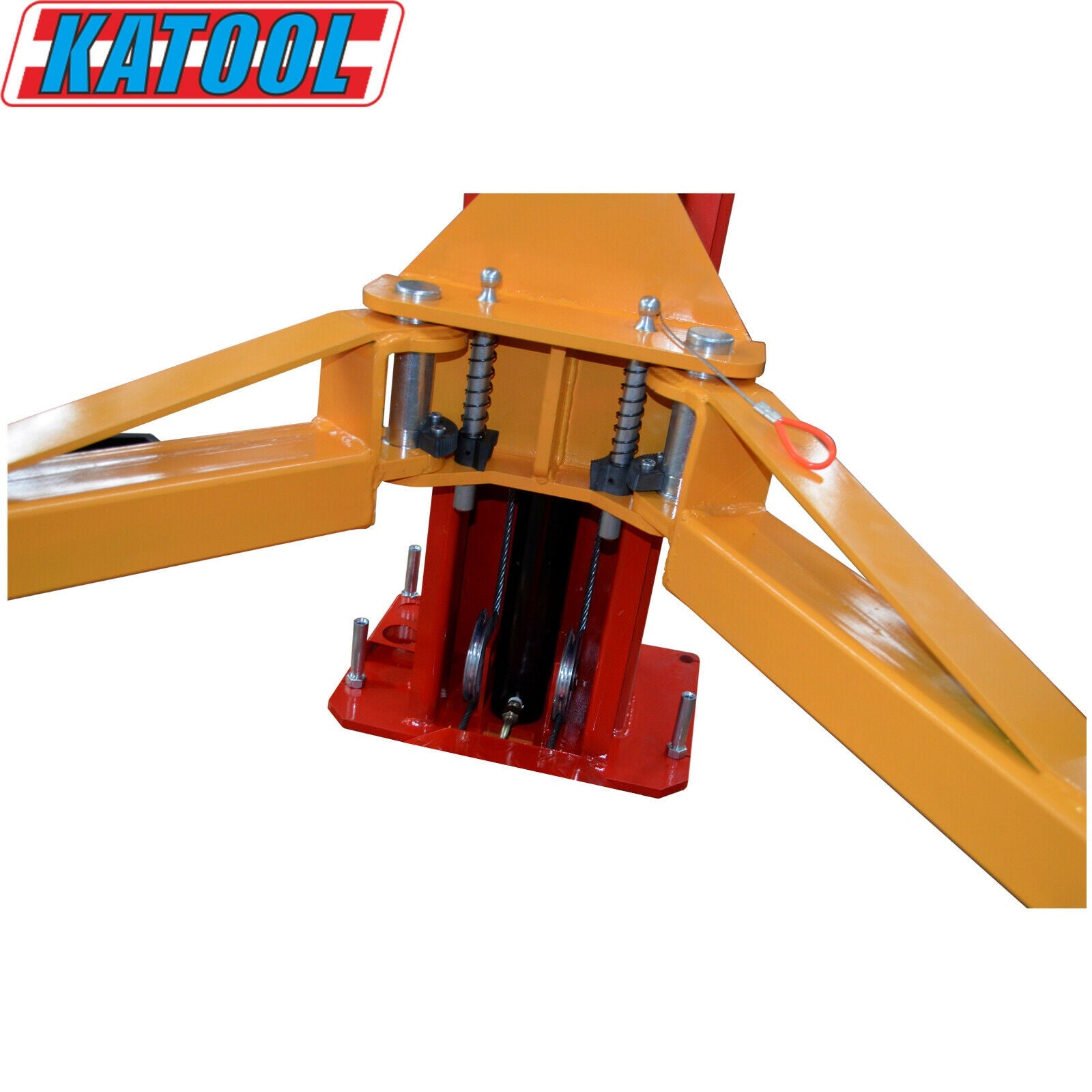

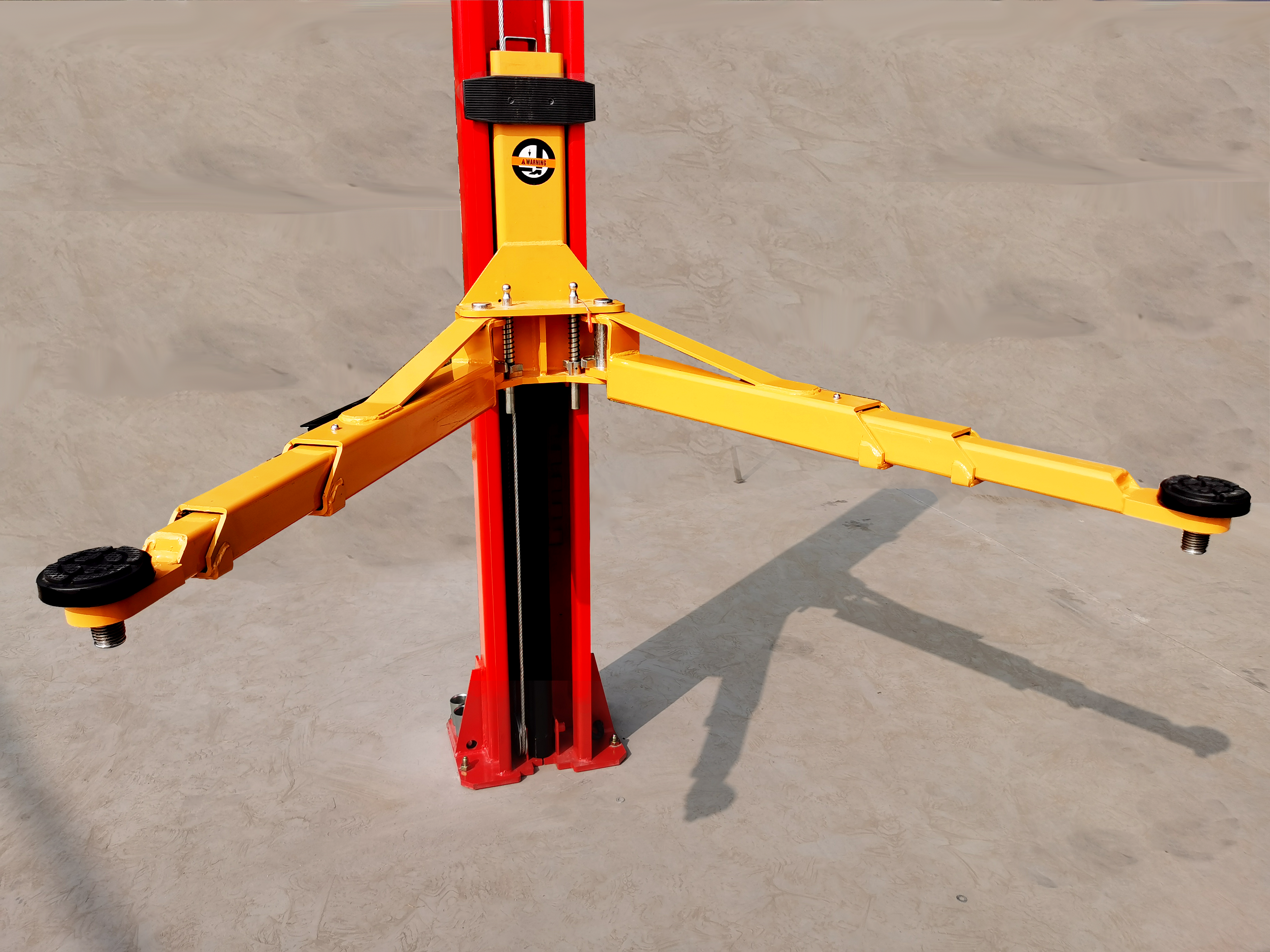

Symmetric Arm Configuration — Balanced geometry for intuitive vehicle positioning and versatile service tasks.
-
Manual Safety Release on Both Columns — Technician-friendly safety lowering points on either side.
-

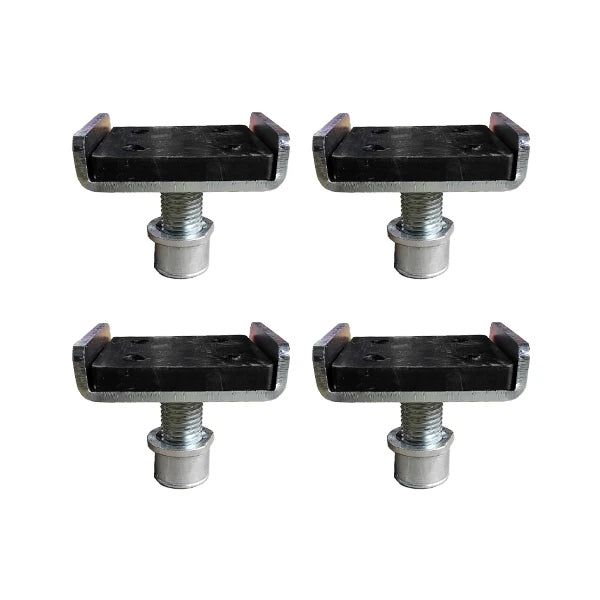

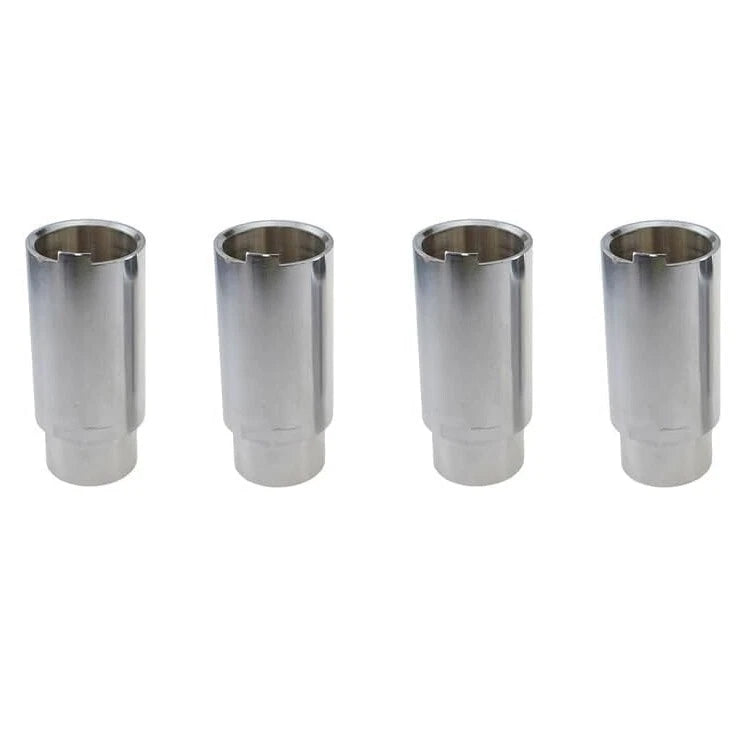

Included Support Adapters — +30 mm and +120 mm extension adapters help service taller vehicles.
-

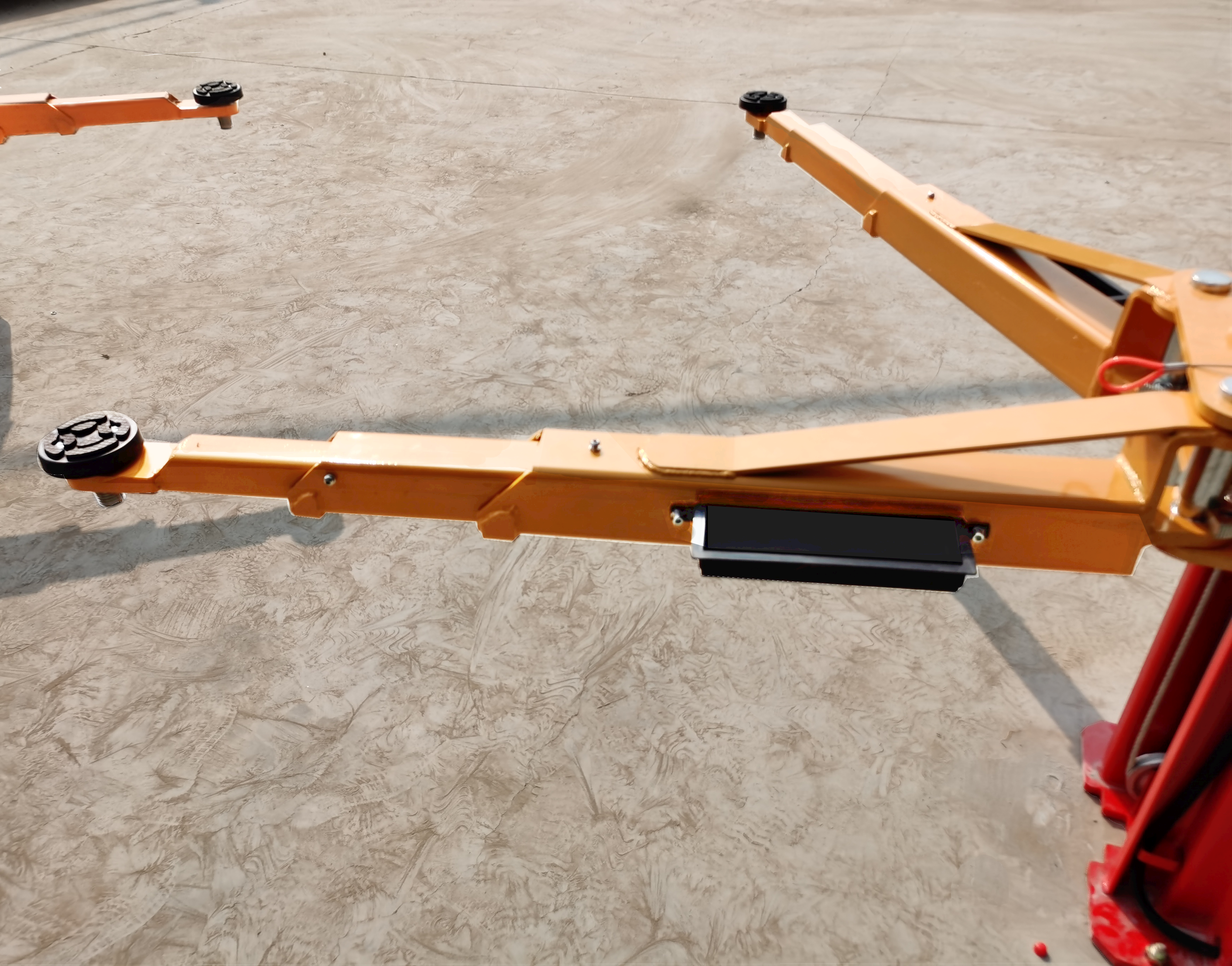

Door Protecting Rubber Pads — Help prevent paint and edge damage while lifting.
-
Overhead Safety Shutoff Bar — Automatic cut-off to avoid over-travel and protect your lift and vehicle.
-
Tool Tray & Guardrails — Built-in storage and bump guard features for enhanced shop safety.
Why the KT-M120?
The Katool KT-M120 is built for professionals who demand both high capacity and clear access. Its powerful hydraulic system and well-balanced arm design give technicians confident control over every lift, while the clear-floor layout opens up the workspace beneath the vehicle for oil changes, transmission work, brake service, suspension repairs, and full-underbody diagnostics.
This lift’s robust construction and safe, intuitive operation make it a reliable centerpiece in service bays where throughput, precision, and durability matter.
Ideal For
-
Independent and dealership workshops
-
Performance and motorsports garages
-
Fleet maintenance facilities
-
Fabrication and restoration shops
-
Enthusiast home garages with heavy service needs

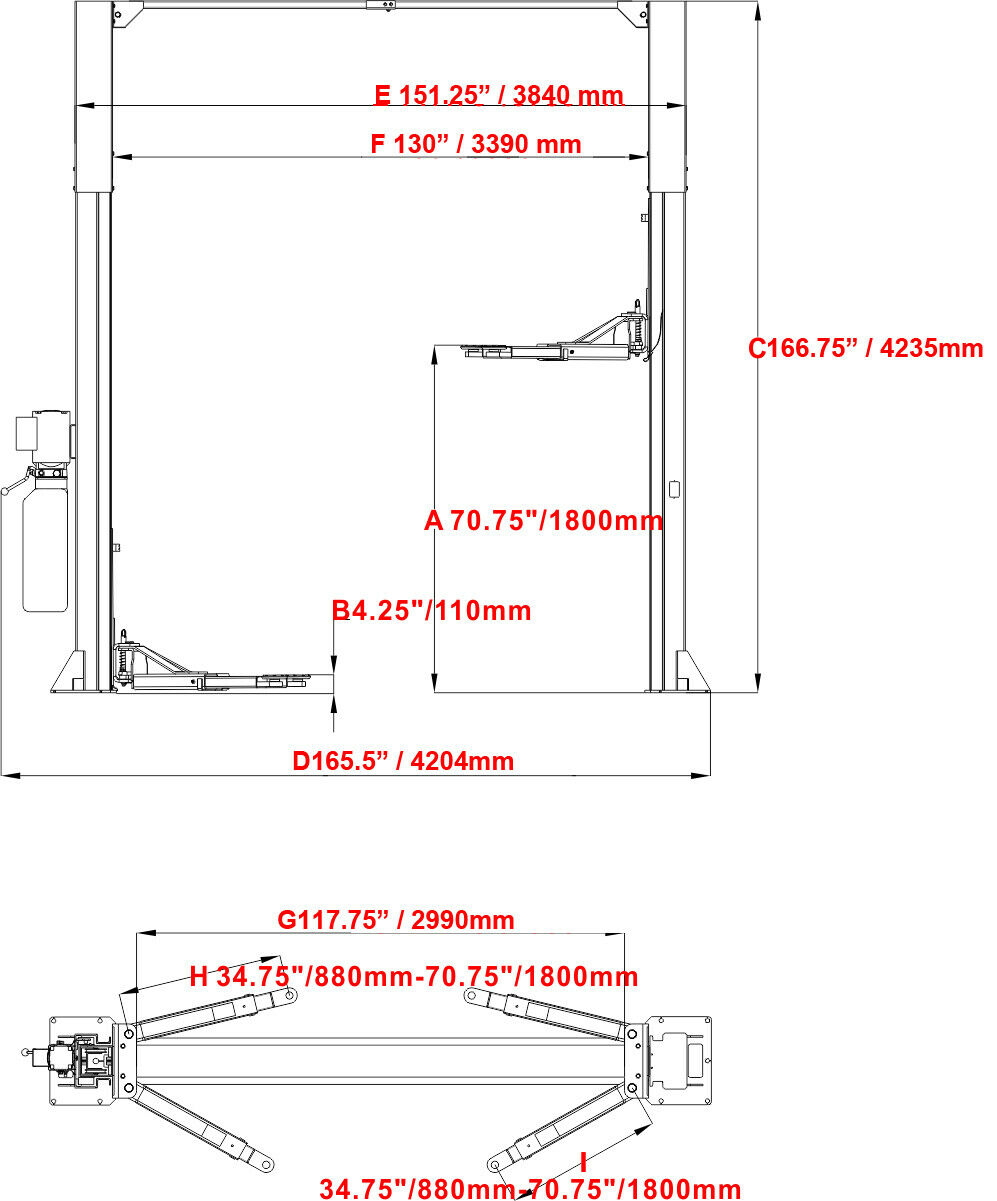

| Specification | Detail |
|---|---|
| Model | Katool KT-M120 Two-Post Vehicle Lift |
| Rated Capacity | 12,000 lb / 5,500 kg |
| Max. Lifting Height | ~70.75′′/1800mm |
| Minimum Pad Height | ~4.25" / 110mm |
| Overall Height | ~166.75" / 4235mm |
| Overall Width | ~165.5" / 4204mm |
| Inside Column Width | ~130" / 3390mm |
| Drive-Through Clearance | ~117.75" / 2990mm |
| Arm Reach (Front/Rear) | Min: ~31 in / Max: ~51 in (2-stage) |
| Motor / Power | 220 V / 60 Hz / 1 PH (110 V available) |
| Net Weight | ~1,500 lb / 680 kg |
| Certifications | CE / ISO-standard load testing compliance (where applicable) |
Understanding Two-Post Lift Weight Capacities
Two-post lifts are essential in automotive shops, but selecting the appropriate lift with the correct weight capacity is crucial for safety and equipment longevity.
Typical Weight Capacities
Two-post lifts generally have weight capacities ranging from 7,000 to 20,000 pounds, accommodating various vehicles from light-duty cars to heavy-duty trucks. It's important to note that each lift arm also has its own weight limit. For instance, a lift with a 10,000-pound total capacity may have each arm rated for 2,500 pounds. Therefore, if a vehicle's weight distribution exceeds this per-arm limit, the lift may not be suitable.
Calculating Required Lift Capacity
To determine the appropriate lift capacity:
- Calculate Rear Axle Weight: Multiply the vehicle's total weight by the distance from the center of gravity to the front axle, then divide by the wheelbase.
- Calculate Front Axle Weight: Subtract the rear axle weight from the total vehicle weight.
- Determine Arm Capacity: Divide each axle's weight by two to find the load per arm.
For example, if a vehicle weighs 9,000 pounds with a 6,000-pound front axle and a 3,000-pound rear axle, each arm would need to support 3,000 pounds. In this case, a 10,000-pound lift with 2,500-pound arms would be insufficient. Opting for a 12,000-pound lift would be safer.
Importance of Choosing a Lift with Adequate Capacity
Selecting a lift with a capacity that exceeds the vehicle's weight requirements is advisable. This accounts for variables like vehicle modifications, additional equipment, or unexpected weight distributions. Many manufacturers recommend not exceeding 75% of a lift's rated capacity to maintain safety margins.
Safe Operating Practices
- Adhere to Weight Limits: Never exceed the lift's total or per-arm weight capacities.
- Proper Vehicle Positioning: Ensure the vehicle is centered and balanced on the lift to distribute weight evenly.
- Regular Maintenance: Follow the manufacturer's maintenance schedule and conduct routine inspections to identify potential issues.
By understanding and respecting the weight capacities and operational guidelines of two-post lifts, automotive shops can ensure safer working conditions and prolong the lifespan of their equipment.
