Product Overview

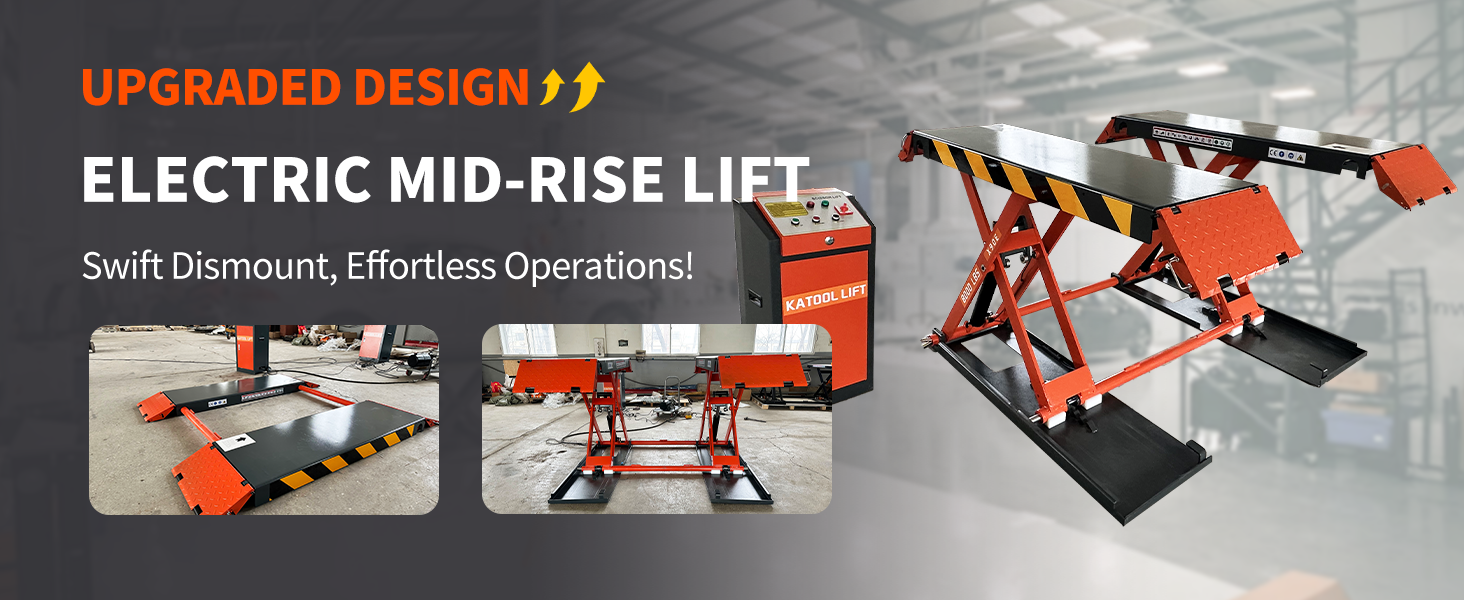

Katool X90E Mid Rise Scissor Lift
The Katool X90E KT-X90E is a robust 8,000 lb mid-rise scissor lift engineered to deliver reliable lifting power, superior durability, and enhanced safety features for automotive maintenance tasks. Built for both professional use and home garages with limited ceiling height, this lift provides excellent access to undercarriage components for inspections, repairs, tire service, and more.
Key Features
-

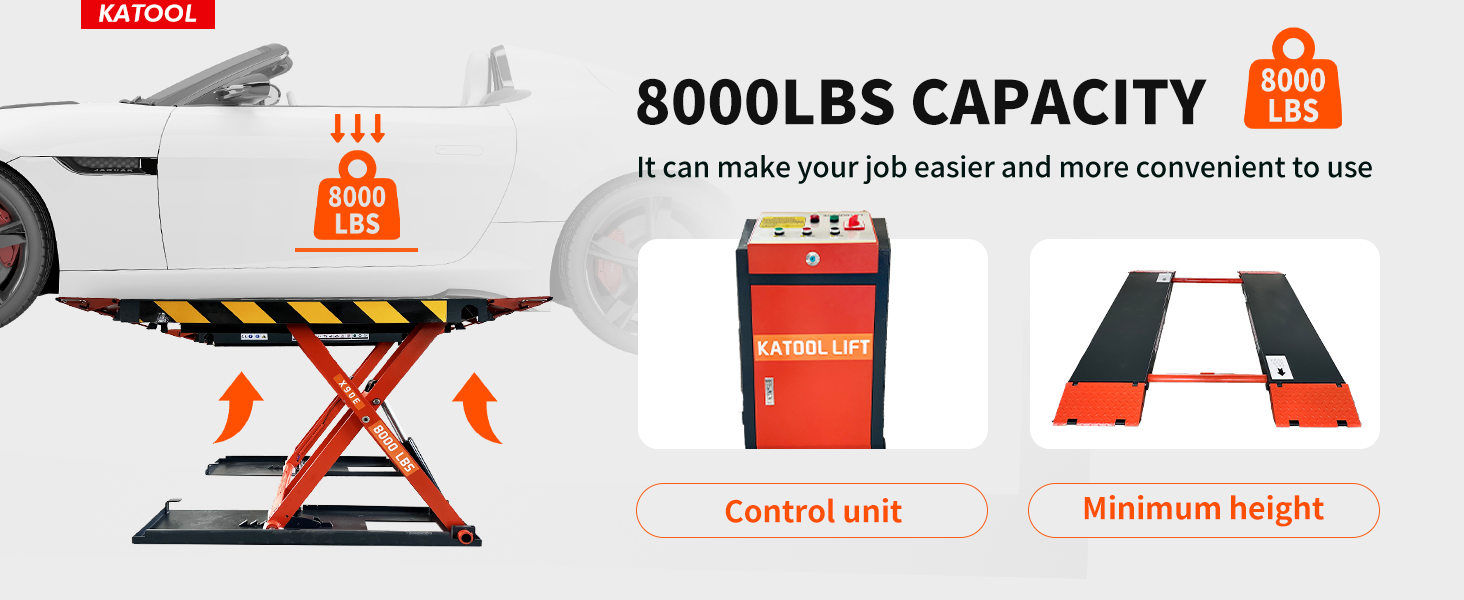

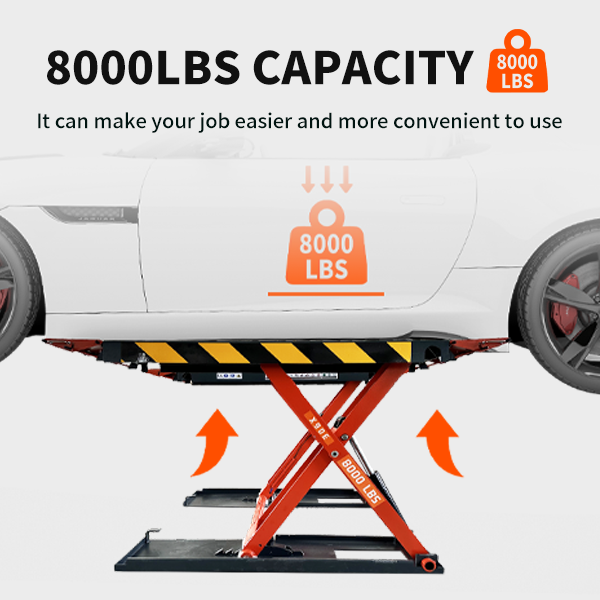

High Lifting Capacity: Handles a wide range of vehicles — from cars and SUVs to light trucks — up to 8,000 lbs.
-
Low Profile Design: With a minimal collapsed height, it fits garages with lower ceilings without sacrificing lifting performance.
-
Dual Power Compatibility: Works with standard 110 V or optional 220 V power, offering flexibility in various shop setups.
-
Maintenance-Friendly: Self-lubricating bushings and bearings reduce upkeep needs while ensuring smooth operation.
-

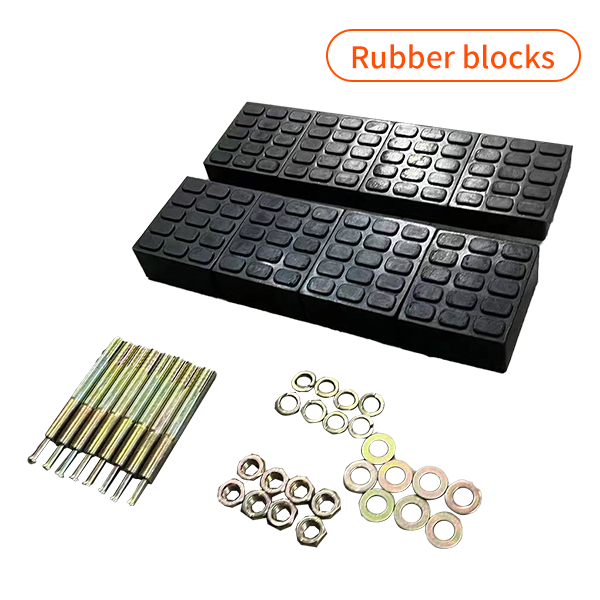

Safety First: CE certified with height limit switch, 24 V safe control system, and composite rubber lifting blocks.
-
Versatile Operation: Includes drive-up ramps and optional support bars (sold separately) to handle longer or heavier vehicles.
-
Mobility: Includes a caster kit for easy repositioning within the workspace.

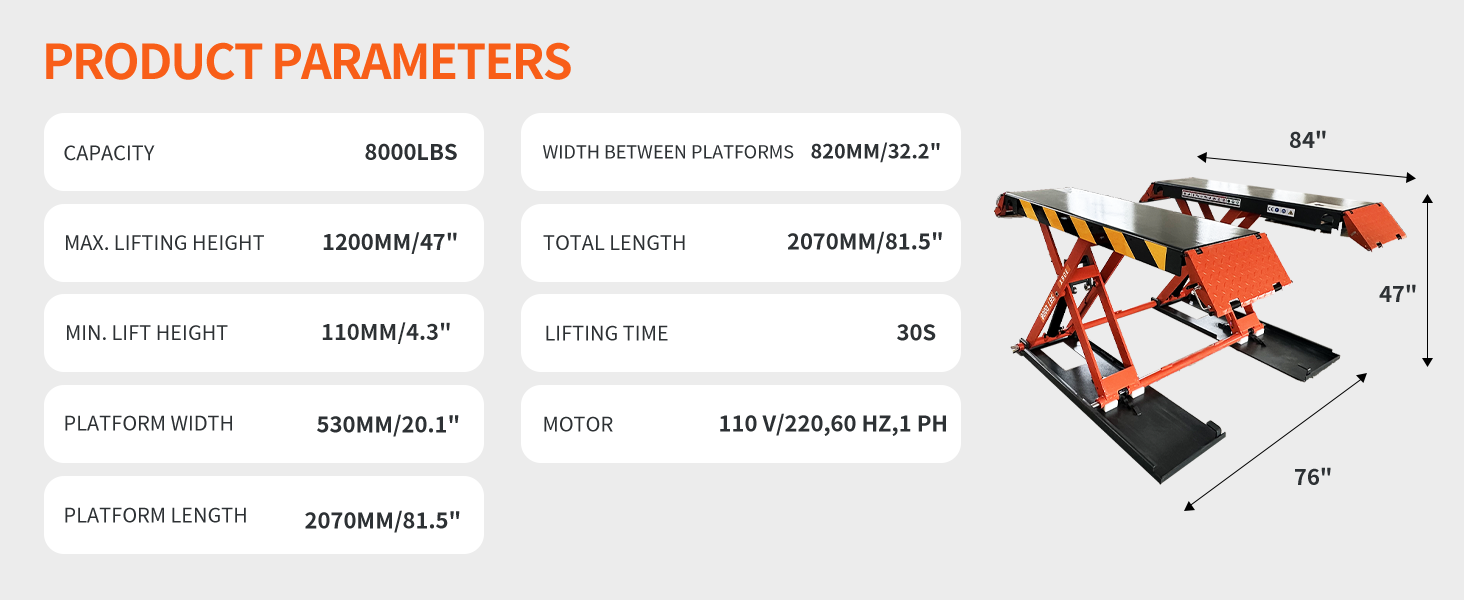

| Specification | Details |
|---|---|
| Model | KT-X90E |
| Lifting Capacity | 8,000 lbs (3,500 kg) |

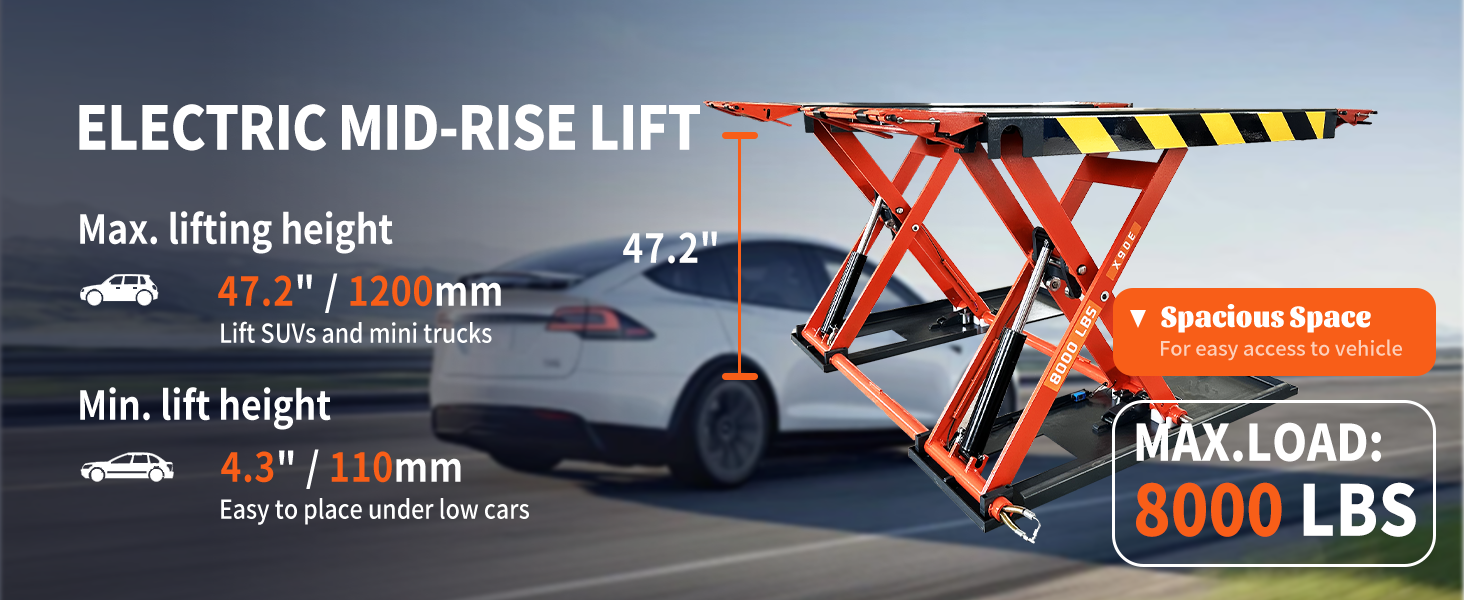

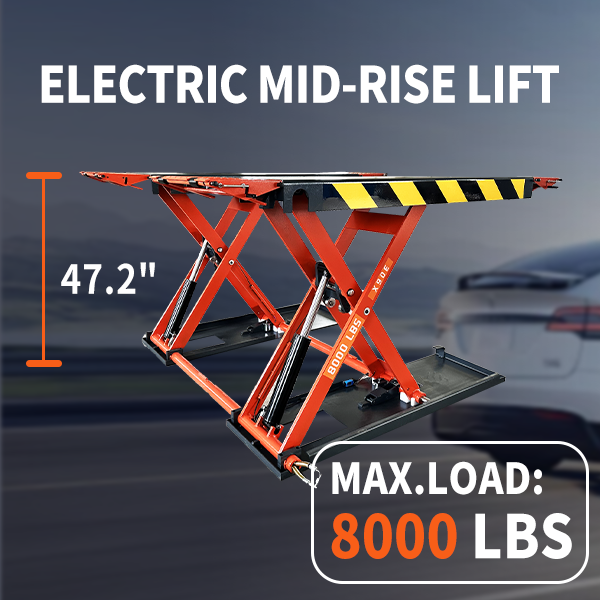

| Max. Lift Height | 47 in (approx.) |
| Min. Lock Point | 4.3 in |
| Lifting Time | 30 seconds |
| Platform Length | 81.5 in |
| Platform Width | 20.1 in |
| Width Between Platforms | 32.2 in |
| Rated Hydraulic Pressure | 20 MPa |
| Power Requirements | 110 V (30 A) or 220 V, 60 Hz, single-phase |

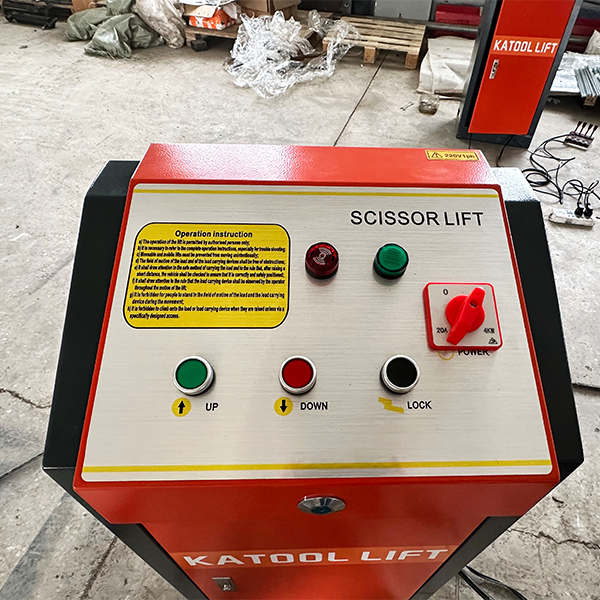

| Control System | 24 V Safe Control |

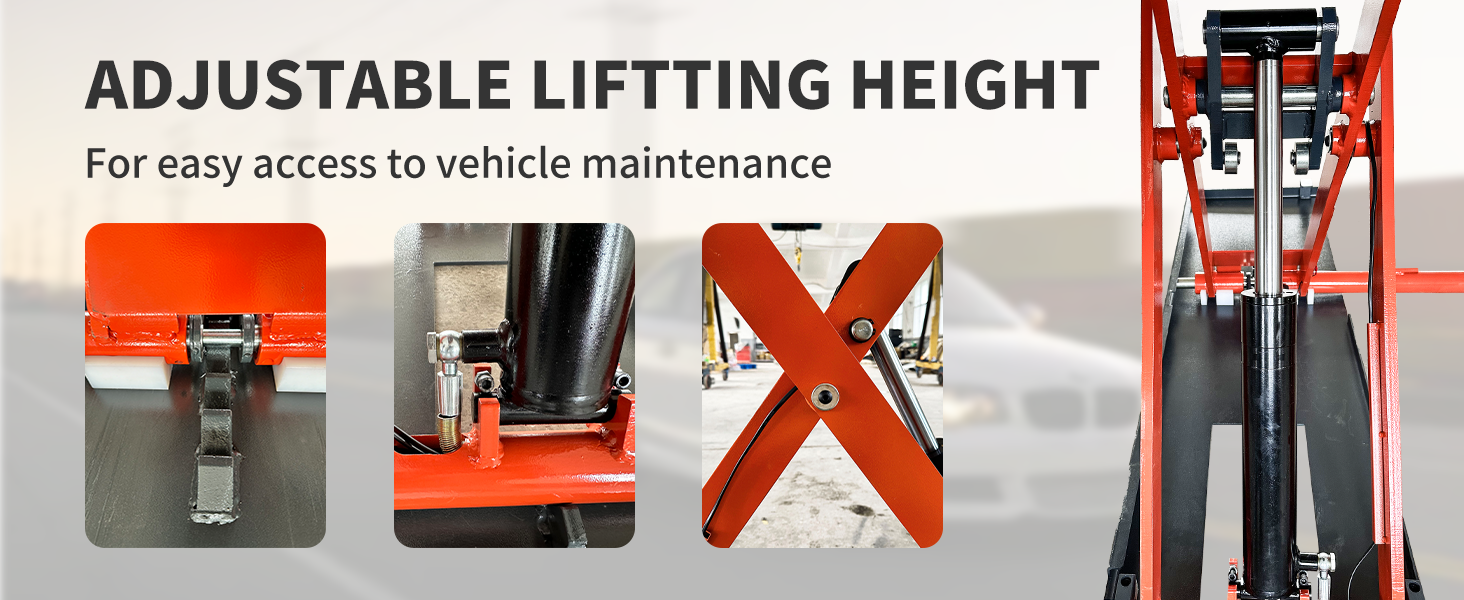

| Mechanical Lock Positions | 5 |
| Hydraulic Oil Type | AW-46 (AW-32 for colder climates) |
| Certification | CE – 115 % dynamic and 150 % static load tested |

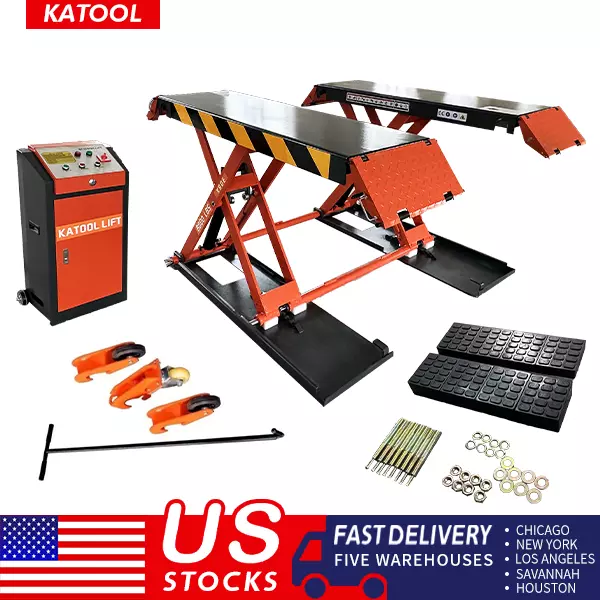

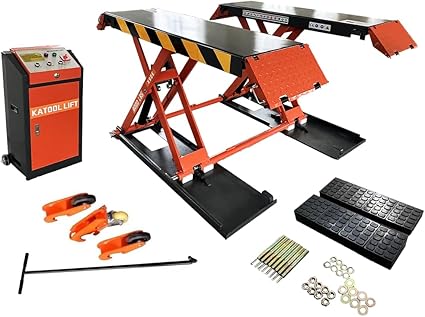

| Included Accessories | Drive-up ramps, composite rubber lifting blocks, caster kit |
| Optional Accessories | Support bars (adjustable) |
| Warranty | Typically 1 yr parts + extended structural coverage |
