LUXPower 12K Hybrid Inverter

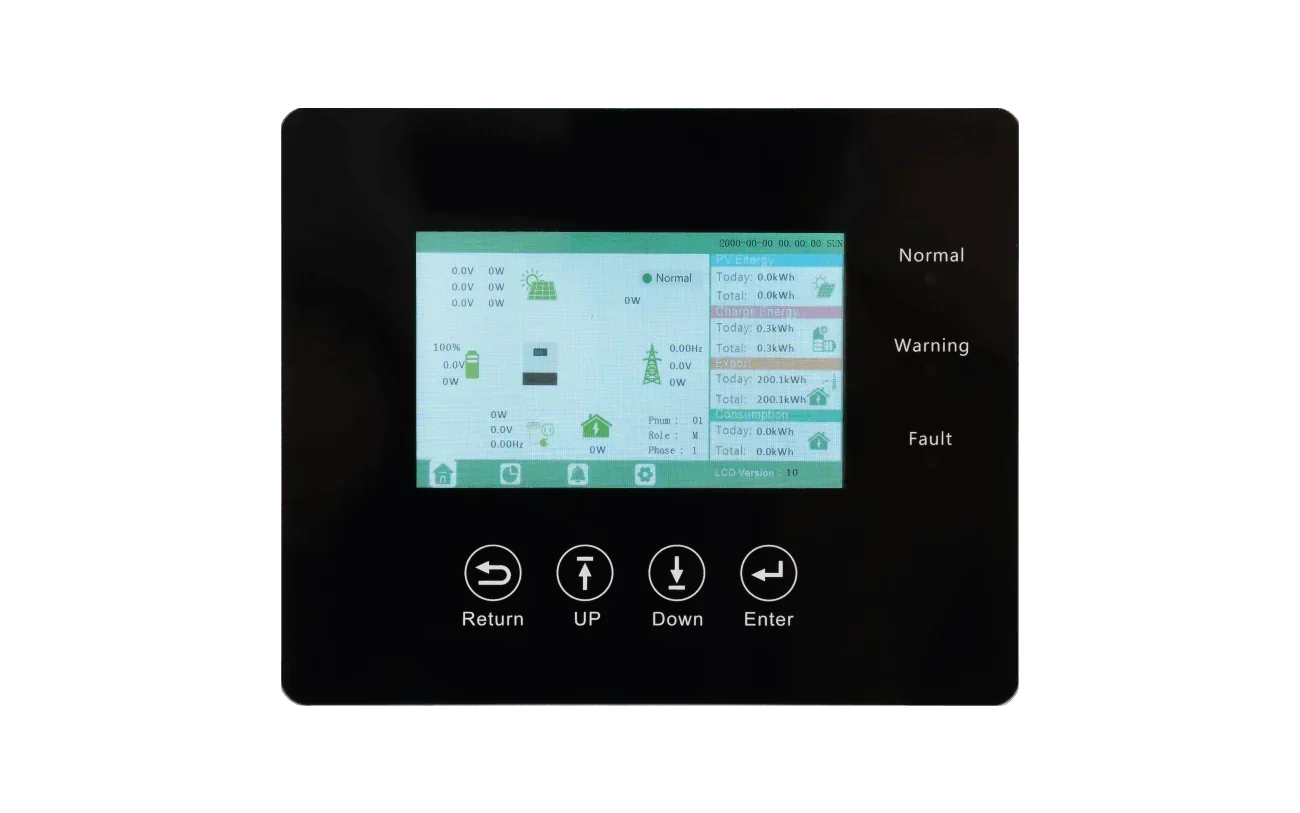

The cutting-edge LXP 12K Hybrid Inverter from LUXPower is a multifunctional off-grid and solar inverter, capable of supporting even the most robust home power systems with a rated power of 12000W and the ability to handle PV arrays of up to 18000W. This high-tech inverter is easily installed, and comes equipped with an in-depth LCD touch screen interface for enhanced monitoring and a smoother user experience, as well as 3 MPPT inputs, built-in circuit breakers, and an integrated UPS module for seamless on and off-grid switching in only 10 – 20ms.
Plus, the LXP 12K inverter supports a variety of working modes and system configurations, so whether you’re looking to enhance your home’s on-grid solar system, or upgrade your homestead’s off-grid backup system, this inverter can handle a wide range of home power applications. Plus, through its smart load control, AC coupling abilities, and peak shaving function, you can meet your power needs and protect your home against unstable grids and rolling blackouts, while seeing huge savings each month on your electric bill. Order today to optimize your home’s power with the cutting-edge LXP 12K Hybrid Inverter from LUXPower!
SPECIFICATIONS
INPUT (PV DC)
| Max. PV Array Power: | 18000W |
| Rated PV Input Voltage: | 360V |
| No. of Independent MPPT Inputs: | 3 |
| PV Input Voltage Range: | 100 - 600V |
| MPPT Voltage Range: | 120 - 480V |
| Start Up Voltage: | 140V |
| Max. PV Input Current per MPPT: | 25A / 15A / 15A |
| Max. MPPT Efficiency: | 99.9% |
BATTERY
| Rated Battery Voltage: | 48V |
| Battery Voltage Range: | 40 - 60V |
| Max. Charge/Discharge Current: | 250A |
| Max. Charge/Discharge Power: | 12000W |
GRID
| AC Voltage: | 120/240; 120/208 |
| AC Frequency: | 60 Hz |
| AC Output Current: | 50A |
| AC Output Power: | 12000W |
| Max. AC Input Current: | 100A |
| Max. AC Input Power: | 24000W |
UPS
| Output Power: | 12000W |
| Output Voltage: | 120/240; 120/208 |
| Output Current: | 50A |
| Output Frequency: | 60 Hz |
| Transfer Time: | 20ms |
| Wave Form: | Sine Wave |
DIMENSIONS
| Weight: | 121.2 lbs (55 kg) |
| Depth: | 11.2 in (285 mm) |
| Width: | 20.5 in (520 mm) |
| Height: | 34.2 in (870 mm) |
OPERATING ENVIRONMENT
| Operating Temperature: | -20ºC (-4ºF) - 60ºC (140ºF) |
| Storage Temperature: | -20ºC (-4ºF) - 60ºC (140ºF) |
| Altitude: | <6,562 ft |
| Protection Rating: | IP65 |
