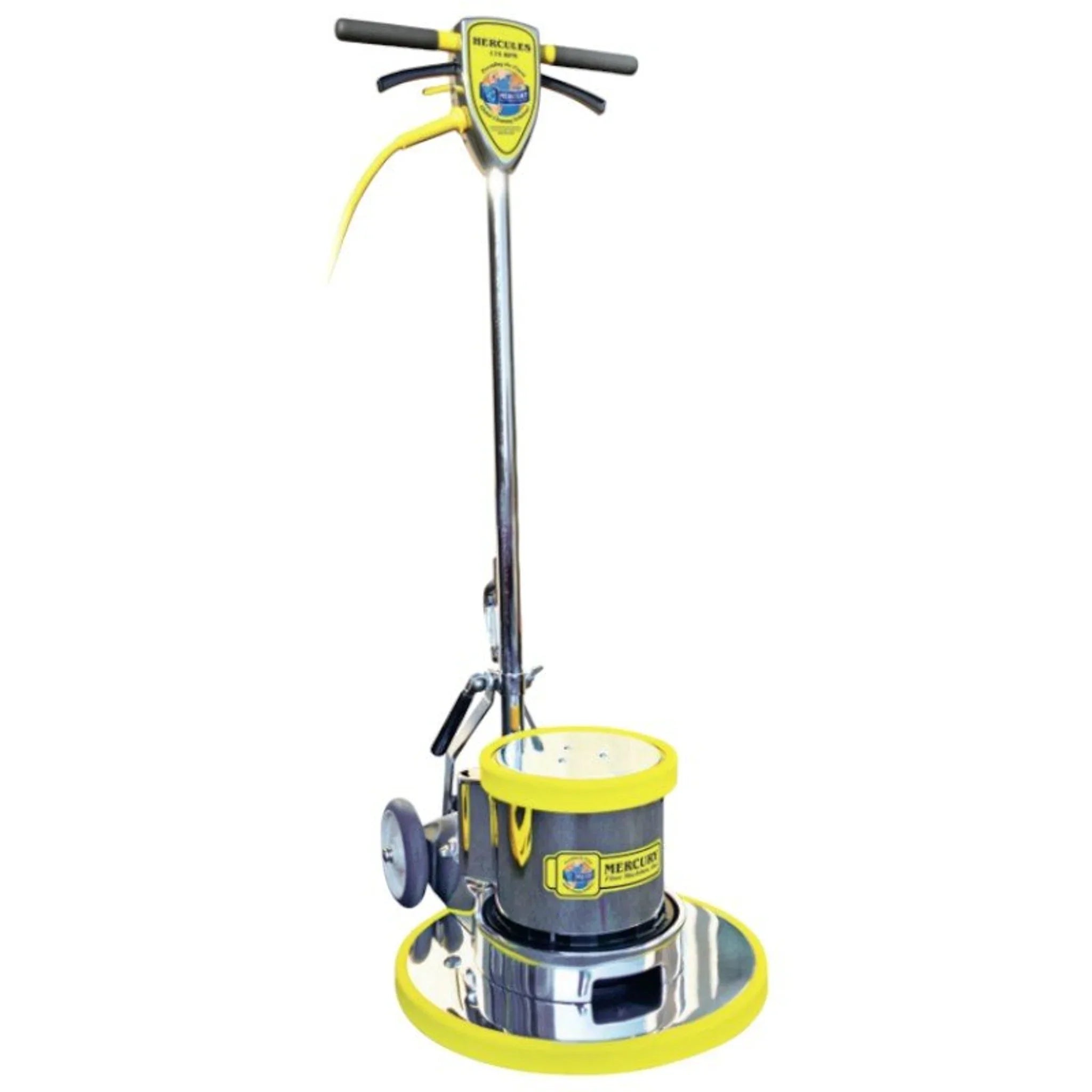

Mercury H-13E Hercules: 13" Super Heavy-Duty Floor Machine at 175 RPM

The H-13E is the narrowest model in the Hercules series — a 13" apron at 175 RPM, weighing 103 lbs. It shares the same 1.5 HP dual-capacitor A/C motor and triple-planetary gearbox as the wider Hercules models (H-15E through H-21E), but fits through access points that no other Hercules can reach. At 103 lbs on a 13" pad, the H-13E delivers the highest pad pressure per square inch in the entire Hercules lineup.

H-13E Motor, Transmission, and Pad Specifications

• Apron size: 13" — the narrowest in the Hercules series; accesses zones that all wider models cannot
• Speed: 175 RPM — single-speed for stripping, scrubbing, buffing, and bonnet cleaning
• Machine weight: 103 lbs — lighter than H-15E (104 lbs) through H-21E (108 lbs) by 1–5 lbs, but concentrated over a smaller pad area for highest PSI in the series
• Motor: 1.5 HP A/C dual-capacitor — run capacitor maintains power factor under sustained load; 15A draw
• Transmission: Triple-planetary gearbox — three sequential gear sets multiply torque to the pad
• Power cord: 50-foot 14/3-gauge safety cord
• Dimensions: 21" x 21" x 48"

Where the H-13E Fits When No Other Machine Can

The H-13E exists for the narrowest cleaning zones in commercial and industrial facilities: walk-in freezer interiors with 14" aisle clearance, server rack corridors, laboratory fume hood service lanes, equipment maintenance bays, and confined stairwell landings. Standard-duty 13" floor machines (typically 75–85 lbs) access the same width but deliver less downward force and less gearbox torque. The H-13E at 103 lbs brings Hercules-series weight and triple-planetary torque to a footprint that no competing heavy-duty machine in the lineup can match for narrowness. For facilities that currently use manual scrubbing or consumer-grade machines in these confined zones, the H-13E produces results — single-pass stripping, effective chemical scrubbing, professional gloss buffing — that manual methods cannot achieve at the same labor cost.

Pad Pressure, Triple-Planetary Gearbox, and the 13" Advantage

At 103 lbs on the narrowest pad in the Hercules series, the H-13E produces the highest localized pad pressure of any model in the lineup. The same weight distributed over a 13" pad area results in more force per square inch than a 19" or 21" machine at 107–108 lbs. This is the key mechanical basis for the H-13E's stripping effectiveness in confined zones: the black pad contacts finish with maximum localized force relative to its size, which, combined with the triple-planetary gearbox's torque multiplication, produces single-pass finish removal on most commercial-grade wax systems. The dual-capacitor A/C motor prevents the heat accumulation under sustained load that single-capacitor motors experience — relevant in confined spaces where the machine may run at maximum load continuously due to tight turns and frequent direction changes requiring the motor to maintain torque throughout.
