    Description

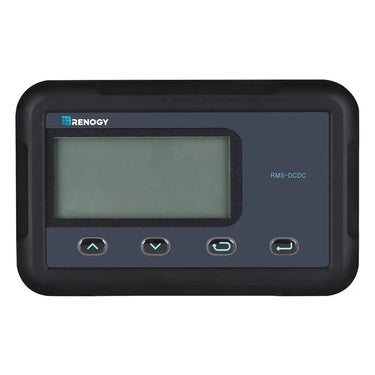

    The RMS-DCDC is a high precision meter designed for DC-DC MPPT Series onboard battery chargers. Engineered for an aesthetically clean and professional look once mounted, this meter can be flush-mounted and features a backlit LCD. Utilize the 4-key input to navigate through the LCD for system information, configure charging parameters, as well as identify any error codes. The RMS-DCDC is the perfect companion, offering operator feedback on your 2-battery system and keeping you up to date with important system information.

    If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us.

    Key Features

    • Dual Battery Monitoring
    • Stay informed about your house and auxiliary battery's charging status and easily monitor the solar system's overall health.
    • Adjustable Parameters
    • Program your charger settings, volts, and amps directly through the monitoring screen.
    • Plug and Play
    • Simply connect an RJ45 directly to your DC-DC and let the screen take care of the rest.
    • Accurate Readings
    • Precise tracking and monitoring ensure the latest real-time solar and alternator charging information.
    Compatible Models:  RBC50D1S-G1  RBC30D1S



    Package Includes

    Monitoring Screen for DC-DC MPPT Battery Charger Series

    1 x

    Electrical Specifications Mechanical Specifications
    Supply Voltage: 5VDC Communication Port: RJ45 (RS485 Protocol)
    Supply Current: 30mA Display: Backlit LCD
    Power Consumption: <1W User Interface: 4 Front Menu Buttons
    Operating Temperature Range: -4°F~113°F / -20°C~45°C Mounting System: Wall Mount
    Voltage Accuracy: ±0.1V Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm
    Current Accuracy: ±0.1A Weight: 0.14 lbs / 62 g
      Wire Length: 16.4ft / 5m
      Certifications: FCC



    Warranty Information

    Accessories 1-year material and workmanship warranty







    Brand Renogy
    Category Charge Controllers
    SKU RMS-DCDC-US
    Weight 0.36 kg
