MRBF Terminal Fuse(30A/40A/60A/75A/100A/150A/200A/250A/300A/350A/400A) — 200A

$16.89 USD
Shipping calculated at checkout.
Renogy

MRBF Terminal Fuse(30A/40A/60A/75A/100A/150A/200A/250A/300A/350A/400A) — 200A

$16.89 USD
Shipping calculated at checkout.
Payment & Security
PayPal
Venmo

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • ✔ Fast, insured shipping from US warehouses
  • ✔ Authorized dealer for every brand we sell
  • ✔ Backed by full manufacturer warranty
  • ✔ Questions? Email info@garagegeardirect.com

    • Usually ships within 3–5 days and delivers within 10 business days.

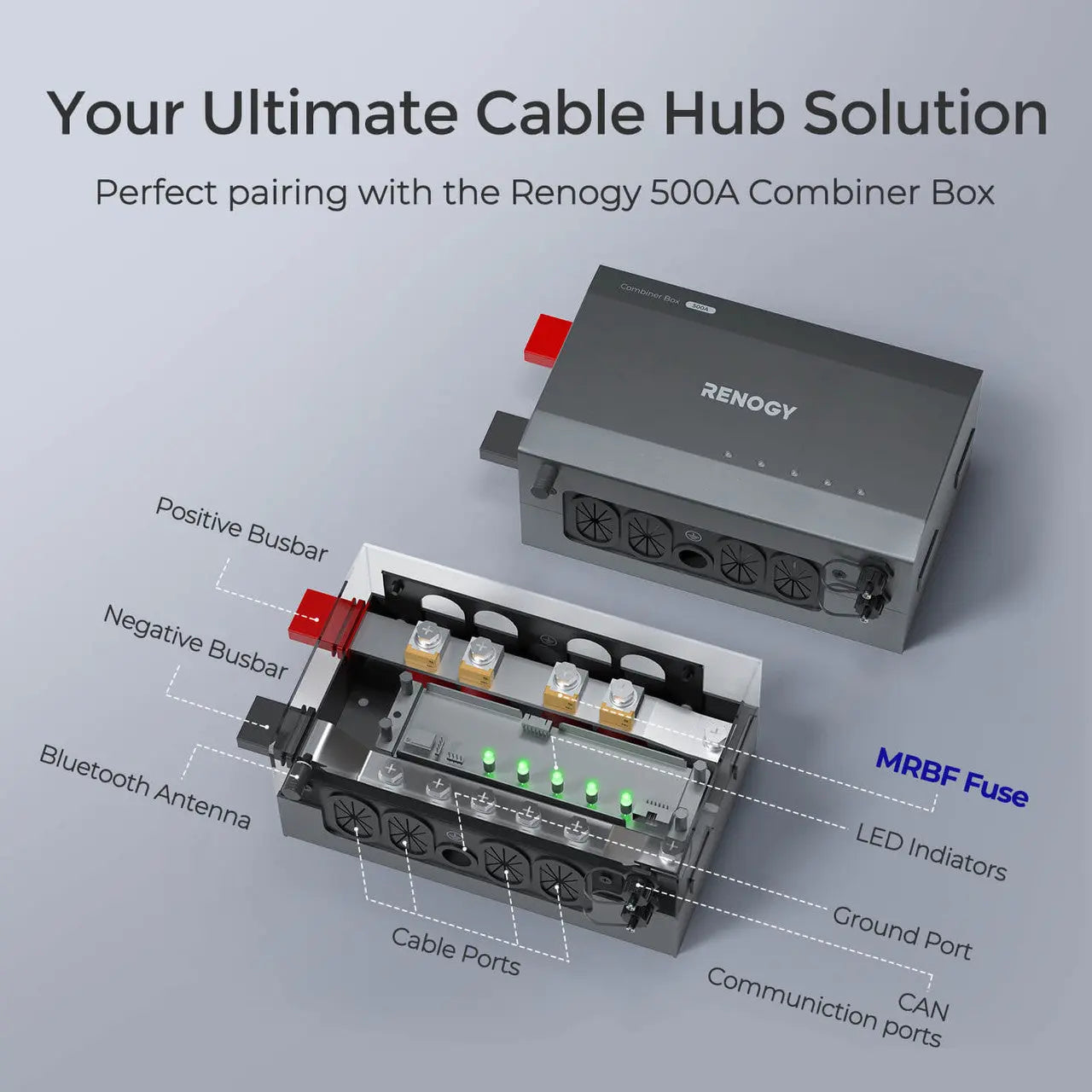

    -Simplifies wiring with Renogy 500A Combiner Box.
    -Compact and reliable circuit protection for your solar system.
    -Versatile voltage and amperage range for diverse applications.
    -If not used with a combiner box, a terminal fuse holder is required.
    -RoHS, UL, and CE certifications for reliability and compliance.
    Renogy MRBF Terminal Fuse
    Safeguarding every journey, from waterways to roadways.
    Integrated Circuit Protection
    The MRBF fuse streamlines installation by eliminating the need for external fuses, ensuring a seamless user experience with effortless troubleshooting of system faults through internal integration.
    Centralized Electrical Safeguarding

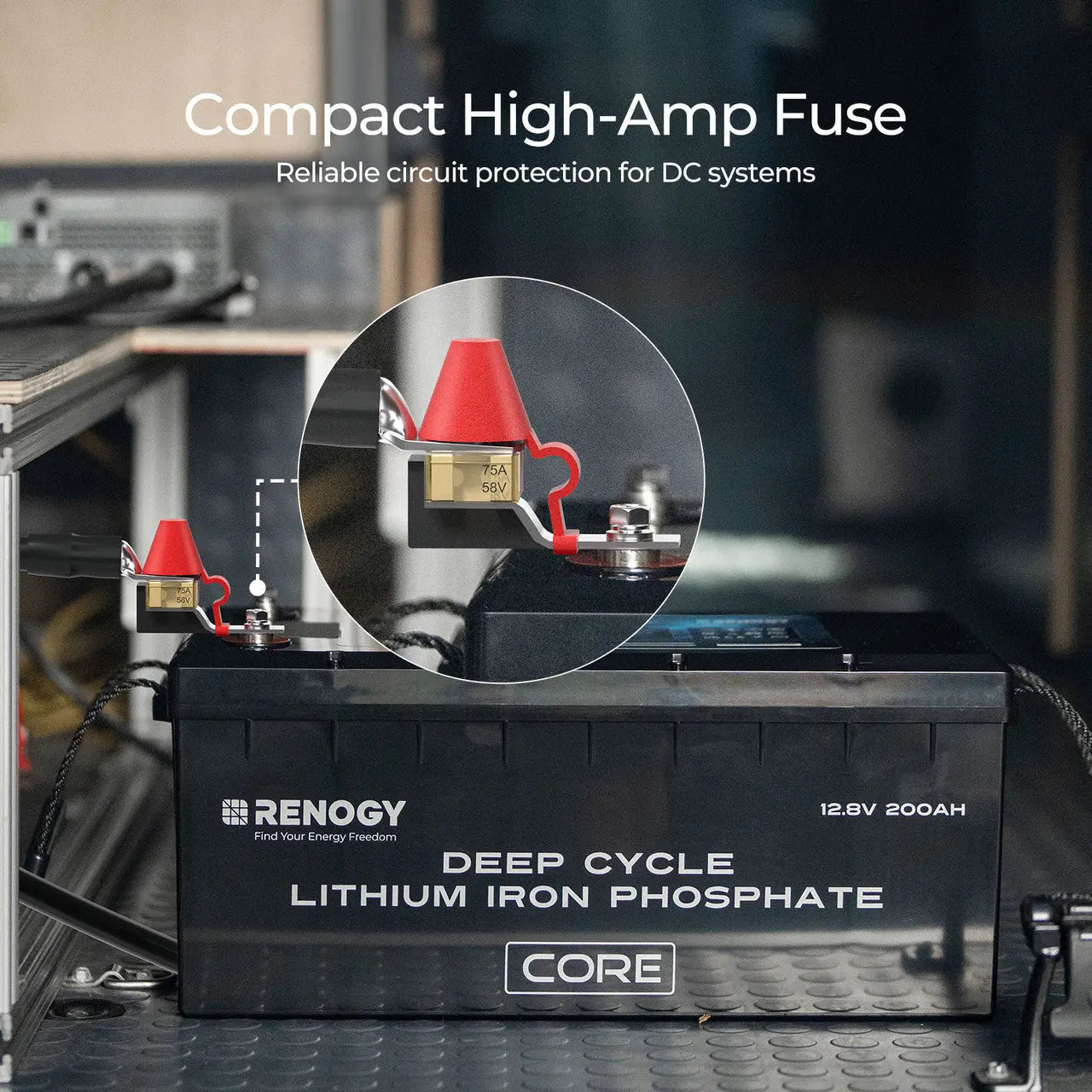

    MRBF fuse attaches directly to the positive terminal's copper plate for circuit protection, eliminating the need for external connections.
    Connect with Renogy customers.
    Go to Power Plus Community
    Still have questions?
    Ask our specialist

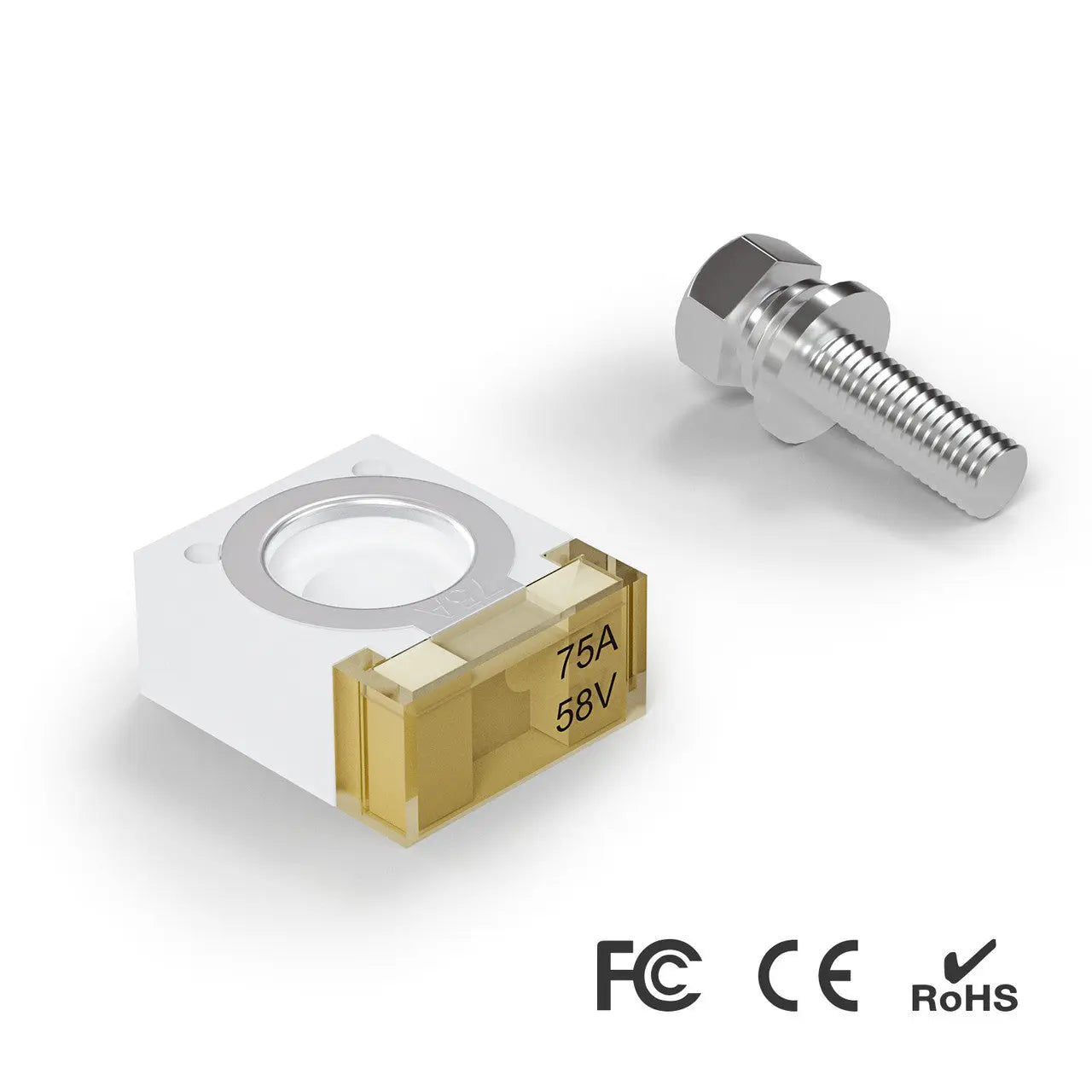

    Package Includes


    • MRBF Terminal Fuse x 1
    • M8 Terminal Bolt x 1

    MRBF TERMINAL FUSE
    Specification
    Current Rating: 30A/40A/60A/75A/100A/150A/200A/250A/300A/350A/400A Voltage Rating: 58V

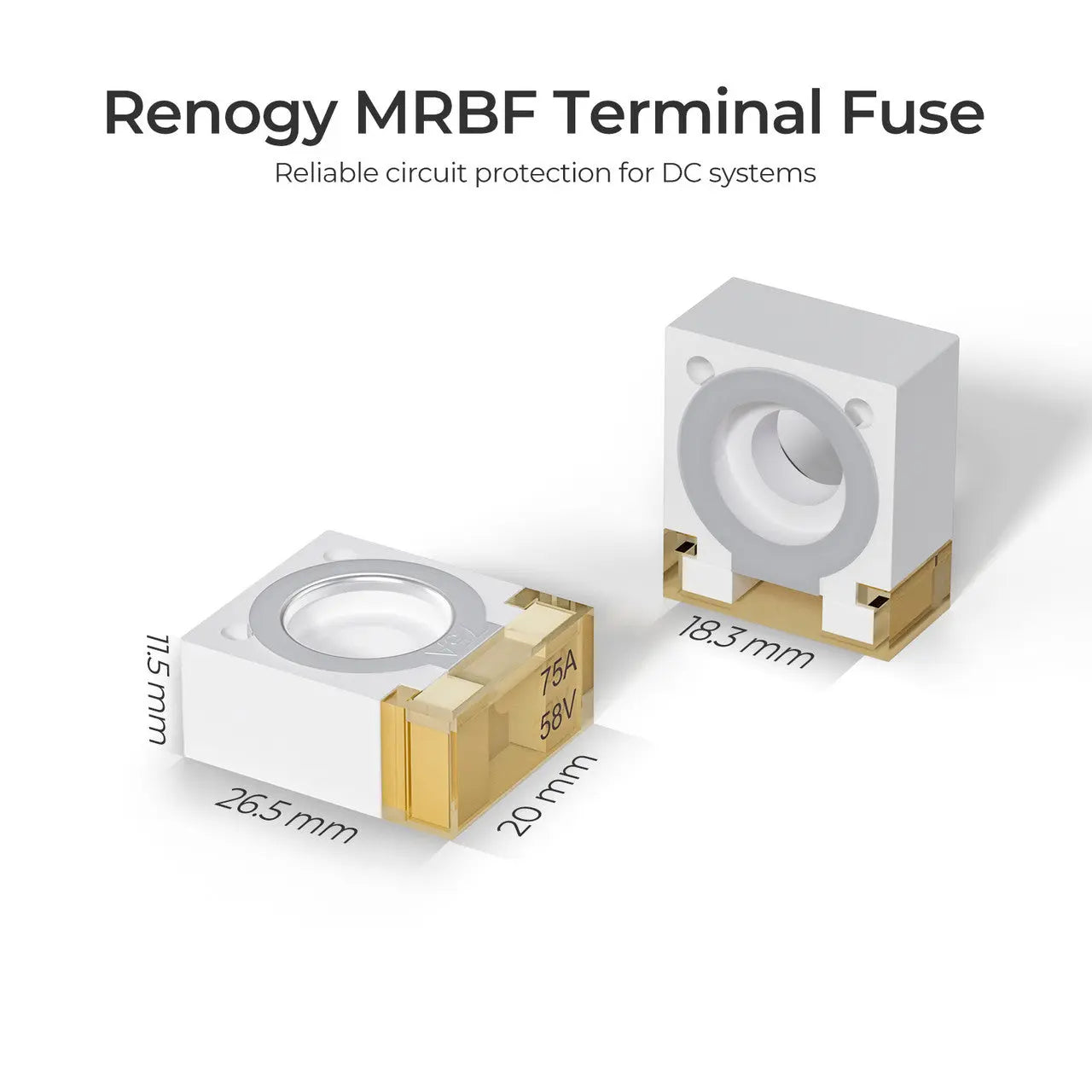

    Interrupt Rating: 10,000A @ 14VDC / 5,000A @ 32VDC / 2,000A @ 58VDC Dimension: 23.5*20*11.5 mm / 0.93*0.79*0.45 inch
    Mounting Hole Size: 5/16'' / M8 Insulating Body Material: Ceramic
    Cover Material: PES
    Warranty
    material and workmanship warranty: 1 Year
    Certifications
    Certifications: RoHS; UL; CE

    1. What is the purpose of the screw fittings in the package?

    This screw will help you when installing the MRBF Fuse on your Renogy Combiner Box.







    Brand Renogy
    Category Solar Accessories
    SKU RPD200TF-BL-US
    Weight 0.08 kg
