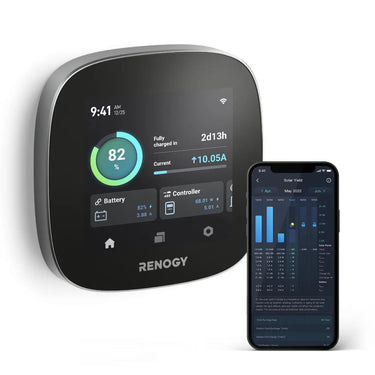

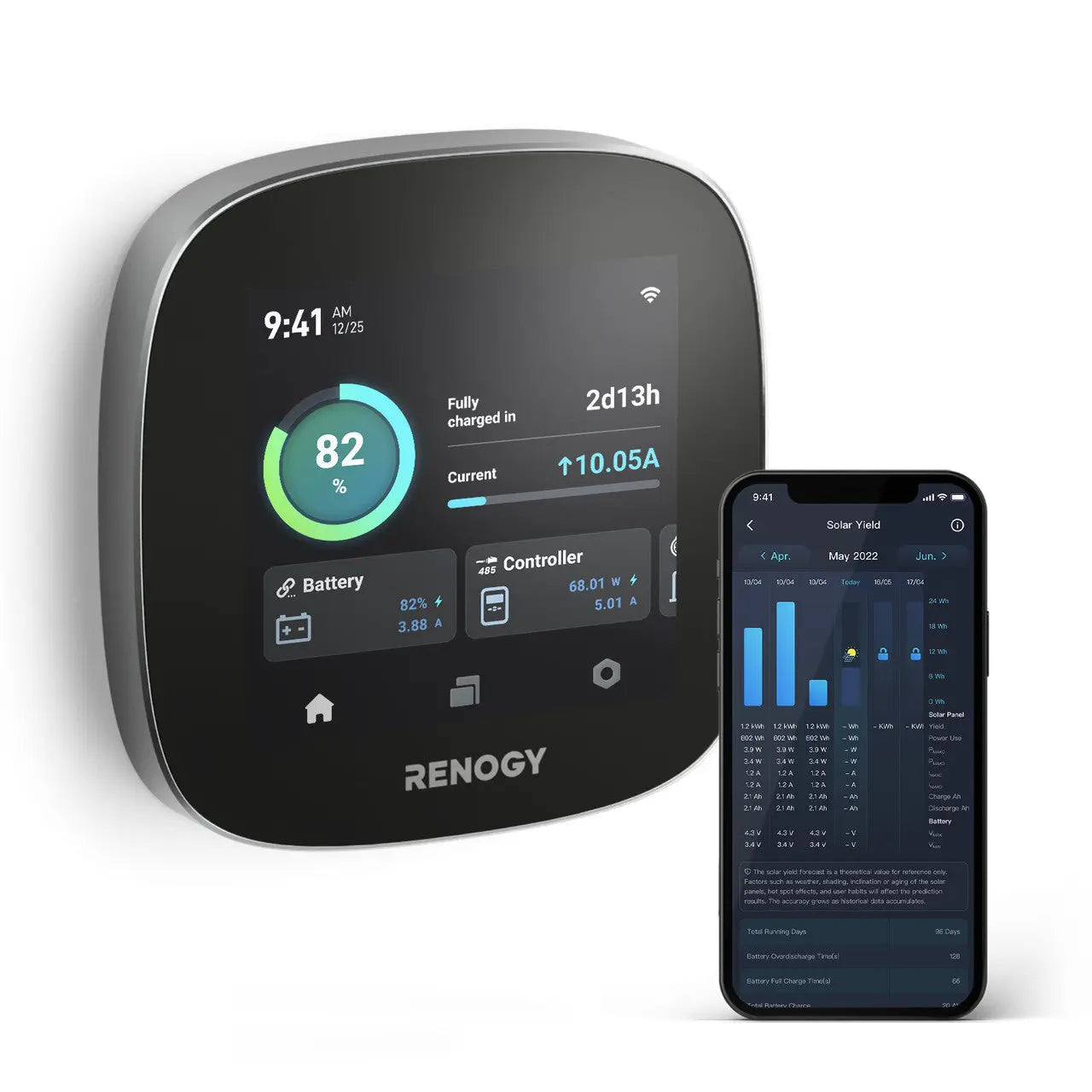

Renogy ONE Core (G3 Version)

$243.09 USD $186.99 USD Save $56.10
Shipping calculated at checkout.
Renogy

Renogy ONE Core (G3 Version)

$243.09 USD $186.99 USD Save $56.10
Shipping calculated at checkout.
Payment & Security
American Express
Apple Pay
Diners Club
Discover
JCB
Mastercard
PayPal
Venmo
Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • ✔ Fast, insured shipping from US warehouses
  • ✔ Authorized dealer for every brand we sell
  • ✔ Backed by full manufacturer warranty
  • ✔ Questions? Email info@garagegeardirect.com

    • Usually ships within 3–5 days and delivers within 10 business days.

    All-in-one solution
    Renogy ONE Core is a comprehensive solution that combines energy monitoring, RV leveling, and smart automation features in one convenient package. This makes it easy for you to manage your RV systems without the need for multiple devices.
    24/7 Energy Monitoring
    Renogy ONE Core offers 24/7 energy monitoring through Bluetooth (BLE & Mesh) and RS485 connectivity. This allows you to keep track of your energy usage and identify areas where you can reduce consumption.
    Worldwide Remote Monitoring
    With the DC Home App and Renogy ONE Portal, you can remotely monitor your RV systems from anywhere in the world. This feature allows for greater flexibility and convenience when it comes to managing your RV systems.
    RV Leveling Assistant
    Renogy ONE Core comes with an RV leveling assistant that makes it easy to level your RV without the need for manual adjustments. This feature saves time and effort, making it easier for you to set up camp and get on with your adventures.
    Smart Automation
    Renogy ONE Core is compatible with a range of smart accessories that allow for automations of your off-grid life. This feature offers greater convenience and peace of mind, as you can set up automated scenes to make your life easier.
    Excellent Design and Installation
    Renogy ONE Core features an excellent design that is both functional and aesthetically pleasing. This ensures that it not only works well but also looks great in any RV.Renogy ONE Core is designed for easy installation, allowing you to set up your RV systems quickly and easily without the need for professional installation.
    System Update (OTA)
    Renogy ONE Core is continuously updated with new features and improvements through OTA updates. This ensures that you always have access to the latest and greatest features to make your RV experiences even better.
    • Cloud-based energy monitoring worldwide.
    • 24/7 energy analysis on multiple devices.
    • Built-in RV leveling sensor for stability and comfort.
    • Connect smart accessories for home automation.
    Proven, Trusted Choice for Customers Worldwide

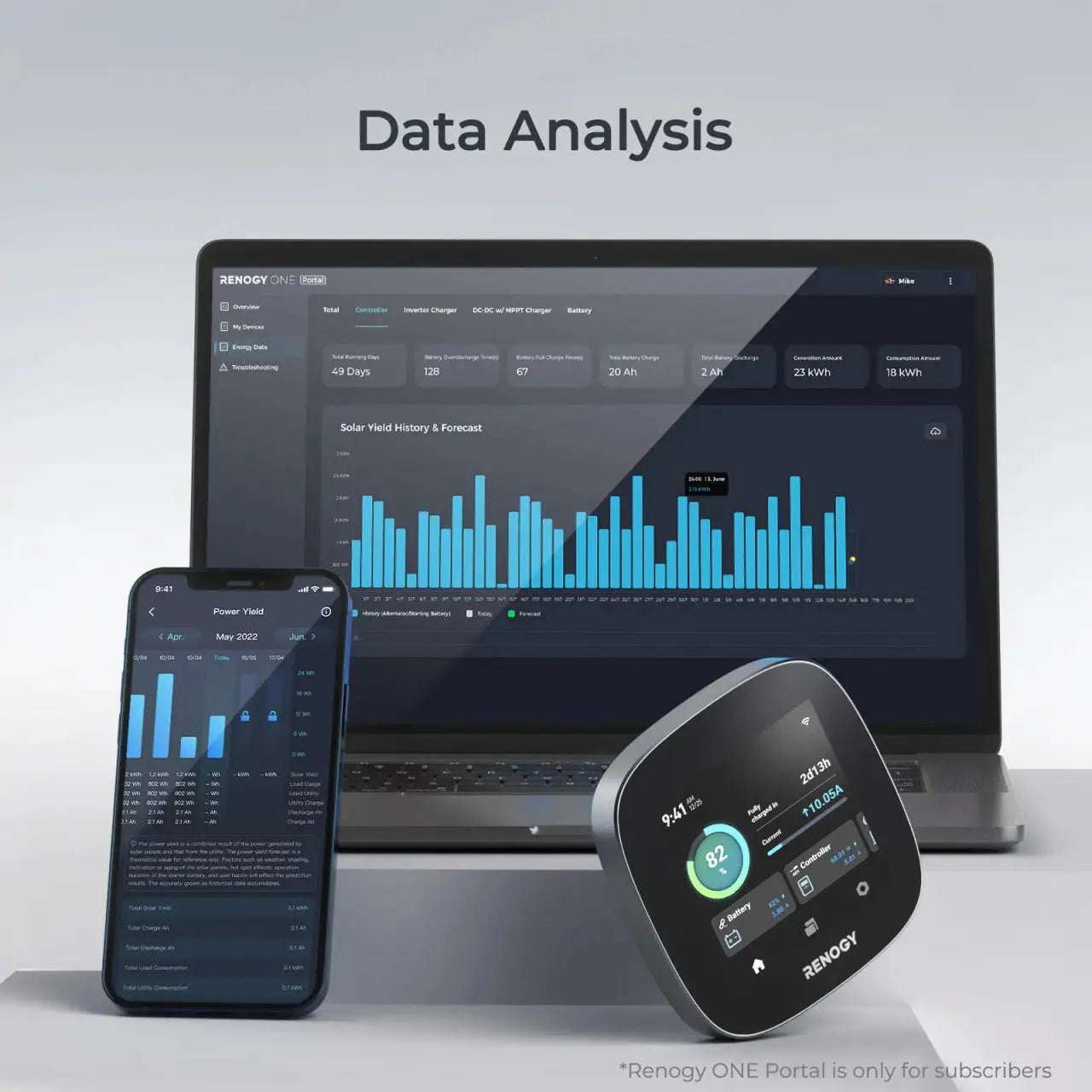

    Energy Data Analysis
    Remote Monitoring
    Adaptable Devices
    Energy efficiency at your fingertips
    Dedicated to off-gridders, Renogy ONE Core helps save money and reduce your carbon footprint by tracking energy generation and consumption.
    Distance is not a problem
    Remote energy monitoring in various scenarios.

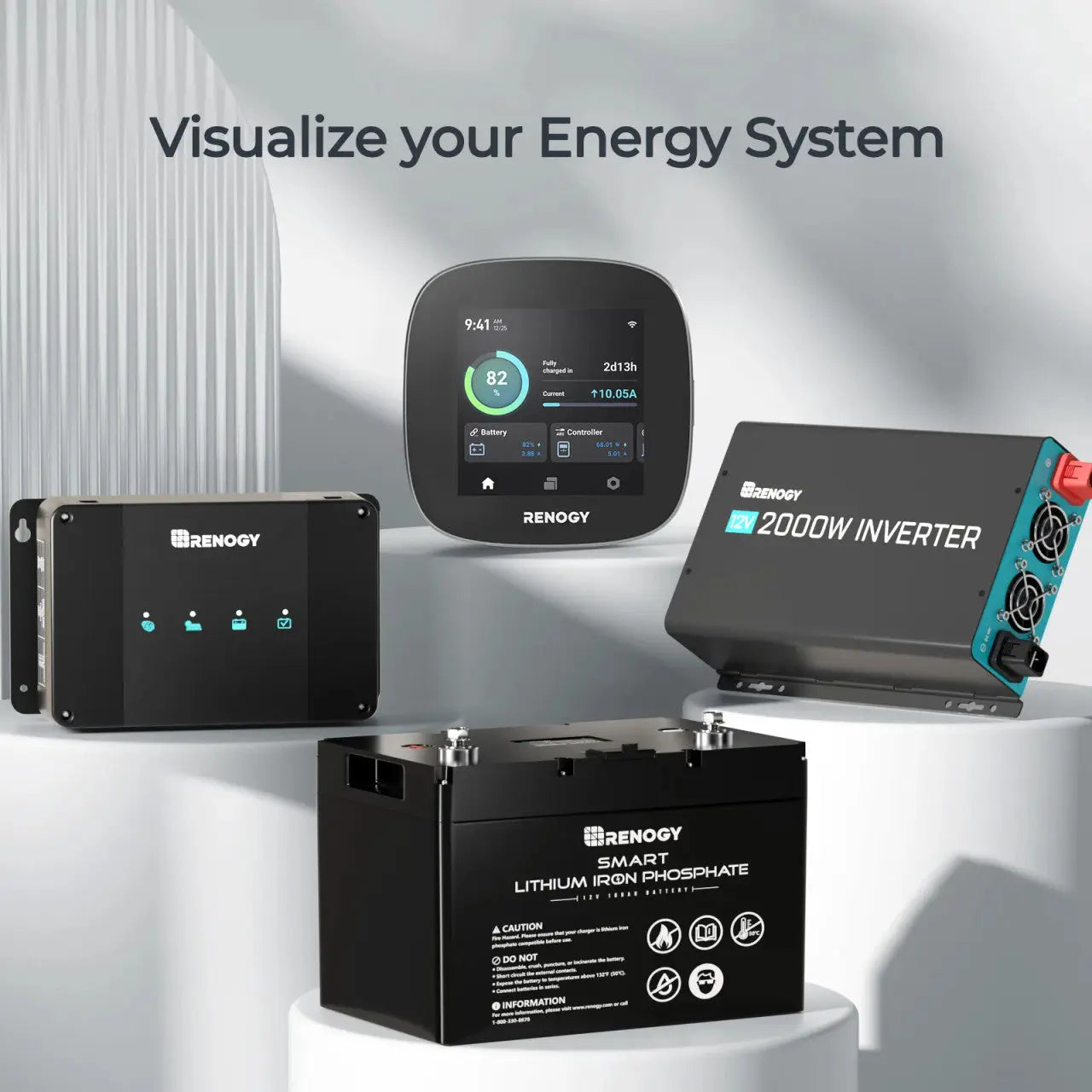

    One Command Center for Your Renogy Devices
    Click to Download the full compatible devices list

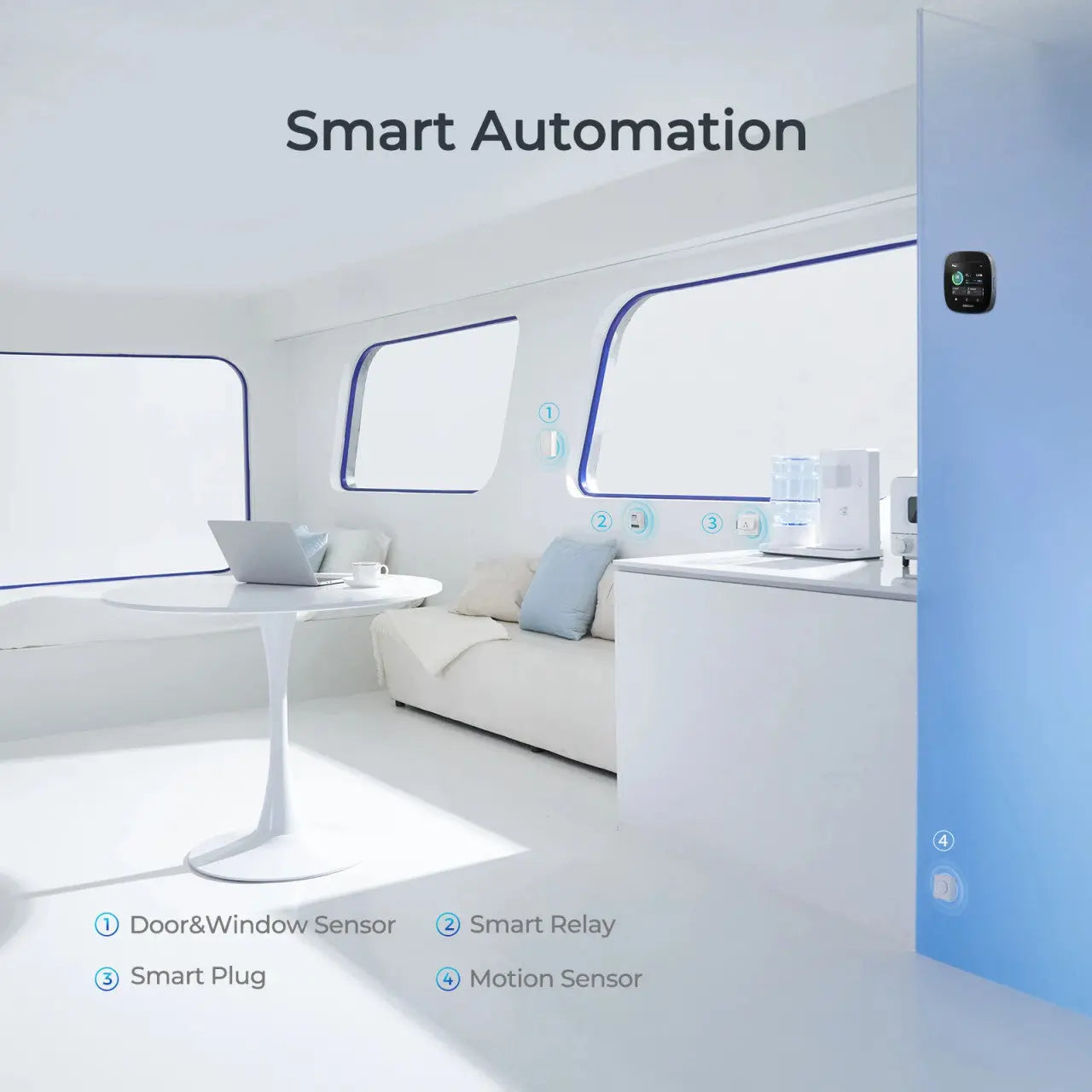

    Smart Automation
    Security
    Make it a smart home
    ONE Core also serves as a smart home hub, allowing you to connect your smart home appliances like door entry alert or climate sensors, enjoy added convenience and security of home automation.
    Peace of mind with 24/7 security
    Detect unexpected motions occurring in your RV, keep you alert and informed of anything suspicious.
    Effortless installation
    Step 1
    Complete a hole using a 55mm diameter punch and get all components of the device stand.
    Step 2
    With an embedded horizontal bubble, it's easy to achieve the horizontality of the device.
    Step 3
    Rotate, click clack, it's done.
    Renogy ONE M1 vs Renogy ONE Core


    Connect with Renogy customers.
    Go to Power Plus Community
    Still have questions?
    Ask our specialist

    Package Includes

    NOTE:

    Renogy ONE Core

    1 x



    Quick Guide

    1x



    Power Cable

    5m



    Mounting Screw

    M3.5 x14mm x4

    (1 extra)



    ELECTRICAL DATA


    Operating Voltage 8-35 VDC (5 VDC for USB Type-C)
    Power Consumption at 12V Operating, WiFi On, 100% illumination: 3.2 W
    Operating, WiFi On, 50% illumination: 2.4 W
    Operating, WiFi On, 0% illumination: 1.9 W
    Off, logger still active: 1.5 W

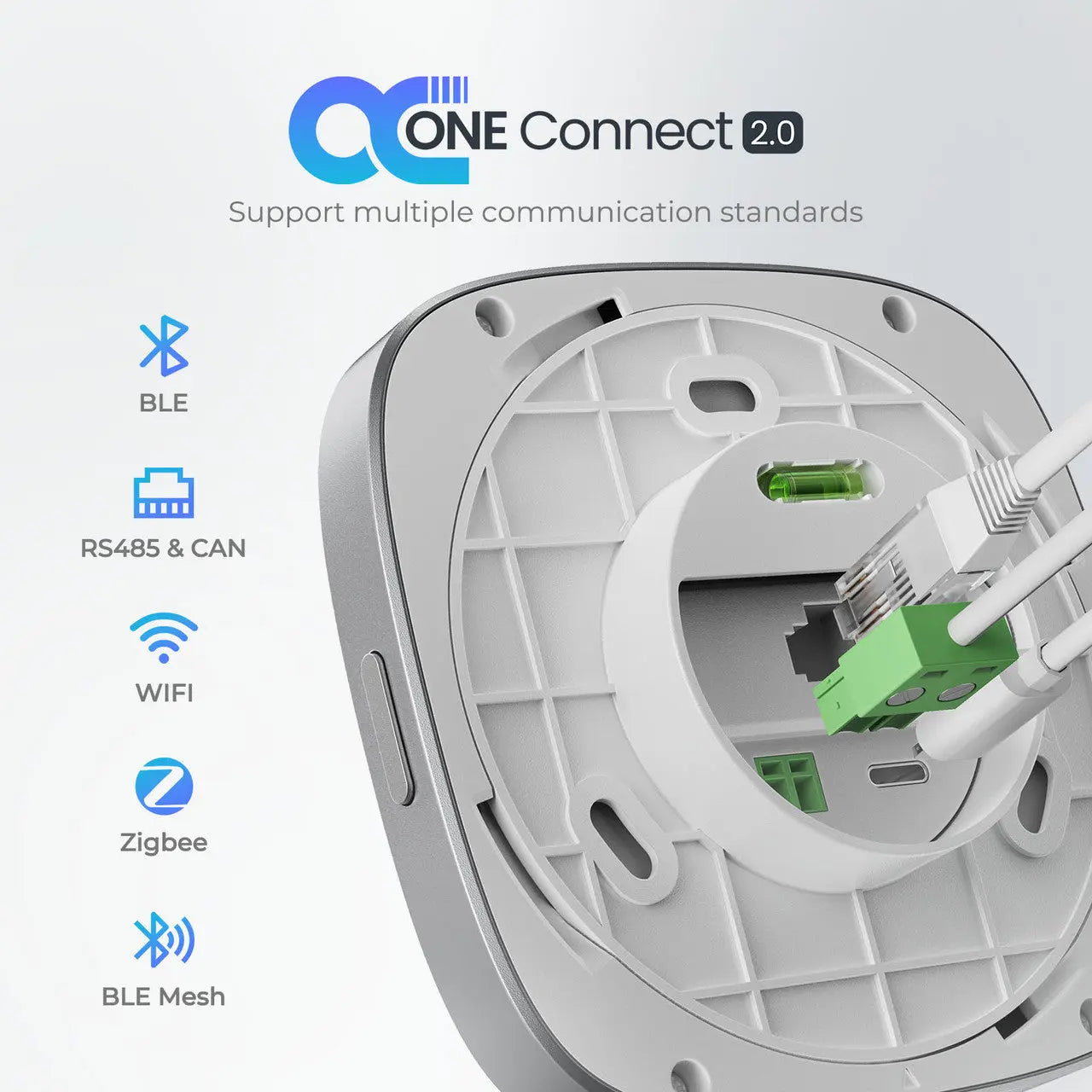

    Communication IEEE 802.11 a/b/g/n 2.4GHz & 5GHz
    Bluetooth LE and Bluetooth Mesh
    Zigbee 3.0 (IEEE 802.15.4)
    RS-485&CAN
    Touch Screen 4 inches (480 x 480p)
    GENERAL DATA
    Model RSHGWSN-W02W-G3
    Operating Temperature -4℉ to 158℉ (-20℃ to 70℃)
    Operating Humidity 0% to 95% RH
    Operating Altitude Less than 5000m above sea level
    Installation Flush mount

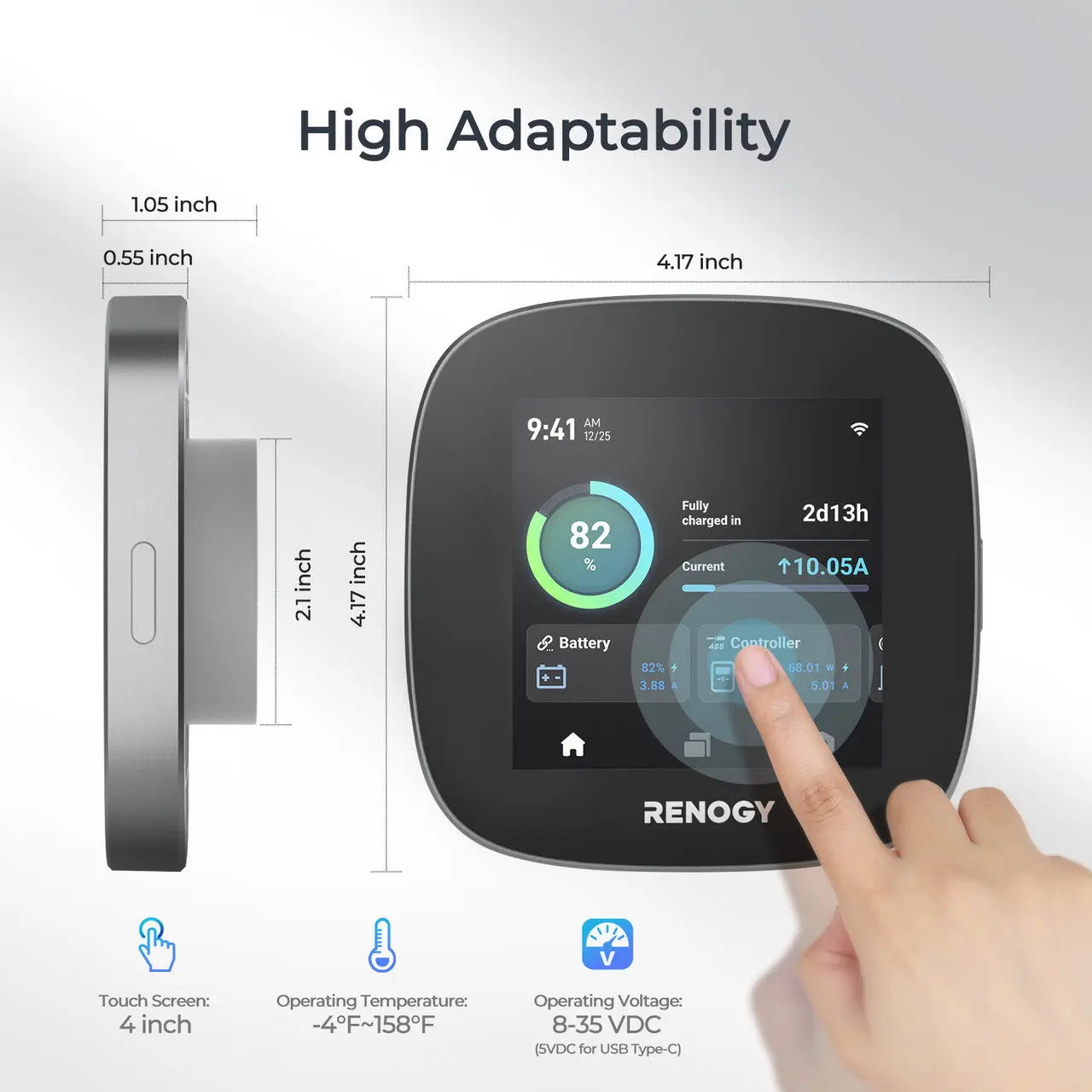

    Dimensions 4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm)
    Weight 0.28 lb (128g)
    Certification CE, FCC, RoHS, TSCA, BQB, IC-ID
    Material and workmanship warranty 2 years

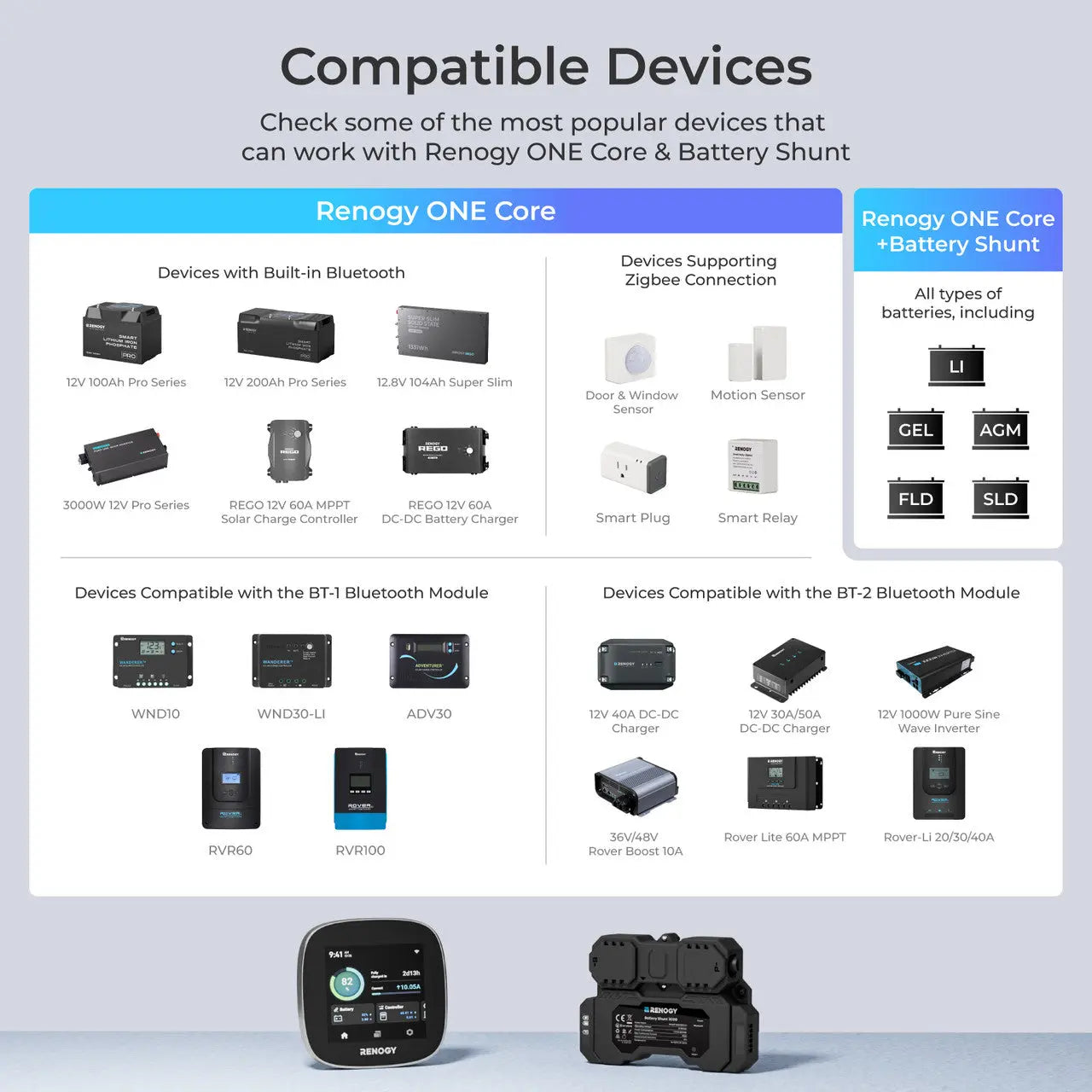

    1. What devices are compatible with Renogy ONE Core？

    2. What are the differences between Renogy ONE Core and Renogy ONE M1？

    3. How to I connect Renogy ONE Core with different types of batteries to set up a battery monitoring system?


    The Renogy ONE Core can function as a power monitor when it is connected to Renogy batteries that support Bluetooth (built-in or with external BT-1/BT-2 modules) and RS-485.

    4. Does Renogy ONE Core support RV-C？


    Yes, the Renogy ONE Core G3 supports RV-C communication.

    5. What is the operational altitude range for the Renogy ONE Core?

    It can work normally at altitudes below 5000 meters.
    6. Does Renogy ONE Core come with a shunt?


    No, it does not come with a shunt, but it is compatible with the Shunt 300 if needed.

    7. Does Renogy ONE Core support 5 GHz Wi-Fi network?


    Yes. It supports 2.4 GHz Wi-Fi and 5 GHz Wi-Fi.

    8. Does Renogy ONE Core support WPA3 encrypted Wi-Fi networks？


    No. It does not support WPA3.

    9. Is Renogy ONE Core compatible with third-party Zigbee 3.0 devices?


    We cannot guarantee the compatibility between Renogy ONE Core and third-party Zigbee 3.0 smart home devices. Therefore, it is recommended to use smart accessories that have been authorized by Renogy with your Renogy ONE Core, such as Smart Plug, Motion Sensor, Door & Window Sensor, and Smart Relay.

    10. Do the configured smart scenes in Renogy ONE Core still work when it is offline?


    Yes, the configured smart scenes in Renogy ONE Core will still work when it is offline. Renogy ONE Core utilizes the Zigbee 3.0 protocol to establish wireless connections with smart accessories. When you set up a smart scene for home automation, the configuration is saved within the system of Renogy ONE Core. This means that even if the Wi-Fi network is unavailable, Renogy ONE Core can still communicate with and control smart accessories through Zigbee 3.0.

    11. What kind of power systems can Renogy ONE Core work with?


    Renogy ONE Core can be supplied by a 5V DC source via Type-C or an 8V to 35V DC source via the power cable. As for energy monitoring, Renogy ONE Core allows you to monitor power devices rated at 12V DC or 24V DC.

    12. How long will Renogy ONE Core store the data locally?


    Renogy ONE Core can store data locally for 30 days

    More questions about your off-grid power system? Learn more from Renogy Learning Center!










    Brand Renogy
    Category System Monitoring
    SKU RSHGWSN-W02W-US
    Weight 0.54 kg

    Warranty & support: renogy.com/support · 1-909-287-7111
