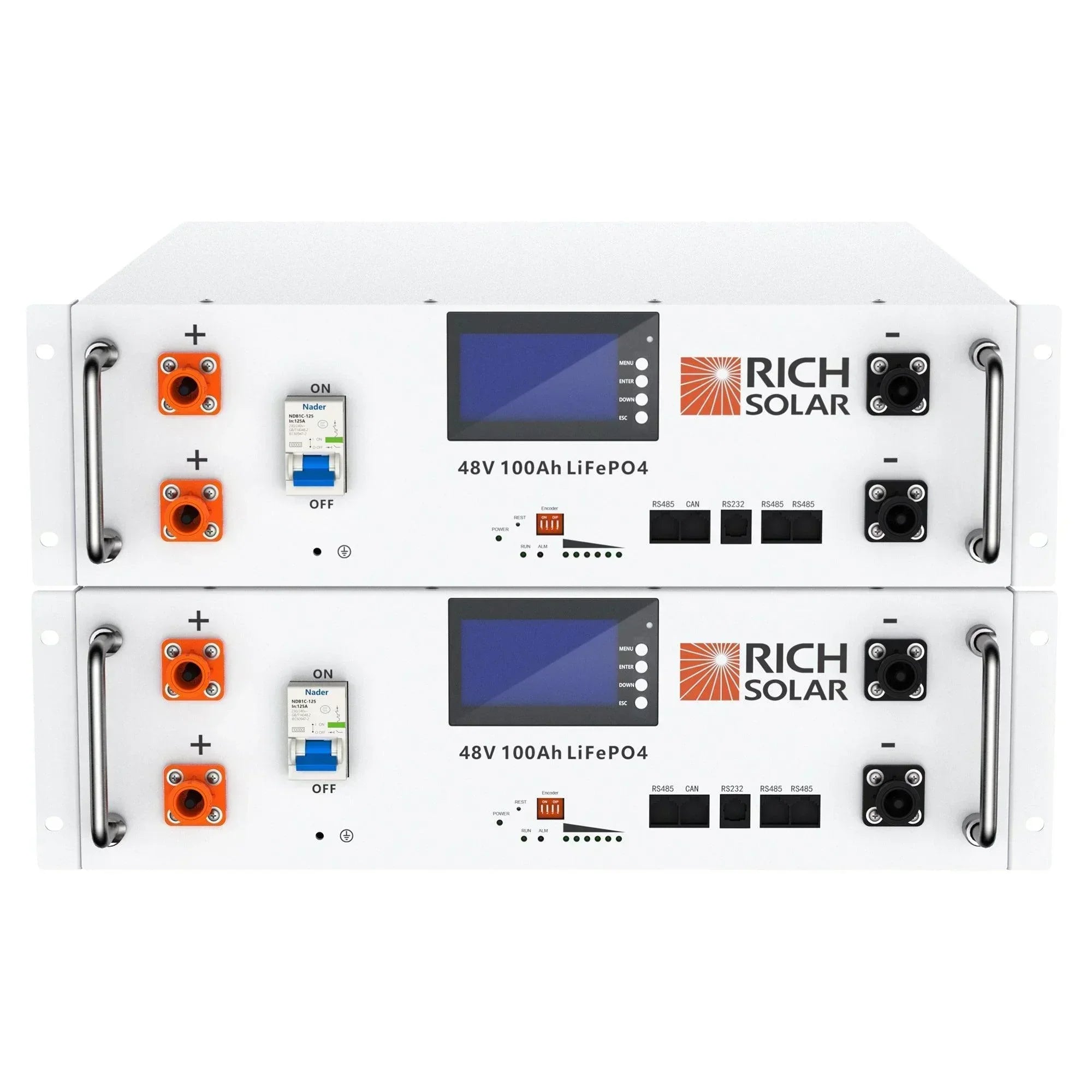

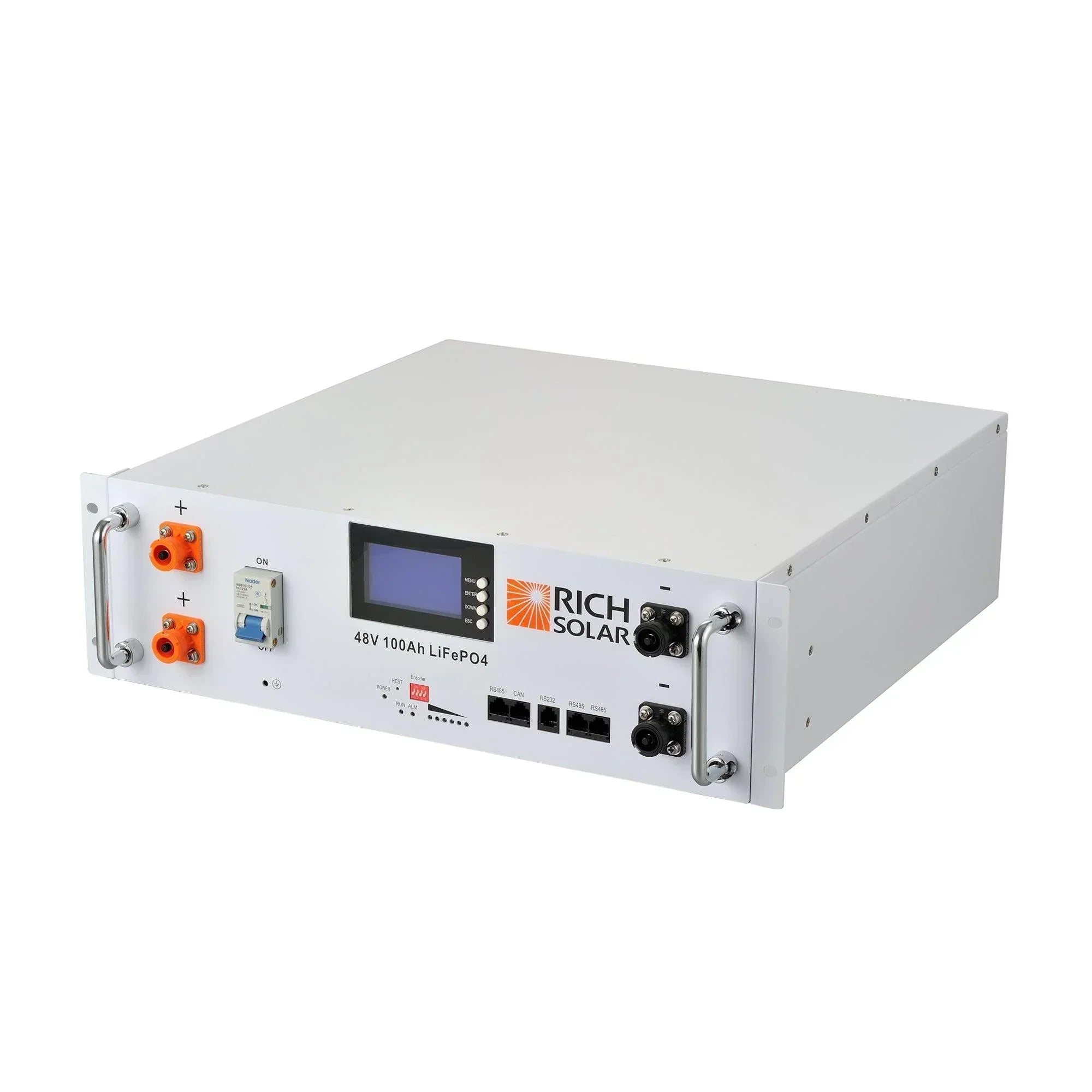

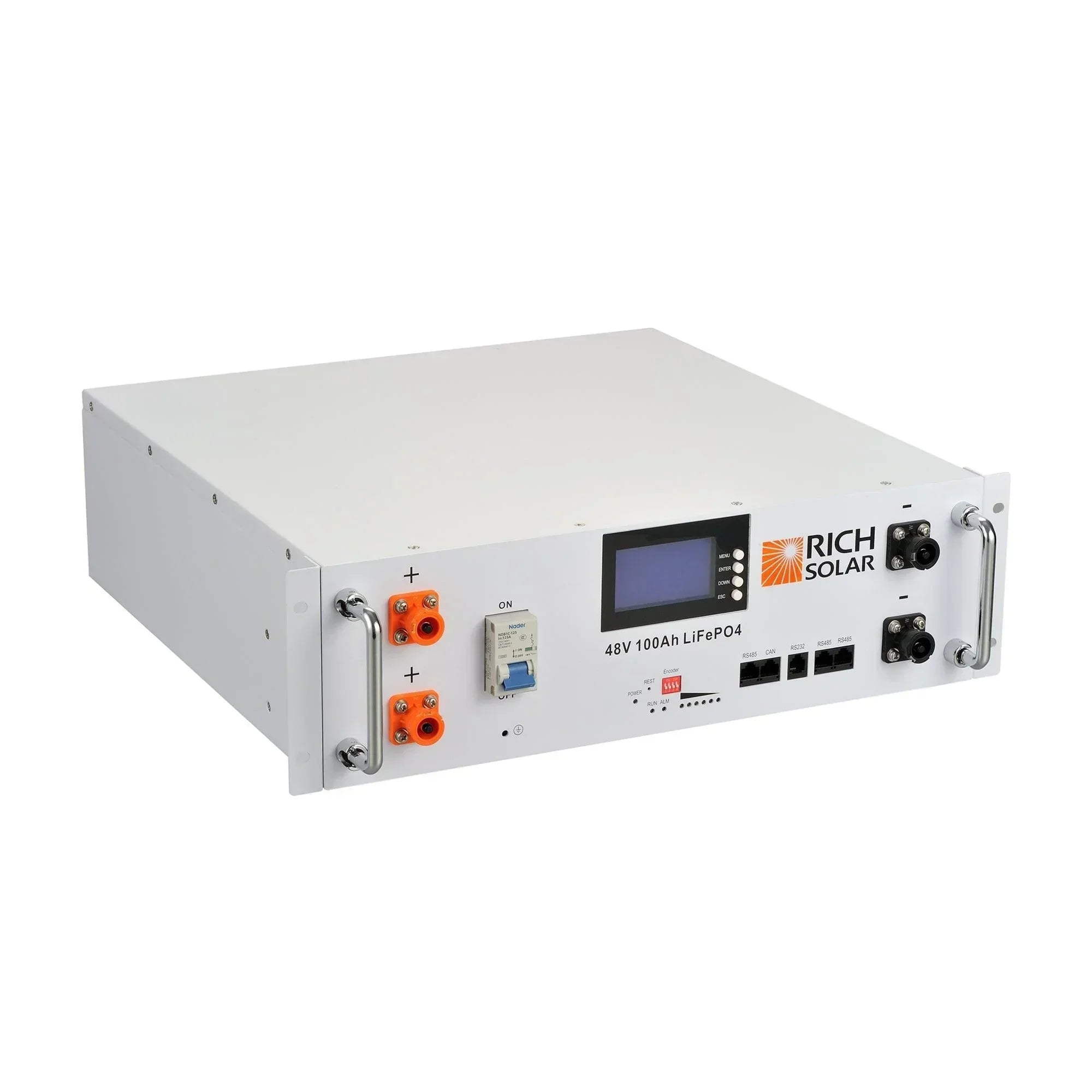

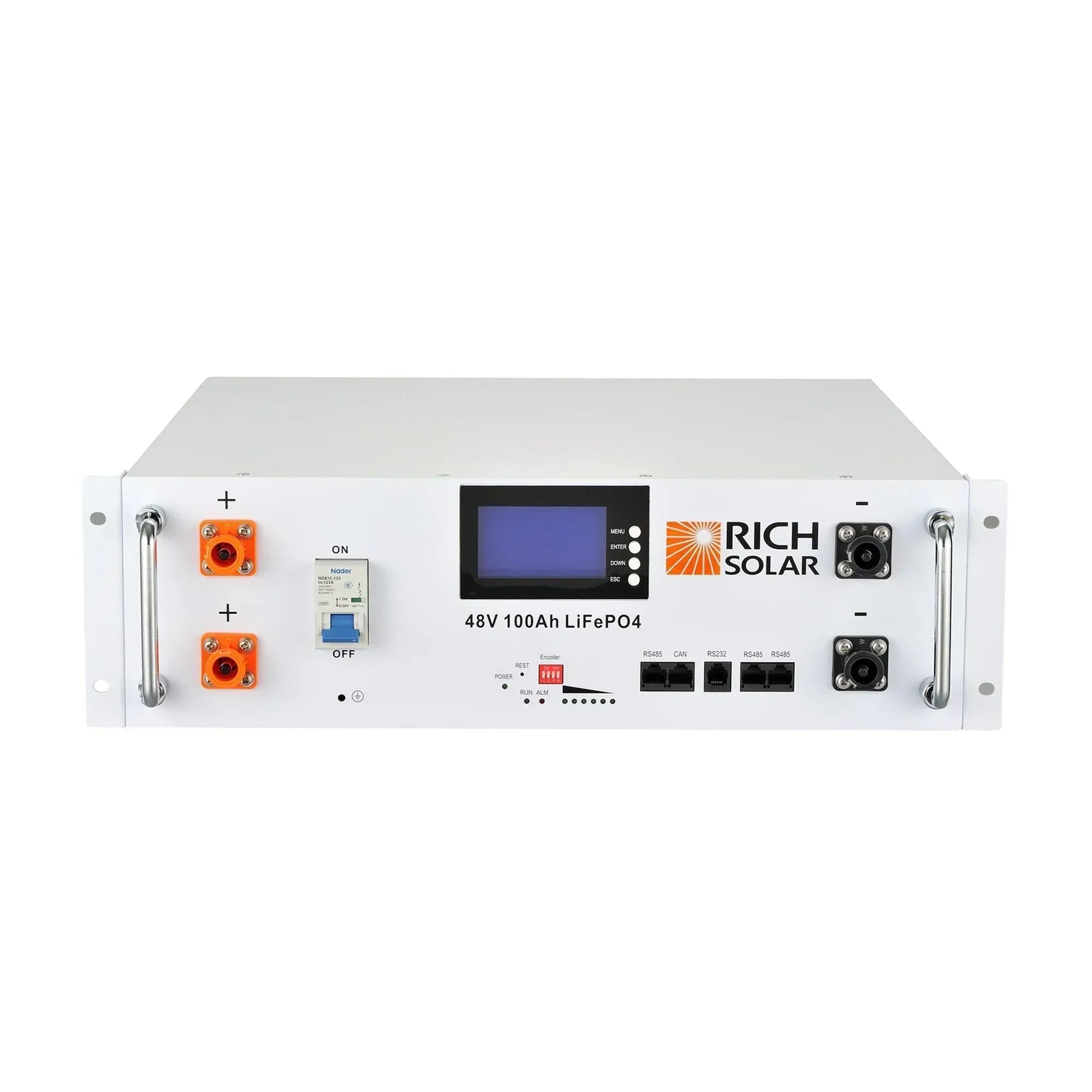

    ALPHA 5 | 48V 100Ah LiFePO4 Battery Server Rack Lithium for Residential, Commercial, Off-Grid




    7,000 Cycles. LiFePO4 Lithium Battery. 20 Years Lifespan.

    RICH SOLAR 48V 100Ah lithium iron phosphate battery (Alpha 5 Server) has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint.

    Features:

    • Extremely high number of charge/discharge cycles
    • 20 Year lifespan with proper maintenance
    • Built-in smart battery management system
    • Wide operating temperature range
    • Unsurpassed high temperature performance
    • Green energy without metal contaminant
    • Low maintenance
    • High amp capacity
    • Stable output voltage
    • Little self-discharge
    • Lifetime customer support
    • Over charging or discharging protection.
    • Over current & short circuit protection.
    • High & low temperature disconnects
    • Charge Voltage: 52.5V
    • Max Charge Current: 100 A
    • Max Discharge Current: 100 A
    • Battery Dimensions: 19"L x 18 3/4"W x 5 1/4"H
    • Weight: 92.6 lb

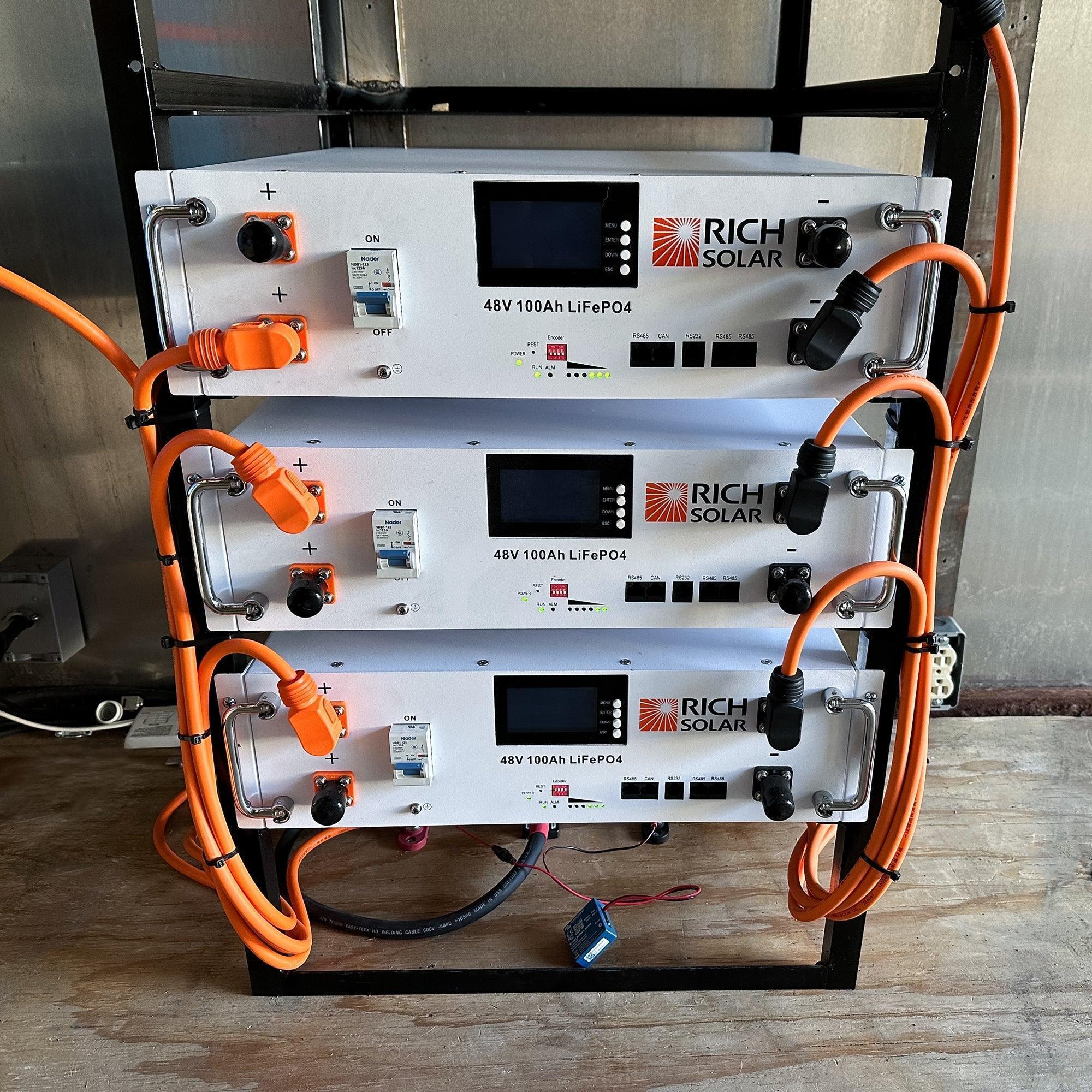

    • Connect in Parallel for Larger Capacity

    BMS Safety Protection

    • Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
    • Convenient removable carry handle
    • Lightweight
    • Short circuit protected
    • Physical damage to battery case will not cause fire
    • Excessive thermal exposure will not cause a fire
    • Able to withstand over-charge/over-discharge without damage to the battery
    • Sophisticated Battery Management System (BMS)

    Included:

    • 1 foot RS485 communication cable
    • Set of parallel cables per battery
    • 4.8kWh (48V 100Ah) lithium iron phosphate battery

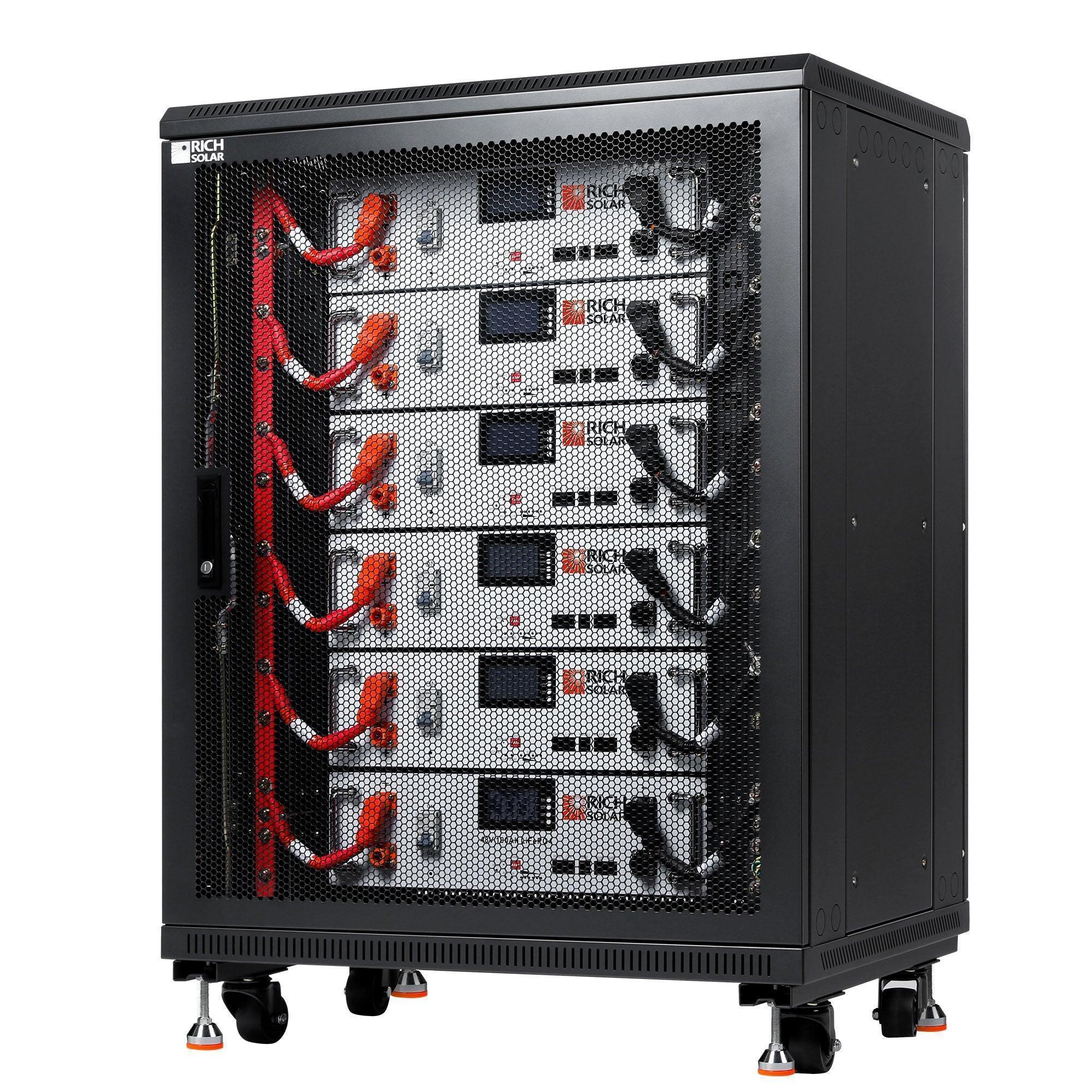

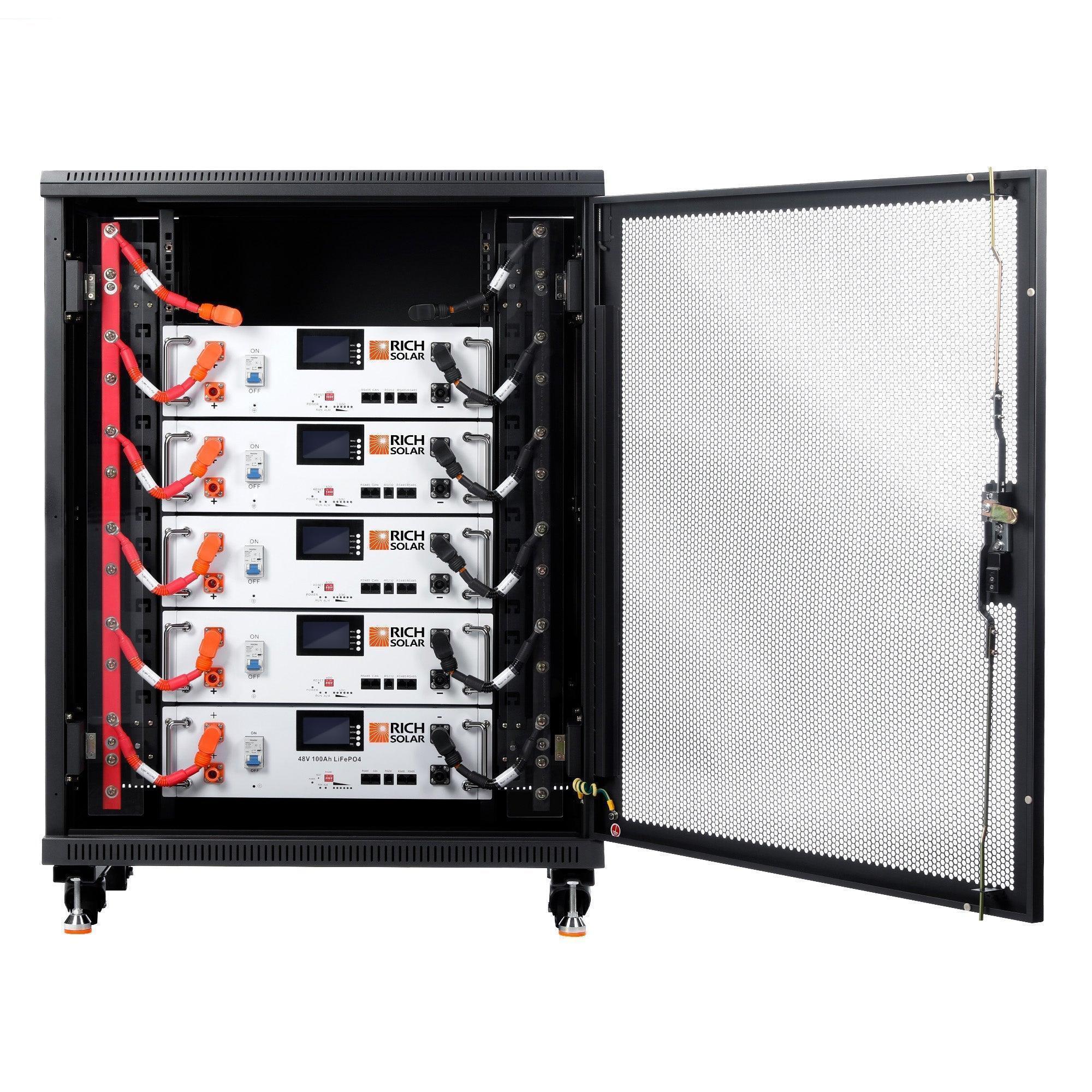

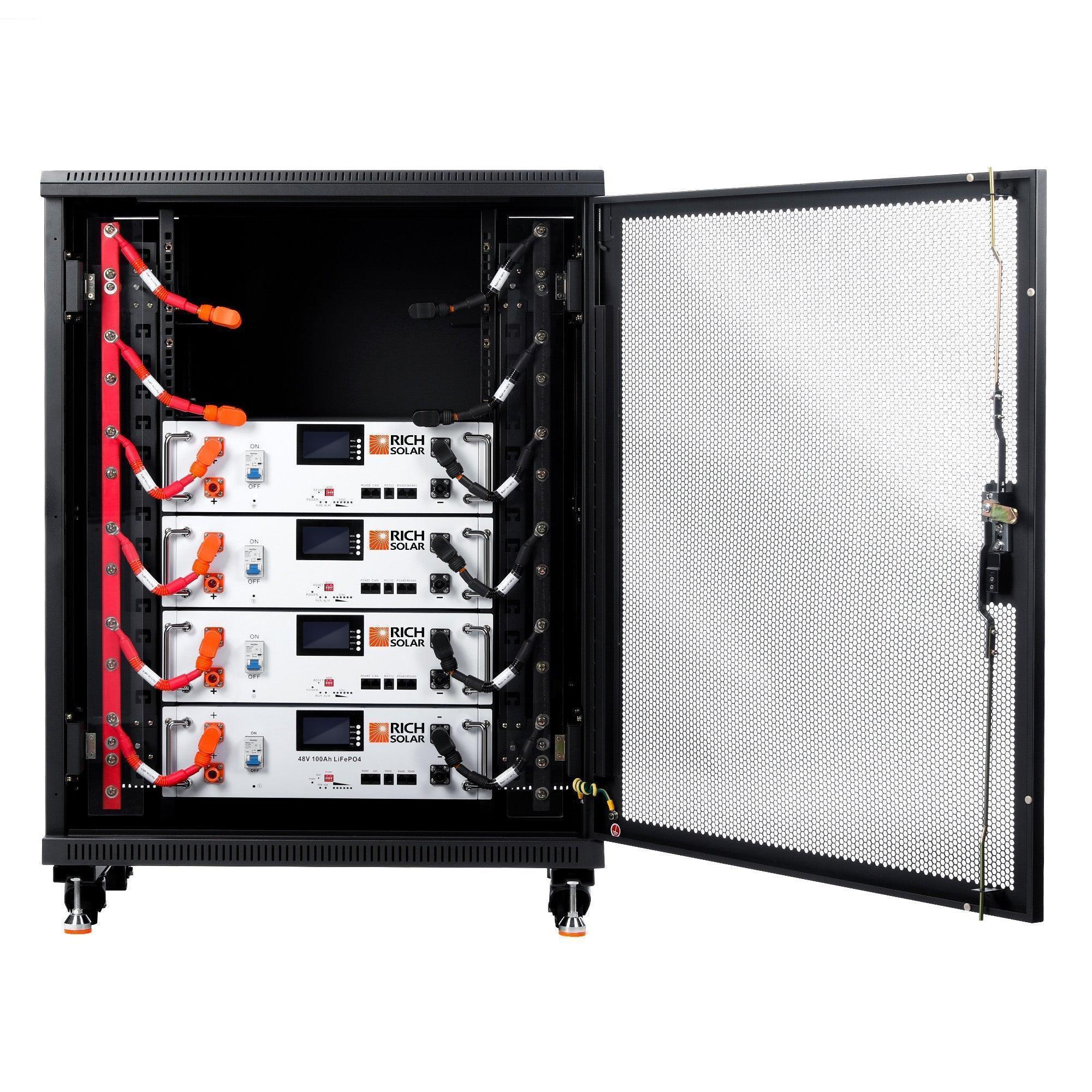

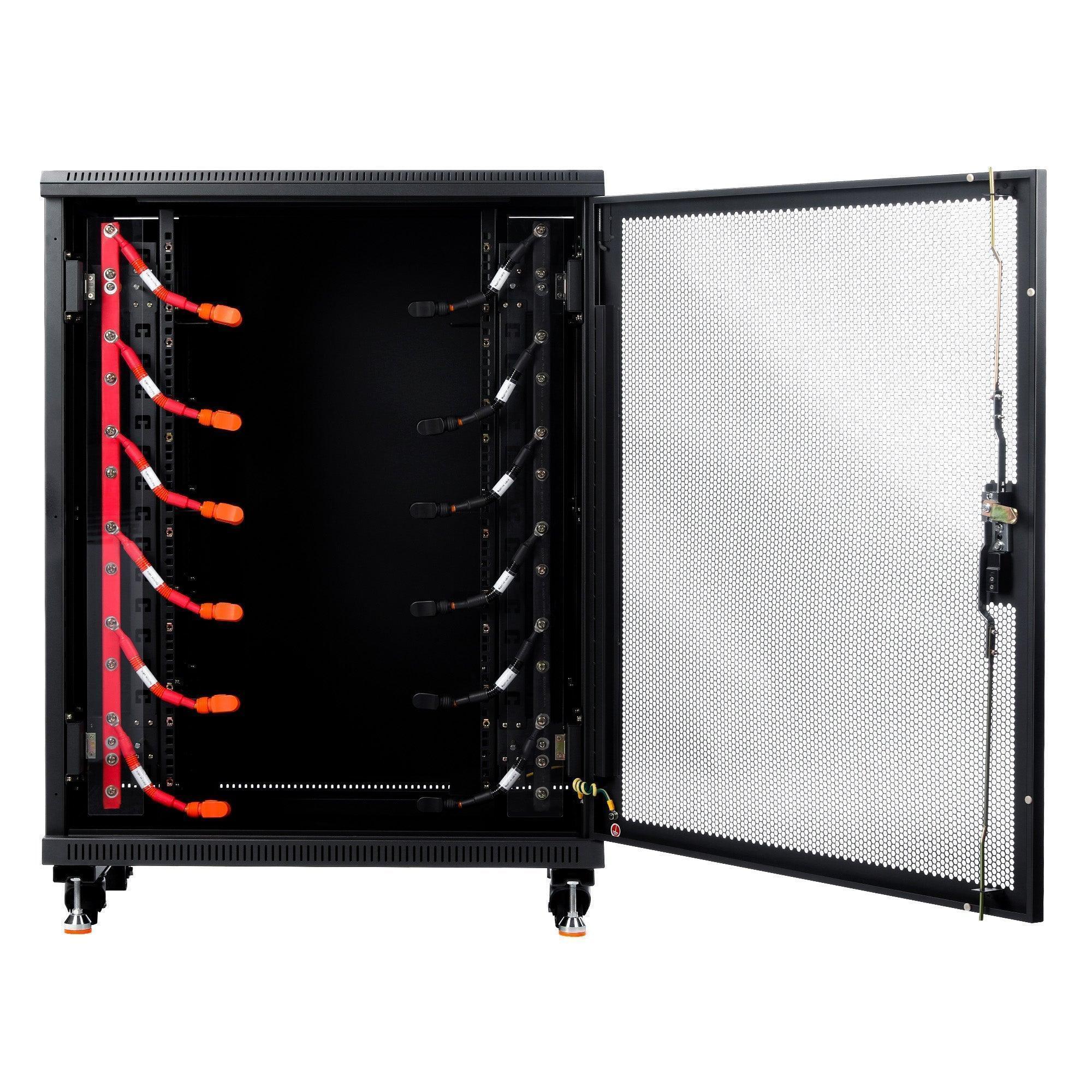

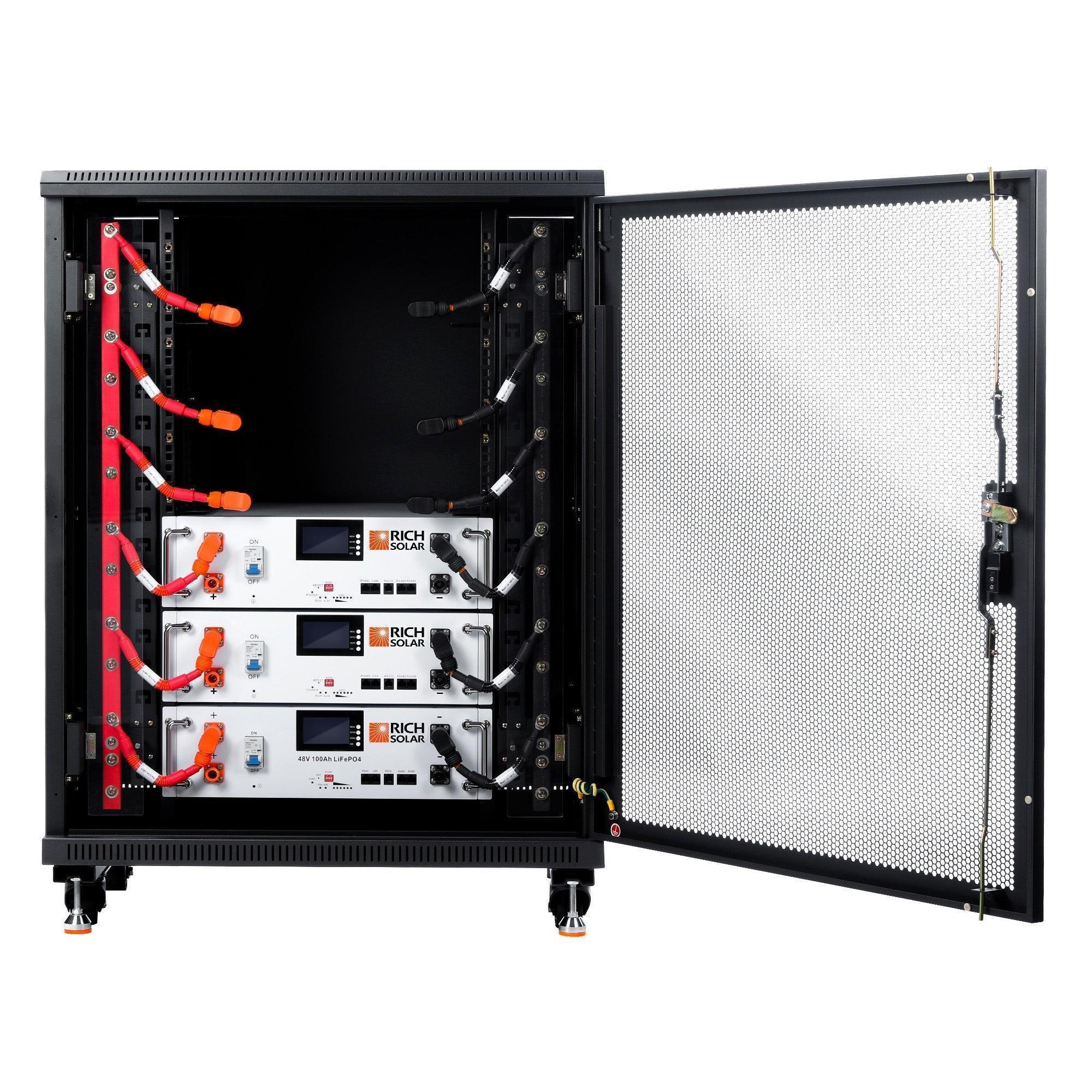

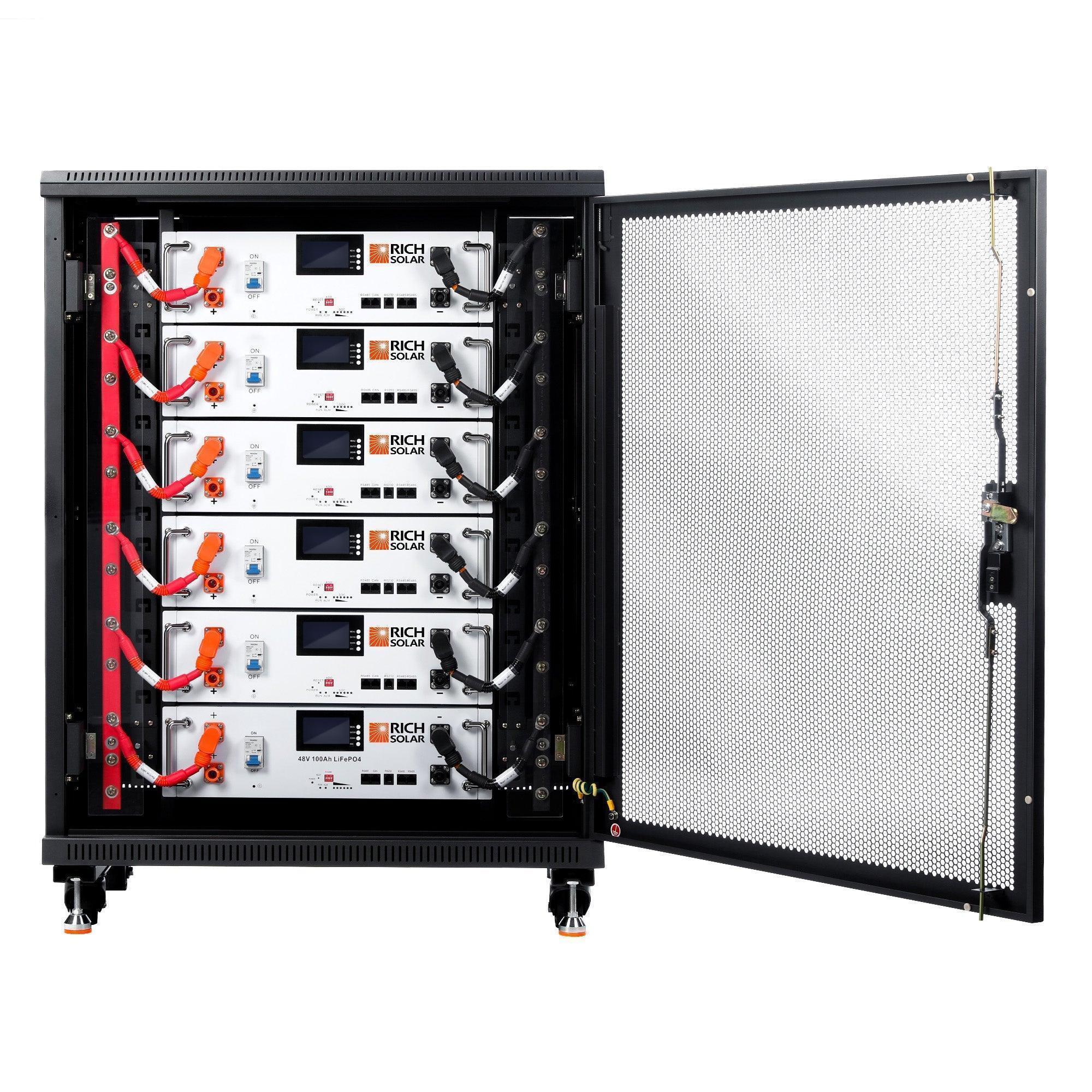

    Battery Server Rack

    • Battery Server Rack Dimensions: 39"L x 32"W x 24"H
    • Weight: 159 lb
    • Material: High-quality cold-rolled steel plate
    • Protection level: IP20
    • Packaging: Carton + wooden pallet

    Specifications

    Electrical Specifications

    Nominal Voltage:

    48V

    Nominal Capacity (at .5C, 77°F):

    100Ah

    Minimum Capacity (at .5C, 77°F):

    99.5Ah

    Expected Cycle Life:

    >7000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD

    Operating Specifications

    Charge Method:

    Smart charger, constant current, constant voltage

    Operating Voltage:

    48 V

    Capacity:

    100 Ah

    Energy:

    4800 Watt Hours

    Charge Voltage Range (Max 52.5V):

    52.0 -52.5V

    Continuous Charge Current:

    100A

    Continuous Discharge Current:

    100A

    Over Voltage Shutdown:

    52.5 +/-0.2V

    Discharge Cut-off Voltage:

    42V =/- 0.5V

    Self Discharge (stored at 50% SOC):

    <3%/month

    Waterproof:

    IP65

    Temperature Performance

    Charge Temperature:

    32° F to 113° F

    Discharge Temperature:

    -4° F to 122° F

    Storage Temperature:

    -4° F to 122° F

    BMS High Temperature Cut-off:

    149°F

    BMS Low Temperature Cut-off:

    32°F

    Physical Specifications

    Battery Dimensions(L*W*H):

    19x 17.7x 5.2 in

    Weight:

    42kg/92.6 lb

    Battery Server Rack Specifications

    Battery Server Rack Dimensions(L*W*H):

    27.6 x 27.6 x 44 in

    Weight:

    196 lb

    Thickness:

    Frame 1.5mm, top/bottom plate 1.2mm, column 2.0mm, mesh door plate 1.2mm, side plate (screw fixed) 1.0mm, L-shaped bracket 2.0mm;

    Material:

    High-quality cold-rolled steel plate

    Protection level:

    IP20

    BMS Operation


    Over Charge Protection

    Over charge detection voltage:

    3.9 +/- 0.05V

    Over charge detection delay time:

    0.96 – 1.4s

    Over charge release voltage:

    3.80 +/-0.05V

    Maximum charge voltage:

    3.65 +/-0.05V

    Over Discharge Protection

    Over discharge detection voltage:

    2.0V +/- 0.05V

    Over discharge detection delay time:

    115-173ms

    Over discharge release voltage:

    2.3V +/- 0.10V

    Over Current Protection Over current detection delay time:

    9 +/- 2ms

    Over current release condition:

    Cut load

    Polarity Reverse Protection: Yes

    Short Circuit Protection: Yes

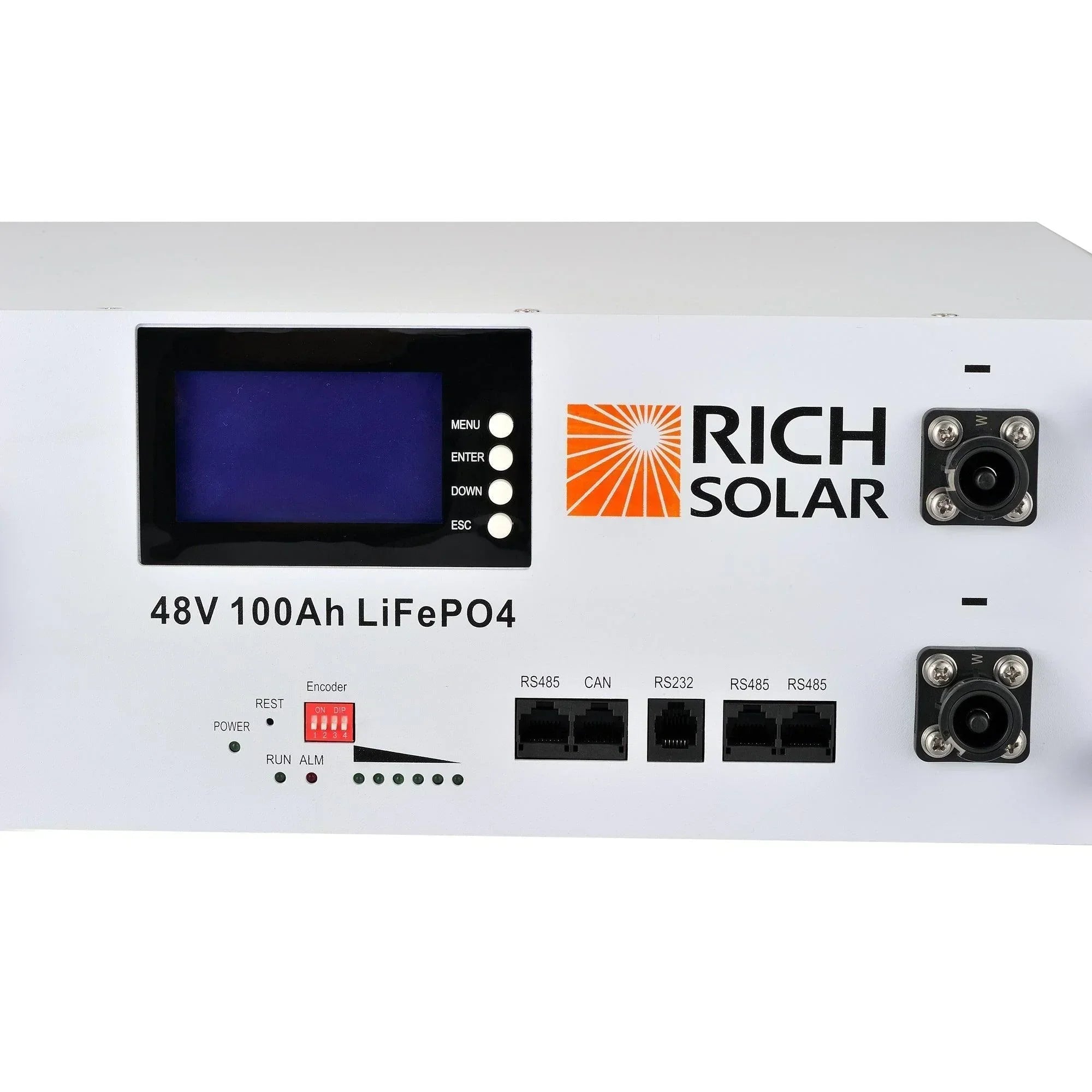

    Communication Ports: RS485/CAN

    Warranty: 10 Year Manufacturer Defect
