Rich Solar NOVA 12K PV Hybrid Inverter Solar Kit | 61.44kWH Server Lithium Battery [KIT-SR0002]

$27,999.00 USD $23,999.00 USD Save $4,000.00
Shipping calculated at checkout.
Rich Solar

Rich Solar NOVA 12K PV Hybrid Inverter Solar Kit | 61.44kWH Server Lithium Battery [KIT-SR0002]

$27,999.00 USD $23,999.00 USD Save $4,000.00
Shipping calculated at checkout.
Low Stock (5)
Payment & Security
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • ✔ Fast, insured shipping from US warehouses
  • ✔ Authorized dealer for every brand we sell
  • ✔ Backed by full manufacturer warranty
  • ✔ Questions? Email info@garagegeardirect.com

    • Usually ships within 3–5 days and delivers within 10 business days.

    NOVA 12K PV Hybrid Inverter Solar Kit | 61.44kWH Server Lithium Battery [KIT-SR0002]

    This kit includes:

    • 1 x NOVA 12K PV Hybrid Inverter 12000W PV Input | 10000W Output | 48V 120/240V Split Phase (RS-H12K)
    • 12 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P)
    • 2 x Free Battery Rack

    • ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery

      Features:

      • Certification: UL1973, UL9540A, FCC
      • 7,000 Deep Cycles Life
      • 5120 Watt Hours Energy
      • 100A Continuous Charge Current
      • Compatible with multiple brands of inverters
      • Low maintenance
      • Over charging or discharging protection
      • Overcurrent & short circuit protection
      • Parallel up to 15 Batteries
      • Connect in Parallel for Larger Capacity
      • With Sophisticated Battery Management System (BMS)
      • 10 Years Lifespan

      Warranty:

      • *10-Year Warranty

      Specifications:

      Electrical Specifications

      • Nominal Voltage: 51.2V
      • Nominal Capacity: 100Ah
      • Minimum Capacity: 99.5Ah
      • Nominal Capacity: 5120Wh

      Operating Specifications

      • Charging Voltage: 56V
      • Discharging Cutoff Voltage: 44.8V
      • Maximum Charging Current: 100A
      • Continuous Charge Current: 100A
      • Maximum Discharge Current: 100A

      Physical Specifications

      • Battery Dimensions: 17.7"L x 17.8"W x 5.2"H
      • Battery Weight: 99.2 lb

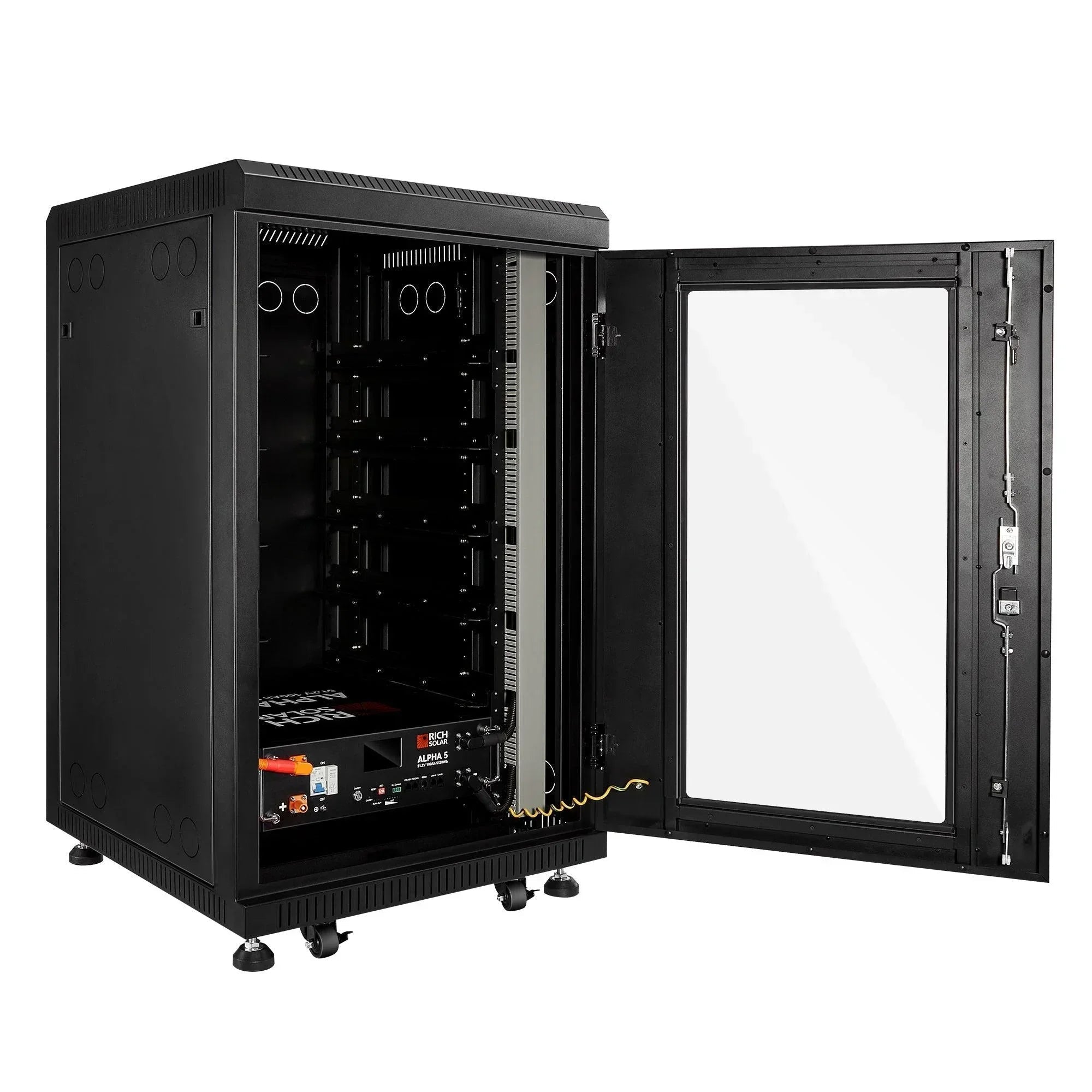

      • Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
      • Server Rack Weight: 196.2 lb

      BMS Operation

      • Operation Voltage: 43.2~58.4V
      • Maximum Charging Current: 100A
      • Maximum Discharging Current: 100A
      • Maximum Charge Voltage (CC/CV): 57.6V
      • Overcharge Protection Voltage (Battery): 58.4V
      • Overcharge Protection Release Voltage (Battery): 54V
      • Over Discharge Protection Voltage (Battery): 43.2V
      • Over Discharge Protection Release Voltage (Battery): 47.2V
      • Over Discharge Primary Charge Overcurrent Protection Value: 110A
      • First Stage Charge Over Current Delay: 1s
      • Primary Discharge Overcurrent Protection Value: 110A
      • Primary Discharge Overcurrent Protection Delay: 1s
      • Secondary Discharge Overcurrent Protection Value: 150A
      • Secondary Discharge Overcurrent Protection Delay: 500ms

      Temperature Performance

      • Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
      • Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
      • Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
      • Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

      Others

      • Certification: UL1973, UL9540A, FCC
      • Max. Expansion: 15 pcs in parallel
      • Communication Ports: RS485/RS232/CAN
      • Warranty: 10 Years Manufacturer Defect

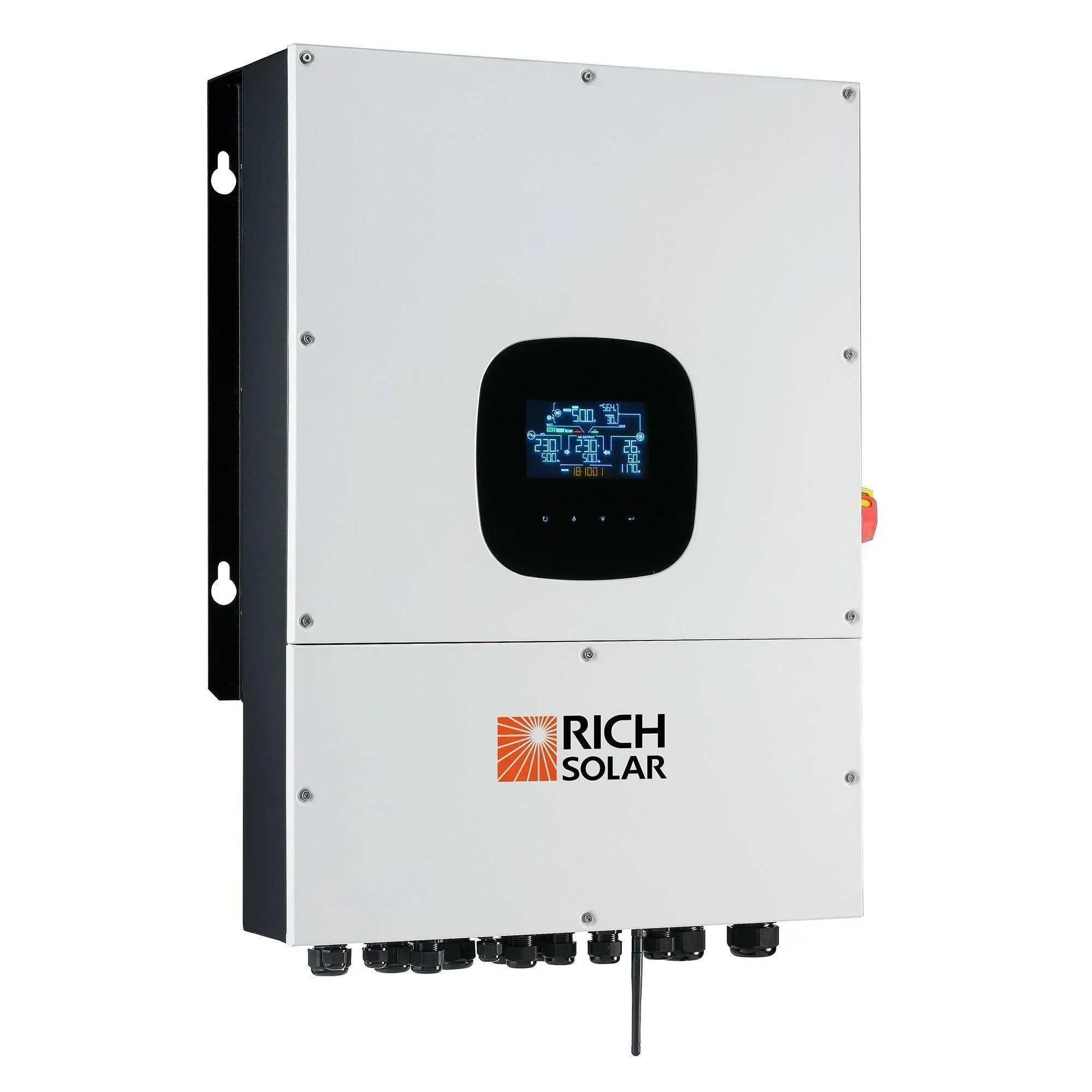

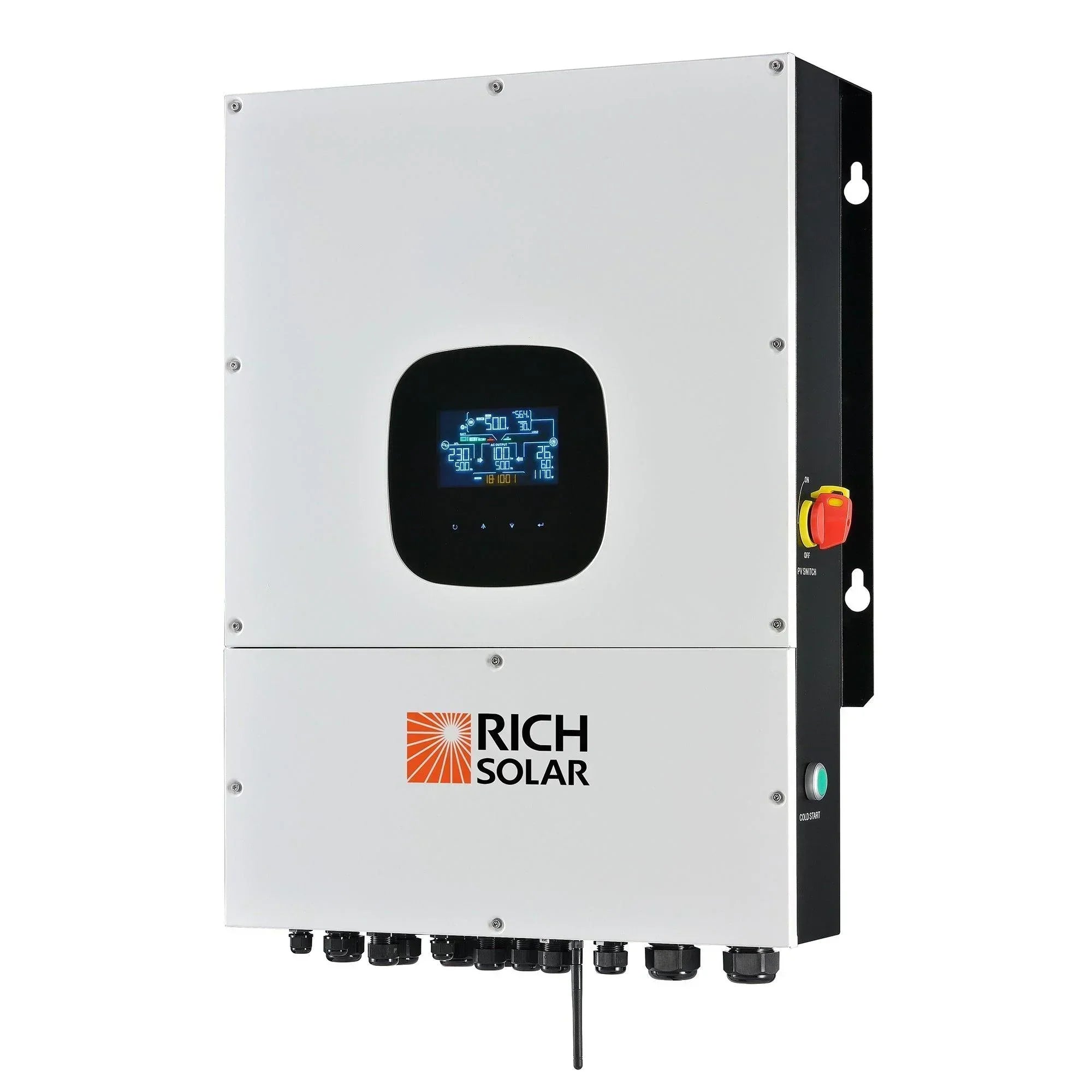

      NOVA 12K PV Hybrid Inverter 12000W PV Input

      Features:

      • Support multiple input & output - Split phase 120/240VAC Split phase, 120V/208V Split phase
      • Door-type cable compartment.
      • Built-in 300A DC breaker and 60A AC breaker.
      • Built-in AC coupled function.
      • Built-in Wi-Fi for mobile monitoring (APP is available).
      • Accepts second input power source, generator input compatible.
      • Built-in arc fault detection (AFD) and rapid shutdown (RSD).
      • External CT sensor to guarantee 100% self-consumption.
      • Built-in communication port for BMS (RS485).
      • User-adjustable charging current and voltage.
      • Parallel operation up to 6 units.
      • Idle Consumption: -150W (±10%)

      Specifications:

      Input

      • Maximum PV Input Power:12000W
      • Maximum DC Voltage:600VDC
      • Start-up Voltage/Initial Feeding Voltage:125VDC/160VDC
      • MPPT Voltage Range:120VDC-550VDC
      • Number of MPPT Trackers/Maximum Input Current:2/18A

      Input

      • Rated Output Power:10000VA/10000W
      • Nominal Output Voltage:120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
      • Output Voltage Range:105.5–132VAC per phase
      • Nominal Output Current:41.5A per phase

      • Battery

      • Battery DC Voltage Range:40–62VDC/48VDC
      • Maximum Solar Charging Current:200A
      • Maximum AC Charging Current:200A
      • Maximum Charging Current:200A

      Operating Environment

      • Operating Temperature Range:-13°F to 140°F(>113°F derating)
      • Protection Degree:IP65
      • Communication Port:RS232, RS485, Wi-Fi, USB

      Physical

      • Dimension (LxWxH):8.5x20.3x28.1in/215.5x515x715mm
      • Net Weight:99.2lb/45kg

      Certificate

      • Certificate:UL1741SA, UL1741SB, CSA 22.2.107.1, CEC
