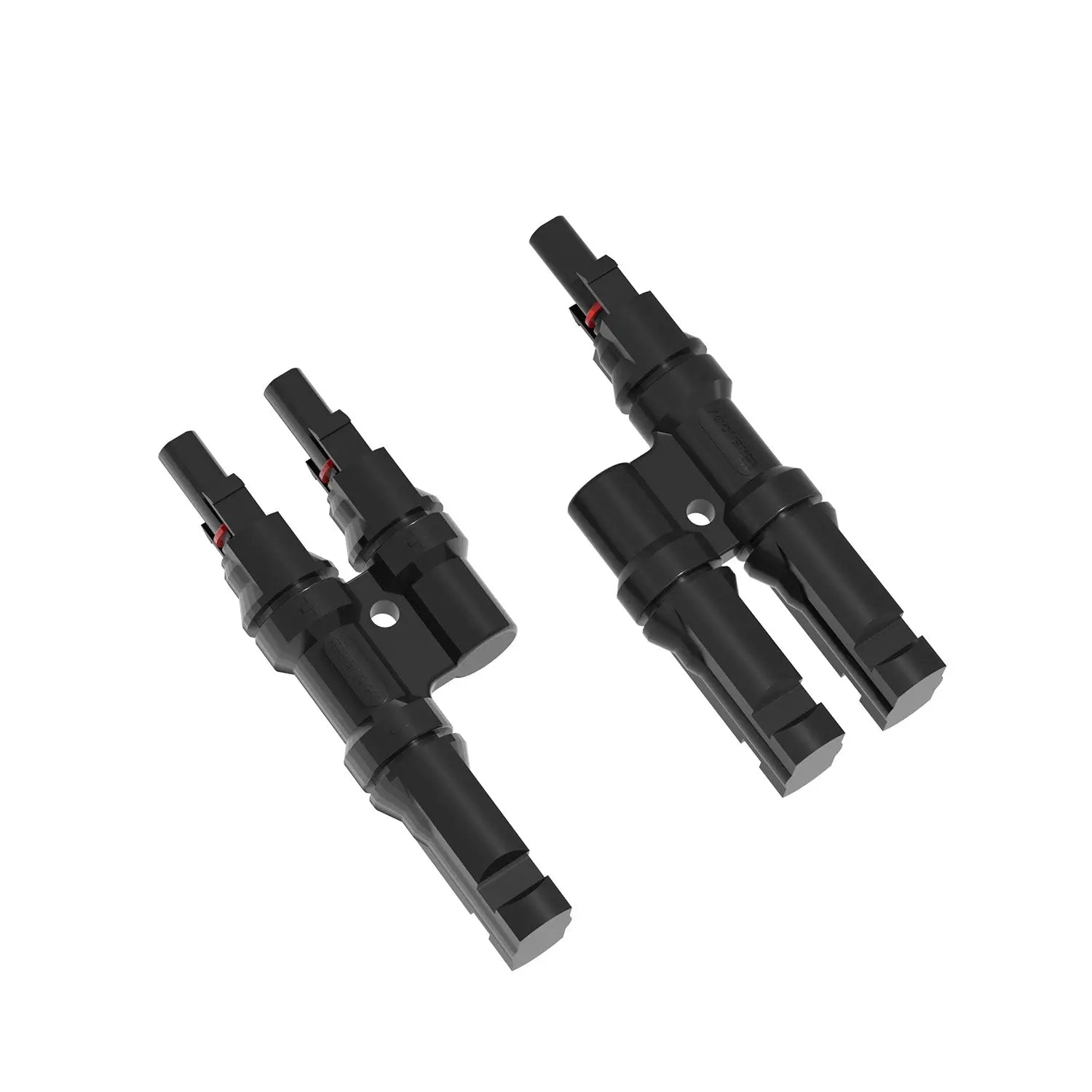

Solar Y Branch Connectors MMF+FFM Pair
Solar Y Branch Connectors MMF+FFM Pair
products.product.pickup_availability.unavailable
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Usually ships within 3–5 days and delivers within 10 business days.
Description
Solar Y Branch Connectors are used for parallel wiring solar panels (PV modules). Sold as a pair, these “Y-Connectors” will maintain the voltage of the solar panel configuration to match the battery size. These connectors are solely compatible with Solar connectors and come with one male (MMF) and one female (FFM) connector. Use these Solar Branch Connectors to make tight, waterproof connections.
NOTE
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center
Key Features
- Hard plastic
- One FFM and one MMF
Package Includes
|
Solar Y Branch Connectors MMF+FFM Pair
1 x
|
| Solar Y Branch Connectors MMF+FFM Pair | |
|---|---|
| Withstanding voltage: 1000V DC(TUV), 600V(UL) | Contact Resistance: 1m |
| Protection Class: Class II | Temperature: -40°F to +194°F |
| Protection Degree: IP67, mated | Unmating Force:147.51Ft·lb |
| Insulation Material: PC/PA | Contact Material: Copper, silver plated |
| Flame Class: UL94-V0 or UL94-5VA | Rated Current: 50A |
| Warranty Information: Accessories 1-year material warranty |
 |
| Brand | Renogy |
| Category | Solar Accessories |
| SKU | RNG-CNCT-MC4Y-US |
| Weight | 0.14 kg |
