Supreme SP-10CFX 10,000 lb Clear Floor 2 Post Car Lift

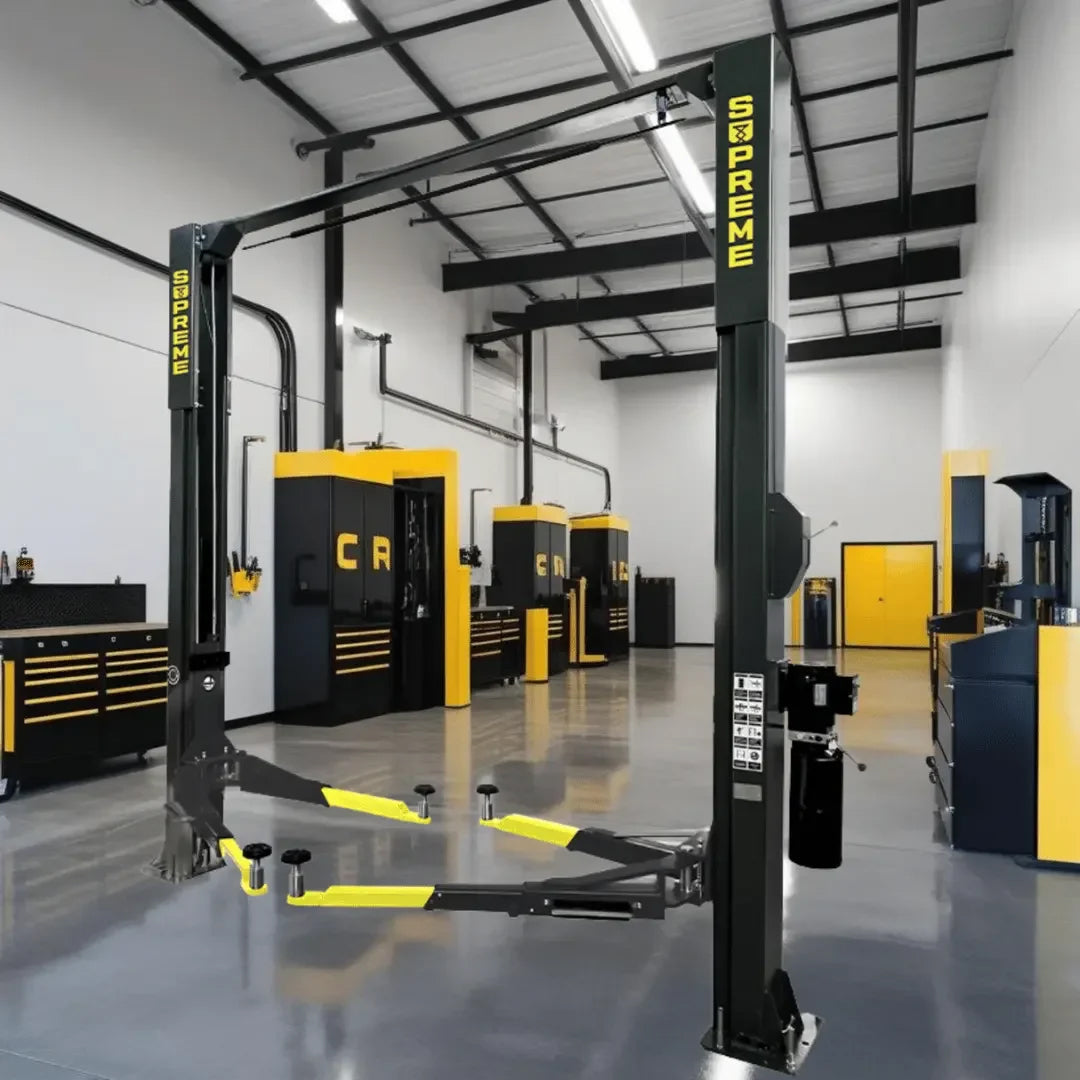

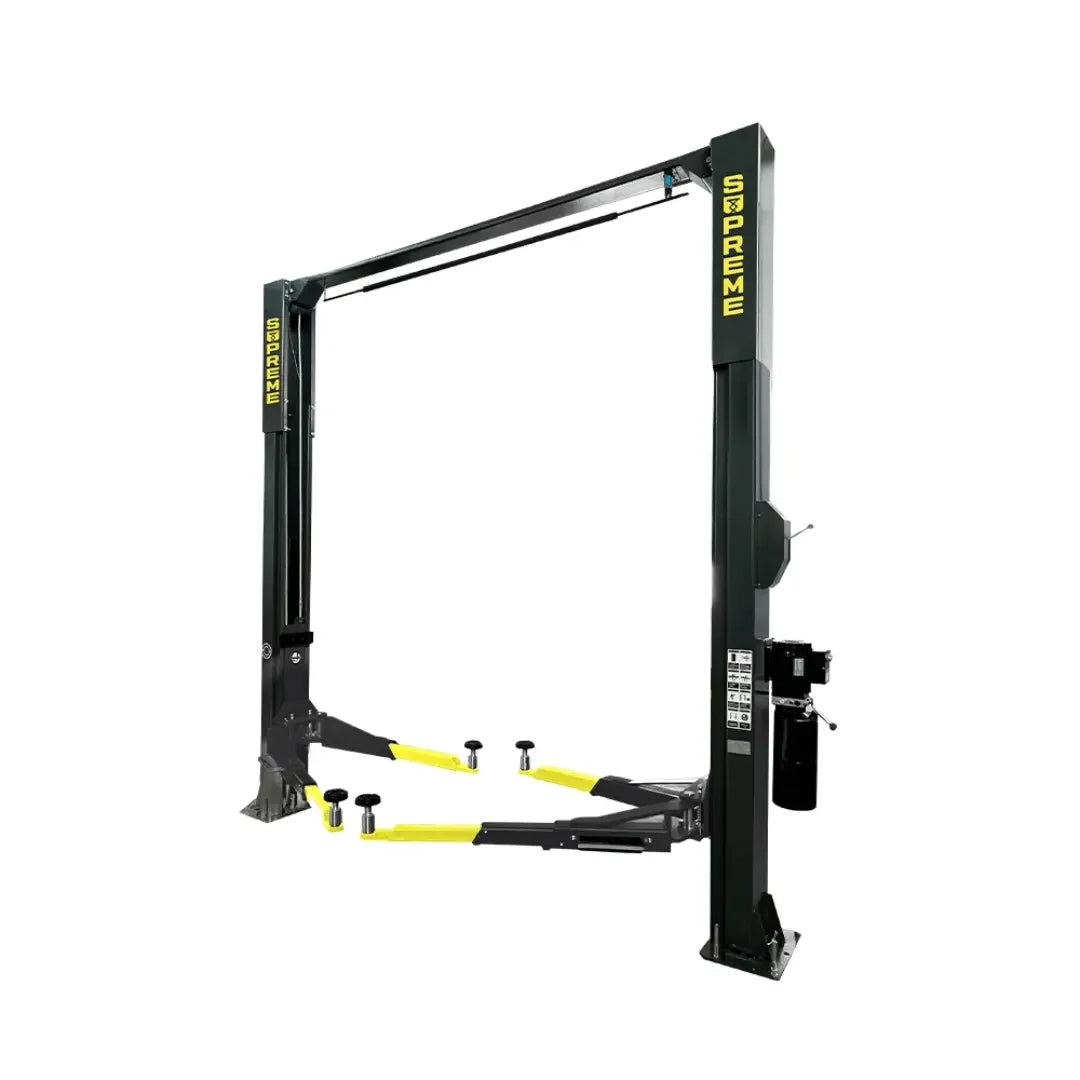

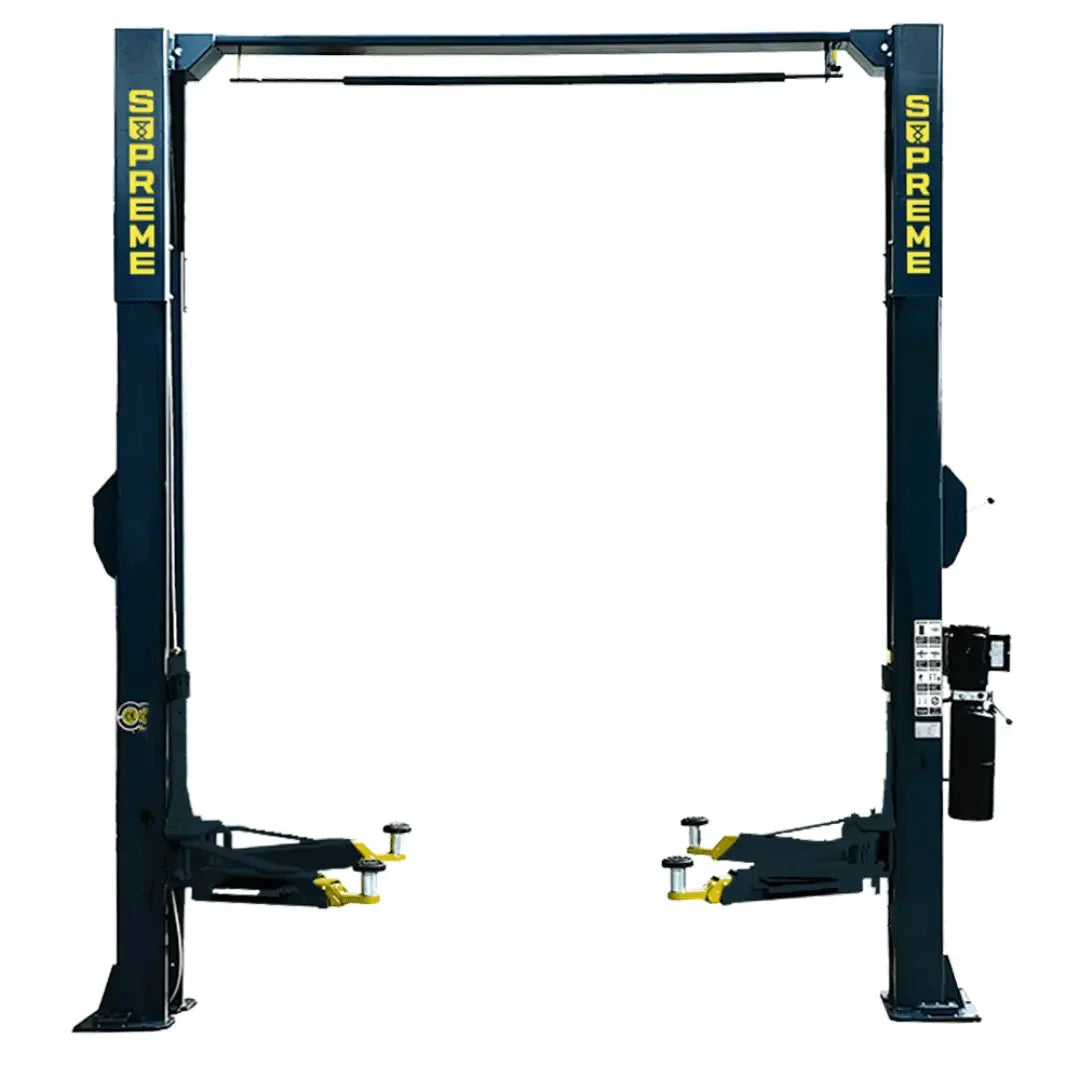

The Supreme SP-10CFX Clear Floor 2 Post Car Lift is engineered for professional-grade lifting performance, durability, and maximum under-vehicle accessibility. With a 10,000 lb lifting capacity, this lift is ideal for servicing cars, SUVs, and light-duty trucks in commercial shops or home garages.
The clear floor design provides unobstructed workspace beneath the vehicle, allowing for easier movement of tools, transmission jacks, and shop equipment while improving overall workflow efficiency. Featuring triple telescoping arms, a direct drive hydraulic system, asymmetric arm configuration, and multiple built-in safety features, the SP-10CFX delivers dependable lifting power and long-term reliability for demanding automotive service environments.
Designed with both technician convenience and vehicle protection in mind, the SP-10CFX includes adjustable arm adapters, rubber door guards, and an overhead shutoff bar for enhanced safety and usability during operation.
Product Features
- 10,000 lb Lifting Capacity: Handles cars, SUVs, and light-duty trucks with ease.
- Triple Telescoping Arms: Provides extended reach, flexibility, and vehicle coverage for a wide range of lifting points.
- Direct Drive Hydraulic System: Delivers smooth lifting performance with reduced maintenance requirements.
- Single Point Lock Release: Allows for convenient and controlled lock disengagement during operation.
- CE Certified: Tested to 115% dynamic and 150% static load capacity for added reliability and safety.
- Asymmetric Arm Configuration: Improves vehicle door clearance and provides easier cabin access while lifted.
- Overhead Shutoff Bar: Helps prevent accidental over-extension during lifting.
- Adjustable Arm Adapters: Includes a 3.94" to 6" extension range for improved vehicle compatibility.
- Rubber Door Guards: Protects vehicle paint and trim from accidental contact during service work.
- High-Efficiency Hydraulic Power Unit: Features a 3.0HP / 220V / 60HZ / 1PH motor for dependable lifting performance.
Product Specifications
| Lift Model | SP-10CFX |
| Capacity | 10,000 lbs |
| Overall Height | 141.25" |
| Overall Width | 134.65" |
| Maximum Lifting Height | 70.85" |
| Minimum Pad Height | 3.75" |
| Drive-Thru Clearance | 99.75" |
| Outside Column Width | 120.5" |
| Motor / Power | 3.0HP / 220V / 60HZ / 1PH |
| Overall Weight | 1,367 lbs |
| Brand | KATOOL |
| Category | Vehicle Lifts |
| SKU | KATOOL-9258188341484-47650042052844 |
| Weight | 620.06 kg (1367.0 lbs) |
